GE JVM1490BD002 microwave Parts
Here are the diagrams and repair parts for GE JVM1490BD002 microwave, as well as links to manuals and error code tables, if available.
Owner’s manual
By Schematic
SELECT DIAGRAM
Browse Parts for JVM1490BD002 Microwave

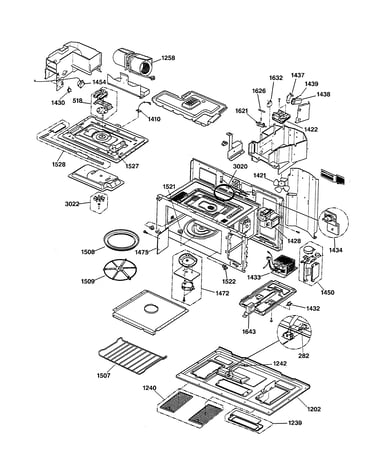

Unit parts & base diagram
Fuse(250v/20
Part #WB27X10114Replaced by #WB27X10928
Manufacturer substitutionThis part replaces WB27X10114. Substitute parts can look different from the original.In Stock$13.3113% OFF Phone Price : $15.31
Qty

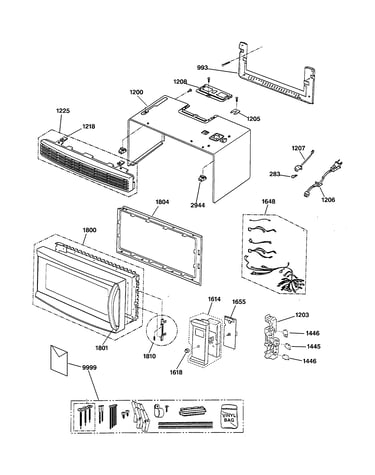

Control panel, door, grille & base diagram
Microwave Primary Interlock Switch
In Stock$42.2412% OFF Phone Price : $48.24QtyUnit parts & base diagram
Microwave Thermal Cut-off
Part #WB21X10046Replaced by #WB20X10048
Manufacturer substitutionThis part replaces WB21X10046. Substitute parts can look different from the original.In Stock$13.3813% OFF Phone Price : $15.38QtyUnit parts & base diagram
Lamp 12v 20w
Part #WB36X10176Replaced by #WB01X10239
Manufacturer substitutionThis part replaces WB36X10176. Substitute parts can look different from the original.In Stock$37.1314% OFF Phone Price : $43.13QtyUnit parts & base diagram
Glass Tray
Part #WB49X10074Replaced by #WB49X10129
Manufacturer substitutionThis part replaces WB49X10074. Substitute parts can look different from the original.In Stock$102.3010% OFF Phone Price : $114.30QtyUnit parts & base diagram
Microwave Grease Filter
In Stock$42.1012% OFF Phone Price : $48.10QtyUnit parts & base diagram
Base Plate Assembly
In Stock$159.74QtyControl panel, door, grille & base diagram
Lamp Reflector
In Stock$63.94QtyUnit parts & base diagram
Microwave High-voltage Diode
In Stock$37.0214% OFF Phone Price : $43.02QtyControl panel, door, grille & base diagram
Power Cover
In Stock$7.9811% OFF Phone Price : $8.98Qty
