Admiral CREA300ACL electric freestanding range Parts
Here are the diagrams and repair parts for Admiral CREA300ACL electric freestanding range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

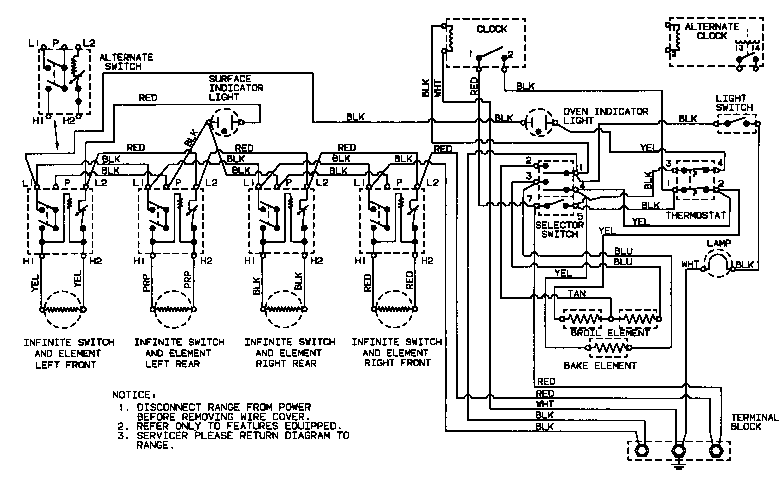

SELECT DIAGRAM
Browse Parts for CREA300ACL Ranges
Body diagram
Terminal Block
Part #7401P039-60Replaced by #WPW10245259
Manufacturer substitutionThis part replaces 7401P039-60. Substitute parts can look different from the original.In Stock$27.9118% OFF Phone Price : $33.91
Qty

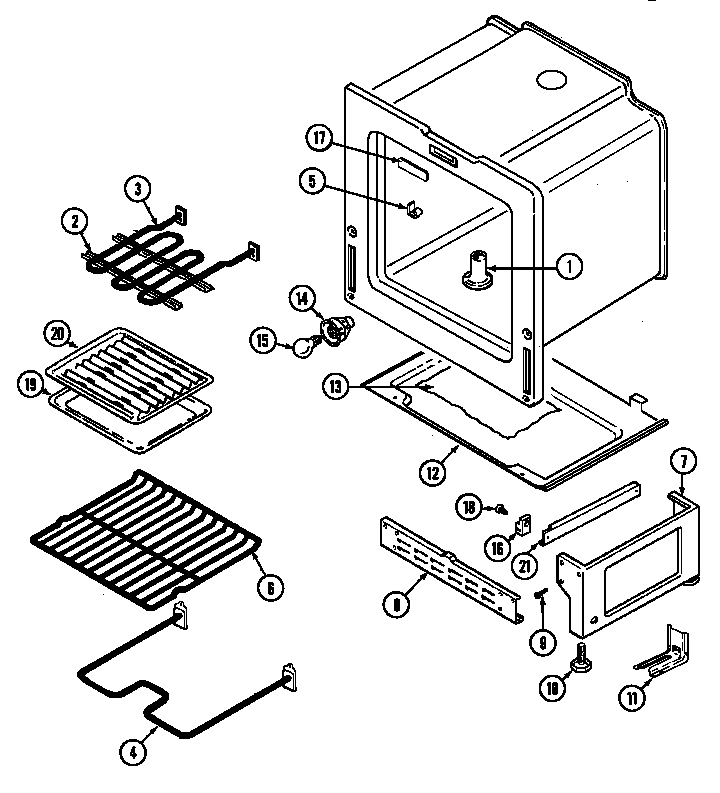

Oven/base diagram
Screw
Part #7101P344-60Replaced by #WP7101P485-60
Manufacturer substitutionThis part replaces 7101P344-60. Substitute parts can look different from the original.In Stock$28.2618% OFF Phone Price : $34.26QtyOven/base diagram
Oven Rack
Part #7801P047-60Replaced by #WPW10282492
Manufacturer substitutionThis part replaces 7801P047-60. Substitute parts can look different from the original.In Stock$67.328% OFF Phone Price : $73.32QtyOven/base diagram
Broiler Element
Part #04000059Replaced by #WPY04000059

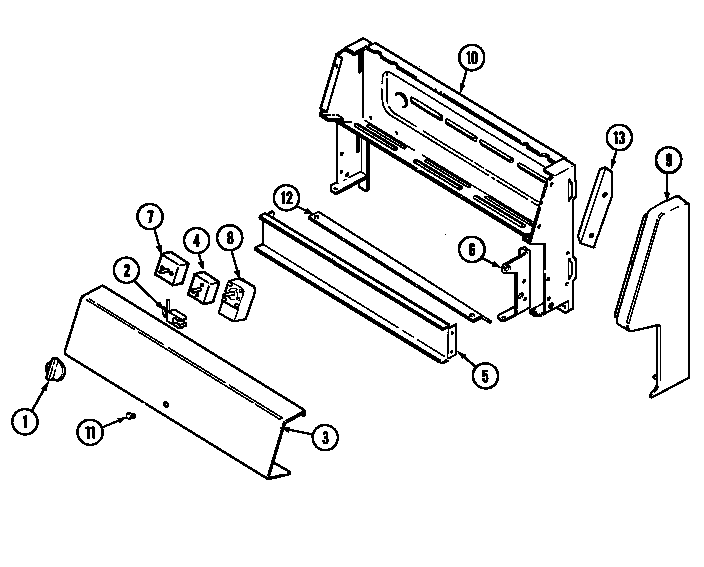

Manufacturer substitutionThis part replaces 04000059. Substitute parts can look different from the original.In Stock$185.78QtyControl panel diagram
Screw
Part #7101P338-60Replaced by #W11233072
Manufacturer substitutionThis part replaces 7101P338-60. Substitute parts can look different from the original.In Stock$17.63QtyControl panel diagram
Range Oven Selector Switch
Part #7403P255-60Replaced by #WP7403P255-60
Manufacturer substitutionThis part replaces 7403P255-60. Substitute parts can look different from the original.In Stock$142.88QtyControl panel diagram
Range Indicator Light Lens
Part #7730P012-60Replaced by #W11690131

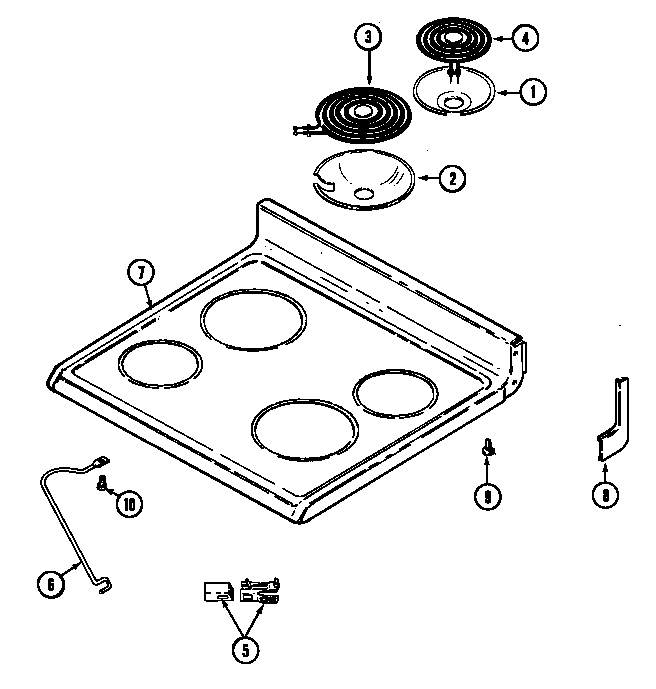

Manufacturer substitutionThis part replaces 7730P012-60. Substitute parts can look different from the original.In Stock$28.38QtyTop assembly diagram
Drip Bowl
Part #74001213Replaced by #WPW10196405
Manufacturer substitutionThis part replaces 74001213. Substitute parts can look different from the original.In Stock$6.8613% OFF Phone Price : $7.86QtyDoor/drawer diagram
Panel Screw
Part #7101P041-60
The manufacturer no longer makes this part, and there's no substitute part
Body diagram
Insulation
Part #4804F044-60
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your ranges
Choose a symptom to see related range repairs.
Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…
