Goldstar
Microwave/Hood Combo

Model # MV1501W Official Goldstar microwave

Here are the diagrams and repair parts for Official Goldstar MV1501W microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

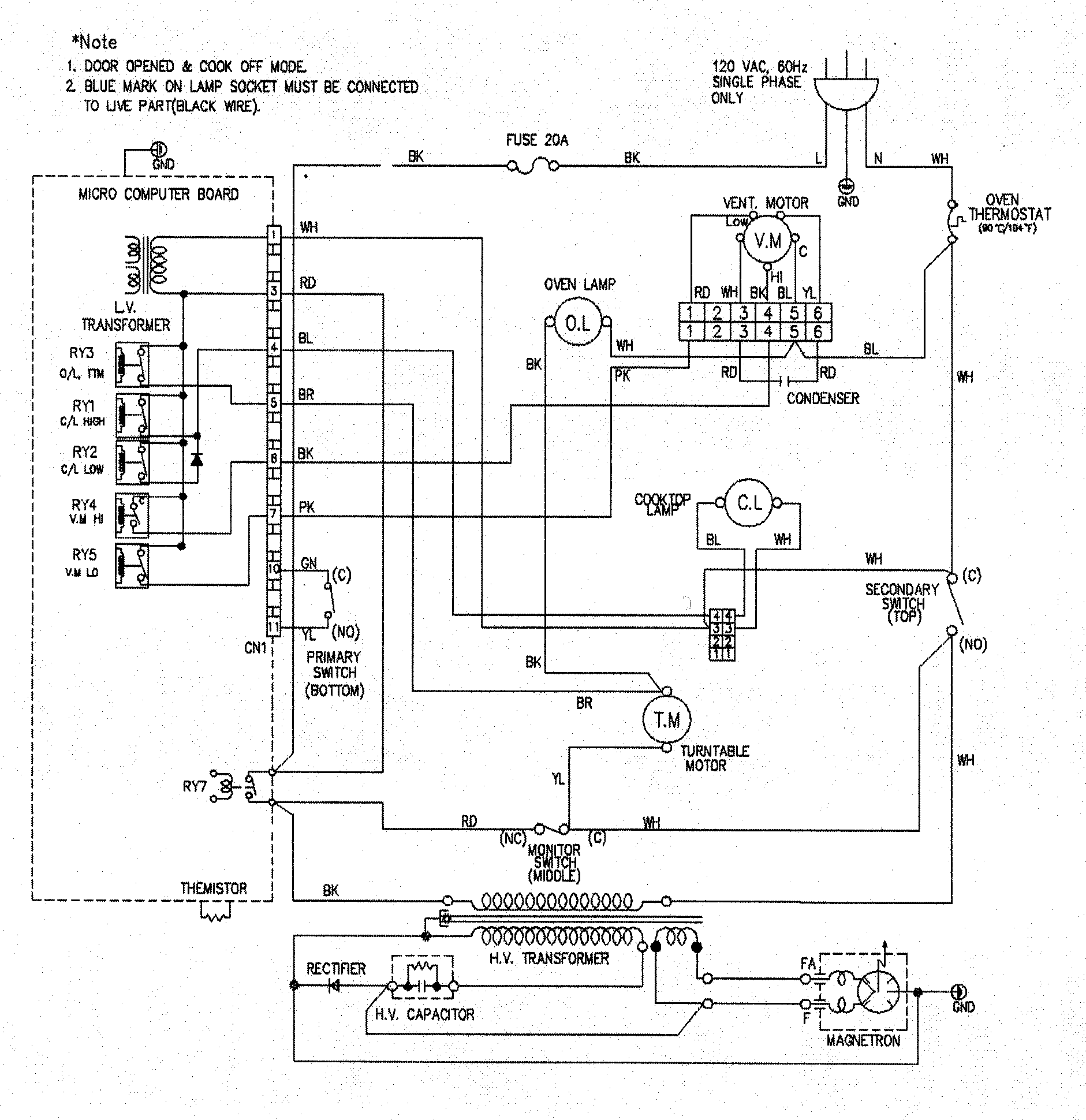

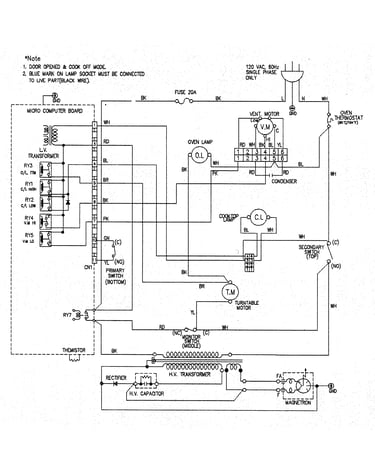

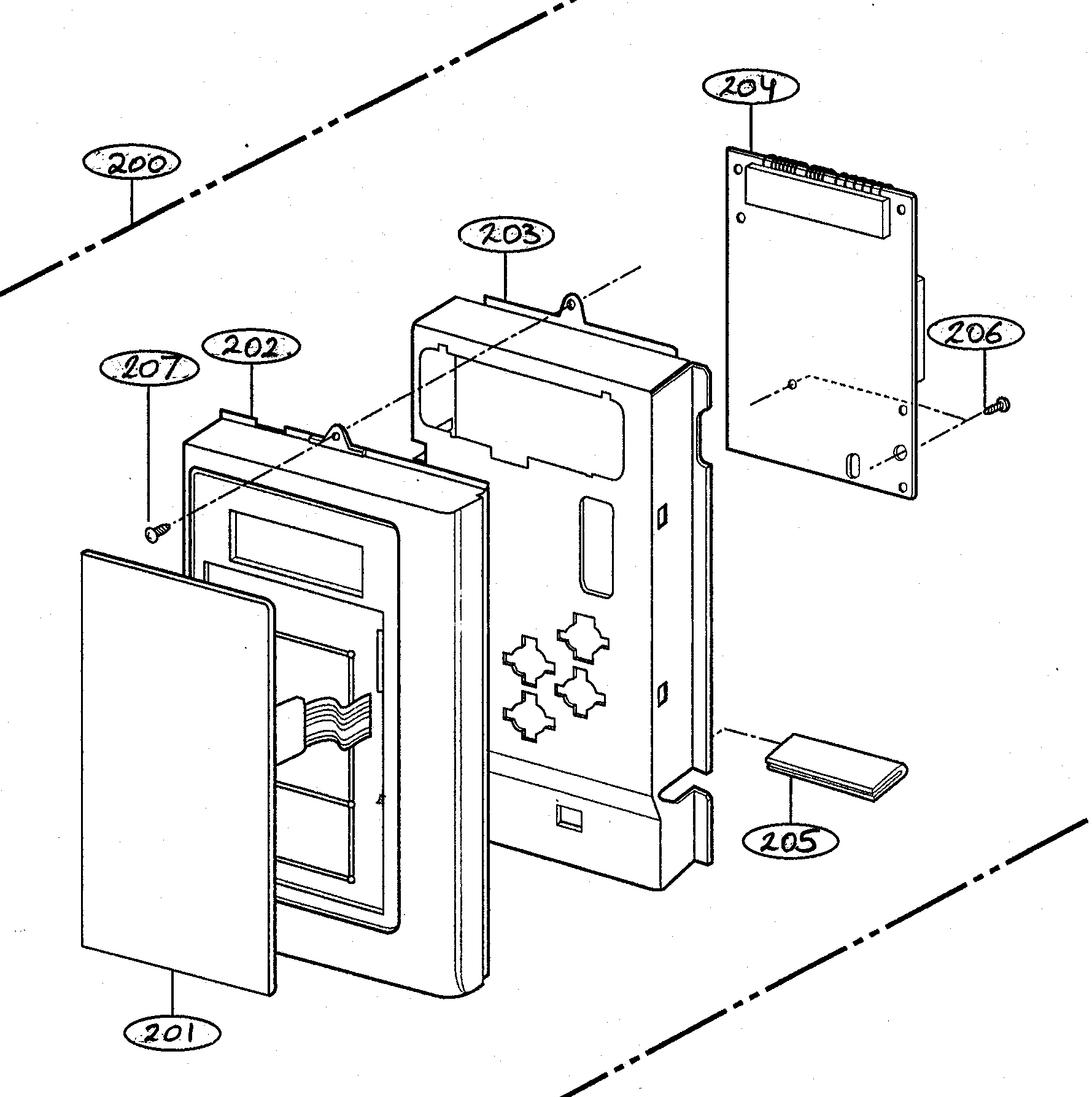

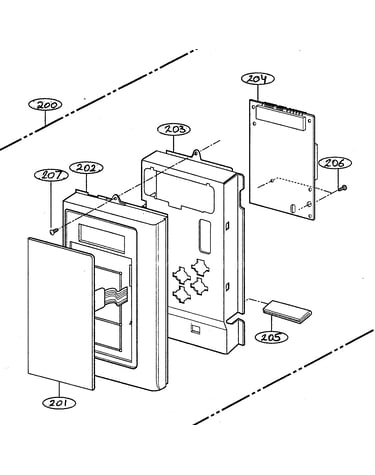

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Grease Filter 2B72705B
#311

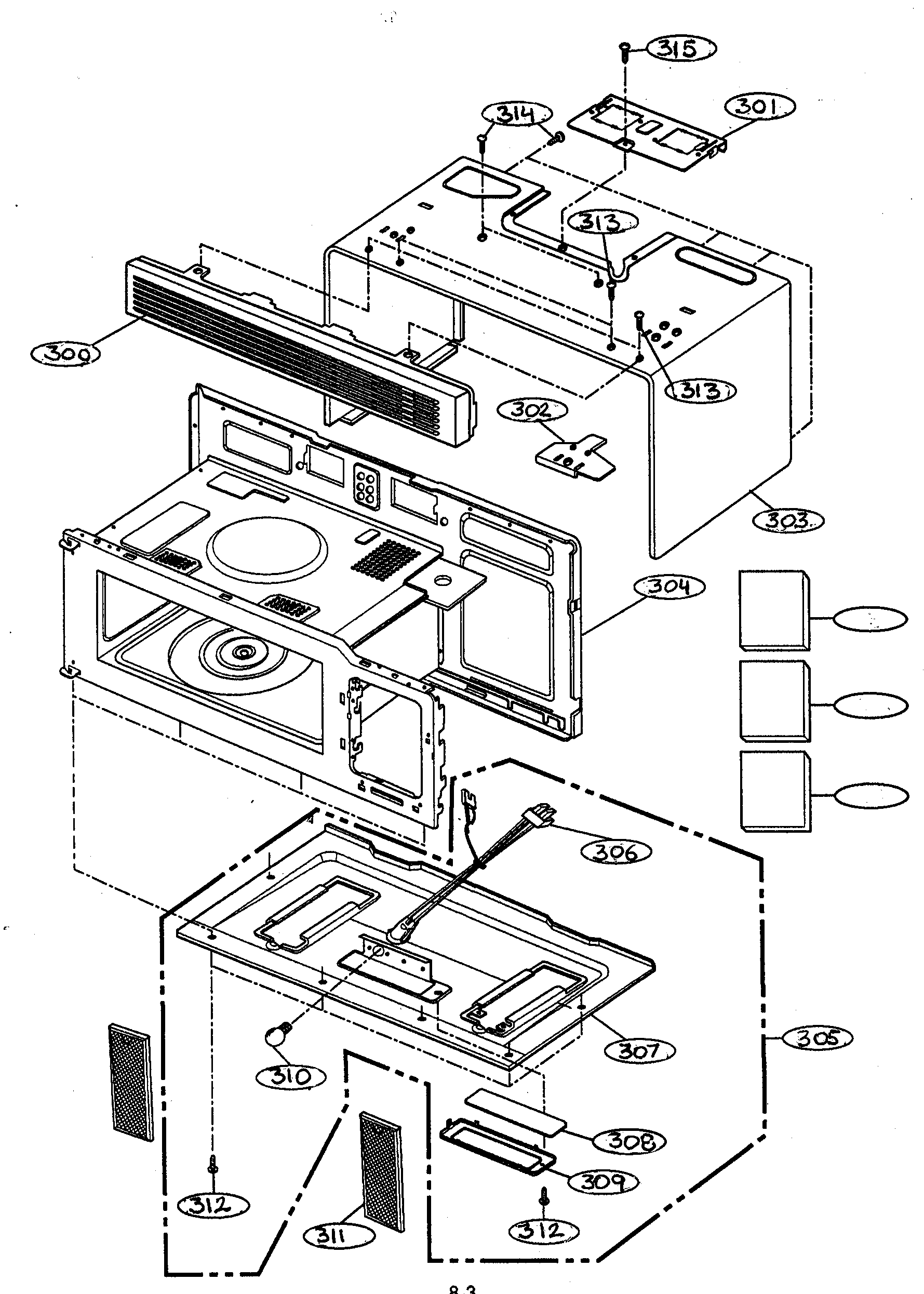

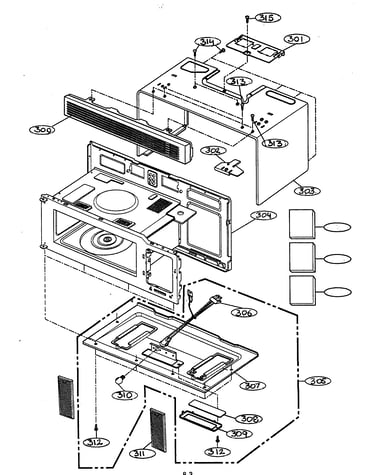

Oven cavity diagram

Grease filter

Part #2B72705B

Replaced by #5230W1A012B

?
Manufacturer substitution
This part replaces 2B72705B. Substitute parts can look different from the original.
BEST SELLER
$12.00 |
14% OFF Phone Price : $14.00
In Stock
Oven Lamp 6912W3Q001A
#601

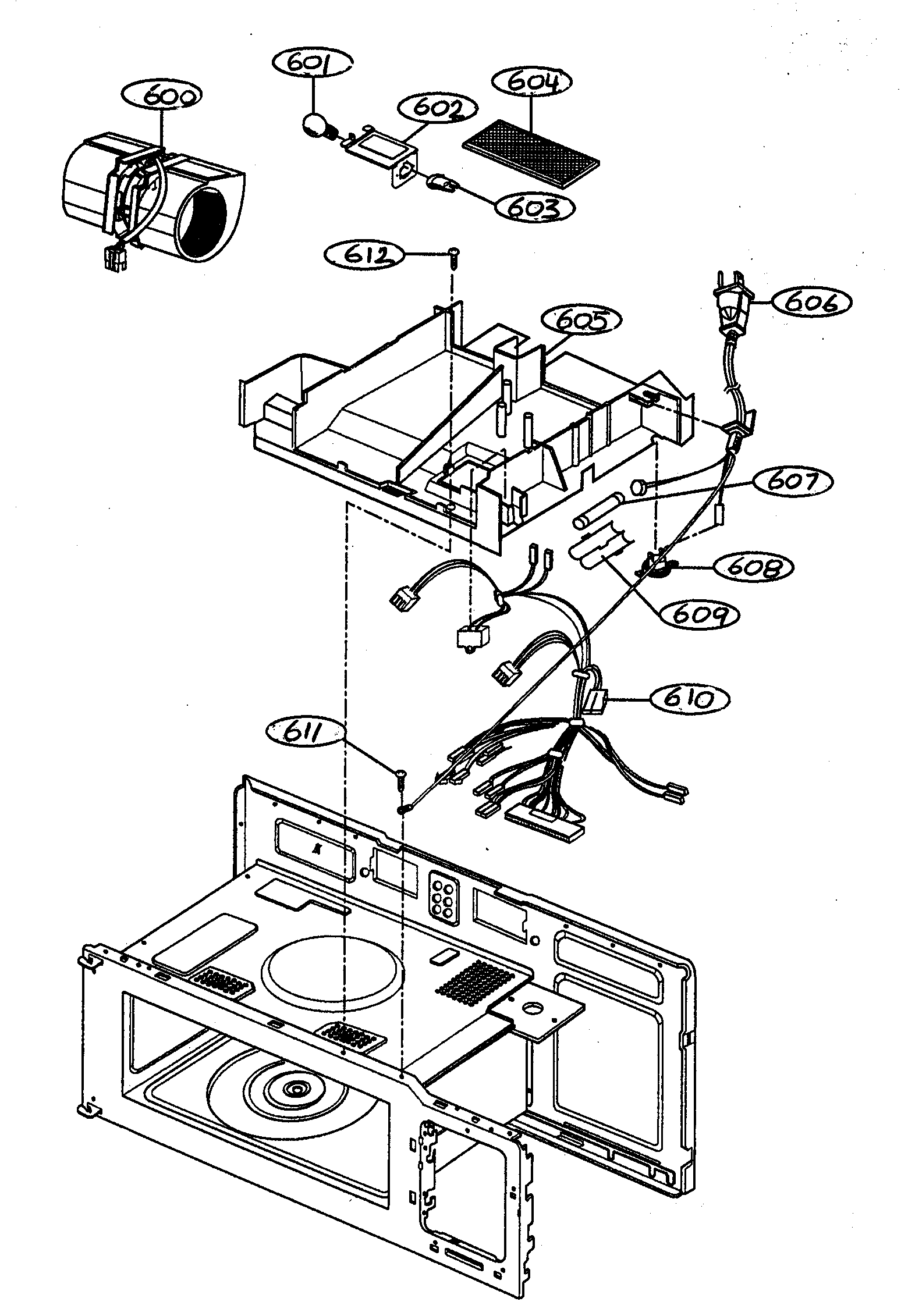

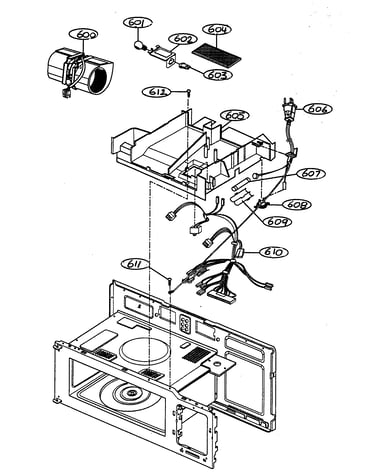

Interior parts 2 diagram

Oven lamp

Part #6912W3Q001A

Replaced by #6912W1Z004B

?
Manufacturer substitution
This part replaces 6912W3Q001A. Substitute parts can look different from the original.
BEST SELLER
$9.42 |
10% OFF Phone Price : $10.42
In Stock
Microwave Glass Turntable Tray 1B71961F
#508

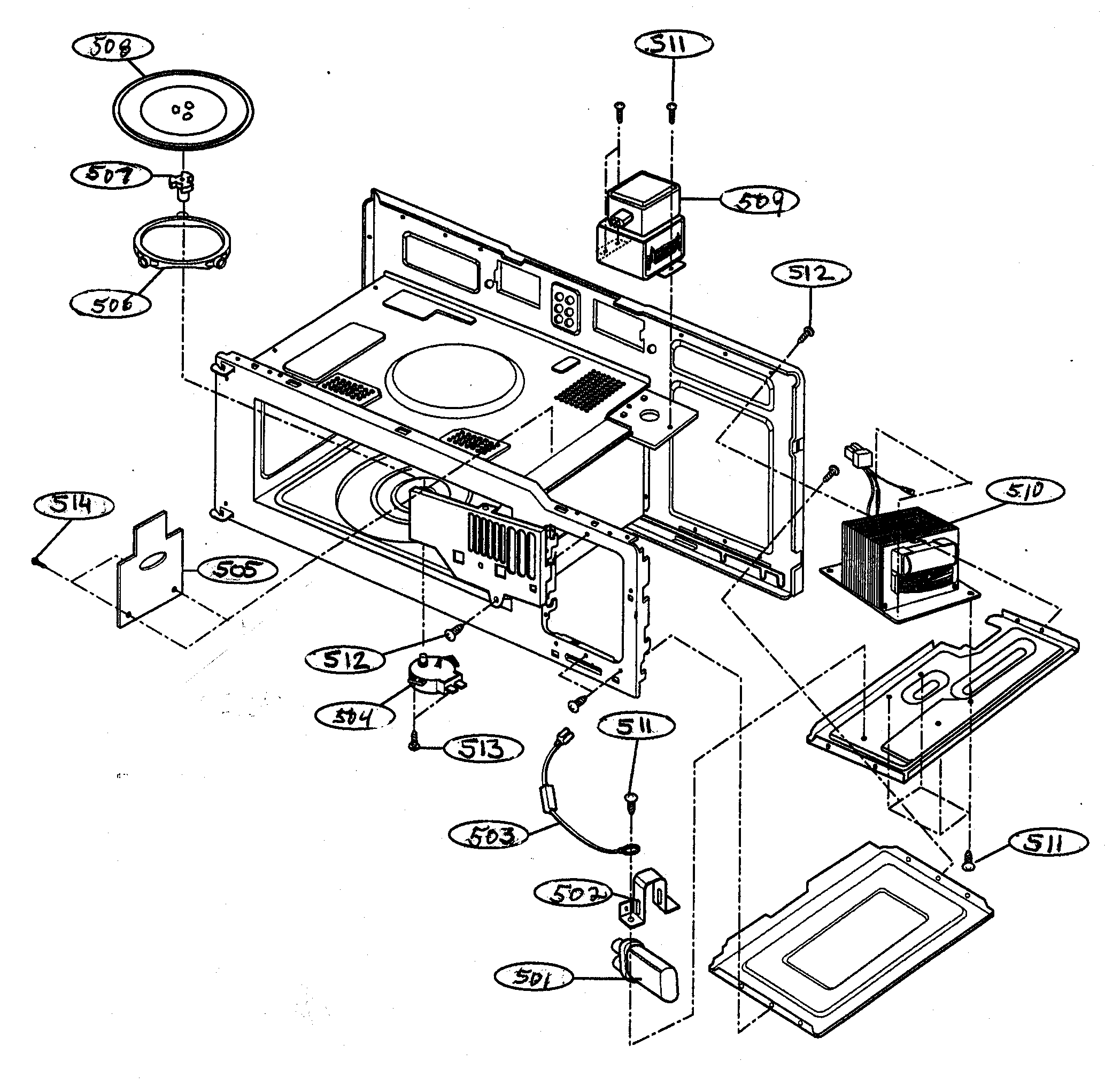

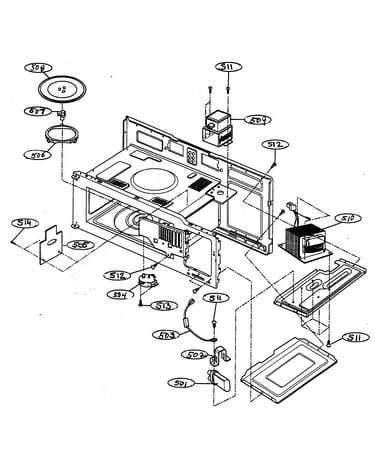

Interior parts 1 diagram

Microwave glass turntable tray

Part #1B71961F

Replaced by #1B71961H

?
Manufacturer substitution
This part replaces 1B71961F. Substitute parts can look different from the original.
BEST SELLER
$32.53 |
13% OFF Phone Price : $37.53
In Stock
Microwave Charcoal Filter 2B72706D
#604

Interior parts 2 diagram

Microwave charcoal filter

Part #2B72706D

Replaced by #5230W1A011E

?
Manufacturer substitution
This part replaces 2B72706D. Substitute parts can look different from the original.
BEST SELLER
$15.19 |
12% OFF Phone Price : $17.19
In Stock
Microwave Door Interlock Switch 3B73361E
#403

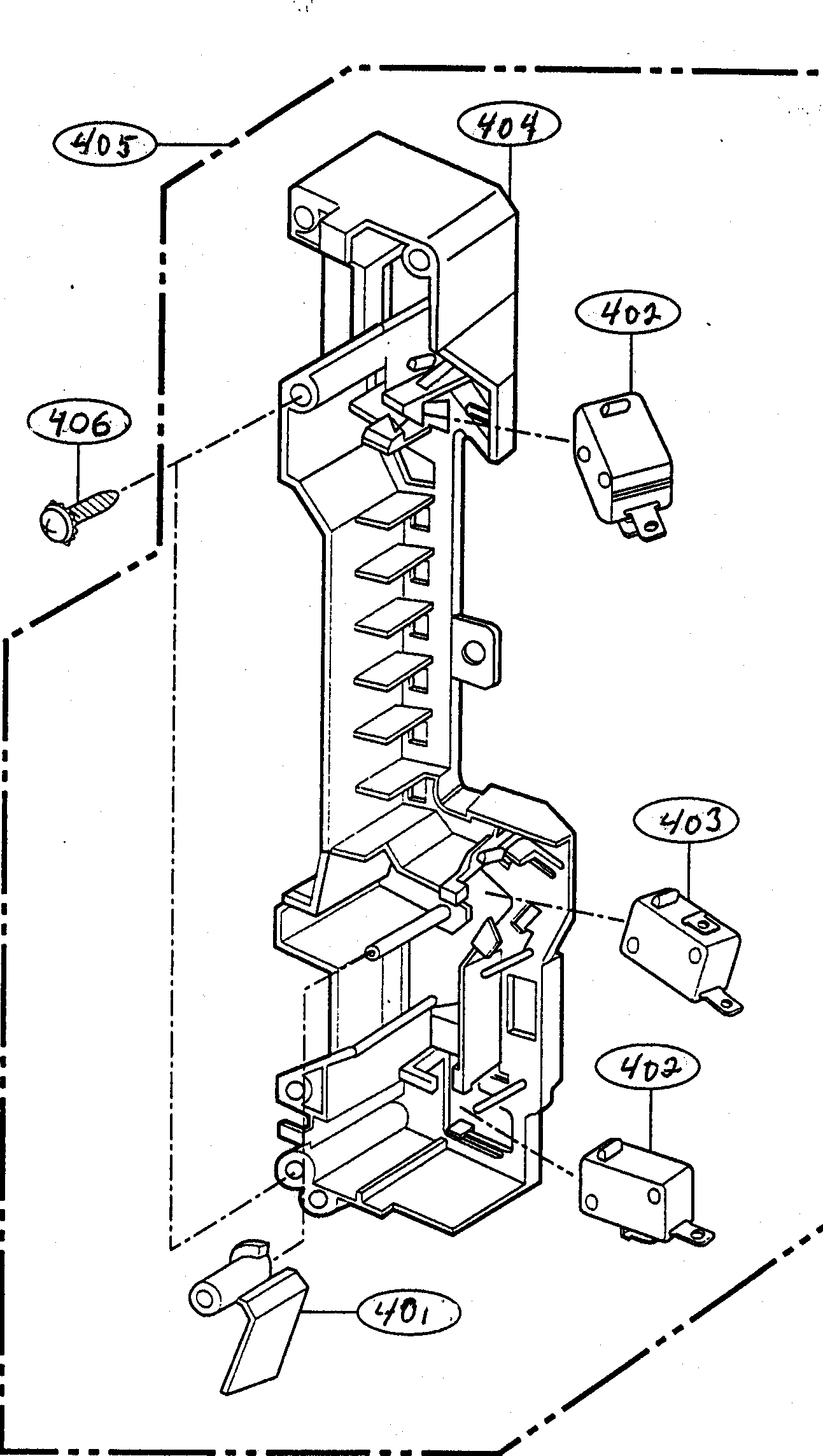

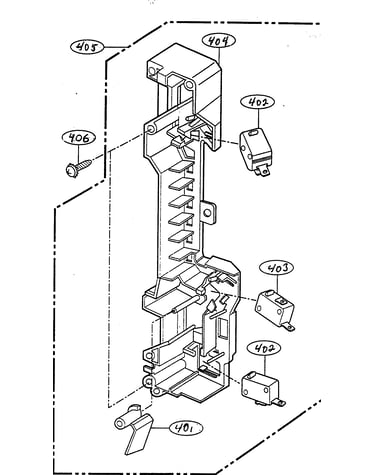

Latch board parts diagram

Microwave door interlock switch

Part #3B73361E

Replaced by #6600W1K001C

?
Manufacturer substitution
This part replaces 3B73361E. Substitute parts can look different from the original.
BEST SELLER
$12.16 |
14% OFF Phone Price : $14.16
In Stock
Microwave High-voltage Capacitor 0CZZW1H002H
#501

Interior parts 1 diagram

Microwave high-voltage capacitor

Part #0CZZW1H002H

Replaced by #0CZZW1H004C

?
Manufacturer substitution
This part replaces 0CZZW1H002H. Substitute parts can look different from the original.
BEST SELLER
$17.81 |
10% OFF Phone Price : $19.81
In Stock
Microwave Fuse 3B74133K
#607

Interior parts 2 diagram

Microwave fuse

Part #3B74133K

BEST SELLER
$7.62 |
12% OFF Phone Price : $8.62
In Stock
Microwave Door Latch Hook 4026W2A015A
#106

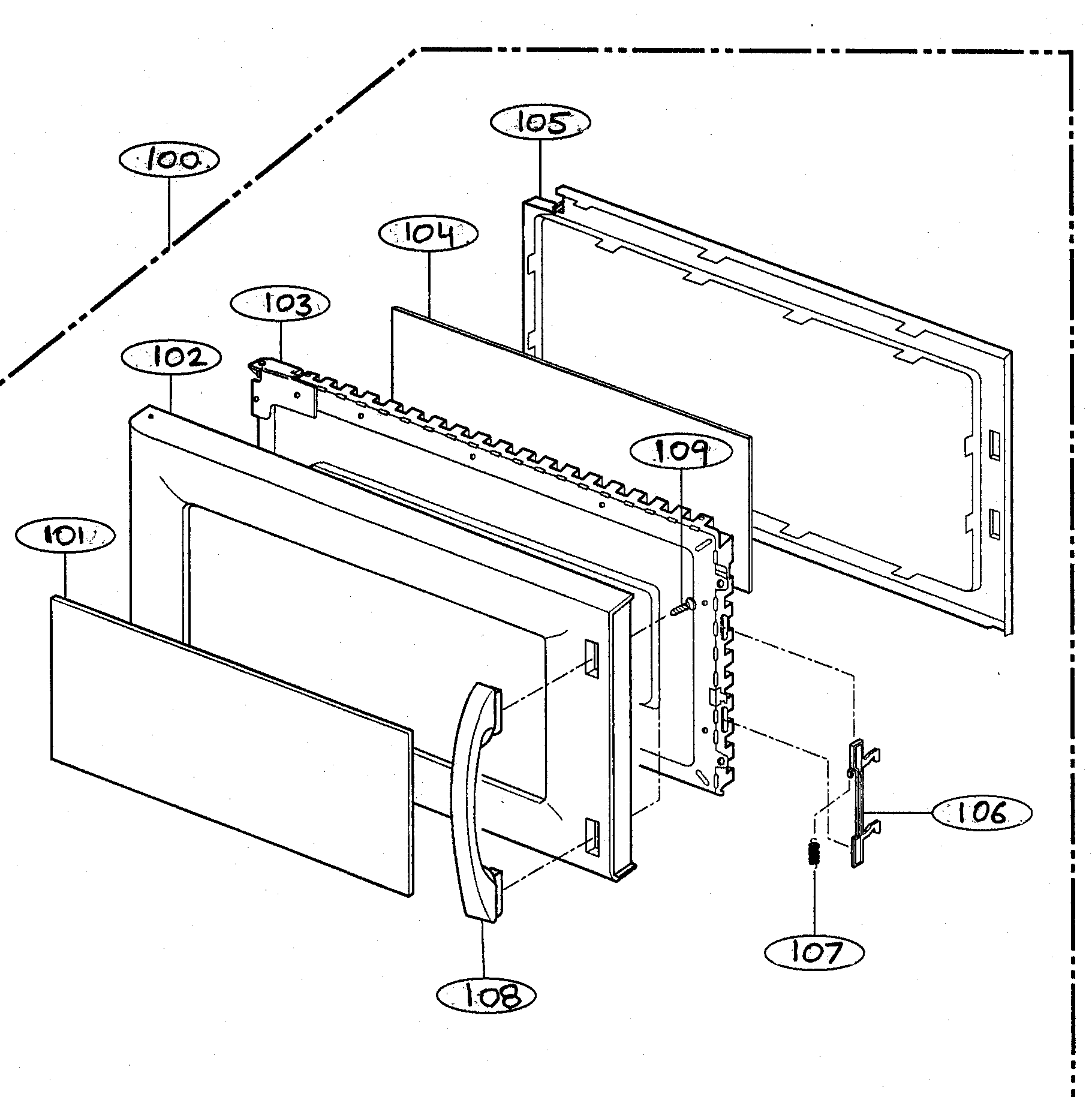

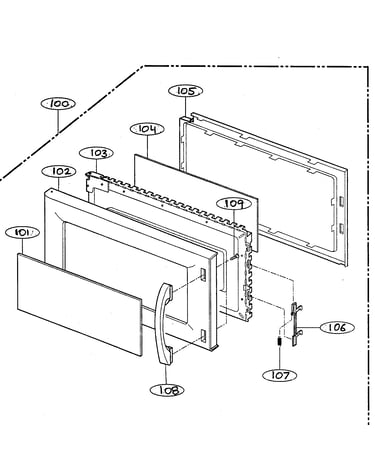

Door parts diagram

Microwave door latch hook

Part #4026W2A015A

Replaced by #4026W2A019C

?
Manufacturer substitution
This part replaces 4026W2A015A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.48 |
15% OFF Phone Price : $6.48
In Stock
Microwave Exhaust Damper Bracket 3B72144A
#704

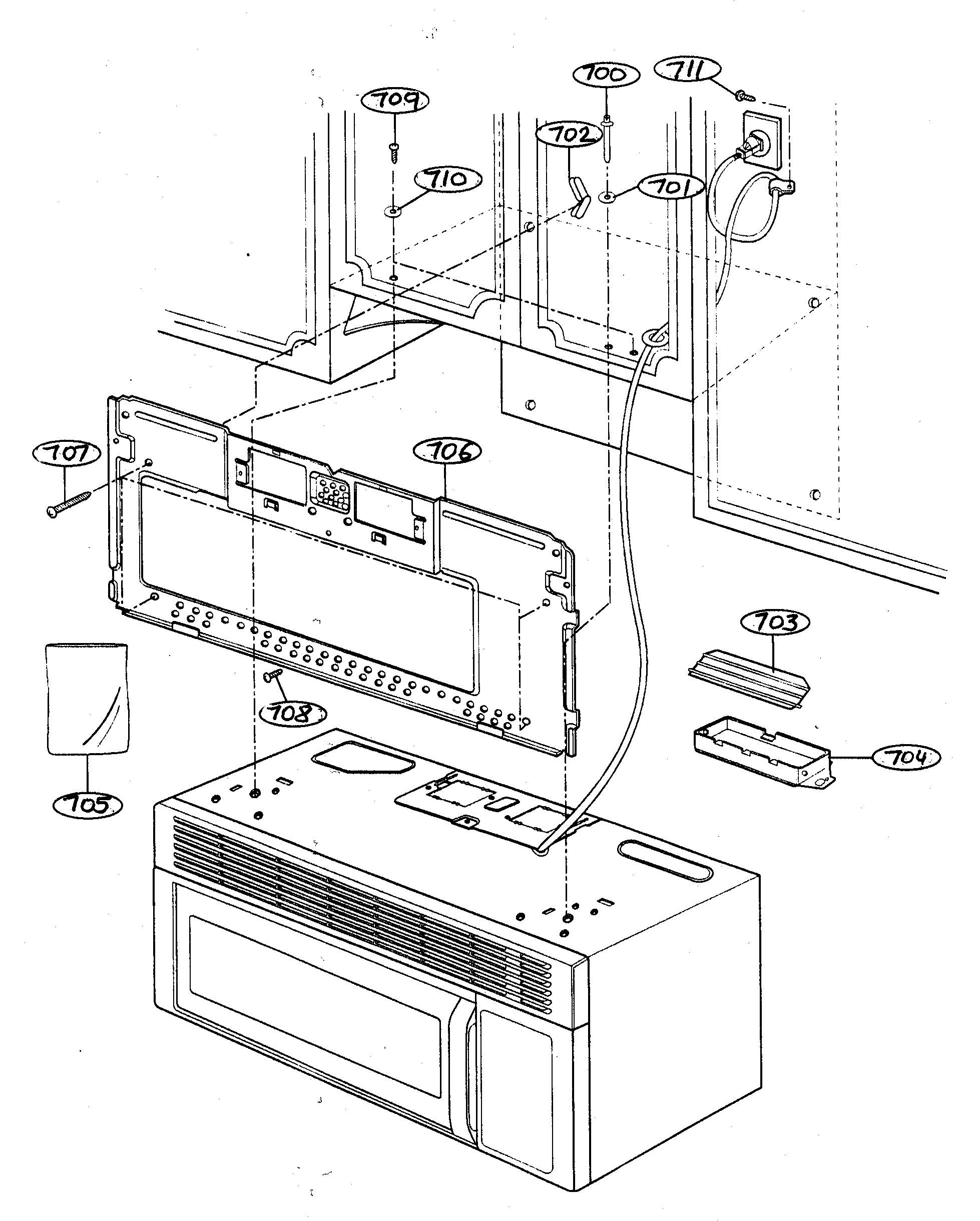

Installation parts diagram

Microwave exhaust damper bracket

Part #3B72144A

Replaced by #4810W1A151A

?
Manufacturer substitution
This part replaces 3B72144A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$12.43 |
14% OFF Phone Price : $14.43
In Stock
Damper 3B71432A
#703

Installation parts diagram

Damper

Part #3B71432A

Replaced by #4900W1A001B

?
Manufacturer substitution
This part replaces 3B71432A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.52 |
11% OFF Phone Price : $9.52
In Stock
