KitchenAid KFGC500JIB07 free standing gas range Parts

Here are the diagrams and repair parts for KitchenAid KFGC500JIB07 free standing gas range, as well as links to manuals and error code tables, if available.

KitchenAid KFGC500JIB07 free standing gas range
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for KFGC500JIB07 Ranges

  • Range Spark Module for KitchenAid KFGC500JIB07 - Part WPW10511278

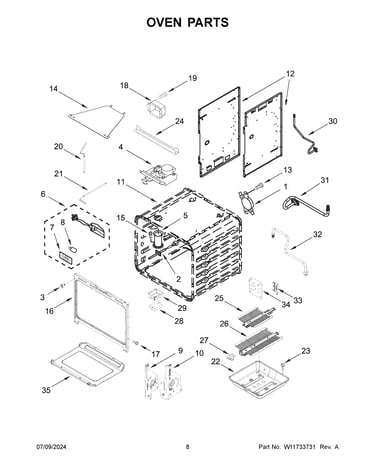

    Oven parts diagram

    Range Spark Module

    Part #W10511278

    Replaced by #WPW10511278

    Info Icon
    Manufacturer substitution
    This part replaces W10511278. Substitute parts can look different from the original.
    In Stock
    $138.92
    8% OFF Phone Price : $150.92Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for KitchenAid KFGC500JIB07 - Part WP3196557

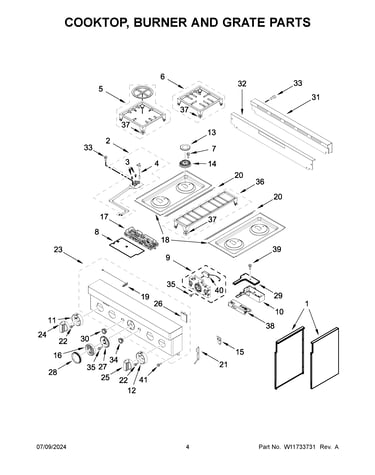

    Cooktop, burner and grate parts diagram

    Screw

    Part #3196537

    Replaced by #WP3196557

    Info Icon
    Manufacturer substitution
    This part replaces 3196537. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.91
    17% OFF Phone Price : $5.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Gasket-cavit for KitchenAid KFGC500JIB07 - Part W11675844

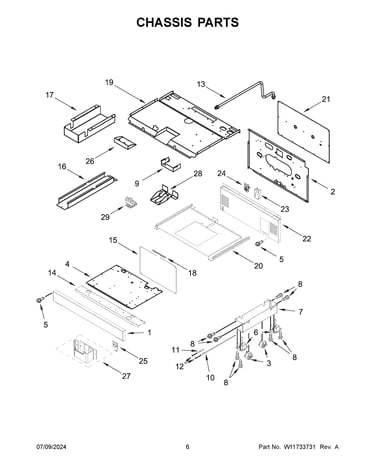

    Chassis parts diagram

    Range Oven Door Seal

    Part #W11115328

    Replaced by #W11675844

    Info Icon
    Manufacturer substitution
    This part replaces W11115328. Substitute parts can look different from the original.
    In Stock
    $26.26
    37% OFF Was : $41.95Info Icon
    Minus Item
    Qty
    Plus Item
  • Cooktop Lp Conversion Kit for KitchenAid KFGC500JIB07 - Part W11502161

    Burner box parts diagram

    Cooktop Lp Conversion Kit

    Part #W11238042

    Replaced by #W11502161

    Info Icon
    Manufacturer substitution
    This part replaces W11238042. Substitute parts can look different from the original.
    In Stock
    $42.75
    12% OFF Phone Price : $48.75Info Icon
    Minus Item
    Qty
    Plus Item
  • Cavity Ignit for KitchenAid KFGC500JIB07 - Part W11355922

    Oven parts diagram

    Electrode, Bake

    Part #W11205400

    Replaced by #W11355922

    Info Icon
    Manufacturer substitution
    This part replaces W11205400. Substitute parts can look different from the original.
    In Stock
    $60.34
    Minus Item
    Qty
    Plus Item
  • Range Broil Pan for KitchenAid KFGC500JIB07 - Part 4396923

    Optional parts (not included) diagram

    Range Broil Pan

    Part #4396923
    In Stock
    $45.56
    12% OFF Phone Price : $51.56Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Meat Probe Jack Assembly for KitchenAid KFGC500JIB07 - Part 8186589

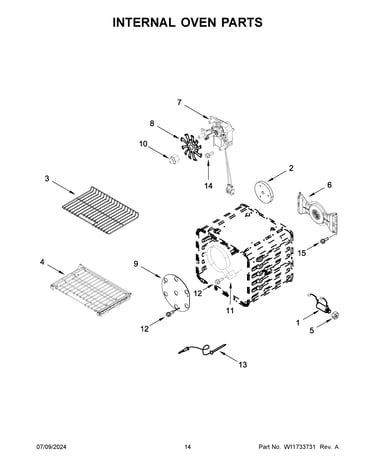

    Internal oven parts diagram

    Probe Jack

    Part #9755543

    Replaced by #8186589

    Info Icon
    Manufacturer substitution
    This part replaces 9755543. Substitute parts can look different from the original.
    In Stock
    $85.51
    7% OFF Phone Price : $91.51Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Light Bulb for KitchenAid KFGC500JIB07 - Part WPW10169757

    Oven parts diagram

    Wall Oven Light Bulb

    Part #W10169757

    Replaced by #WPW10169757

    Info Icon
    Manufacturer substitution
    This part replaces W10169757. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $46.08
    12% OFF Phone Price : $52.08Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Door Inner Glass for KitchenAid KFGC500JIB07 - Part W11318823

    Oven door parts diagram

    Glass-door,i

    Part #W11184409

    Replaced by #W11318823

    Info Icon
    Manufacturer substitution
    This part replaces W11184409. Substitute parts can look different from the original.
    In Stock
    $88.15
    6% OFF Phone Price : $94.15Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Meat Probe Sensor for KitchenAid KFGC500JIB07 - Part WP9755542

    Internal oven parts diagram

    Range Oven Meat Probe

    Part #9755542

    Replaced by #WP9755542

    Info Icon
    Manufacturer substitution
    This part replaces 9755542. Substitute parts can look different from the original.
    In Stock
    $89.76
    6% OFF Phone Price : $95.76Info Icon
    Minus Item
    Qty
    Plus Item
