Kenmore 91136665896 30" gas slide-in range Parts

A Kenmore gas range like model 91136665896 typically lasts 15 years with normal household use. Keeping burners clean, addressing yellow flames promptly, and using the self-clean cycle correctly helps the oven and gas system run efficiently for the long haul.

Typical lifespan and what affects it

Most 30-inch gas slide-in ranges reach the 15-year mark when these factors stay under control:

• Cooking frequency (daily heavy use shortens life)
• Grease buildup around burners and inside the oven
• Heat stress from frequent self-clean cycles
• Proper gas type and flame quality (natural gas vs LP)
• Quick repair of wear items (igniter, door hinge, wiring)

Maintenance that extends life on the 91136665896

We recommend following the care and troubleshooting guidance in the 91136665896 owner's manual. Key habits that make a real difference:

• Wipe spillovers before they bake on; heavy soil can cause odors and poor performance
• Clean the broiler pan and grid after each use; do not store grease-filled pans in the oven
• Use self-clean correctly; a normal clean cycle is about 4 hours
• Watch burner flames; soft blue is normal, and LP can show slight yellow tipping
• If the oven seems off-temperature, use the built-in temperature adjustment steps in the manual instead of relying on an oven thermometer

Quick guide: what “normal” looks like

What you notice	What it usually means	What to do
Soft blue flames	Normal combustion	Keep ports clean and continue using normally
Yellow tipping (LP)	Often normal for LP gas	Monitor; clean burner area
Large yellow flames/sooty	Poor combustion	Stop using that burner and schedule service

Why it matters

A gas range’s longest-lasting components depend on clean combustion and controlled heat. Yellow flames, heavy grease, and repeated overheating can stress the igniter, thermostat, wiring, and oven cavity, leading to earlier repairs and shorter overall service life.

Last updated: February 2026

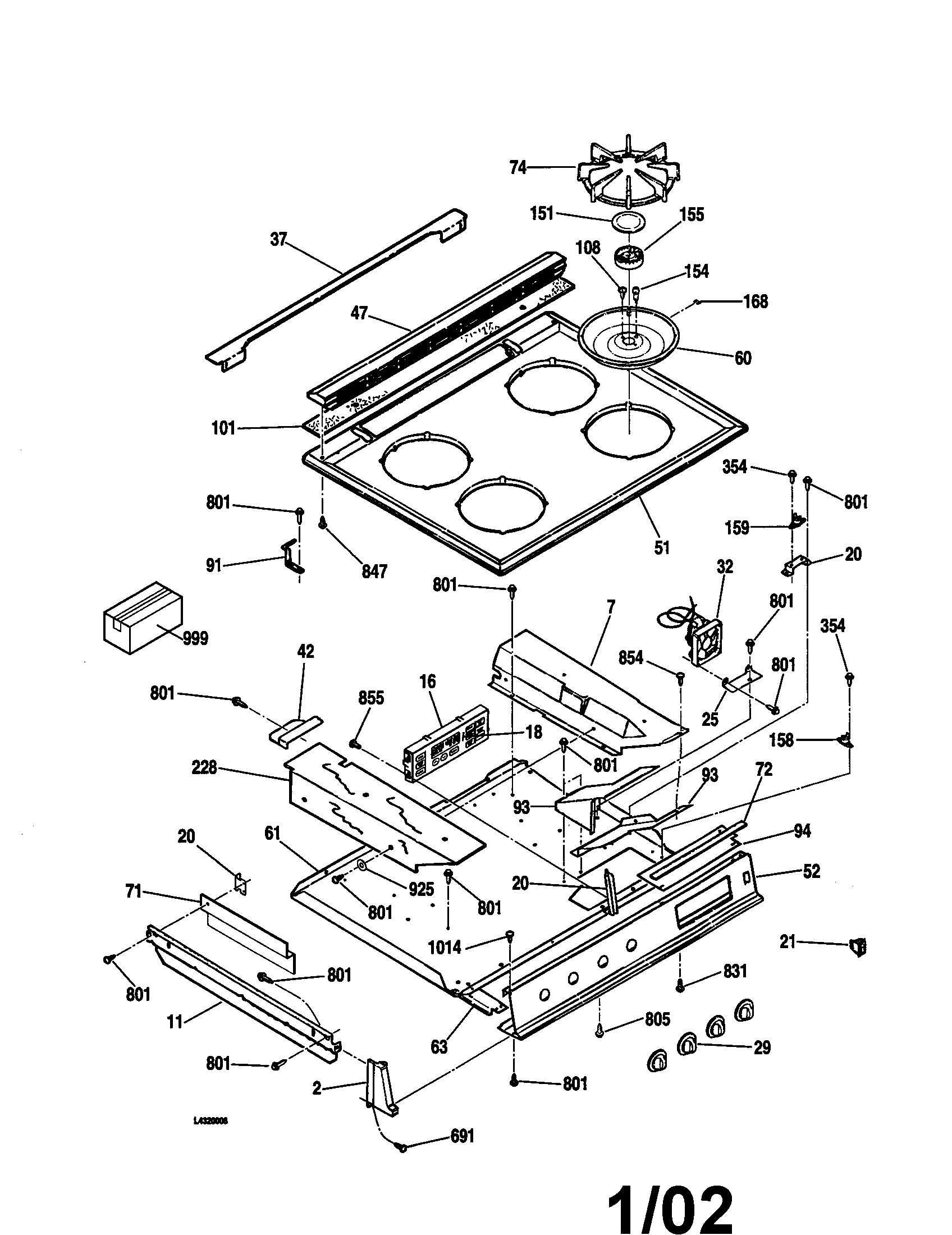

On the Kenmore 91136665896 30-inch gas slide-in range, removing the cooktop top typically means lifting the cooktop after you remove the burner grates and burner pieces; some versions also use mounting screws at the burner bases or along the front edge. Use the steps in the 91136665896 owner’s manual as your model-specific reference.

Before you start (safety and access)

• Turn all burner knobs to OFF.
• Shut off the gas supply if you will lift the cooktop high enough to stress the gas line.
• Unplug the range (or switch off the breaker) to prevent accidental sparking.
• Let the cooktop cool completely; porcelain and burner parts hold heat.
• Protect the counter and cooktop edge with a towel to prevent chips.

Typical cooktop removal steps

1. Remove the burner grates.
2. Lift off the burner caps.
3. If your model has removable burner heads/bases, remove them next (some are held by screws).
4. Look for mounting screws:
   • At the burner bases
   • Under the front lip of the cooktop
   • Under the control panel trim (varies by design)
5. Remove any mounting screws, then lift the cooktop from the front and prop it safely.

What you may need (tools and parts)

Item	Why you need it
Phillips screwdriver	Common for cooktop and burner-base screws
Nut driver (1/4-inch typical)	Some ranges use hex-head screws
Work gloves	Protect hands from sharp sheet metal
Towel or cardboard	Protects enamel and countertop

If you’re lifting the top to access ignition wiring or switches, a damaged igniter can also cause burner lighting problems; the oven ignition component commonly replaced on this model is the range oven burner igniter WB13T10001 (only replace parts that match your symptom and diagnosis).

Why it matters

Removing the cooktop correctly prevents chipped porcelain, stripped screws, and pinched gas or wiring harnesses. It also gives you safe access to common service areas like burner tubes, igniters, and wiring connections.

Last updated: February 2026

On the Kenmore gas slide-in range model 91136665896, the model and serial number label is located on the front frame behind the storage drawer. Pull the storage drawer out to see the tag, then write the numbers down for parts lookup and service. See the 91136665896 owner's manual.

How to find the model number label (quick steps)

• Turn the oven off and let all surfaces cool.
• Pull the storage drawer straight out; lift slightly if it stops on the rails.
• Look at the front frame area behind where the drawer sits.
• Find the label that lists MODEL NUMBER and SERIAL NUMBER.
• Record both numbers exactly as shown.

What to do if you do not see it

If the label is hard to spot, these checks usually solve it:

• Use a flashlight and look along the left and right sides of the front frame.
• Wipe grease or dust off the frame so the print is readable.
• Make sure the drawer is fully removed (not just opened).

Model number vs. serial number (what each is for)

Item on the label	What we use it for	Example format
Model number	Matching the correct parts diagrams and parts	91136665896
Serial number	Identifying production details for service	Letters and numbers

Why it matters

Using the exact model number prevents ordering the wrong Kenmore range parts (like an oven igniter, door hinge, or burner components) that may look similar but fit differently.

Last updated: February 2026
