GE
Countertop Microwave

Model # JE610BF001 Official GE microwave

Here are the diagrams and repair parts for Official GE JE610BF001 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Switch-micro WB24X0829
#3

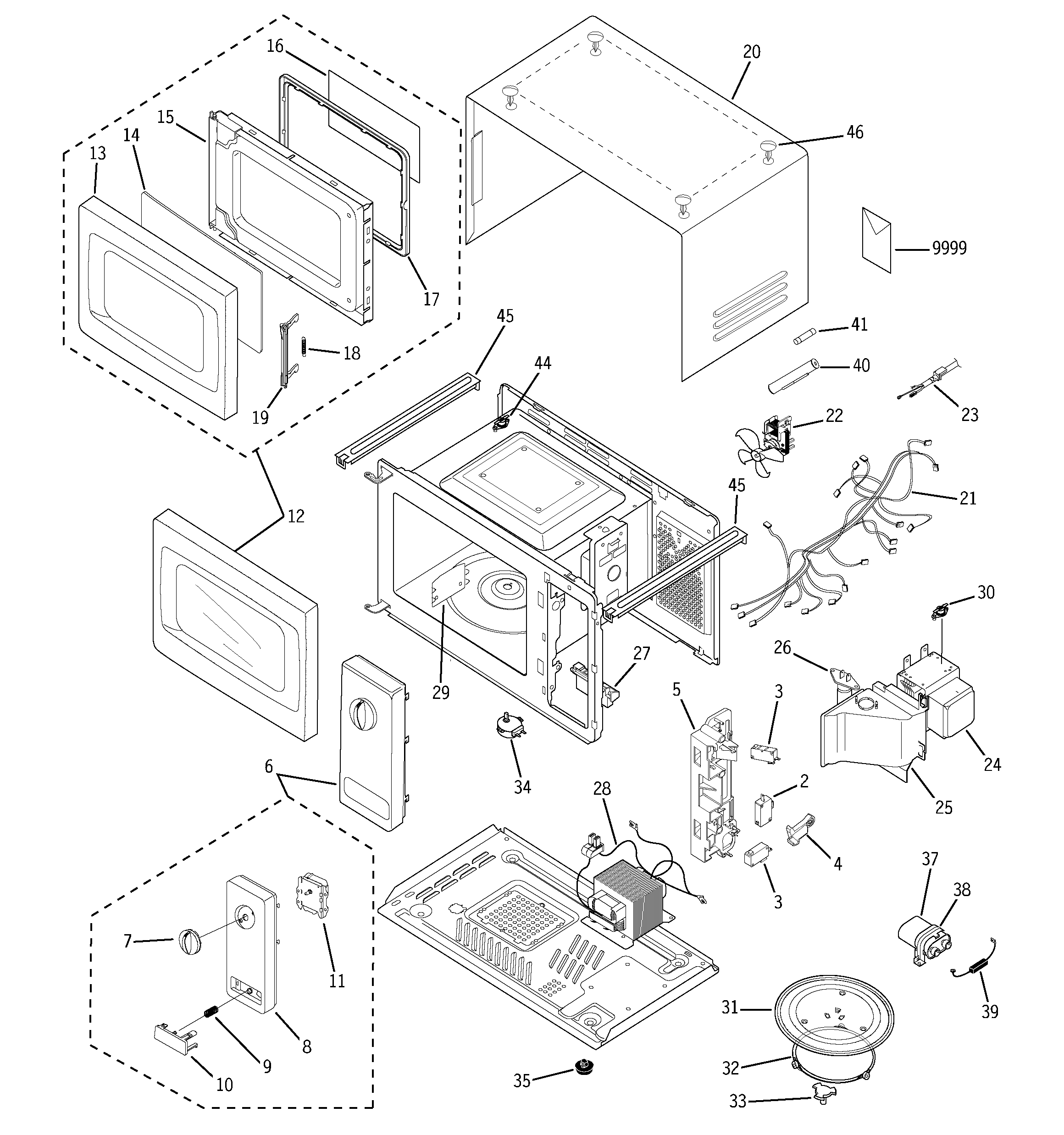

Microwave diagram

Switch-micro

Part #WB24X0829

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X0829. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
13% OFF Phone Price : $38.20
In Stock
Monitor Switch WB24X0830
#2

Microwave diagram

Monitor switch

Part #WB24X0830

Replaced by #WB24X830

?
Manufacturer substitution
This part replaces WB24X0830. Substitute parts can look different from the original.
BEST SELLER
$27.94 |
15% OFF Phone Price : $32.94
In Stock
High-voltage Diode WB27X10169
#39

Microwave diagram

High-voltage diode

Part #WB27X10169

Replaced by #WB27X10597

?
Manufacturer substitution
This part replaces WB27X10169. Substitute parts can look different from the original.
BEST SELLER
$40.60 |
11% OFF Phone Price : $45.60
In Stock
Microwave Thermostat WB20X10003
#30

Microwave diagram

Microwave thermostat

Part #WB20X10003

$30.39 |
14% OFF Phone Price : $35.39
In Stock
Microwave Turntable Motor WB26X10024
#34

Microwave diagram

Microwave turntable motor

Part #WB26X10024

$27.49
In Stock
Foot WB06X10194
#35

Microwave diagram

Foot

Part #WB06X10194

This item is not returnable
$5.00
In Stock
Door Lever WB06X10186
#27

Microwave diagram

Door lever

Part #WB06X10186

This item is not returnable
$4.35
In Stock
Lever Switch WB06X10300
#4

Microwave diagram

Lever switch

Part #WB06X10300

This item is not returnable
$5.00
In Stock
High-voltage Capacitor Bracket WB02X10748
#38

Microwave diagram

High-voltage capacitor bracket

Part #WB02X10748

This item is not returnable
$4.35
In Stock
Lamp WB36X10175
#26

Microwave diagram

Lamp

Part #WB36X10175

$32.44 |
13% OFF Phone Price : $37.44
In Stock
