Model #MH7110XBB6 Whirlpool microwave/hood combo

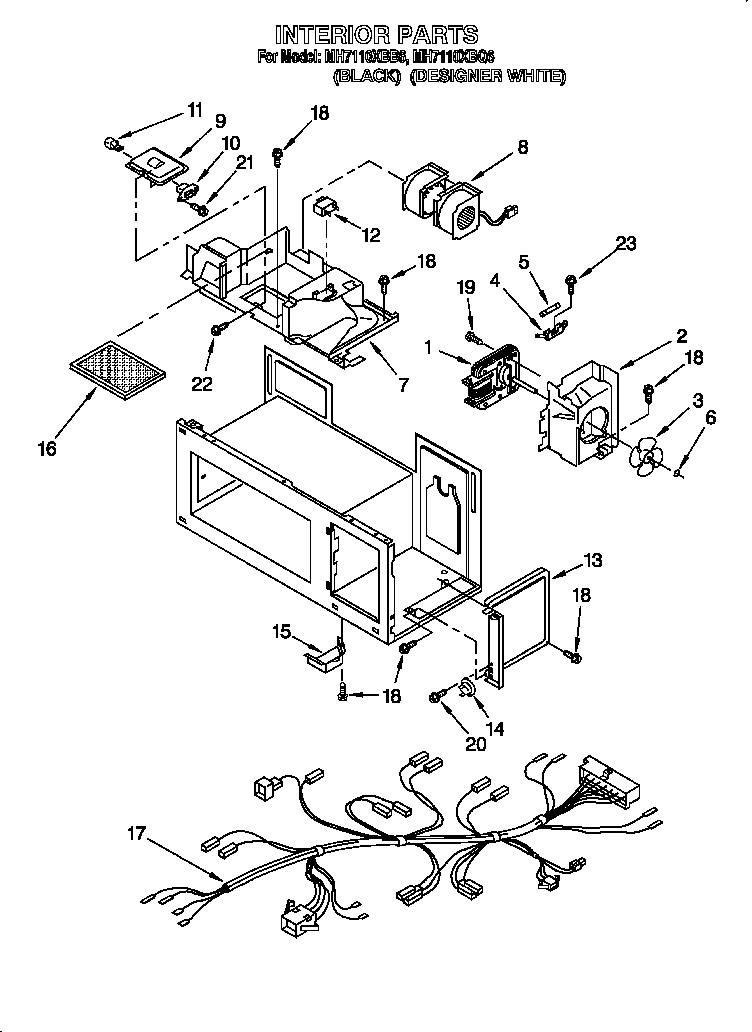

Here are the diagrams and repair parts for Whirlpool MH7110XBB6 microwave/hood combo, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 125 parts

Microwave Air Filter

#8

Ventilation Diagram

Microwave air filter

Part #4358853
$15.41

In Stock

Screw

#12

Door Diagram

Screw

Part #4358067
This item is not returnable
$6.29

In Stock

Microwave Screw

#3

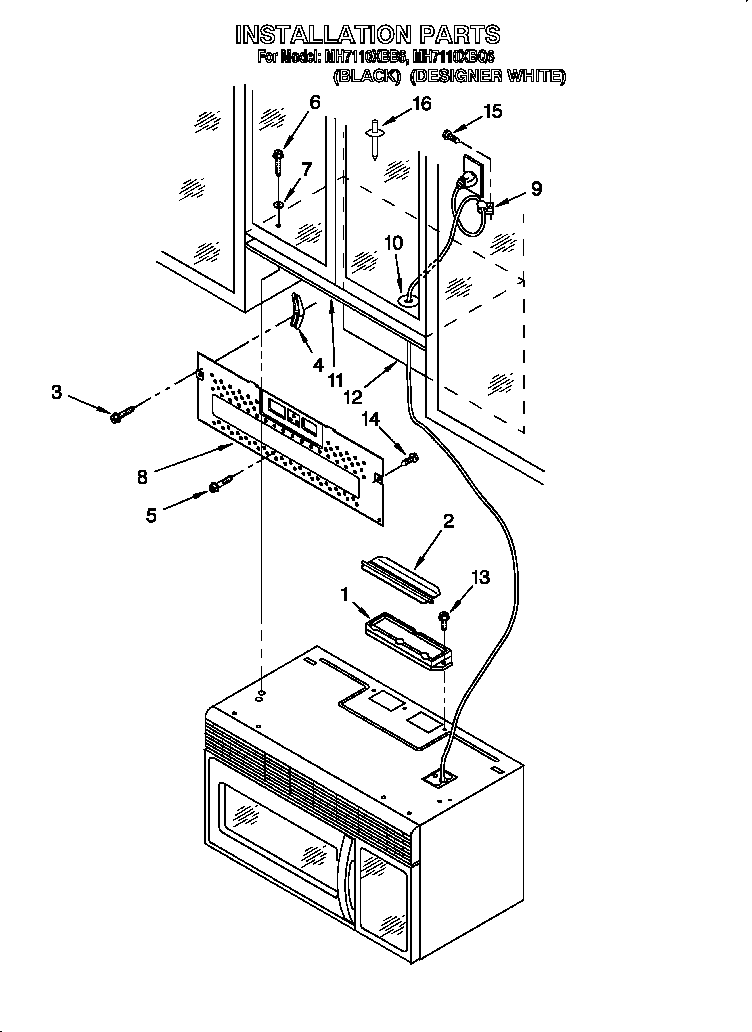

Installation Diagram

Microwave screw

Part #WP8169704
?
Manufacturer substitution
This part replaces 4158321. Substitute parts can look different from the original.
This part replaces 4158321
This item is not returnable
$2.48 |
29% OFF MSRP:$3.49

In Stock

Microwave Door Primary Interlock Switch

#3

Latch board Diagram

Microwave door primary interlock switch

Part #4392027
?
Manufacturer substitution
This part replaces 4358269. Substitute parts can look different from the original.
This part replaces 4358269
$49.67 |
30% OFF MSRP:$71.00

In Stock

Dryer Screw

#20

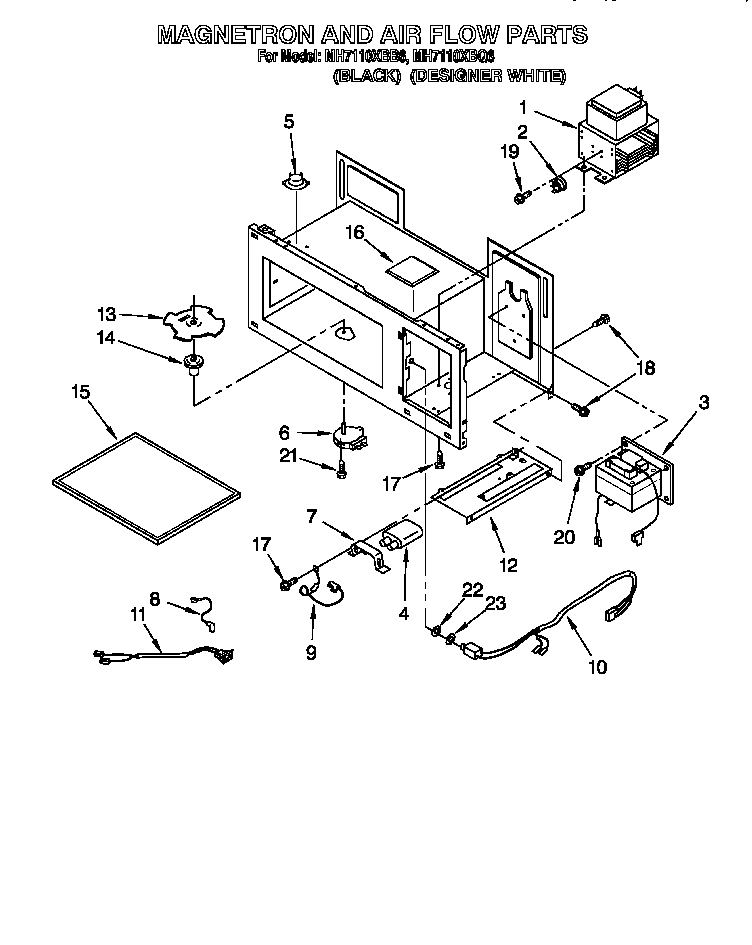

Magnetron and air flow Diagram

Dryer screw

Part #WP3400094
?
Manufacturer substitution
This part replaces 4158747. Substitute parts can look different from the original.
This part replaces 4158747
This item is not returnable
$2.49 |
24% OFF MSRP:$3.29

In Stock

Thermostat

#2

Magnetron and air flow Diagram

Thermostat

Part #WP815076
?
Manufacturer substitution
This part replaces 4358772. Substitute parts can look different from the original.
This part replaces 4358772
$32.35

In Stock

Microwave Surface Light Bulb, 40-watt

#7

Ventilation Diagram

Microwave surface light bulb, 40-watt

Part #8206232A
?
Manufacturer substitution
This part replaces 4158344. Substitute parts can look different from the original.
This part replaces 4158344
This item is not returnable
$5.84

In Stock

Microwave Thermostat

#5

Magnetron and air flow Diagram

Microwave thermostat

Part #W10476901
?
Manufacturer substitution
This part replaces 4358775. Substitute parts can look different from the original.
This part replaces 4358775
$24.44 |
24% OFF MSRP:$32.00

In Stock

Range Screw

#15

Installation Diagram

Range screw

Part #WP98008545
?
Manufacturer substitution
This part replaces 4358010. Substitute parts can look different from the original.
This part replaces 4358010
$7.88

In Stock

Screw

#10

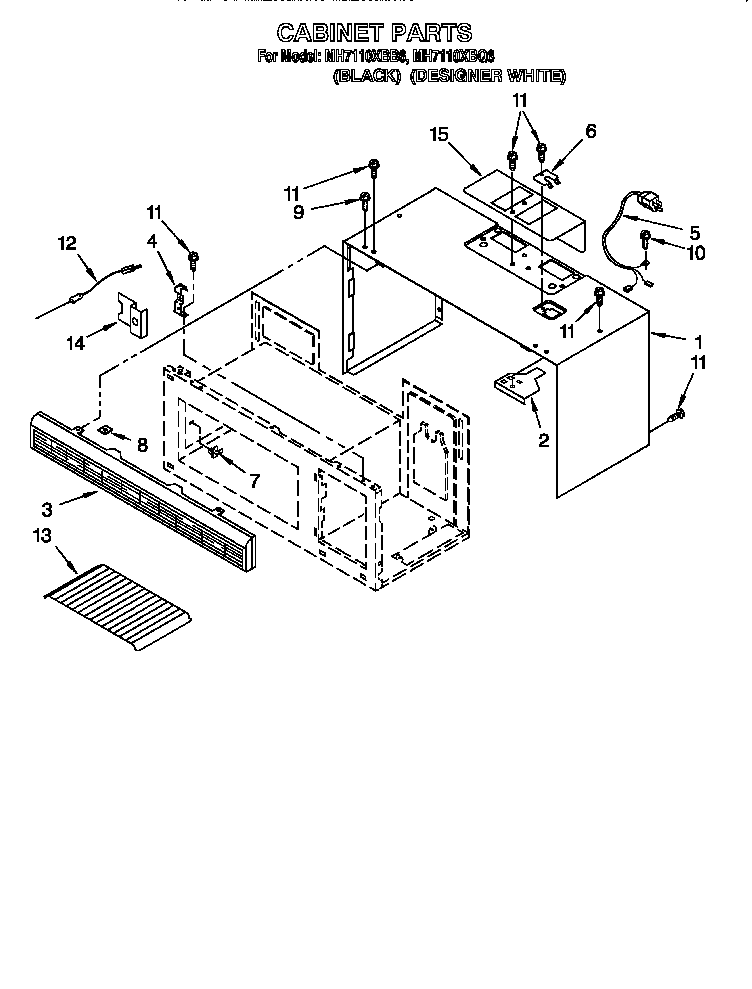

Cabinet Diagram

Screw

Part #4344826
?
Manufacturer substitution
This part replaces 4358489. Substitute parts can look different from the original.
This part replaces 4358489
$12.49

In Stock
