Ryobi
Power Sander

Model # S651D Official Ryobi pad sander

Here are the diagrams and repair parts for Official Ryobi S651D pad sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

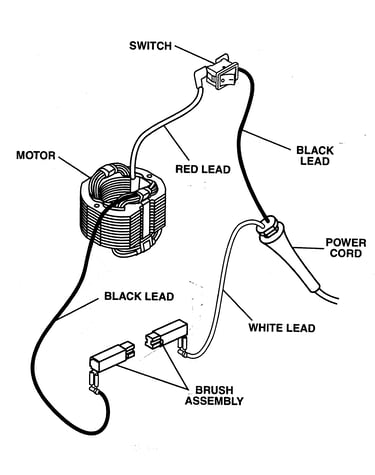

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Sander Base Plate Spring Clamp S650D-33
#24

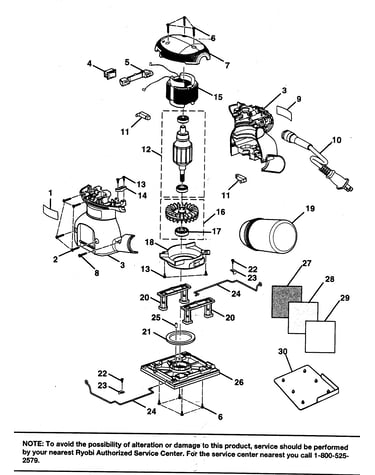

Sander assy diagram

Sander base plate spring clamp

Part #S650D-33

The manufacturer no longer makes this part, and there's no substitute part

Repair Sheet 983000634R
#NI

Sander assy diagram

Repair sheet

Part #983000634R

The manufacturer no longer makes this part, and there's no substitute part

Platen S650D-35
#26

Sander assy diagram

Platen

Part #S650D-35

The manufacturer no longer makes this part, and there's no substitute part

Cushion S650D-26
#20

Sander assy diagram

Cushion

Part #S650D-26

The manufacturer no longer makes this part, and there's no substitute part

Top Cover 039109006003
#7

Sander assy diagram

Top cover

Part #039109006003

The manufacturer no longer makes this part, and there's no substitute part

Switch S650D-04
#4

Sander assy diagram

Switch

Part #S650D-04

The manufacturer no longer makes this part, and there's no substitute part

Label 039109006004
#9

Sander assy diagram

Label

Part #039109006004

The manufacturer no longer makes this part, and there's no substitute part

Dust Bag S650D-37
#19

Sander assy diagram

Dust bag

Part #S650D-37

The manufacturer no longer makes this part, and there's no substitute part

Label 039109006001
#1

Sander assy diagram

Label

Part #039109006001

The manufacturer no longer makes this part, and there's no substitute part

Field Assembly S650D-17
#15

Sander assy diagram

Field assembly

Part #S650D-17

The manufacturer no longer makes this part, and there's no substitute part
