Amana AMC5143AAB microwave

Amana AMC5143AAB microwave Parts

Here are the diagrams and repair parts for Amana AMC5143AAB microwave, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for AMC5143AAB Microwaves

  • Microwave Fuse for Amana AMC5143AAB - Part WPM0805101

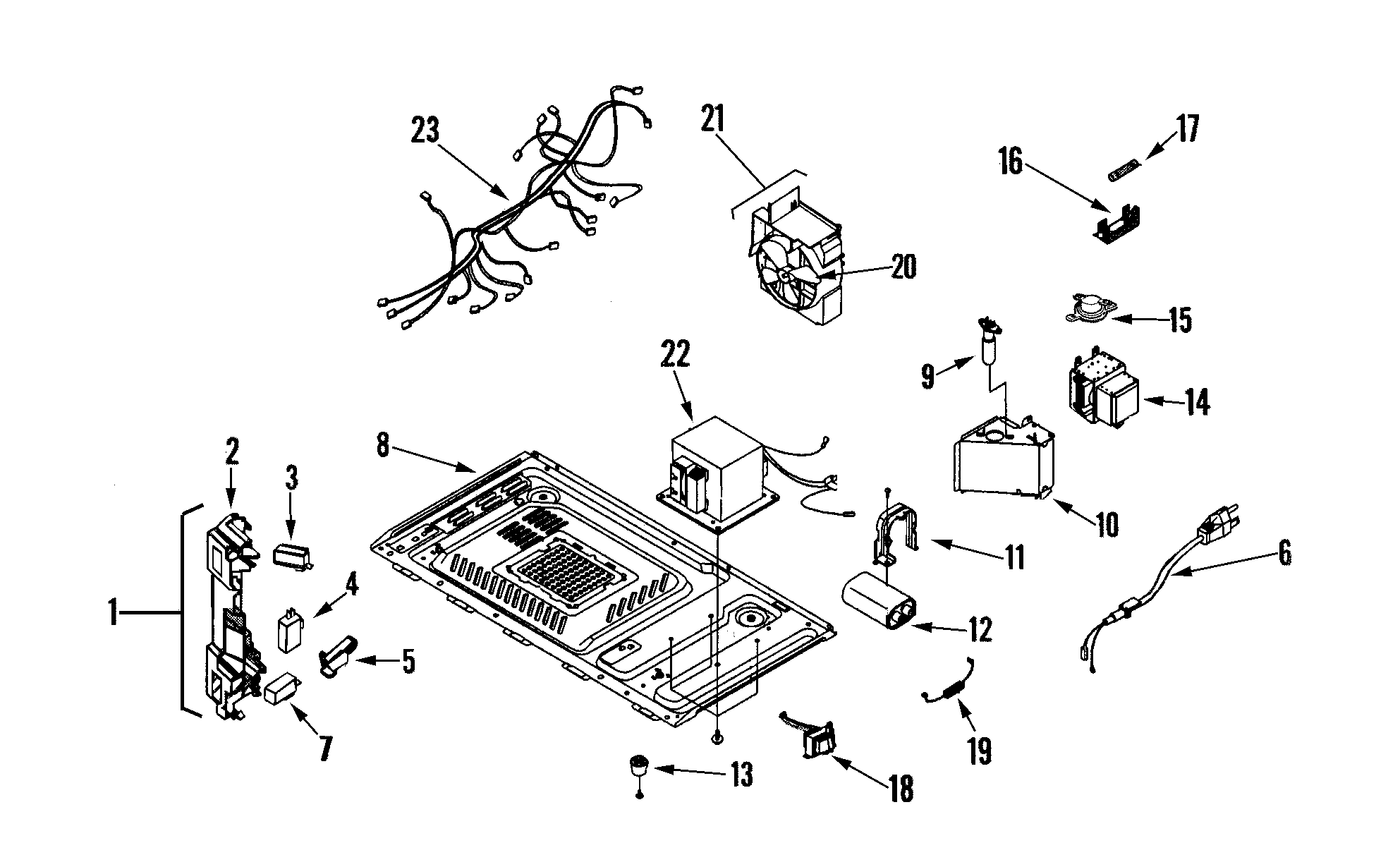

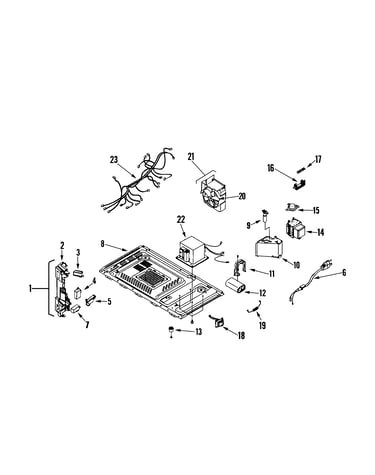

    Internal controls/latch asy./base diagram

    Microwave Fuse

    Part #3601-001198

    Replaced by #WPM0805101

    Info Icon
    Manufacturer substitution
    This part replaces 3601-001198. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.19
    12% OFF Phone Price : $8.19Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Diode for Amana AMC5143AAB - Part WPR9800486

    Internal controls/latch asy./base diagram

    Diode

    Part #DE91-70063A

    Replaced by #WPR9800486

    Info Icon
    Manufacturer substitution
    This part replaces DE91-70063A. Substitute parts can look different from the original.
    In Stock
    $23.11
    21% OFF Phone Price : $29.11Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Glass Turntable Tray for Amana AMC5143AAB - Part DE74-00023A

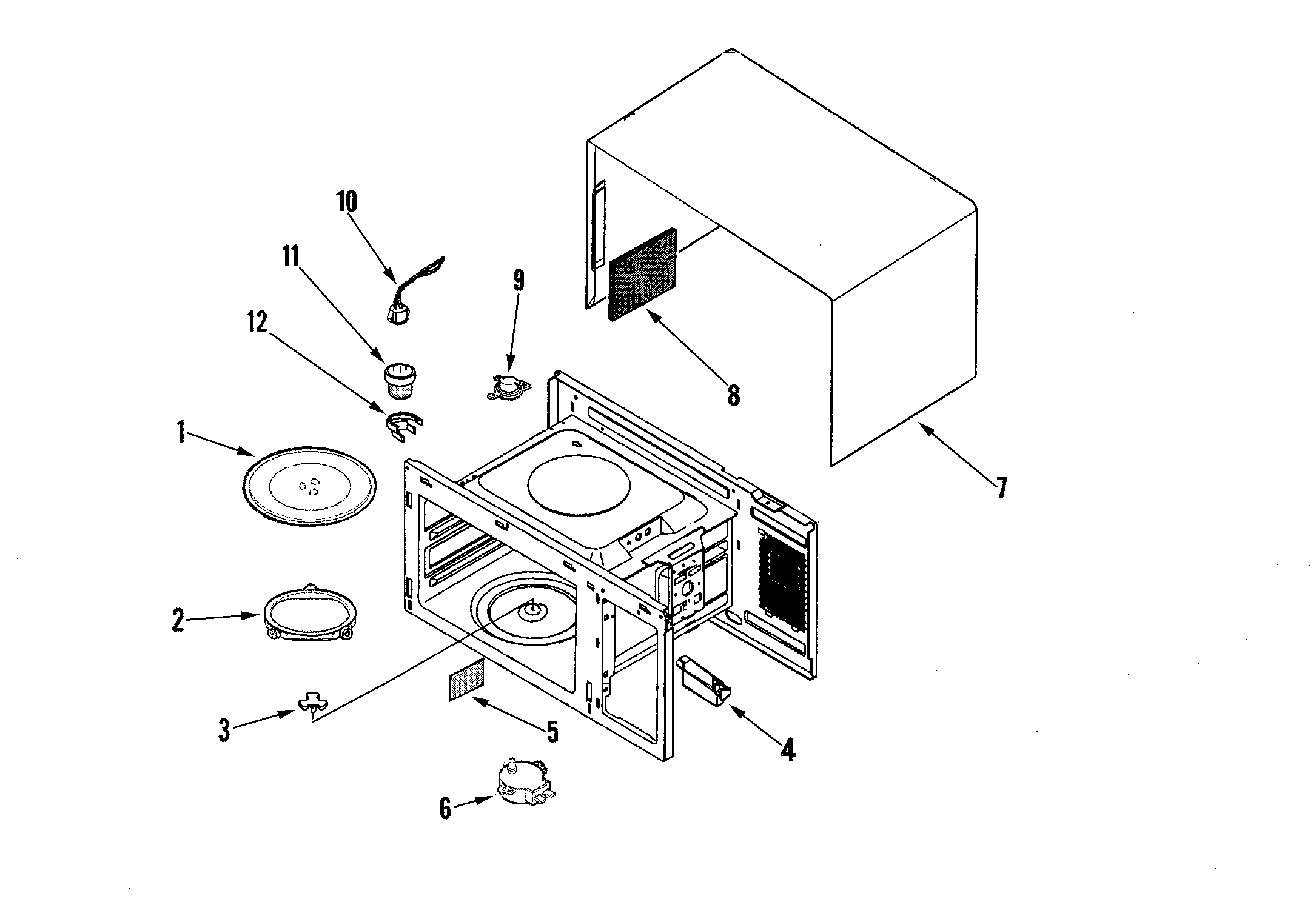

    Body/cavity diagram

    Microwave Glass Turntable Tray

    Part #DE74-20002C

    Replaced by #DE74-00023A

    Info Icon
    Manufacturer substitution
    This part replaces DE74-20002C. Substitute parts can look different from the original.
    In Stock
    $93.98
    6% OFF Phone Price : $99.98Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Light Bulb for Amana AMC5143AAB - Part 4713-001102

    Internal controls/latch asy./base diagram

    Microwave Light Bulb

    Part #4713-001102
    This item is not returnable
    In Stock
    $25.40
    19% OFF Phone Price : $31.40Info Icon
    Minus Item
    Qty
    Plus Item
  • Switch- Mi for Amana AMC5143AAB - Part WP3405-001034

    Internal controls/latch asy./base diagram

    Switch

    Part #3405-001042

    Replaced by #WP3405-001034

    Info Icon
    Manufacturer substitution
    This part replaces 3405-001042. Substitute parts can look different from the original.
    In Stock
    $64.92
    Minus Item
    Qty
    Plus Item
  • Switch for Amana AMC5143AAB - Part DE34-00204A

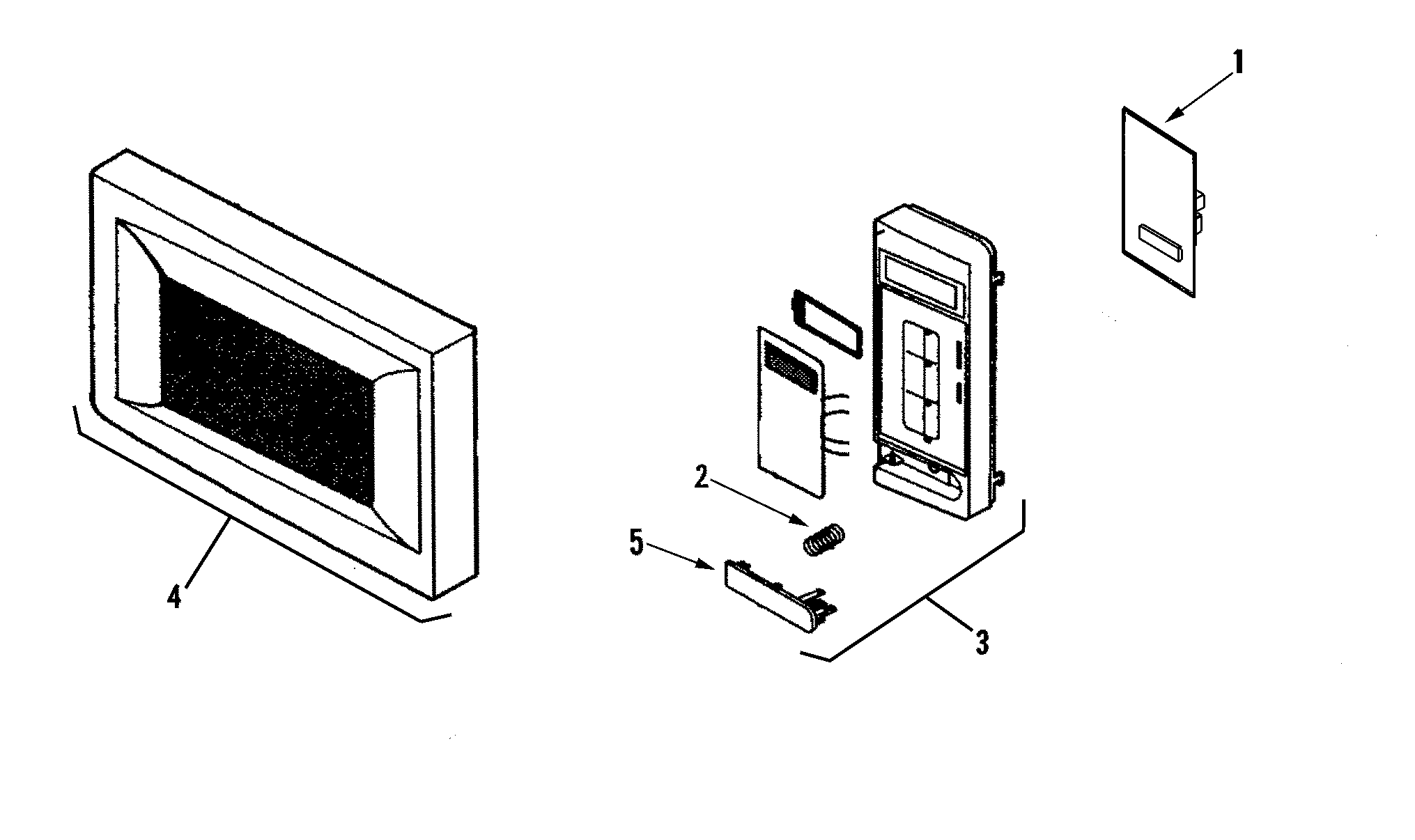

    Control panel/door assembly diagram

    Switch

    Part #DE34-00204A
    In Stock
    $117.66
    Minus Item
    Qty
    Plus Item
  • Power Cord for Amana AMC5143AAB - Part DE39-00040B

    Internal controls/latch asy./base diagram

    Power Cord

    Part #DE39-00040B
    In Stock
    $43.56
    Minus Item
    Qty
    Plus Item
  • Control for Amana AMC5143AAB - Part DE94-01096A

    Control panel/door assembly diagram

    Control

    Part #DE94-01096A
    In Stock
    $180.86
    Minus Item
    Qty
    Plus Item
  • Microwave Door Interlock Switch, Upper for Amana AMC5143AAB - Part 3405-001055

    Internal controls/latch asy./base diagram

    Microwave Door Interlock Switch, Upper

    Part #3405-001055
    In Stock
    $16.29
    11% OFF Phone Price : $18.29Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave High-voltage Transformer for Amana AMC5143AAB - Part DE26-00061B

    Internal controls/latch asy./base diagram

    Transformer

    Part #DE26-00061B

    Replaced by #DE26-00061B

    Info Icon
    Manufacturer substitution
    This part replaces DE26-00061B. Substitute parts can look different from the original.
    In Stock
    $231.35
    5% OFF Phone Price : $243.35Info Icon
    Minus Item
    Qty
    Plus Item
