Model # 11322541 Official Craftsman 6" belt & disc sander

Here are the diagrams and repair parts for Official Craftsman 11322541 6" belt & disc sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

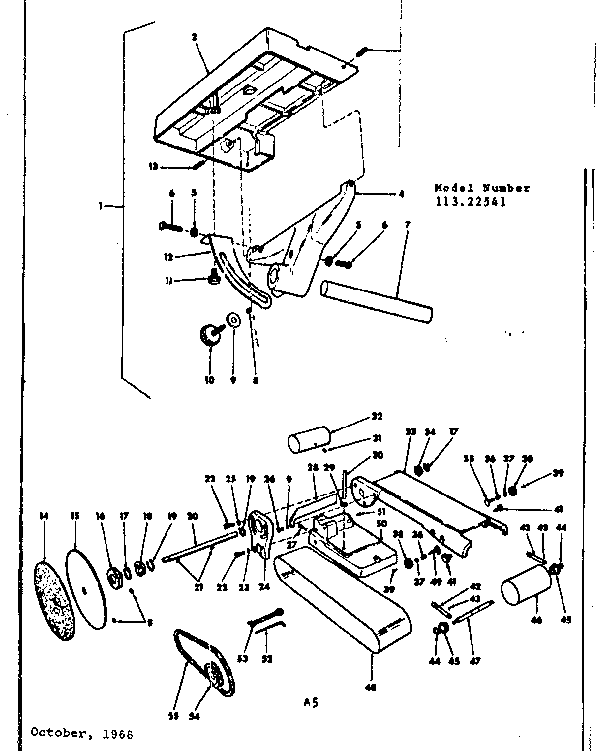

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |

Sander Woodruff Key 38812
#21

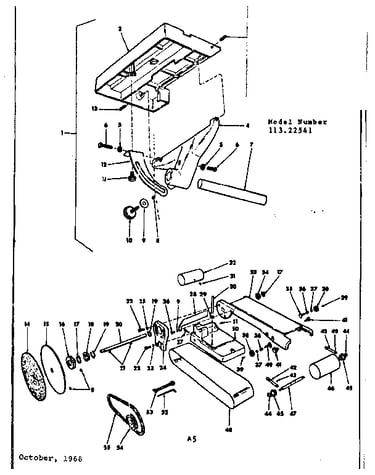

Unit diagram

Sander woodruff key

Part #38812

The manufacturer no longer makes this part, and there's no substitute part

Jointer/planer Spacer 47624
#37

Unit diagram

Jointer/planer spacer

Part #47624

The manufacturer no longer makes this part, and there's no substitute part

Sander Idler Shaft 47621
#47

Unit diagram

Sander idler shaft

Part #47621

The manufacturer no longer makes this part, and there's no substitute part

Sander Idler Drum Arm 47622
#42

Unit diagram

Sander idler drum arm

Part #47622

The manufacturer no longer makes this part, and there's no substitute part

Sander Idler Shaft Bearing 38536
#45

Unit diagram

Sander idler shaft bearing

Part #38536

The manufacturer no longer makes this part, and there's no substitute part

Sander Backstop (replaces 19062, 38224) 47222
#28

Unit diagram

Sander backstop (replaces 19062, 38224)

Part #47222

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 116120
#23

Unit diagram

Lock washer

Part #116120

The manufacturer no longer makes this part, and there's no substitute part

Steel Washer 118774
#9

Unit diagram

Steel washer

Part #118774

The manufacturer no longer makes this part, and there's no substitute part

Nut 60094
#29

Unit diagram

Nut

Part #60094

The manufacturer no longer makes this part, and there's no substitute part

Machine Screw 60033
#51

Unit diagram

Machine screw

Part #60033

The manufacturer no longer makes this part, and there's no substitute part
