Kenmore 5649987911 microwave

Kenmore 5649987911 microwave Parts

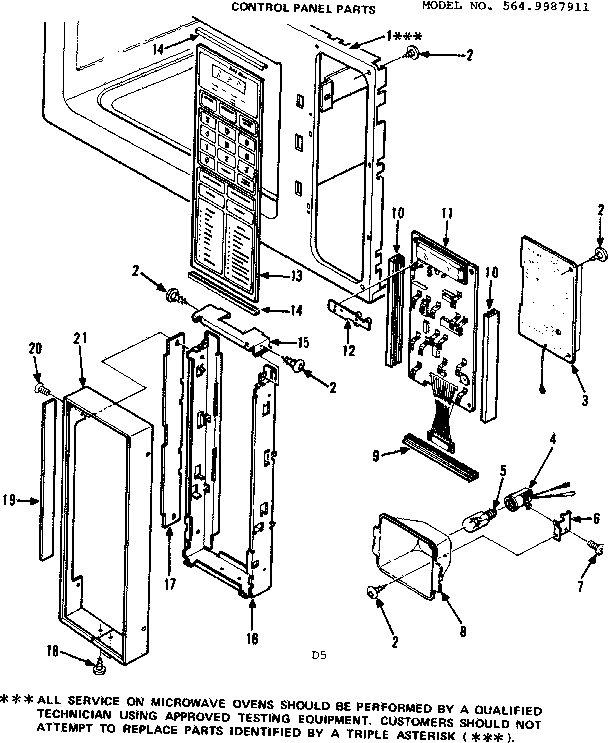

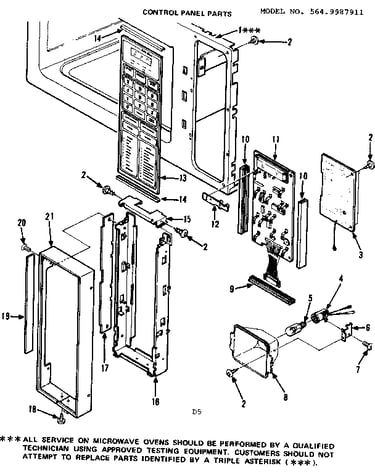

Here are the diagrams and repair parts for Kenmore 5649987911 microwave, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 5649987911 Microwaves

  • Capacitor for Kenmore 5649987911 - Part 10837

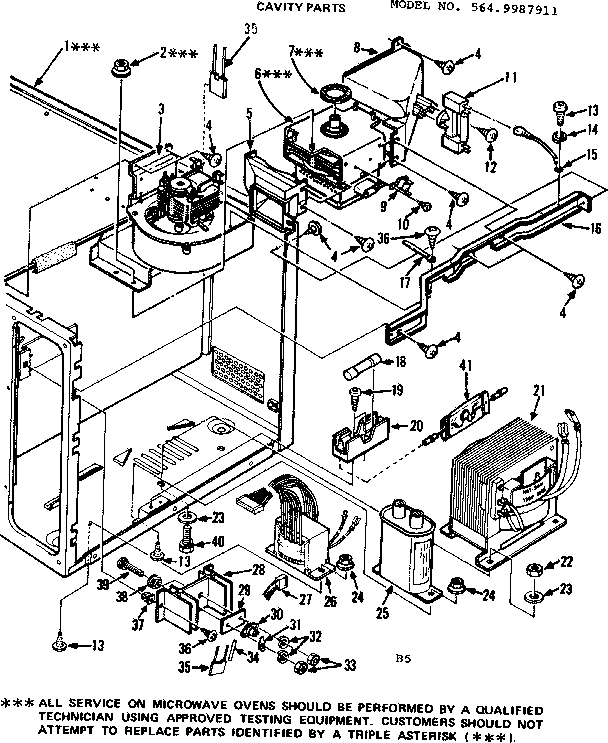

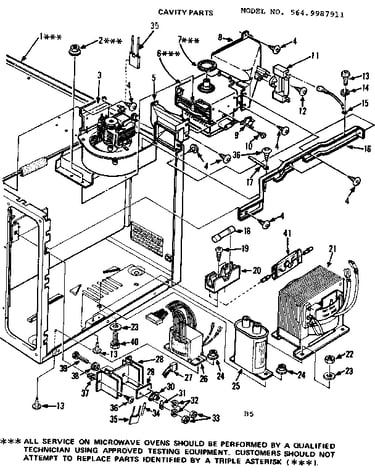

    Cavity parts diagram

    Capacitor

    Part #10837

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor for Kenmore 5649987911 - Part 10952

    Capacitor

    Part #10952

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Kenmore 5649987911 - Part 10305

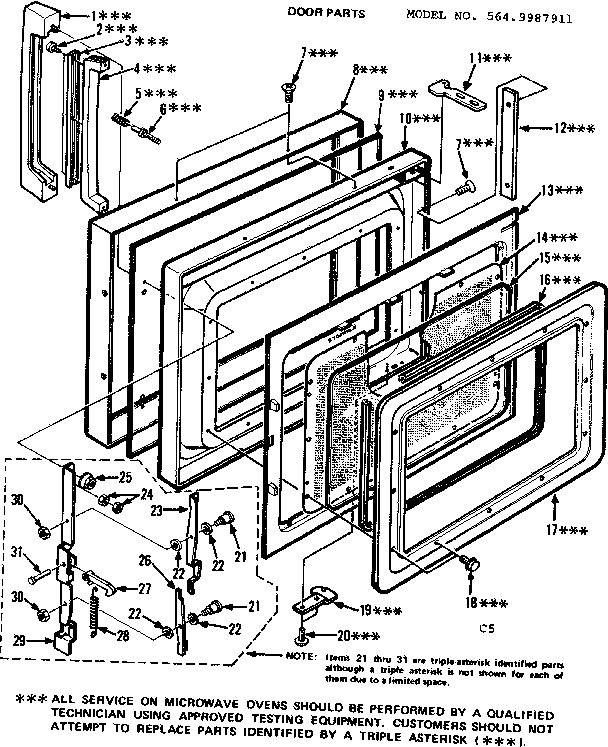

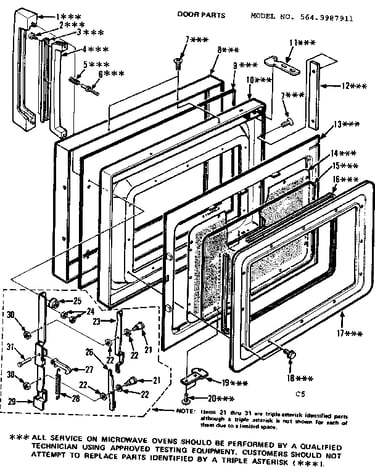

    Door parts diagram

    Screw

    Part #10305

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor for Kenmore 5649987911 - Part 11010

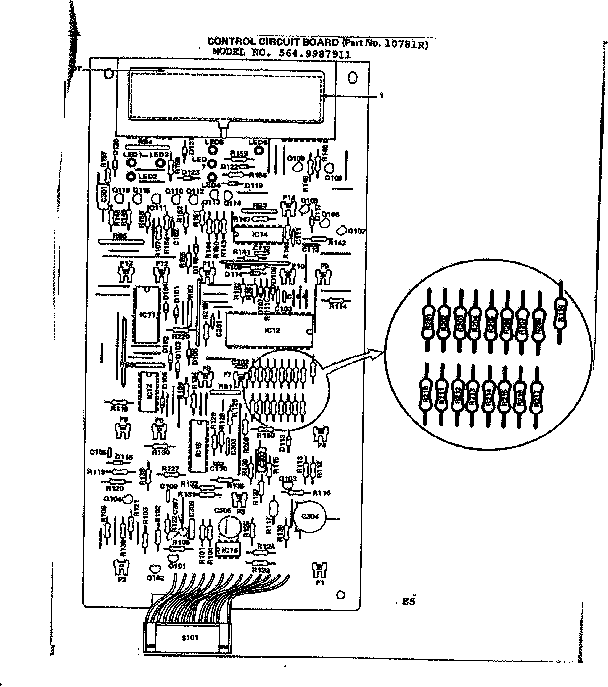

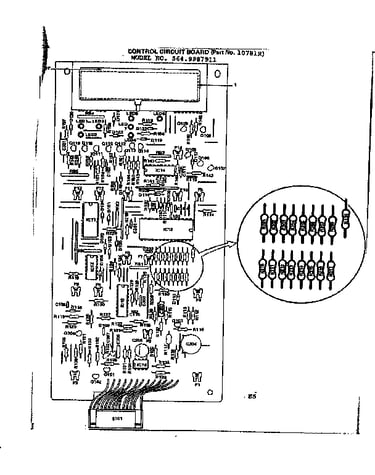

    Control circuit board diagram

    Capacitor

    Part #11010

    The manufacturer no longer makes this part, and there's no substitute part

  • Diode for Kenmore 5649987911 - Part 10919

    Control circuit board diagram

    Diode

    Part #10919

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Kenmore 5649987911 - Part 10049

    Cavity parts diagram

    Screw

    Part #10049

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor for Kenmore 5649987911 - Part 10876

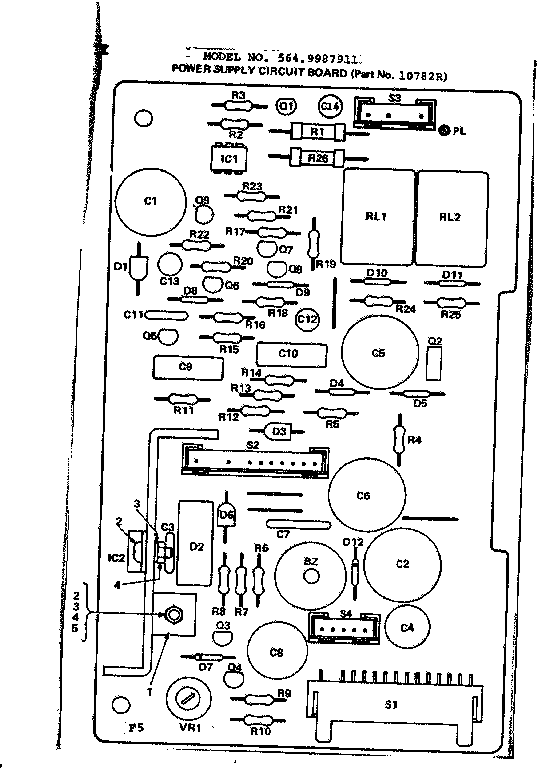

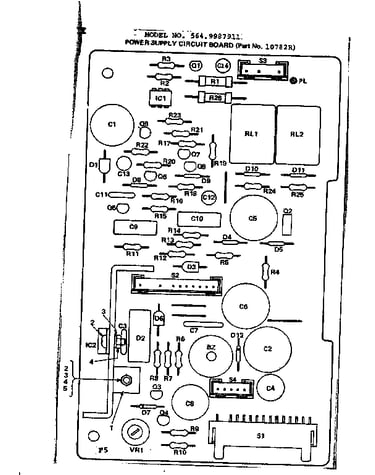

    Power supply circuit board diagram

    Capacitor

    Part #10876

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor for Kenmore 5649987911 - Part 10875

    Power supply circuit board diagram

    Capacitor

    Part #10875

    The manufacturer no longer makes this part, and there's no substitute part

  • Thermostat for Kenmore 5649987911 - Part 10304

    Cavity parts diagram

    Thermostat

    Part #10304

    The manufacturer no longer makes this part, and there's no substitute part

  • Micro-switch for Kenmore 5649987911 - Part 10534

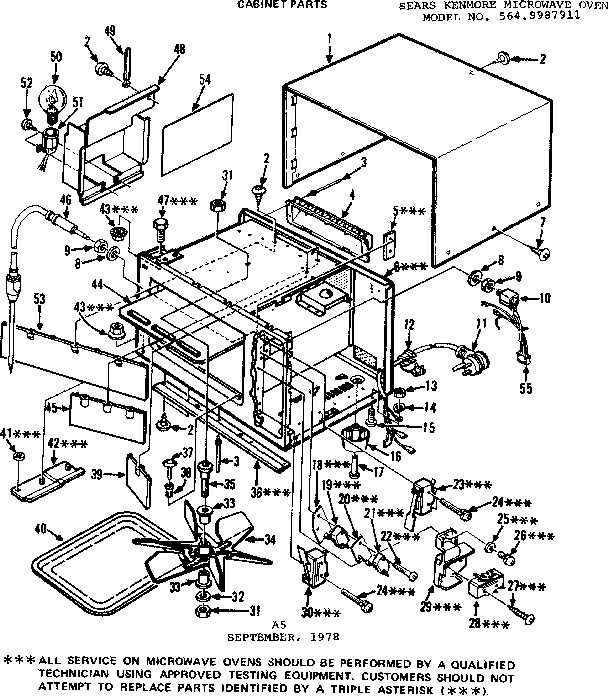

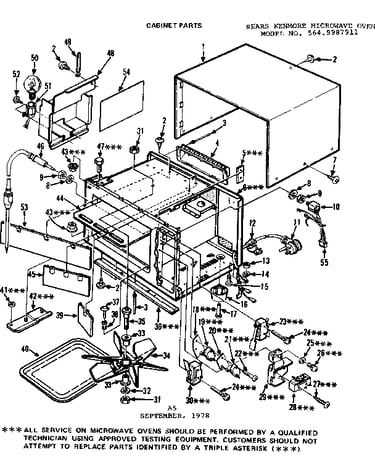

    Cabinet parts diagram

    Micro-switch

    Part #10534

    The manufacturer no longer makes this part, and there's no substitute part
