Model # 315271240 Official Craftsman 1/2" drill/driver

Here are the diagrams and repair parts for Official Craftsman 315271240 1/2" drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

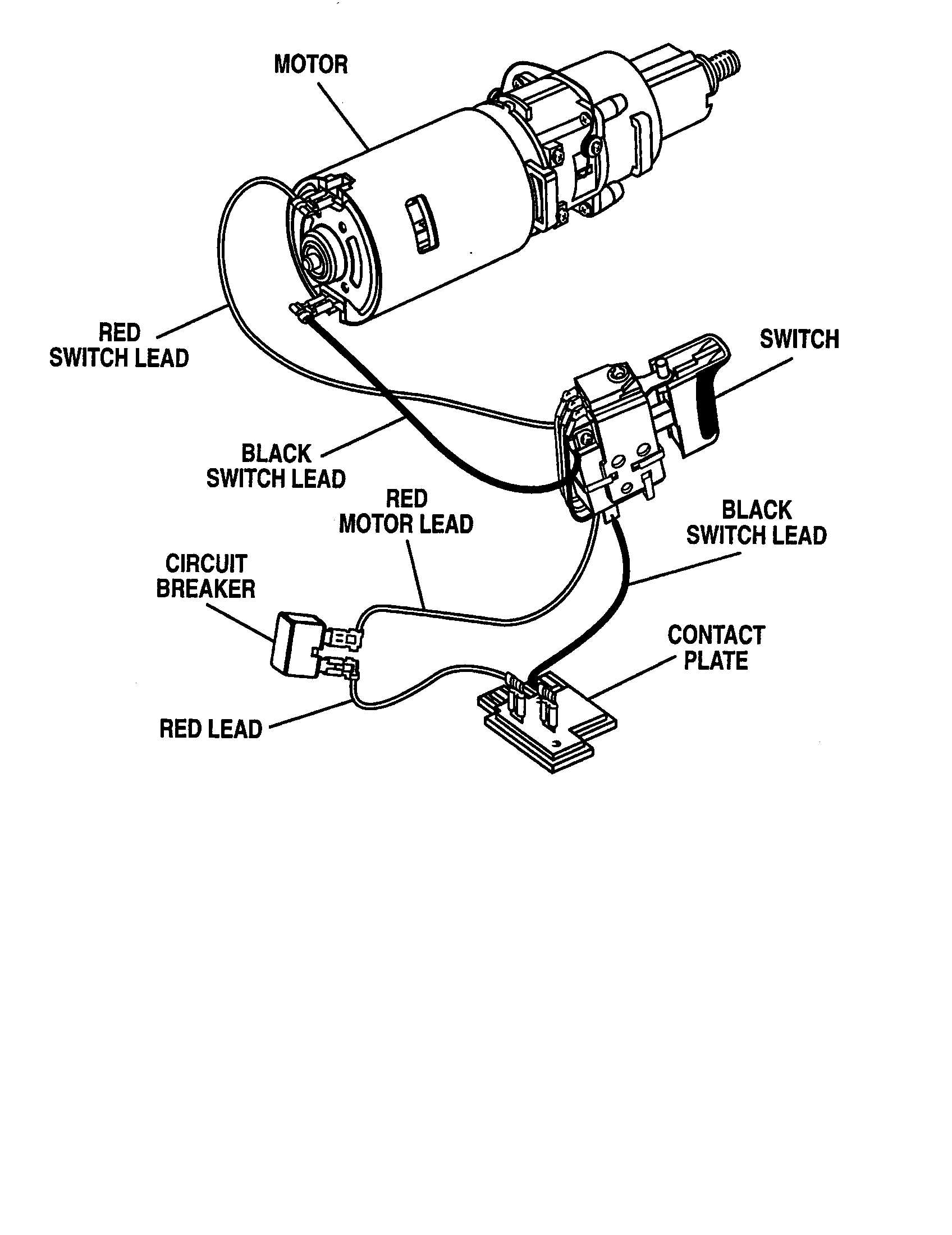

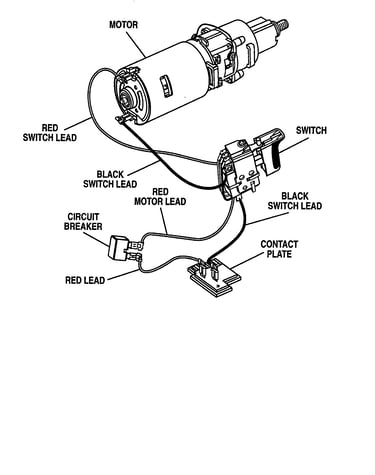

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Trigger 981938-001
#19

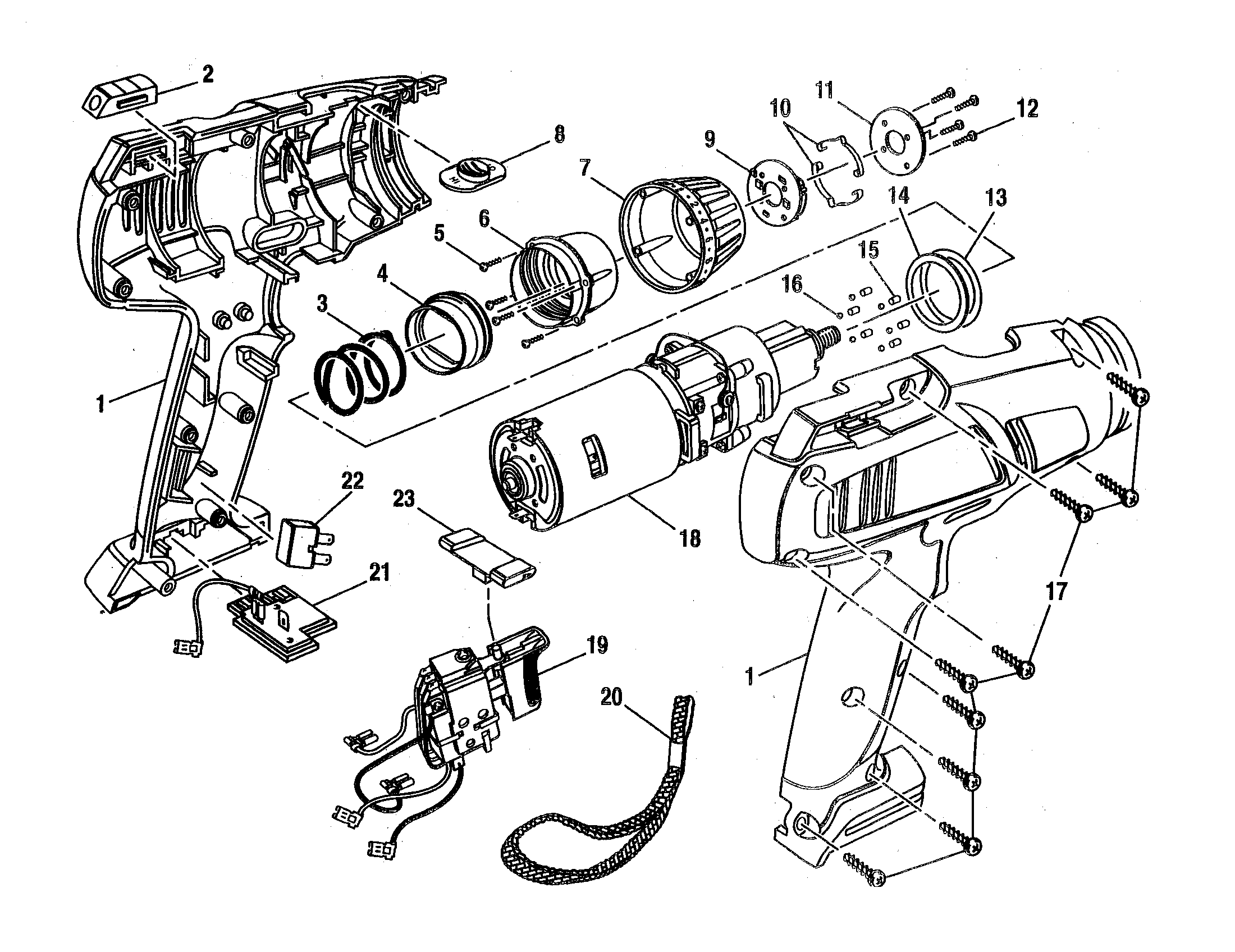

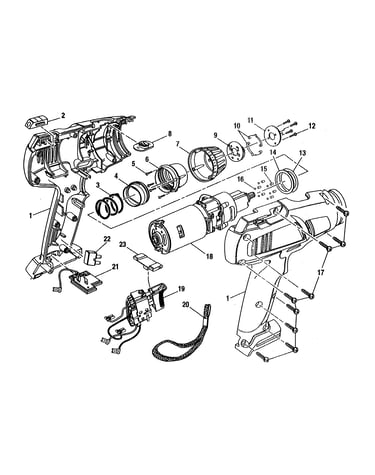

Housing/motor diagram

Trigger

Part #981938-001

The manufacturer no longer makes this part, and there's no substitute part

Housing 981934-001
#1

Housing/motor diagram

Housing

Part #981934-001

The manufacturer no longer makes this part, and there's no substitute part

Battery 981404-001
#6

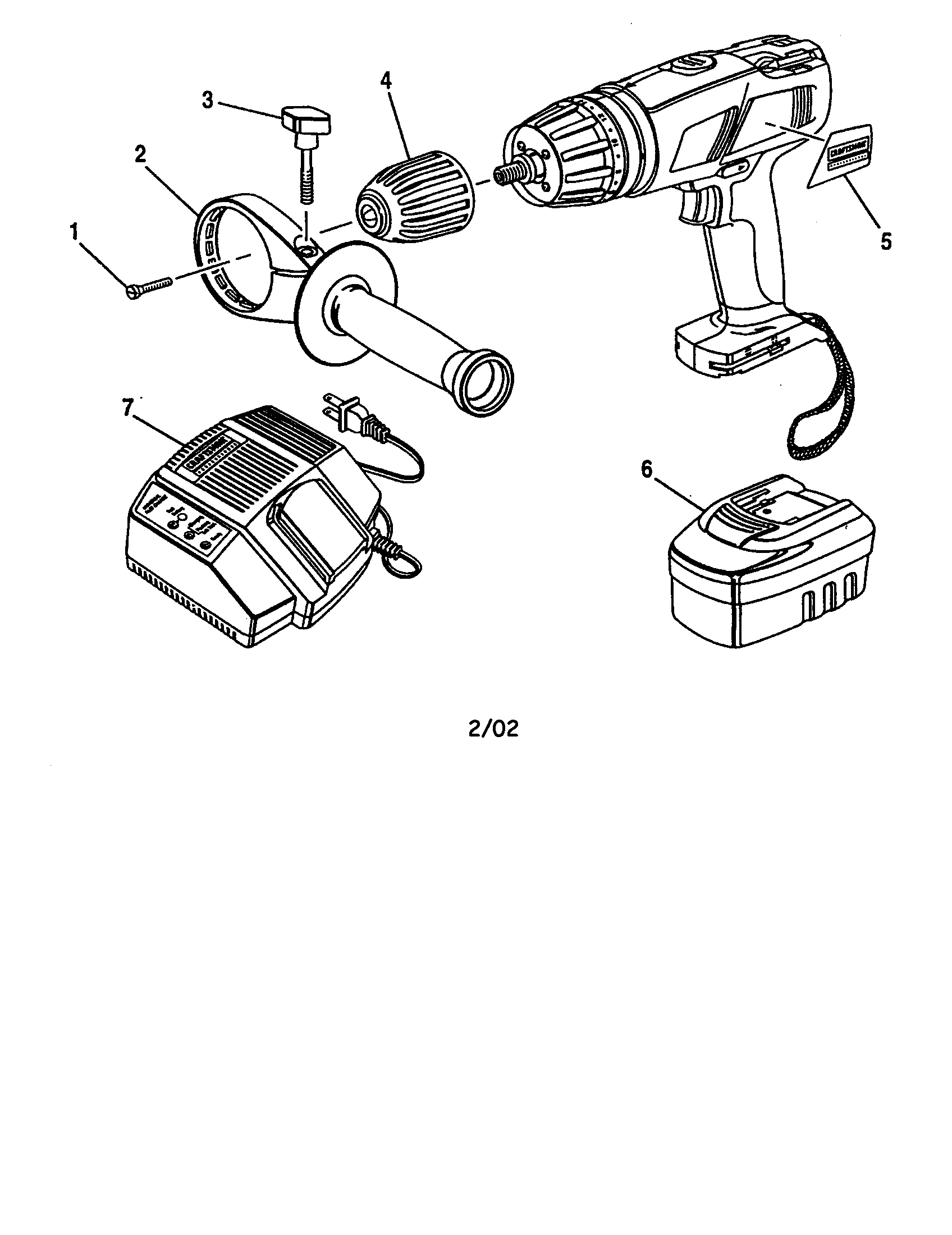

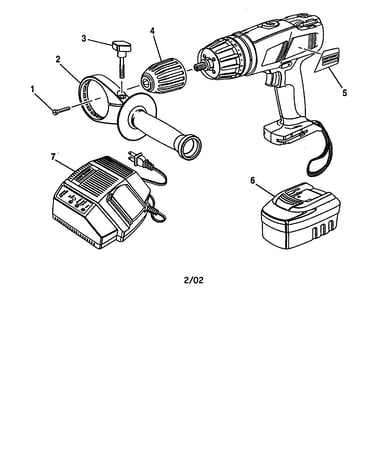

Chuck/battery/charger diagram

Battery

Part #981404-001

The manufacturer no longer makes this part, and there's no substitute part

Actuator 981941-001
#23

Housing/motor diagram

Actuator

Part #981941-001

The manufacturer no longer makes this part, and there's no substitute part

Spring 981930-001
#3

Housing/motor diagram

Spring

Part #981930-001

The manufacturer no longer makes this part, and there's no substitute part

Plate 981923-001
#10

Housing/motor diagram

Plate

Part #981923-001

The manufacturer no longer makes this part, and there's no substitute part

Pin 981932-001
#15

Housing/motor diagram

Pin

Part #981932-001

The manufacturer no longer makes this part, and there's no substitute part

Strap 981495-001
#20

Housing/motor diagram

Strap

Part #981495-001

The manufacturer no longer makes this part, and there's no substitute part

Drill/driver Gear Change Button 981746-001
#8

Housing/motor diagram

Drill/driver gear change button

Part #981746-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 981901-001
#17

Housing/motor diagram

Screw

Part #981901-001

The manufacturer no longer makes this part, and there's no substitute part
