Kenmore
Upright Vacuum

Model # 11634726302 Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 11634726302 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |

Vacuum Drive Belt 4369591
#29

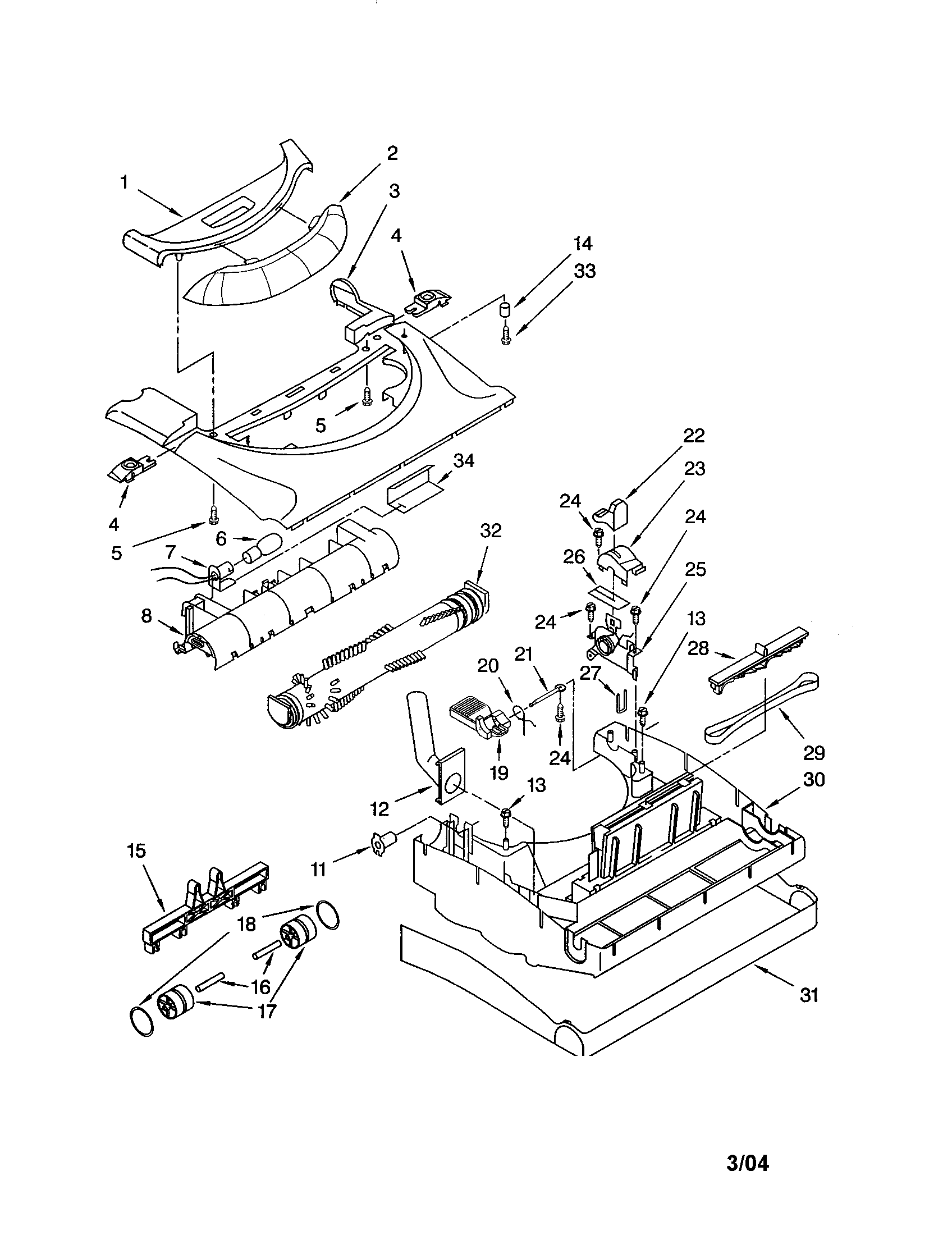

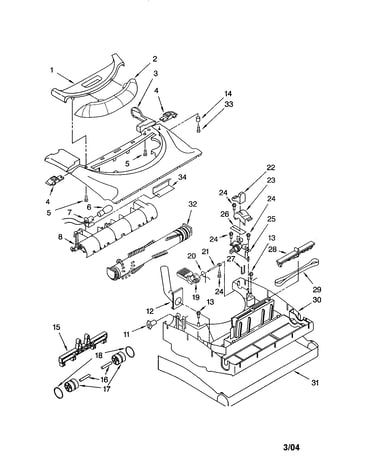

Nozzle diagram

Vacuum drive belt

Part #4369591

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Crevice Tool 4368684
#2

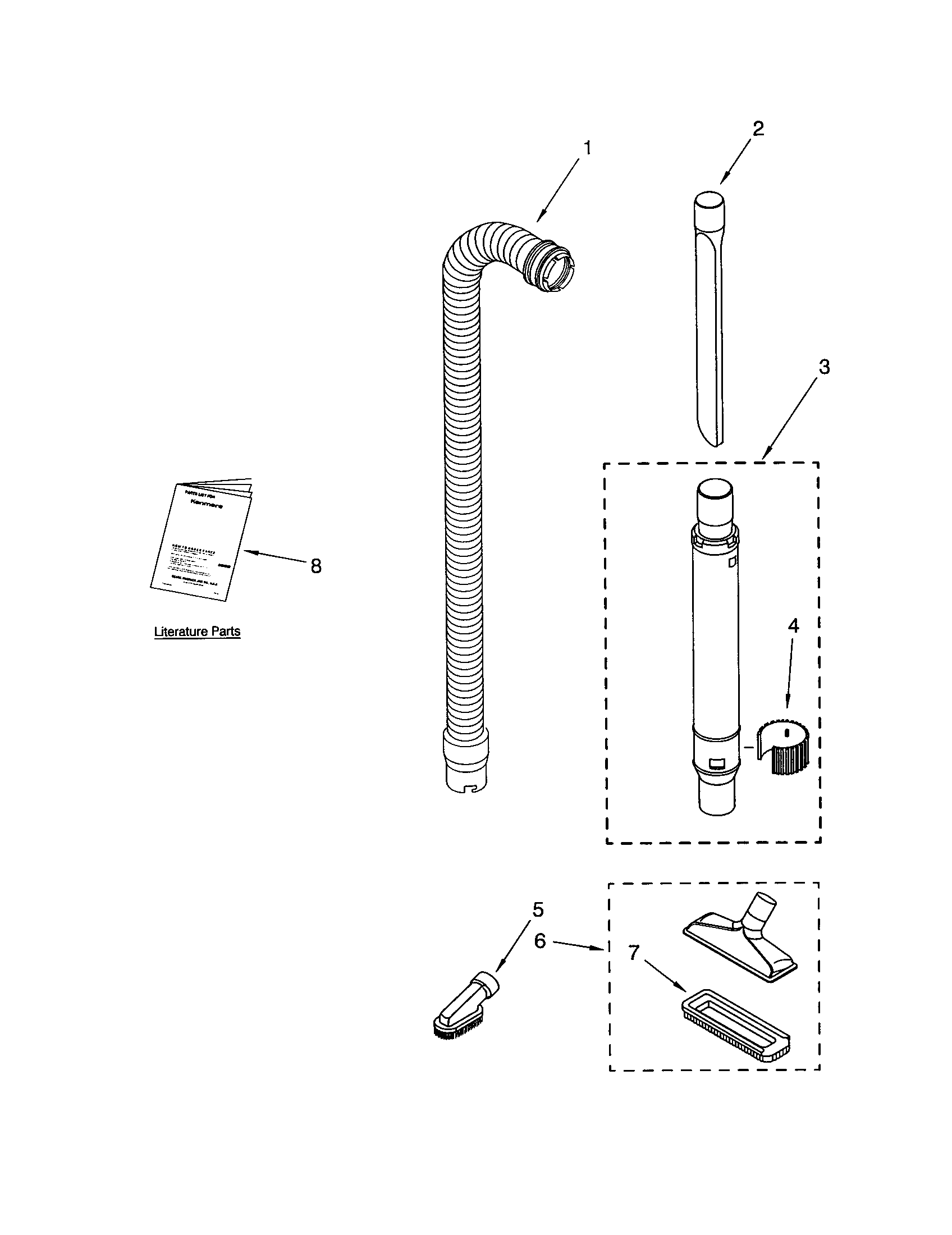

Nose and attachment diagram

Vacuum crevice tool

Part #4368684

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle Switch 4368653
#3

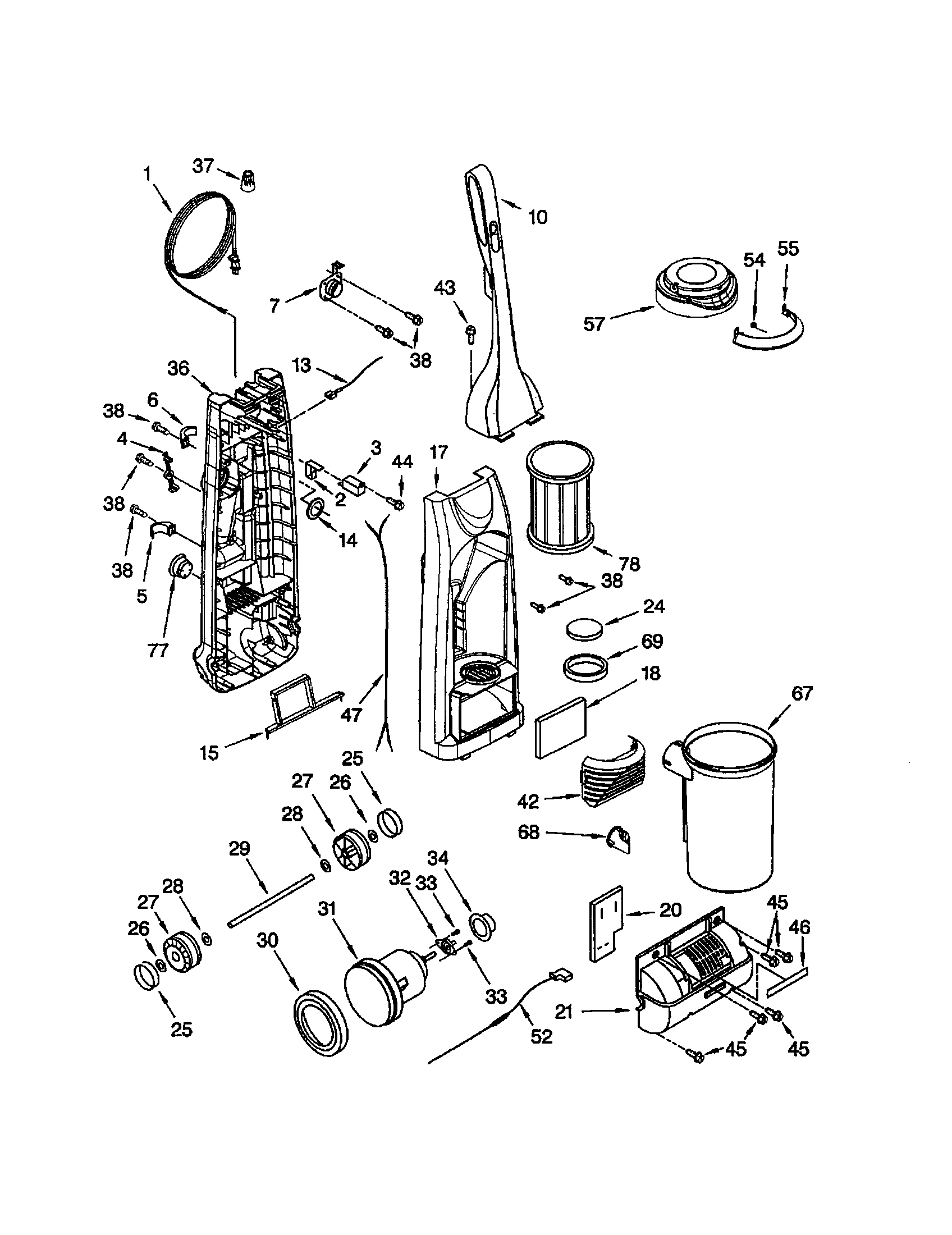

Dust compartment and motor diagram

Vacuum handle switch

Part #4368653

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 4368563
Vacuum screw

Part #4368563

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel Axle 4369561
#29

Dust compartment and motor diagram

Vacuum wheel axle

Part #4369561

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Assembly 8191580
#31

Dust compartment and motor diagram

Vacuum motor assembly

Part #8191580

The manufacturer no longer makes this part, and there's no substitute part

Filter 8192788
#67

Dust compartment and motor diagram

Filter

Part #8192788

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Exhaust Filter 8191577
#20

Dust compartment and motor diagram

Vacuum exhaust filter

Part #8191577

The manufacturer no longer makes this part, and there's no substitute part

Shifter 4370393
#25

Nozzle diagram

Shifter

Part #4370393

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter Cover 8191582
#42

Dust compartment and motor diagram

Vacuum filter cover

Part #8191582

The manufacturer no longer makes this part, and there's no substitute part
