Model # AJES12DCCM2 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AJES12DCCM2 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |

Room Air Conditioner Control Knob WJ12X10072
#1086

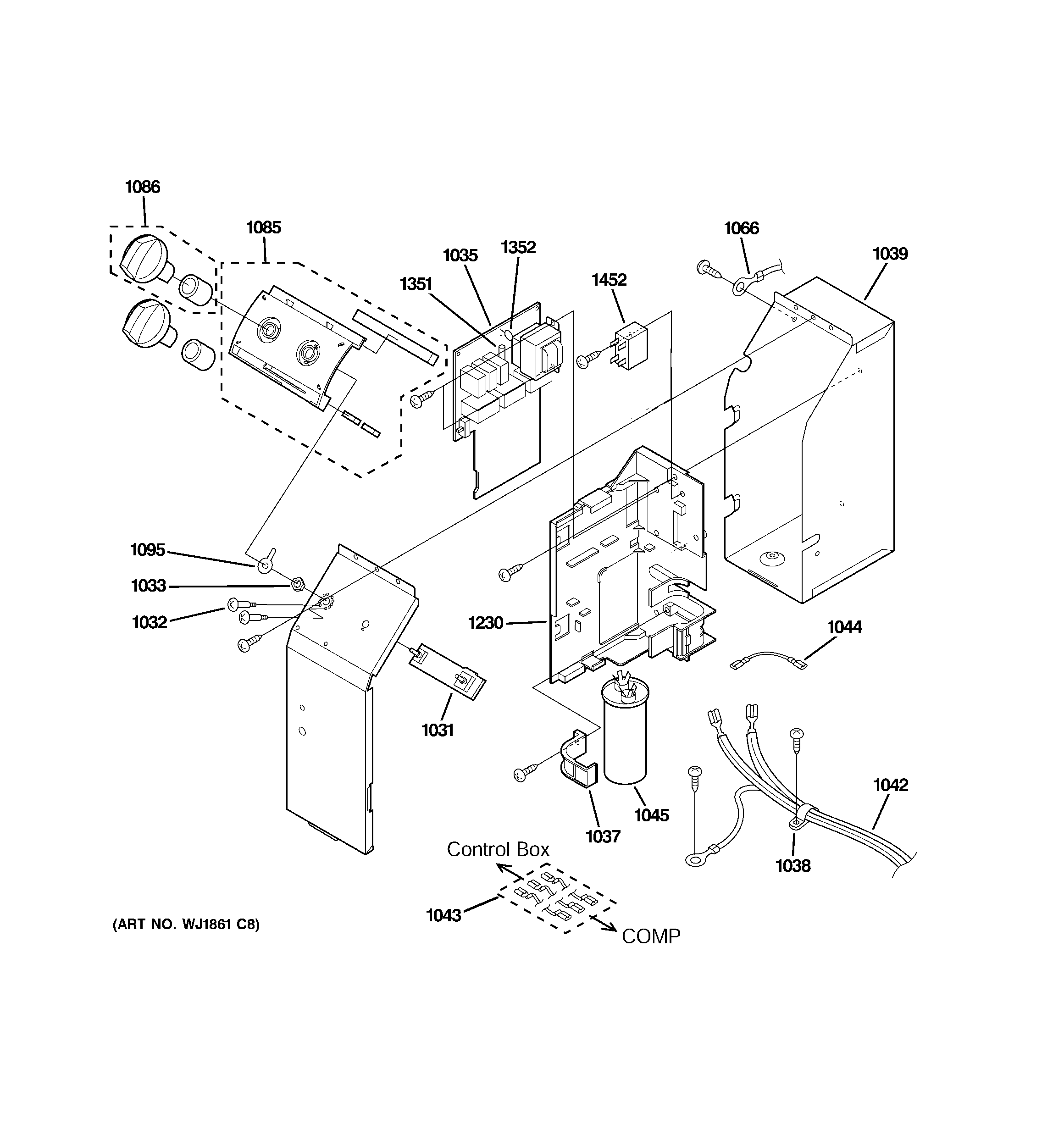

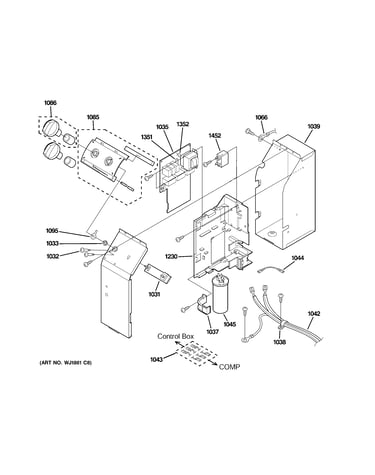

Control parts diagram

Room air conditioner control knob

Part #WJ12X10072

This item is not returnable
$6.92
13% OFF Phone Price : $7.92
In Stock
Power Cord WJ35X10090
#1042

Control parts diagram

Power cord

Part #WJ35X10090

Replaced by #WJ35X10142

?
Manufacturer substitution
This part replaces WJ35X10090. Substitute parts can look different from the original.
$132.43
7% OFF Phone Price : $142.43
In Stock
Room Air Conditioner Indoor Fan Motor Cushion WJ01X10034
#1016

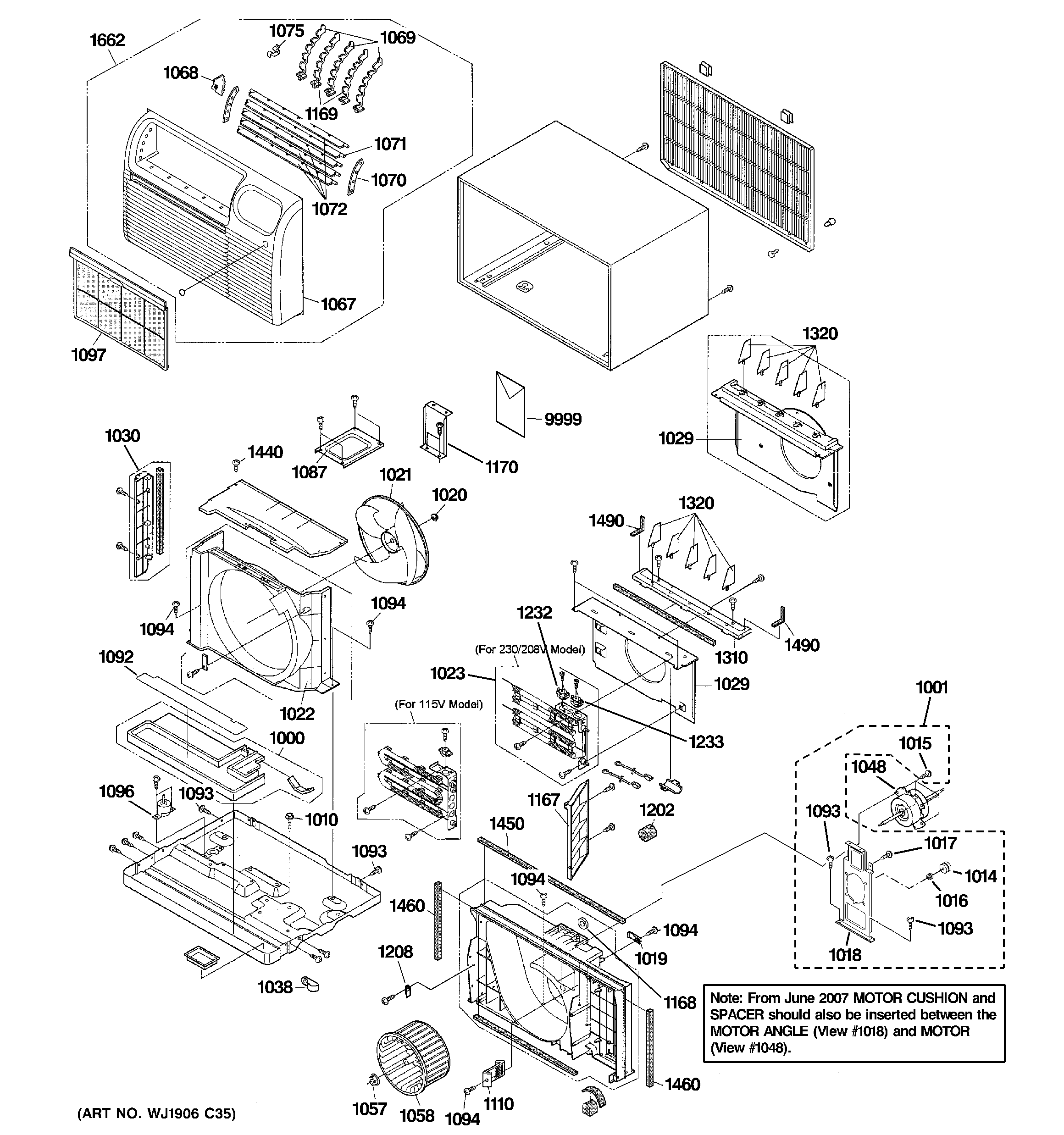

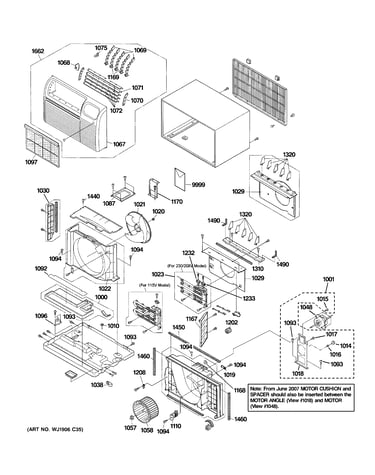

Cabinet & components diagram

Room air conditioner indoor fan motor cushion

Part #WJ01X10034

In Stock
Fan Motor Capacitor WJ20X10138
#1452

Control parts diagram

Fan motor capacitor

Part #WJ20X10138

In Stock
Room Air Conditioner Air Filter WJ85X10041
#1097

Cabinet & components diagram

Room air conditioner air filter

Part #WJ85X10041

$31.66
14% OFF Phone Price : $36.66
In Stock
Room Air Conditioner Control Panel WJ11X10018
#1085

Control parts diagram

Room air conditioner control panel

Part #WJ11X10018

$10.59
16% OFF Phone Price : $12.59
In Stock
Thermistor WJ27X10056
#1046

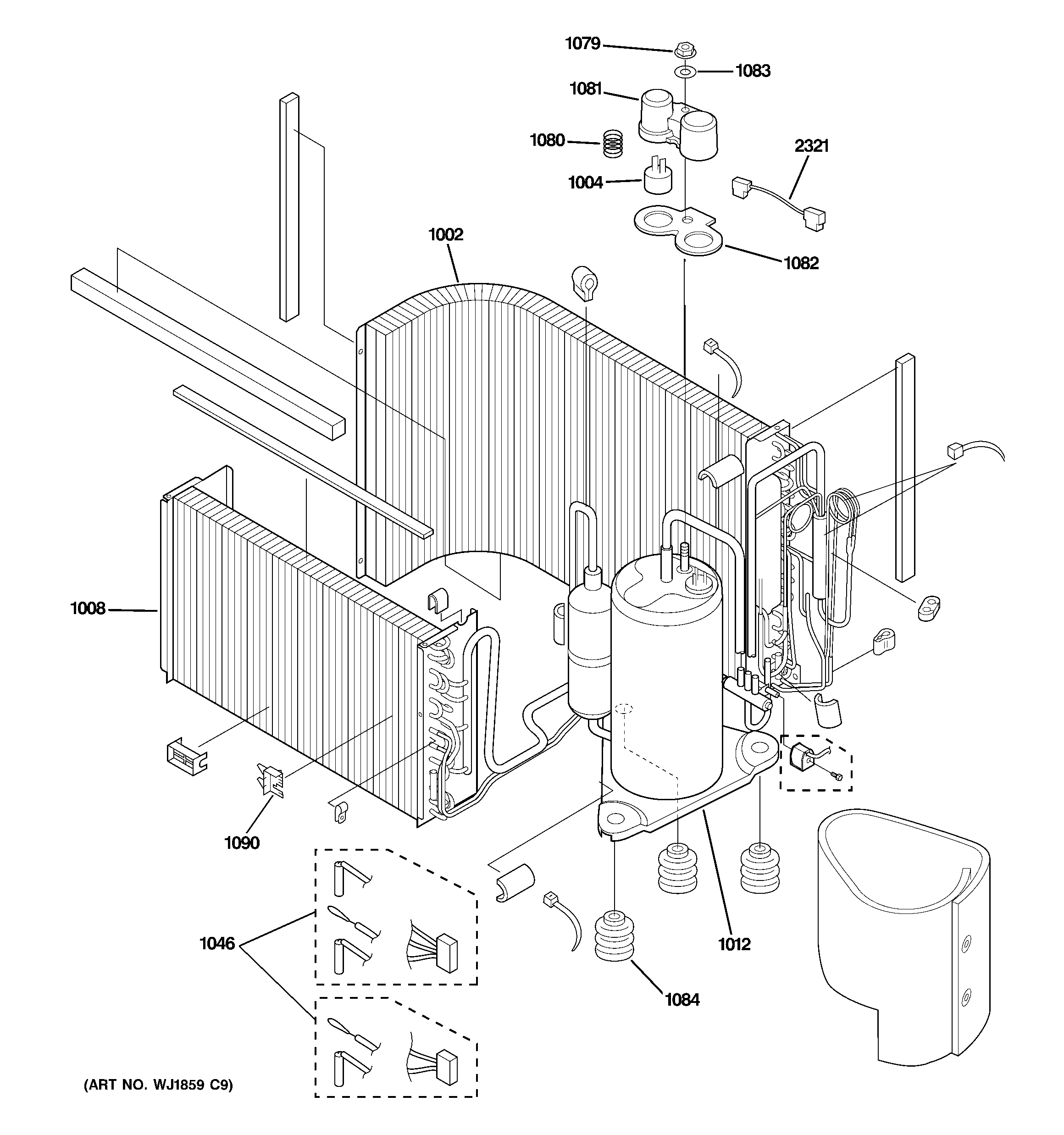

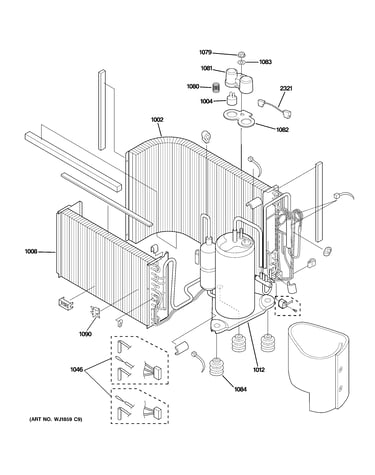

Sealed system & components diagram

Thermistor

Part #WJ27X10056

In Stock
Clamp WJ01X10159
#1019

Cabinet & components diagram

Clamp

Part #WJ01X10159

This item is not returnable
In Stock
Stud Bolt WJ01X10031
#1010

Cabinet & components diagram

Stud bolt

Part #WJ01X10031

In Stock
Lead Wire WJ27X10001
#2321

Sealed system & components diagram

Lead wire

Part #WJ27X10001

In Stock
