Model # 62962 Official Craftsman motor

Here are the diagrams and repair parts for Official Craftsman 62962 motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 15 parts  |

Table Saw Washer 63465
#9

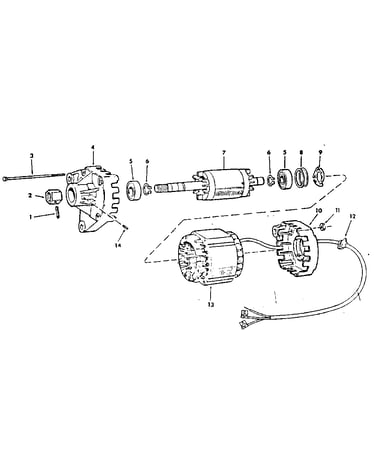

Motor 62962 diagram

Table saw washer

Part #63465

The manufacturer no longer makes this part, and there's no substitute part

Strain Relif 64792
#12

Motor 62962 diagram

Strain relif

Part #64792

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut STD541110
#11

Motor 62962 diagram

Hex nut

Part #STD541110

The manufacturer no longer makes this part, and there's no substitute part

Shield End 64793
#10

Motor 62962 diagram

Shield end

Part #64793

The manufacturer no longer makes this part, and there's no substitute part

Retainer Ring 179370
#6

Motor 62962 diagram

Retainer ring

Part #179370

The manufacturer no longer makes this part, and there's no substitute part

Screw 64790
#3

Motor 62962 diagram

Screw

Part #64790

The manufacturer no longer makes this part, and there's no substitute part

Motor 62962
#1A

Motor 62962 diagram

Motor

Part #62962

The manufacturer no longer makes this part, and there's no substitute part

Rotor Assembly 64791
#7

Motor 62962 diagram

Rotor assembly

Part #64791

The manufacturer no longer makes this part, and there's no substitute part

Screw 64376
#14

Motor 62962 diagram

Screw

Part #64376

The manufacturer no longer makes this part, and there's no substitute part

Stator Assembly 64794
#13

Motor 62962 diagram

Stator assembly

Part #64794

The manufacturer no longer makes this part, and there's no substitute part
