Craftsman
Lawn & Garden Engine

Model # 143558032 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143558032 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 187 parts  |

Gasket 27110
#20

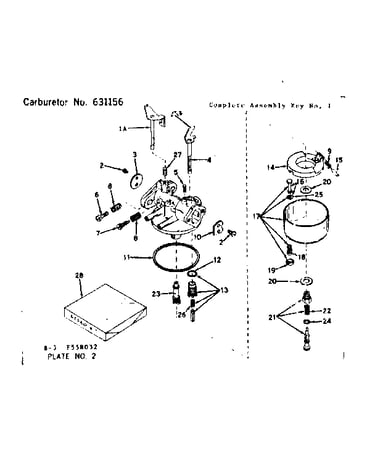

Carburetor no. 631156 diagram

Gasket

Part #27110

The manufacturer no longer makes this part, and there's no substitute part

Chmp J8 Plug 21943
#53

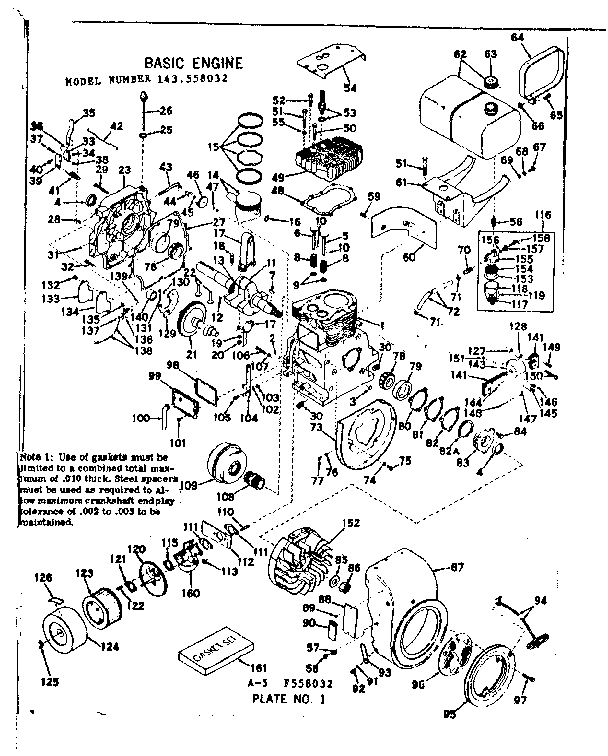

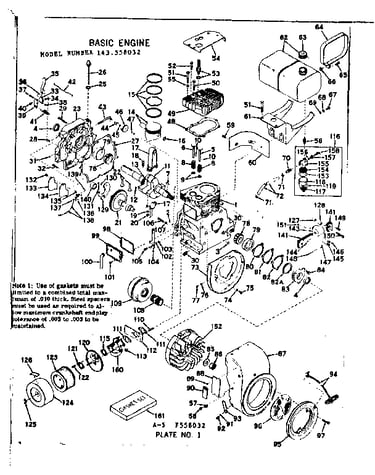

Basic engine diagram

Chmp j8 plug

Part #21943

The manufacturer no longer makes this part, and there's no substitute part

Screw 30564
#32

Basic engine diagram

Screw

Part #30564

The manufacturer no longer makes this part, and there's no substitute part

/fuel Clamp 26460
#71

Basic engine diagram

/fuel clamp

Part #26460

The manufacturer no longer makes this part, and there's no substitute part

Start Pulley 31980
#95

Basic engine diagram

Start pulley

Part #31980

The manufacturer no longer makes this part, and there's no substitute part

Screw 650597
#105

Basic engine diagram

Screw

Part #650597

The manufacturer no longer makes this part, and there's no substitute part

Spring 31503
#9

Carburetor no. 631156 diagram

Spring

Part #31503

The manufacturer no longer makes this part, and there's no substitute part

Screw 630606
#2

Carburetor no. 631156 diagram

Screw

Part #630606

The manufacturer no longer makes this part, and there's no substitute part

Washer 8274
#91

Basic engine diagram

Washer

Part #8274

The manufacturer no longer makes this part, and there's no substitute part

Bearing Cup 31928
#79

Basic engine diagram

Bearing cup

Part #31928

The manufacturer no longer makes this part, and there's no substitute part
