Kenmore 3643312593 gas counter unit Parts
Here are the diagrams and repair parts for Kenmore 3643312593 gas counter unit, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

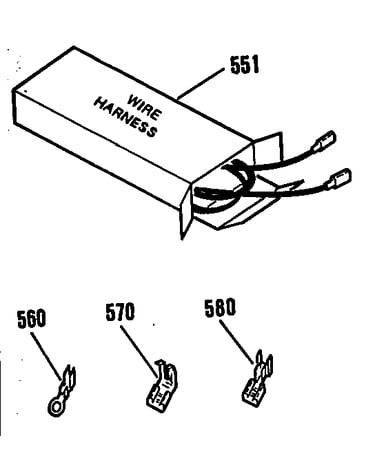

Browse Parts for 3643312593 Cooktops

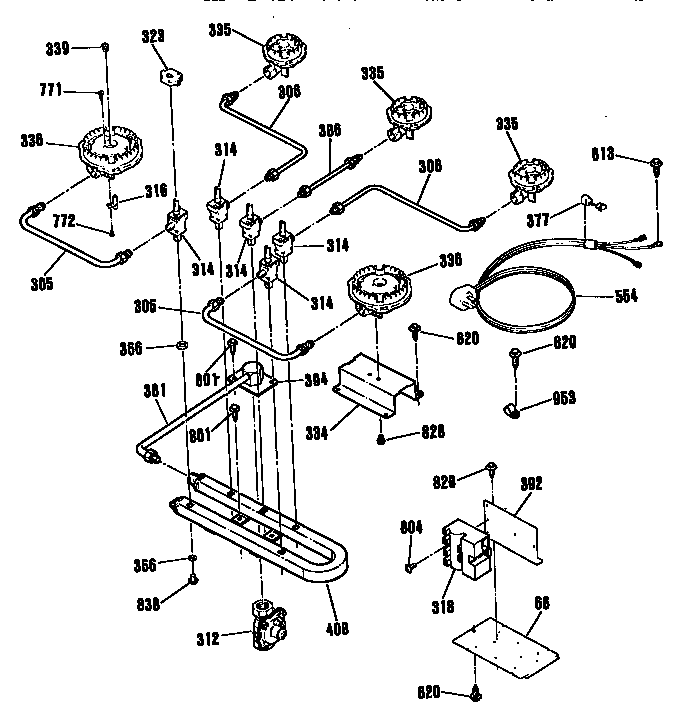

Burner diagram
Cooktop Igniter Switch
Part #WB24K5083This item is not returnableIn Stock$32.2516% OFF Phone Price : $38.25
Qty

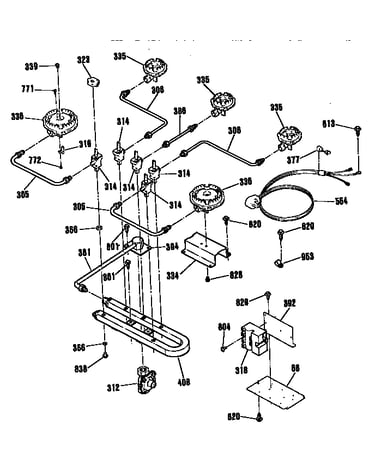

Burner diagram
Screw
Part #WB01M0001Replaced by #WB1M1

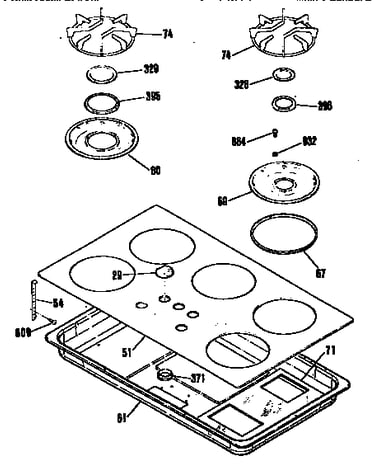

Manufacturer substitutionThis part replaces WB01M0001. Substitute parts can look different from the original.This item is not returnableIn Stock$8.1311% OFF Phone Price : $9.13QtyMain top diagram
Brkt Hold Dn
Part #WB02K5328Replaced by #WB2K5328
Manufacturer substitutionThis part replaces WB02K5328. Substitute parts can look different from the original.In Stock$8.3811% OFF Phone Price : $9.38QtyBurner diagram
Screw
Part #WB01X1424Replaced by #WB1X1424D
Manufacturer substitutionThis part replaces WB01X1424. Substitute parts can look different from the original.In Stock$7.6812% OFF Phone Price : $8.68Qty#NI
All parts diagram
User's Manual
In Stock$28.73QtyBurner diagram
Tube Assembly Front
In Stock$44.76Qty#NI
All parts diagram
Air Shutter
In Stock$28.22QtyBurner diagram
Burner Tube
In Stock$50.79QtyMain top diagram
Burner Box
In Stock$107.20Qty#NI
All parts diagram
Wiring Diagram
Part #SR13247
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your cooktops
Choose a symptom to see related cooktop repairs.
Main causes: lack of electrical power, gas supply failure, bad pressure regulator, control system failure…
Repair guides for gas cooktops
How to replace a spark module on a gas cooktop
No flame on your gas cooktop? Installing a new spark module could be the fix you need.…
Repair time and Difficulty
30 minutes or less
How to replace a spark igniter switch on a gas cooktop
Follow these step-by-step instructions to fix the surface burner ignition system on your gas cooktop by replacing the sp…
Repair time and Difficulty
45 minutes or less
Effective articles & videos to help repair your cooktops
Use the advice and tips in these articles and videos to get the most out of your cooktop.
