Kenmore
Furnace

Model # 155765140 Official Kenmore mobile home gas furnace

Here are the diagrams and repair parts for Official Kenmore 155765140 mobile home gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

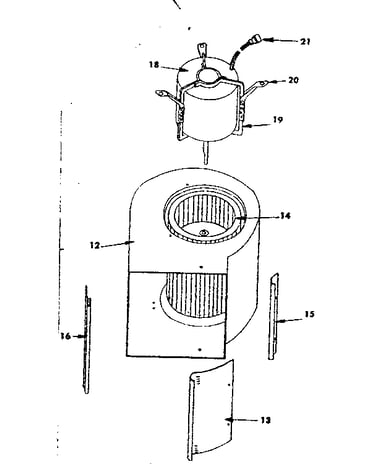

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Thermocouple K13724
#42

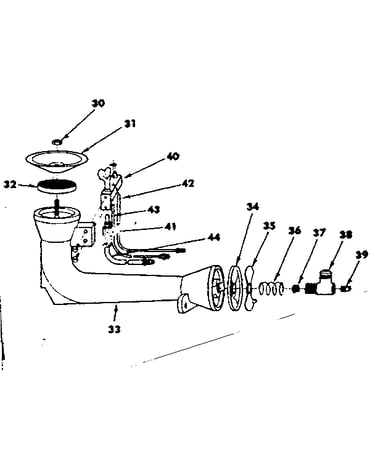

Burner diagram

Thermocouple

Part #K13724

The manufacturer no longer makes this part, and there's no substitute part

Relay K15411
#55

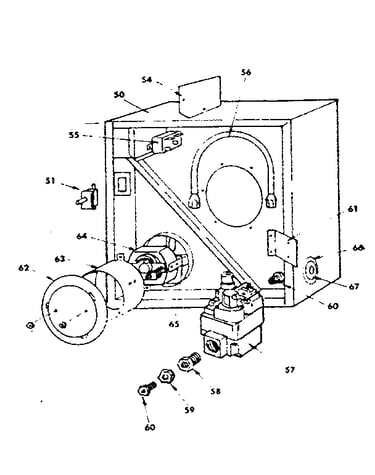

Burner box diagram

Relay

Part #K15411

The manufacturer no longer makes this part, and there's no substitute part

Filter K11225
#85

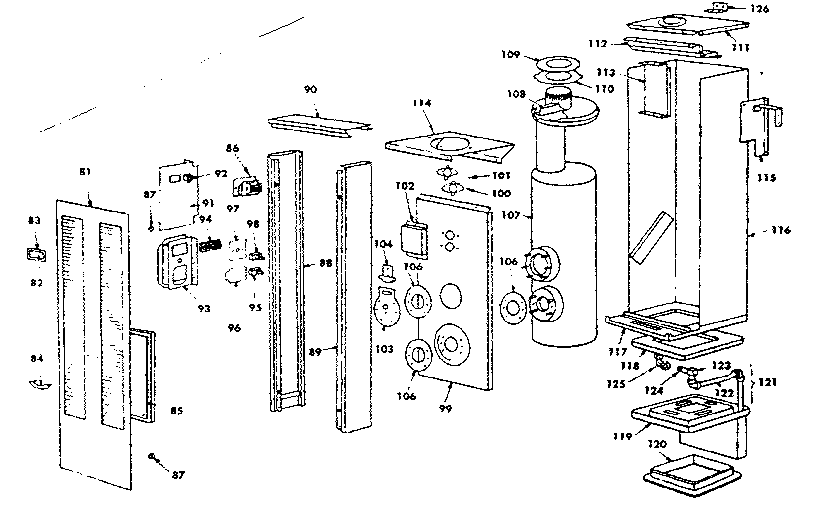

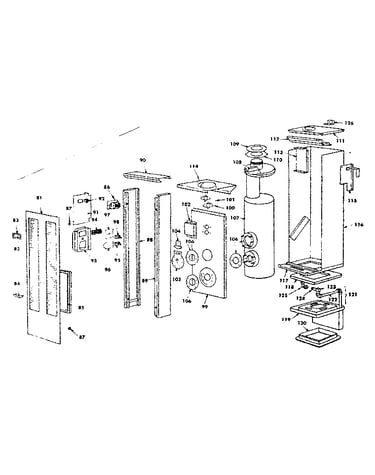

Cabinet and combustion drum diagram

Filter

Part #K11225

The manufacturer no longer makes this part, and there's no substitute part

Furnace Flame Spreader Y13428
#32

Burner diagram

Furnace flame spreader

Part #Y13428

The manufacturer no longer makes this part, and there's no substitute part

Transformer Y13371
#86

Cabinet and combustion drum diagram

Transformer

Part #Y13371

The manufacturer no longer makes this part, and there's no substitute part

Tubing Y13591
#44

Burner diagram

Tubing

Part #Y13591

The manufacturer no longer makes this part, and there's no substitute part

Drum Y13346
#107

Cabinet and combustion drum diagram

Drum

Part #Y13346

The manufacturer no longer makes this part, and there's no substitute part

Jack Assem 2883-1
#1

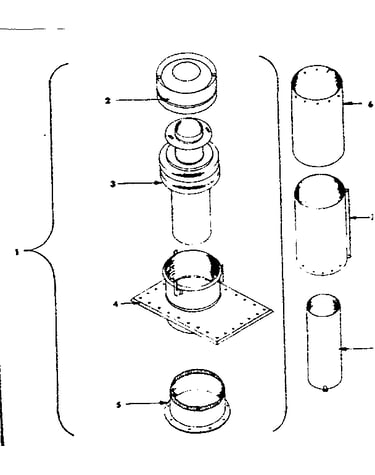

Roof jack and vent diagram

Jack assem

Part #2883-1

The manufacturer no longer makes this part, and there's no substitute part

Warranty F642-5073A

#NI

All parts diagram

Warranty

Part #F642-5073A

The manufacturer no longer makes this part, and there's no substitute part

Furnace Flame Spreader S1554
#31

Burner diagram

Furnace flame spreader

Part #S1554

The manufacturer no longer makes this part, and there's no substitute part
