Kenmore 2538771390 window air conditioner Parts
Here are the diagrams and repair parts for Kenmore 2538771390 window air conditioner, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for 2538771390 Window Air Conditioner

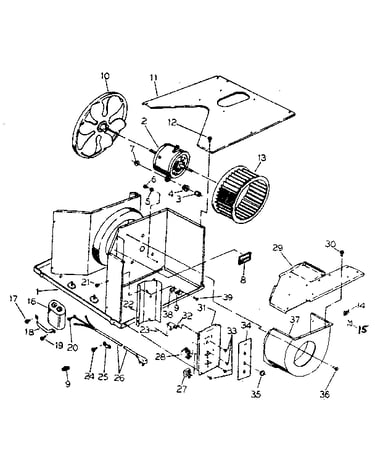

Electrical system and air handling parts diagram
Grommet
Part #119108Replaced by #5308047501
Manufacturer substitutionThis part replaces 119108. Substitute parts can look different from the original.In Stock$36.67
Qty

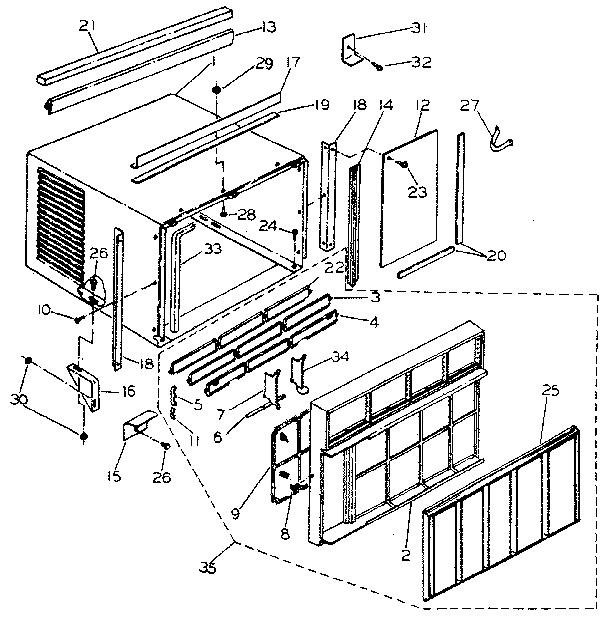

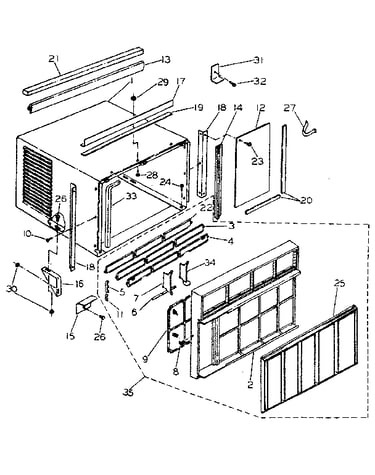

Cabinet parts diagram
Nut
Part #513166Replaced by #5303311307
Manufacturer substitutionThis part replaces 513166. Substitute parts can look different from the original.In Stock$33.88QtyCabinet parts diagram
Clip
Part #117313Replaced by #5303001821

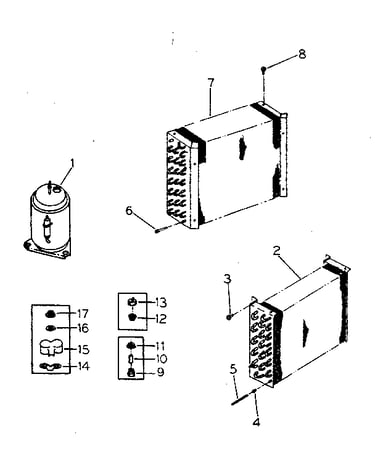

Manufacturer substitutionThis part replaces 117313. Substitute parts can look different from the original.In Stock$28.50QtyUnit parts diagram
Sping
Part #515921Replaced by #5303002036
Manufacturer substitutionThis part replaces 515921. Substitute parts can look different from the original.In Stock$34.77QtyElectrical system and air handling parts diagram
Sleeve
Part #119302Replaced by #5308047502
Manufacturer substitutionThis part replaces 119302. Substitute parts can look different from the original.In Stock$27.35QtyElectrical system and air handling parts diagram
Strap
Part #501770Replaced by #5308047452
Manufacturer substitutionThis part replaces 501770. Substitute parts can look different from the original.In Stock$27.17QtyCabinet parts diagram
Seal
Part #149187-01Replaced by #5314918701
Manufacturer substitutionThis part replaces 149187-01. Substitute parts can look different from the original.In Stock$25.24QtyScrew
Part #521208Replaced by #5303209556
Manufacturer substitutionThis part replaces 521208. Substitute parts can look different from the original.In Stock$25.24QtyCabinet parts diagram
Window Panel
Part #149202-03Replaced by #5300100078
Manufacturer substitutionThis part replaces 149202-03. Substitute parts can look different from the original.In Stock$54.32QtyElectrical system and air handling parts diagram
Control Panel
Part #502395Replaced by #5300518026
Manufacturer substitutionThis part replaces 502395. Substitute parts can look different from the original.In Stock$62.14Qty
