Caloric RLN362UW/P1143511NW gas range

Caloric RLN362UW/P1143511NW gas range Parts

Here are the diagrams and repair parts for Caloric RLN362UW/P1143511NW gas range, as well as links to manuals and error code tables, if available.

By Schematic

By Part

SELECT DIAGRAM

Browse Parts for RLN362UW/P1143511NW Ranges

#NI
All parts diagram
Hex Nut
Part #M0282009
In Stock
$38.25
Qty
Cabinet diagram
Lamp
Part #A0282806
Replaced by #8009
Manufacturer substitution
This part replaces A0282806. Substitute parts can look different from the original.
This item is not returnable
In Stock
$14.68
12% OFF Phone Price : $16.68
Qty
Broiler drawer diagram
Broiler Grid
Part #87723CG
Replaced by #4396923
Manufacturer substitution
This part replaces 87723CG. Substitute parts can look different from the original.
In Stock
$45.56
12% OFF Phone Price : $51.56
Qty
Broiler drawer diagram
Broiler Pan
Part #87722CG
Replaced by #4396923
Manufacturer substitution
This part replaces 87722CG. Substitute parts can look different from the original.
In Stock
$45.56
12% OFF Phone Price : $51.56
Qty
#NI
All parts diagram
Screw
Part #01063001
Replaced by #WP7101P126-60
Manufacturer substitution
This part replaces 01063001. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.95
17% OFF Phone Price : $5.95
Qty

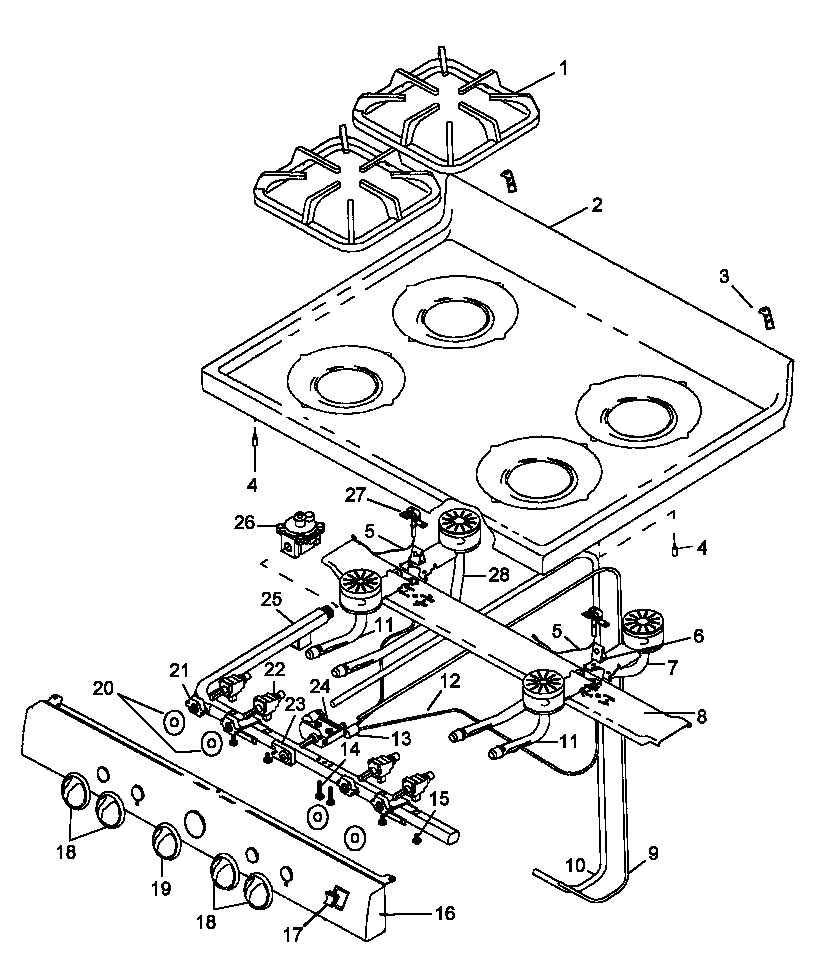

Main top, open top burners diagram
Pressure Regulator
Part #0088783
The manufacturer no longer makes this part, and there's no substitute part
Main top, open top burners diagram
Igniter
Part #0057254
Replaced by #WPY07491203
Manufacturer substitution
This part replaces 0057254. Substitute parts can look different from the original.
In Stock
$50.69
11% OFF Phone Price : $56.69
Qty

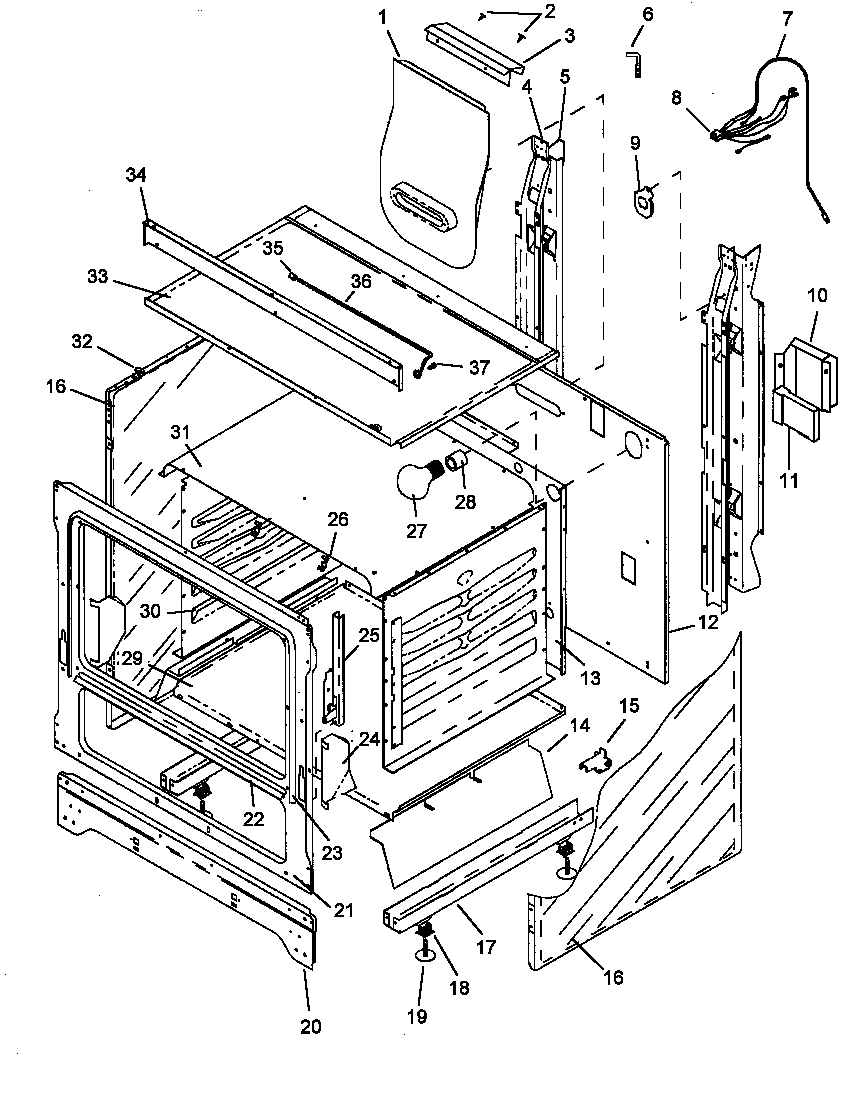

Cabinet diagram
Base Runner
Part #06554900
The manufacturer no longer makes this part, and there's no substitute part
Main top, open top burners diagram
Main Top - White - Mini Upswept
Part #06558100W
The manufacturer no longer makes this part, and there's no substitute part

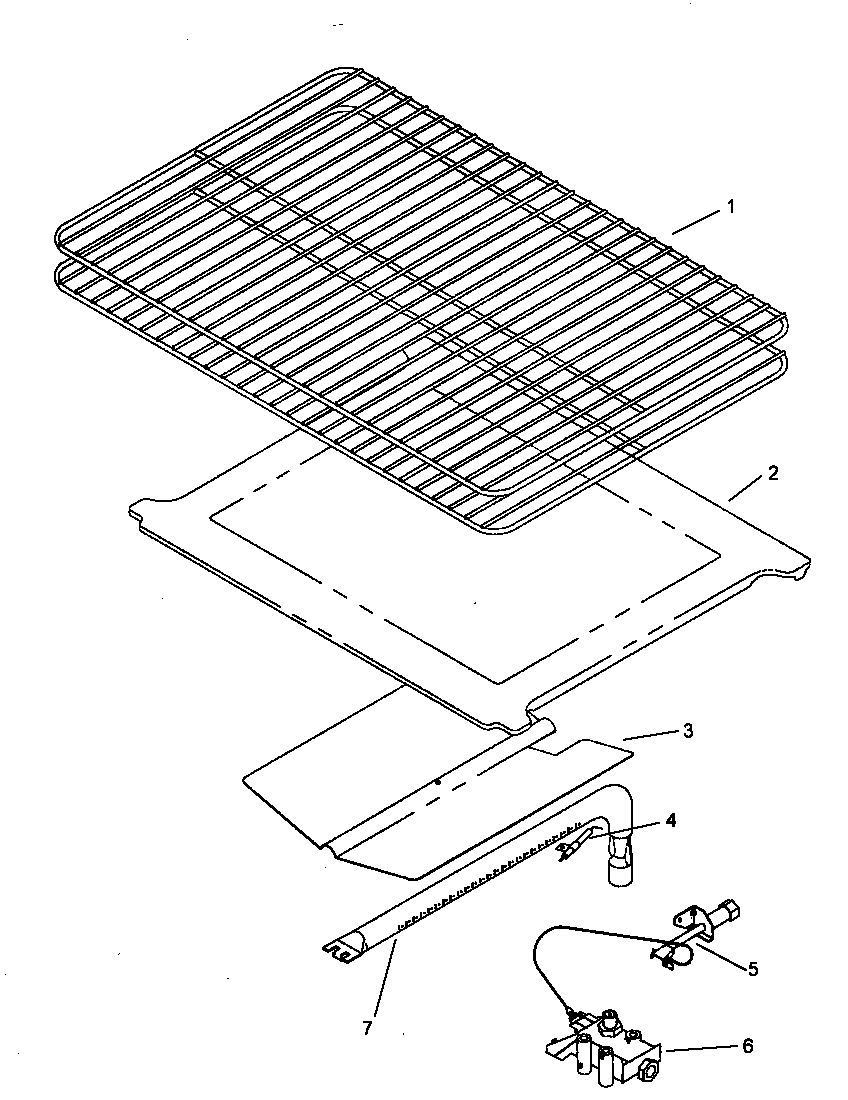

Oven components diagram
Fl Spreade
Part #06497102
The manufacturer no longer makes this part, and there's no substitute part
