Kenmore 6286428210 electric range Parts
Here are the diagrams and repair parts for Kenmore 6286428210 electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

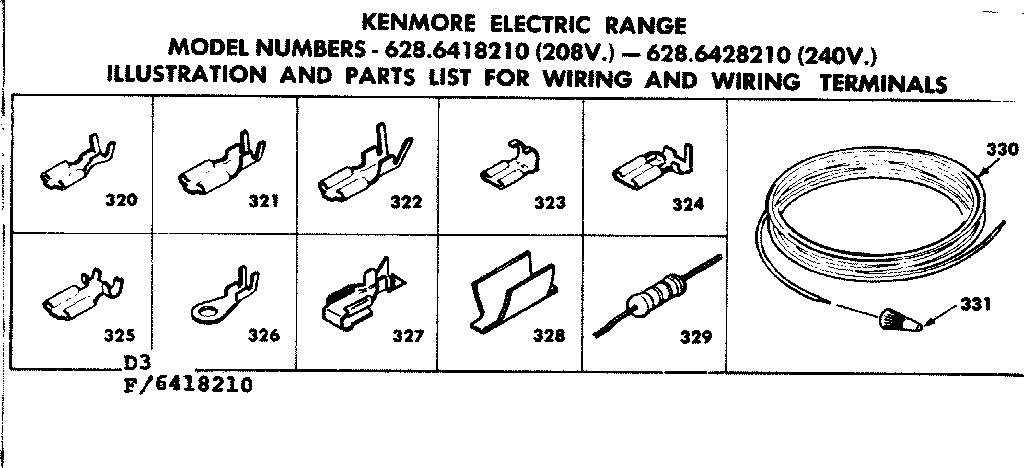

Browse Parts for 6286428210 Ranges

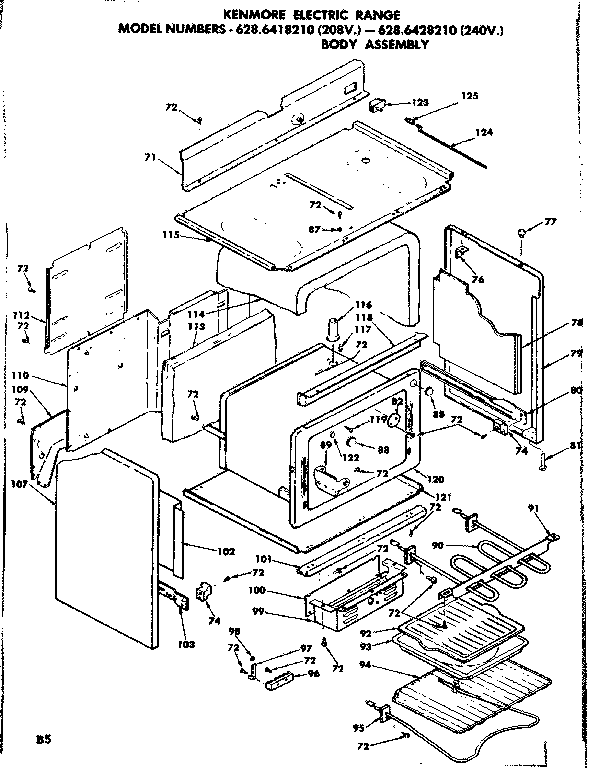

Body assembly diagram
Push Rod
Part #1323420Replaced by #3051645
Manufacturer substitutionThis part replaces 1323420. Substitute parts can look different from the original.In Stock$36.76
Qty

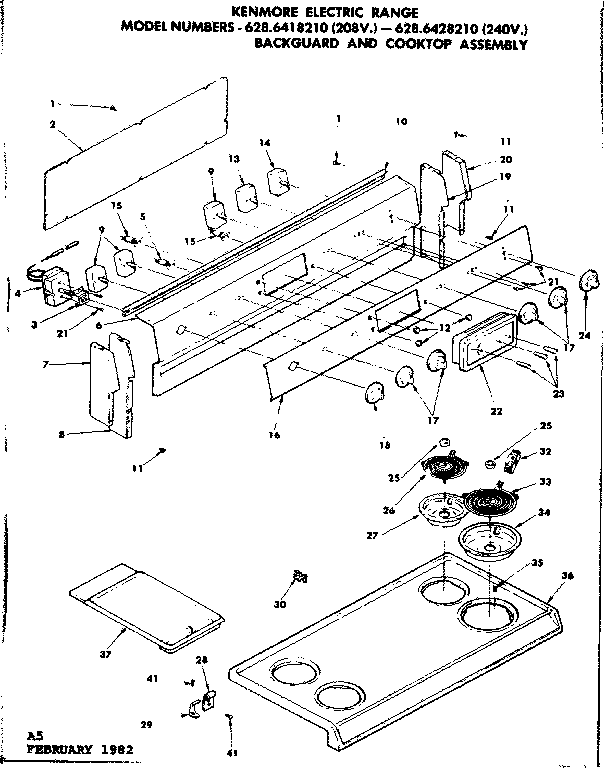

Backguard and cooktop assembly diagram
Glass Clock
Part #1167678Replaced by #5301167678
Manufacturer substitutionThis part replaces 1167678. Substitute parts can look different from the original.In Stock$68.73QtyBackguard and cooktop assembly diagram
Surface Unit
Part #1318113Replaced by #5301318113

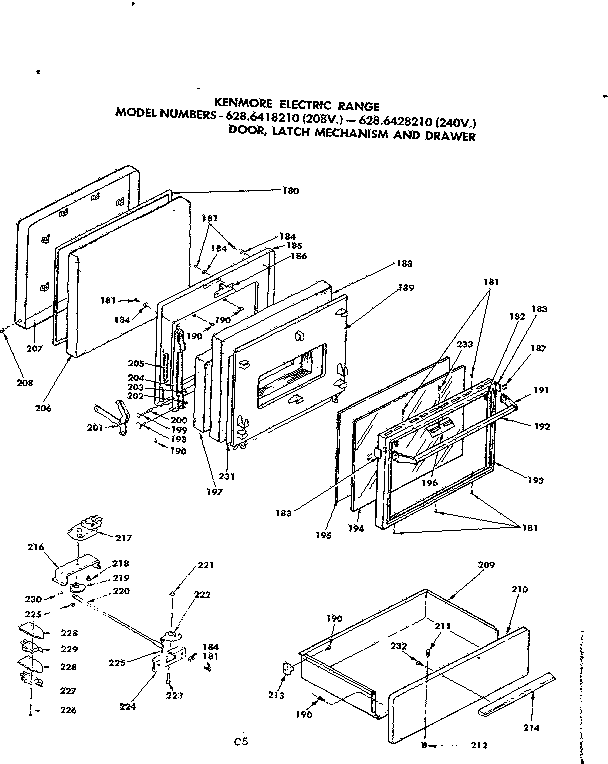

Manufacturer substitutionThis part replaces 1318113. Substitute parts can look different from the original.In Stock$109.64QtyDoor, latch mechanism and drawer diagram
Axle
Part #1303756Replaced by #5308012004
Manufacturer substitutionThis part replaces 1303756. Substitute parts can look different from the original.In Stock$32.30QtyDoor, latch mechanism and drawer diagram
Hinge Pin
Part #1302780Replaced by #5308012004
Manufacturer substitutionThis part replaces 1302780. Substitute parts can look different from the original.In Stock$32.30QtyBackguard and cooktop assembly diagram
Surface Unit
Part #1318112Replaced by #316442300
Manufacturer substitutionThis part replaces 1318112. Substitute parts can look different from the original.In Stock$66.6611% OFF Phone Price : $74.72
QtyDoor, latch mechanism and drawer diagram
Channel
Part #1311432Replaced by #3051565
Manufacturer substitutionThis part replaces 1311432. Substitute parts can look different from the original.In Stock$63.65QtyDoor, latch mechanism and drawer diagram
Catch
Part #1323556Replaced by #5301167830
Manufacturer substitutionThis part replaces 1323556. Substitute parts can look different from the original.In Stock$63.31QtyDoor, latch mechanism and drawer diagram
Insulator
Part #1308690Replaced by #08003090
Manufacturer substitutionThis part replaces 1308690. Substitute parts can look different from the original.In Stock$27.75QtyDoor, latch mechanism and drawer diagram
Screw
Part #GM273225
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your ranges
Choose a symptom to see related range repairs.
Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…
Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…
Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…
Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…
Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…
Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…
Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…
Most common repair guides to help fix your ranges
These step-by-step repair guides will help you safely fix what’s broken on your range.
How to replace a range oven door switch
The oven door switch detects whether the oven door is closed and helps control the oven light. Replace the switch if it …
Repair time and Difficulty
30 minutes or less
How to replace a range oven door lock assembly
Oven door not locking? You can replace the lock assembly in less than 30 minutes. Here's how.…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your ranges
Use the advice and tips in these articles and videos to get the most out of your range.
You might be surprised by these 4 tips for using your oven better.…
If your oven consistently undercooks or overcooks, it might need recalibration. You can reset it yourself.…
Take our quiz to see how well you treat your appliances. Then, find out what you can do to help them last longer.…
