What causes an upright freezer to stop freezing?
An upright freezer like Kenmore KRFU015AWD0 usually stops freezing because cold air is not circulating correctly, the temperature is set too warm, the door is leaking air, or a sealed-system/start component issue is preventing the compressor from running properly. Use the temperature control panel ranges in the KRFU015AWD0 owner's manual to confirm settings.
Quick checks first (most common)
- Confirm the unit is in freezer mode and the set temperature is cold enough (many users choose around 0°F to -8°F).
- Make sure the door closes tightly; a poor seal lets warm air in and drives frost buildup.
- Avoid overloading; the manual notes overloading forces the compressor to run longer and can reduce performance.
- Do not line shelves/bins with foil, wax paper, or paper towels; liners block airflow and reduce efficiency.
- Minimize door openings; organize food so the door is open for the shortest time.
Airflow and frost problems that stop freezing
When airflow is restricted, the freezer can run but not freeze well.
What to look for:
- Heavy frost on the back wall or around vents
- Warm spots in the cabinet, especially near the top
- Fan noise changes (if your model uses an internal fan)
What to do:
- Move packages away from interior vents.
- Rewrap foods and wipe containers dry before loading; the manual notes this reduces frost buildup.
Electrical and compressor start issues
If the compressor is not starting consistently, the freezer may stop freezing or cool intermittently.
Common culprits include:
- Start relay or overload device
- Start capacitor (on some designs)
- Control or thermostat/temperature sensor issues
Helpful test tools
| Task | Tool | Why it matters |
|---|---|---|
| Check outlet power | Lamp or outlet tester | Rules out a supply issue |
| Check continuity on components | Multimeter | Confirms an open circuit |
| Verify temperature | Freezer thermometer | Confirms actual vs. set temp |
For safe electrical testing practices, use how to use a multimeter to test electrical parts video.
Why it matters
A freezer that is not freezing can spoil food quickly, and repeated warming and refreezing also increases frost and airflow restriction, making the problem worse.
Last updated: February 2026
Where is the model number on a Kenmore upright freezer?
On a Kenmore upright freezer like model KRFU015AWD0, the model number is printed on the rating label (model and serial tag) located inside the cabinet in a spot that stays visible when the door is open. Use the owner's manual to confirm the exact label location and how to record the numbers.
Common places to check
Look for a paper or metal label with Model and Serial information in these areas:
- Inside the freezer on a side wall (upper area is most common)
- On the ceiling of the freezer compartment
- Along the door opening frame (cabinet face behind the door seal)
- Behind the lower kick plate or toe grille (front bottom)
- On the back exterior panel near the power cord
What the label looks like (so you know you found the right one)
The correct tag typically includes:
- Model number (example: KRFU015AWD0)
- Serial number
- Electrical ratings (volts/amps)
- Brand name (Kenmore)
Quick checklist: fastest way to find it
- Open the door and scan the upper side walls and ceiling first.
- Run a flashlight along the door frame where the gasket meets the cabinet.
- If you still do not see it, remove the kick plate (if equipped) and check behind it.
Why it matters

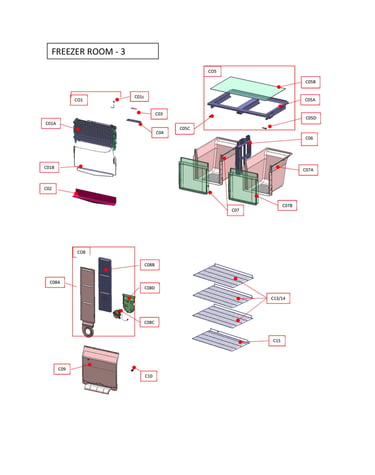

We use the model number to match the correct parts diagrams, shelves/bins, door gasket, thermostat/control components, and other upright freezer parts that can vary by production run.
Model number vs. serial number
| Item | What it tells us | When we use it |
|---|---|---|
| Model number | The exact freezer design and parts family | Always, for parts lookup |
| Serial number | The unit’s production sequence/date code | When parts change by revision |
Last updated: February 2026
What is the average lifespan of KRFU015AWD0?
The Kenmore KRFU015AWD0 upright freezer typically lasts 12 years with normal household use and basic maintenance. Keeping the condenser area clean, maintaining good airflow, and avoiding power interruptions helps the sealed system and compressor run longer.
Typical lifespan and what affects it
Most upright freezers fall into a predictable range; how you install and use the unit makes the biggest difference.
- Heat and ventilation: warm rooms and blocked airflow increase run time and wear
- Door openings and gasket condition: frequent openings and air leaks create frost and longer cycles
- Power quality: repeated outages or low voltage can stress the compressor
- Defrost and frost control: heavy frost buildup reduces efficiency and can cause temperature swings
- Cleaning and leveling: dust and poor leveling can lead to longer run times and door sealing issues
Quick reference: lifespan expectations
| Item | Typical expectation | What you can do |
|---|---|---|
| Upright freezer (overall) | 12 years | Keep airflow clear, keep temps stable |
| Door gasket | 5 to 10 years | Clean gasket, confirm full seal |
| Evaporator fan | 8 to 12 years | Keep vents clear, reduce frost |
Maintenance habits that extend service life
We recommend following the care and setup guidance in the [KRFU015AWD0 owner's manual].
- Place the freezer near a grounded outlet and avoid extension cords
- Keep the unit where surrounding temperatures stay within the recommended operating range
- Do not block interior air vents; allow space for air circulation around stored food
- Keep the door closed as much as possible; confirm the door closes and seals fully
- If you notice unusual noises, warming, or heavy frost, address it early to prevent secondary damage
Why it matters
A freezer that runs longer than necessary uses more electricity and puts extra wear on the compressor and fans. Simple airflow, sealing, and power practices are the most reliable way to reach the full expected lifespan.
Last updated: March 2026
