GE
Room Air Conditioner

Model # AZ31H06E4DV1 Official GE zoneline air conditioner

Here are the diagrams and repair parts for Official GE AZ31H06E4DV1 zoneline air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 156 parts  |
Room Air Conditioner Rotary Switch WP28X56
#86

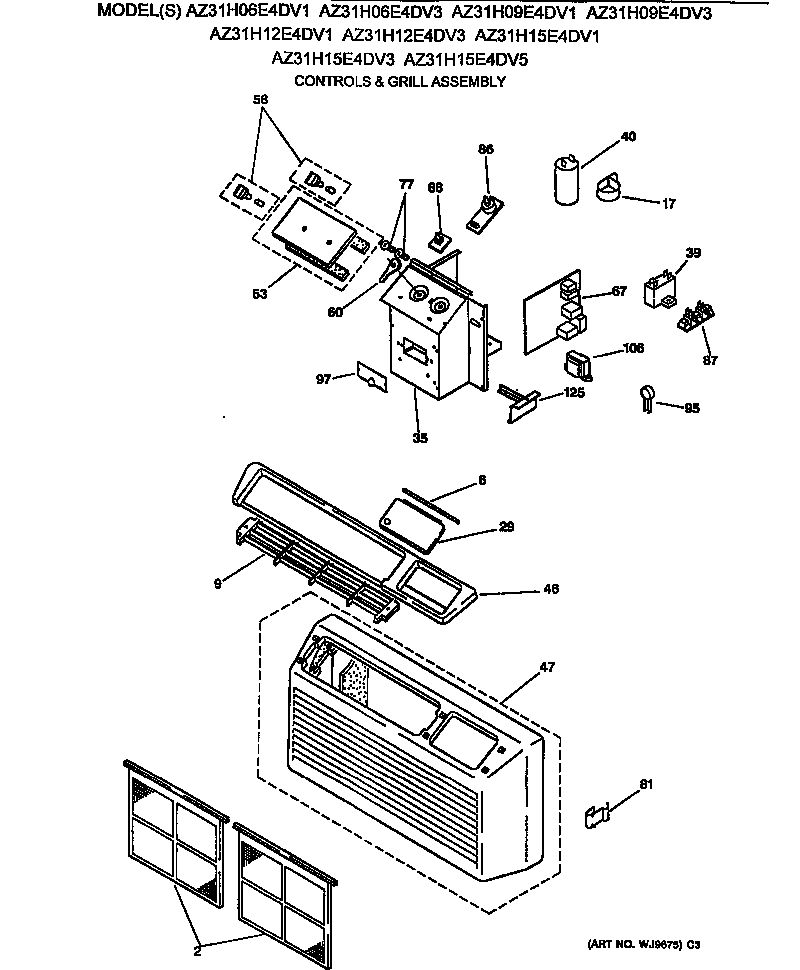

Controls & grill assembly diagram

Room air conditioner rotary switch

Part #WP28X56

$88.34 |
5% OFF Phone Price : $93.34
In Stock
Zoneline 210 49-7283

#NI

All parts diagram

Zoneline 210

Part #49-7283

Replaced by #49-7365

?
Manufacturer substitution
This part replaces 49-7283. Substitute parts can look different from the original.
$8.49
In Stock
Zoneline Min 31-8840

#NI

All parts diagram

Zoneline min

Part #31-8840

Replaced by #31-8660-1

?
Manufacturer substitution
This part replaces 31-8840. Substitute parts can look different from the original.
$51.99
In Stock
Zoneline Min 31-8842

#NI

All parts diagram

Zoneline min

Part #31-8842

Replaced by #31-8660-1

?
Manufacturer substitution
This part replaces 31-8842. Substitute parts can look different from the original.
$51.99
In Stock
Hinge Pin Drain Door WP4X05
#7

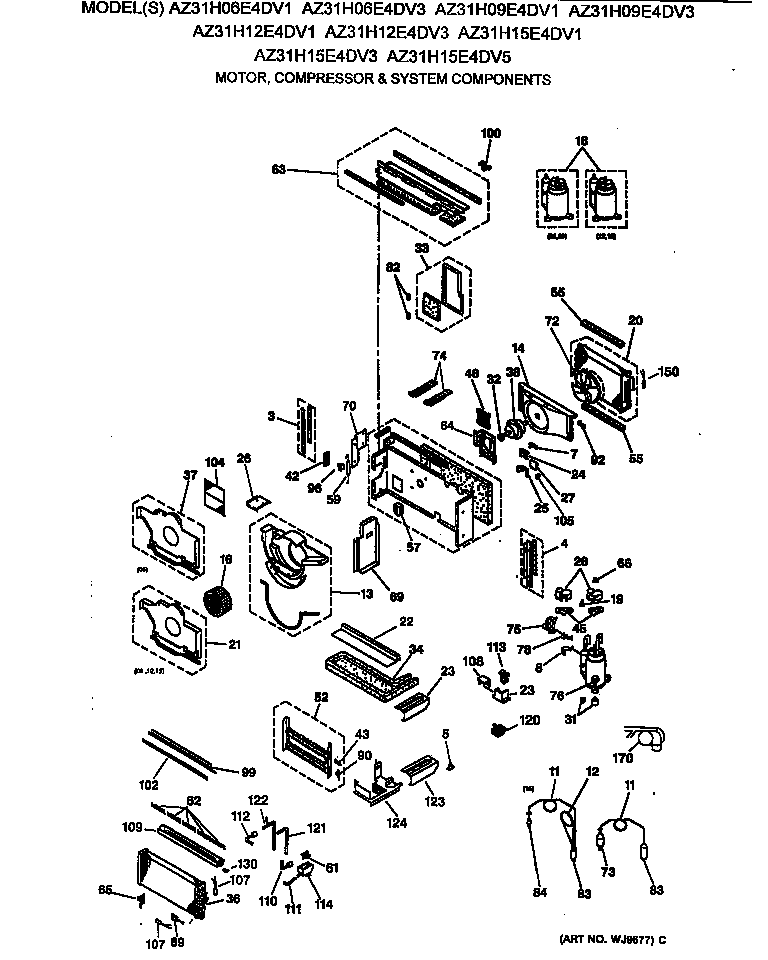

Motor, compressor & system components diagram

Hinge pin drain door

Part #WP4X05

The manufacturer no longer makes this part, and there's no substitute part

Hinge Pin Control Door WP4X04
#6

Controls & grill assembly diagram

Hinge pin control door

Part #WP4X04

The manufacturer no longer makes this part, and there's no substitute part

Evaporator Cover WP79X67
#63

Motor, compressor & system components diagram

Evaporator cover

Part #WP79X67

The manufacturer no longer makes this part, and there's no substitute part

Compres Repl WJ98X1060
#18

Motor, compressor & system components diagram

Compres repl

Part #WJ98X1060

The manufacturer no longer makes this part, and there's no substitute part

Screw WP1X34
#76

Motor, compressor & system components diagram

Screw

Part #WP1X34

The manufacturer no longer makes this part, and there's no substitute part

Damper Le WJ14X163
#96

Motor, compressor & system components diagram

Damper le

Part #WJ14X163

The manufacturer no longer makes this part, and there's no substitute part
