Model #KDL-52W4100 Sony lcd television

Here are the repair parts and diagrams for your Sony KDL-52W4100 lcd television.

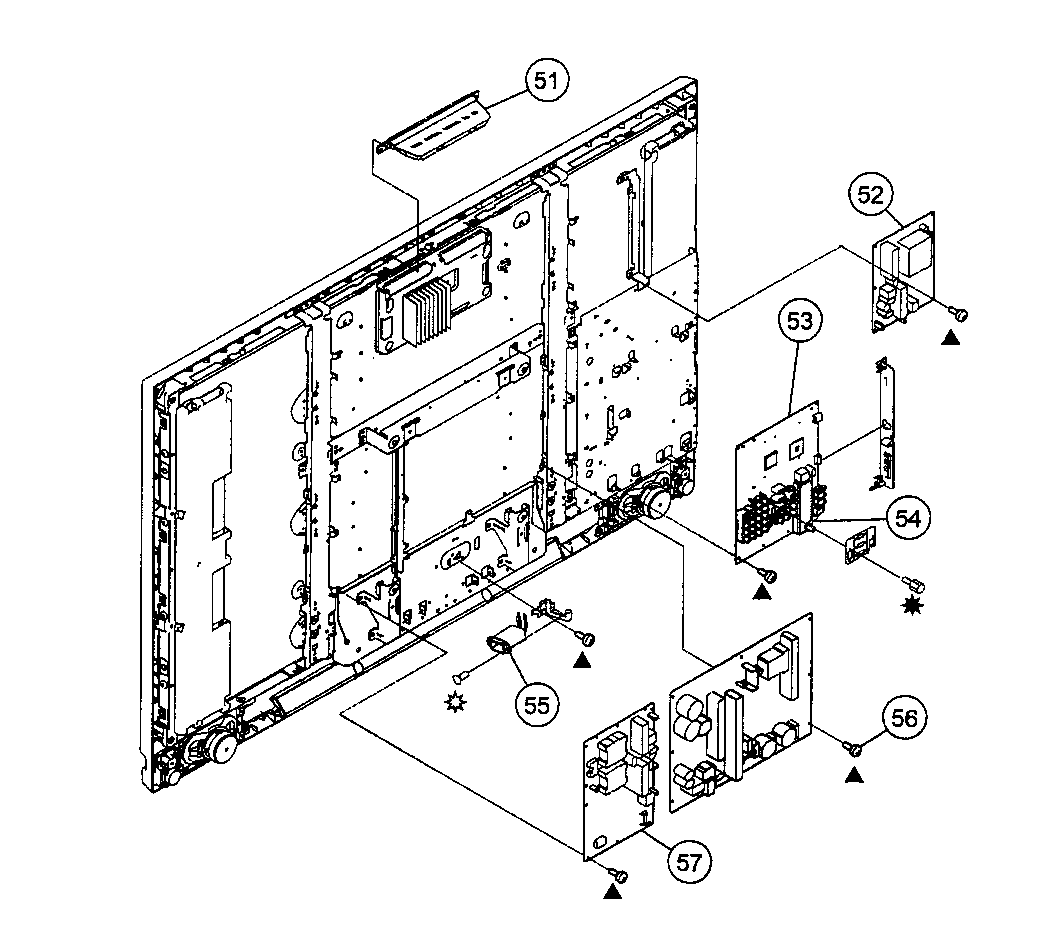

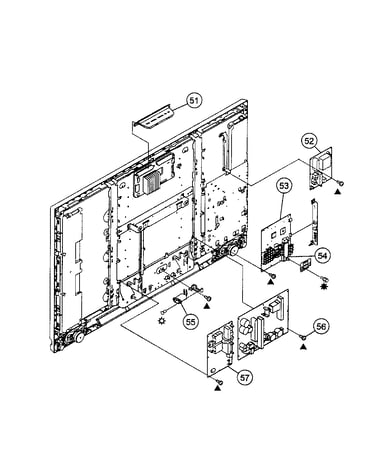

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profileOwner’s manual

Showing 10 of 112 parts

Thermistor

#NI

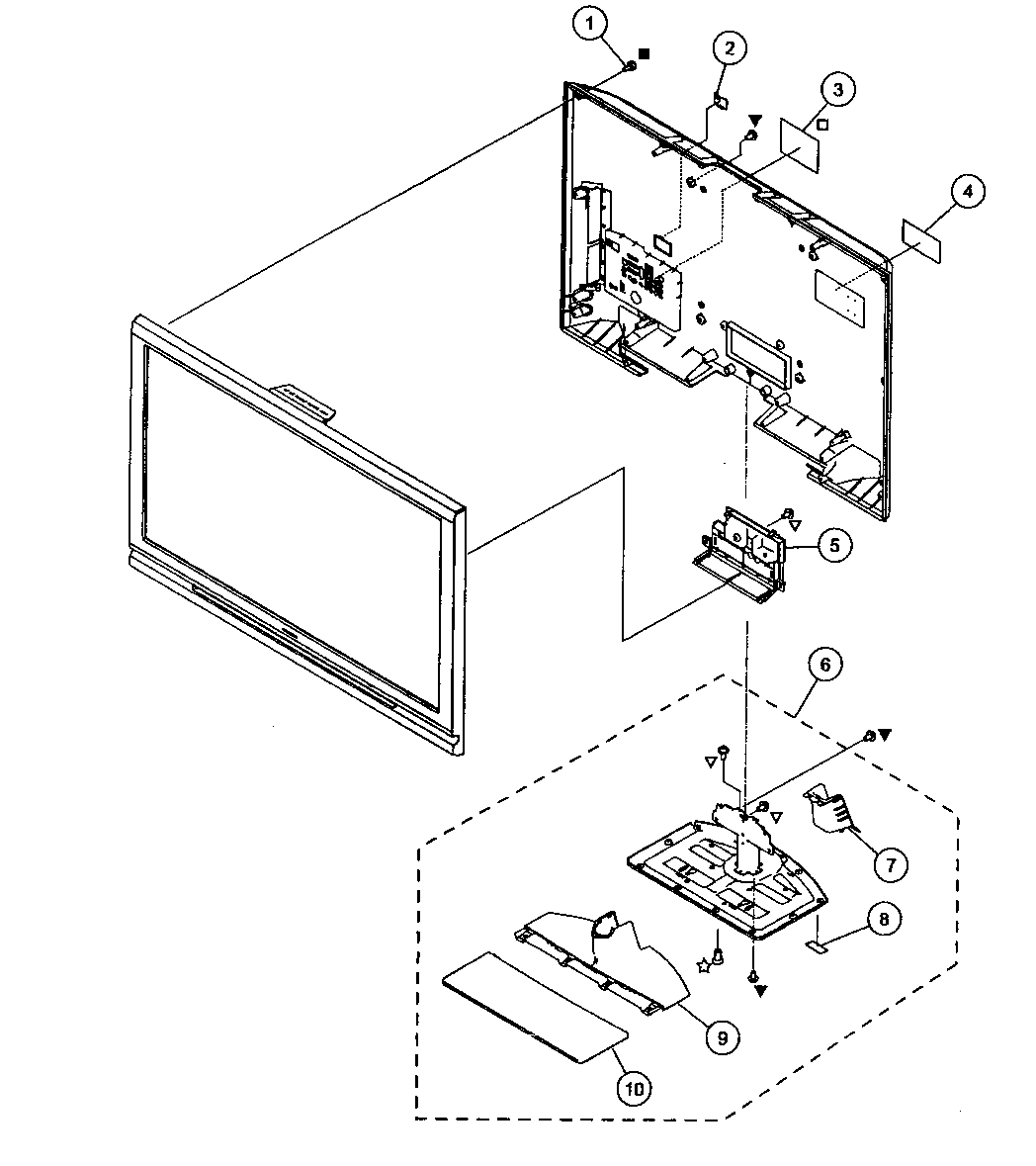

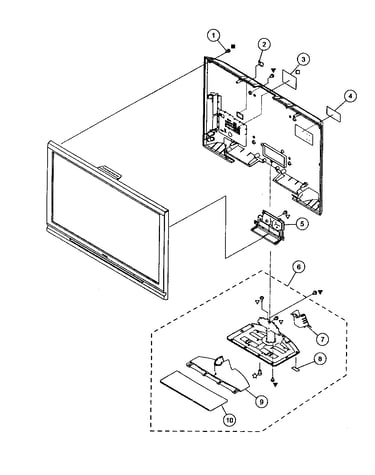

Rear cover/stand assy Diagram

Thermistor

Part #180978971

The manufacturer no longer makes this part, and there's no substitute part

Transformer

#NI

Rear cover/stand assy Diagram

Transformer

Part #144543011

The manufacturer no longer makes this part, and there's no substitute part

Connector

#112

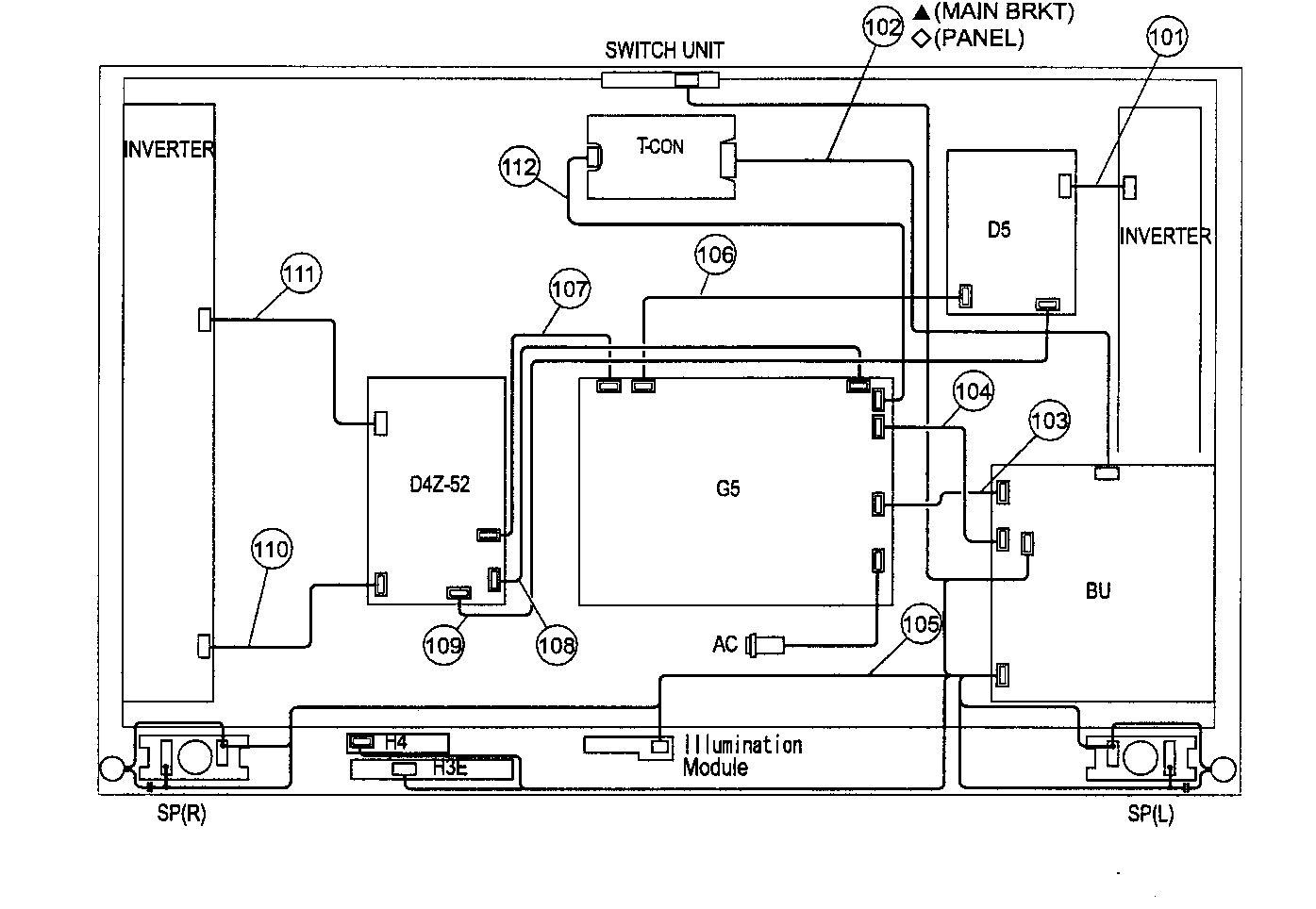

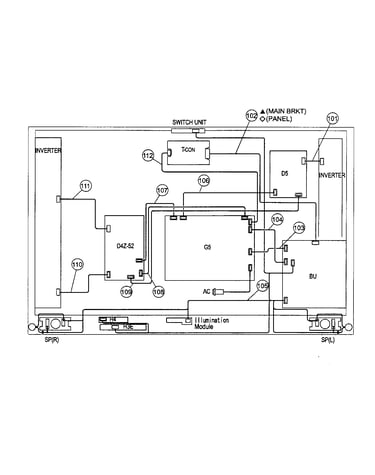

Connectors Diagram

Connector

Part #191004414

The manufacturer no longer makes this part, and there's no substitute part

Ic.

#NI

Rear cover/stand assy Diagram

Ic.

Part #670317501

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit

#NI

Rear cover/stand assy Diagram

Integrated circuit

Part #670880101

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit

#NI

Rear cover/stand assy Diagram

Integrated circuit

Part #670944201

The manufacturer no longer makes this part, and there's no substitute part

Inverter Board

#164

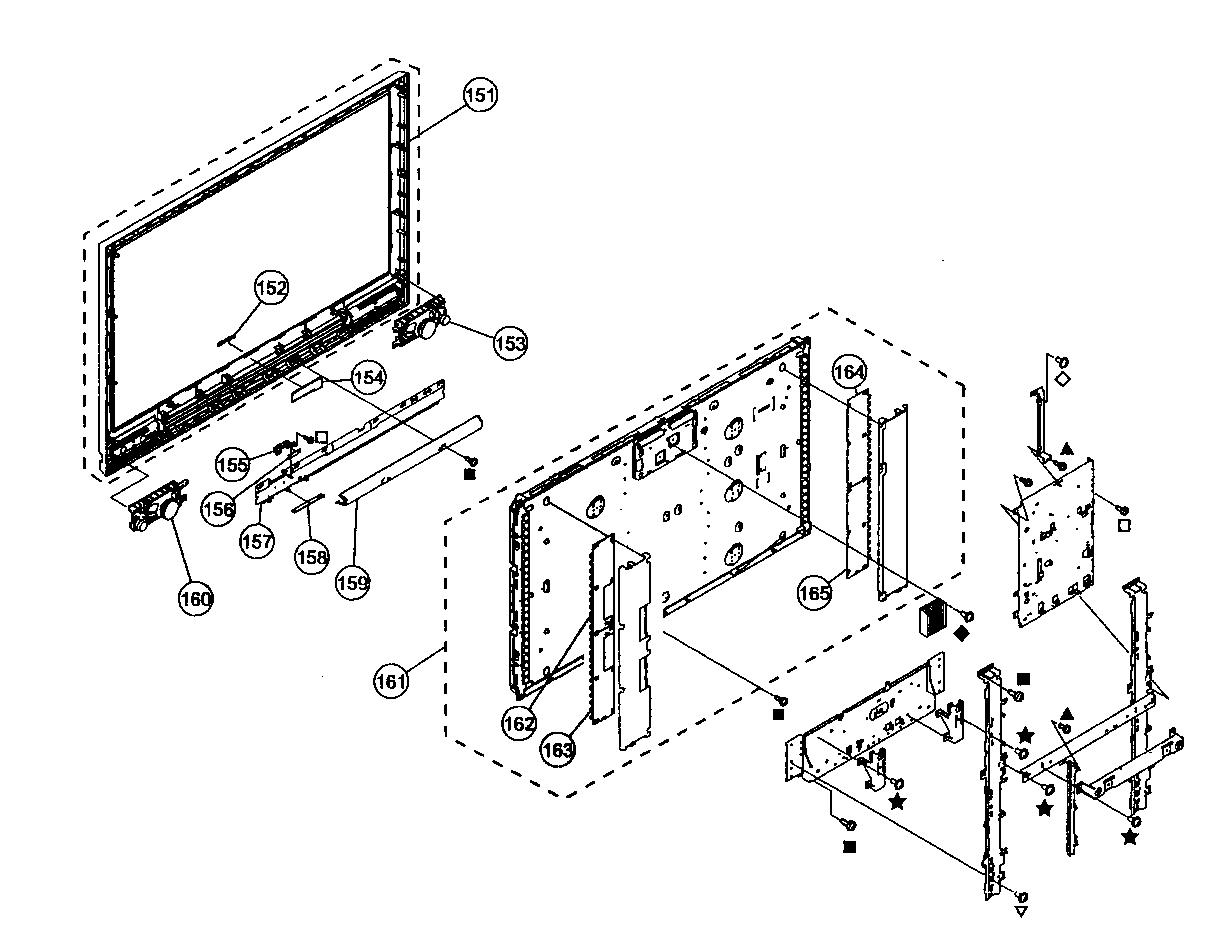

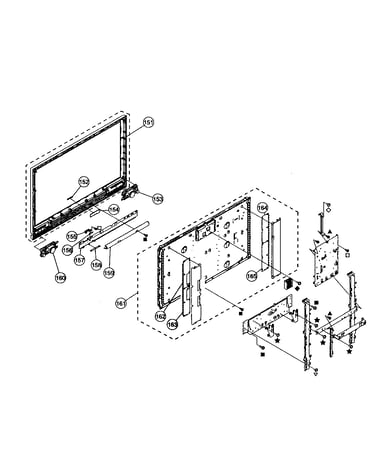

Bezel/lcd panel assy Diagram

Inverter board

Part #185711311

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit

#NI

Rear cover/stand assy Diagram

Integrated circuit

Part #671265101

The manufacturer no longer makes this part, and there's no substitute part

Relay

#NI

Rear cover/stand assy Diagram

Relay

Part #175539511

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit

#NI

Rear cover/stand assy Diagram

Integrated circuit

Part #670821901

The manufacturer no longer makes this part, and there's no substitute part
