Whirlpool WFES3030RW0 free standing electric range Parts

A Whirlpool stove (including the Whirlpool WFES3030RW0 free standing electric range) typically lasts 13 to 15 years with normal household use. Keeping the cooktop clean, avoiding overheating, and replacing wear parts early helps you reach the full life of the range.

Typical lifespan by what fails first

Most ranges do not “wear out” all at once; a few common parts usually drive the repair decision.

• Surface elements can weaken or stop heating evenly.
• Element control switches can fail and cause a burner to not heat, overheat, or cycle incorrectly.
• Oven heating elements can burn out (bake or broil).
• Door seals can leak heat and cause long preheat times.
• Wiring connections can loosen or overheat over time.

Component area	Common symptom	Typical fix
Cooktop heating	Burner not heating or uneven heat	Replace a radiant surface element
Burner control	Burner stuck on high or won’t turn on	Replace the surface element control switch
Oven bake	No heat or slow baking	Replace the bake element
Oven broil	No broil or weak broil	Replace the broil element
Oven door	Heat escaping, poor temperature stability	Replace the oven door seal

What you can do to extend the life (practical habits)

These habits reduce stress on Whirlpool electric range parts and help prevent early failures.

• Keep the cooktop free of baked-on spills; use a scraper like cooktop scraper WA906B for stuck residue.
• Avoid running empty cookware on high heat; it overheats elements and can damage the cooktop.
• Use flat-bottom pans sized to the burner to reduce cycling and hot spots.
• If a burner is acting up, address it early; a failing switch can overheat wiring.
• If the oven takes longer to preheat or bakes unevenly, test and replace the heating element before it damages other components.

Why it matters

A range that is close to the 13 to 15 year mark is often still worth repairing when the issue is a single, common part (like a bake element or surface element). Fixing heat problems early also helps protect the control system and wiring from repeated overheating.

Last updated: February 2026

On your Whirlpool electric range model WFES3030RW0, the model number is typically on the frame behind the storage drawer (warming drawer area). Pull the drawer out and look for a rating label on the oven frame, usually along the left or right side.

Where to look first (fast checklist)

• Pull out the bottom storage drawer fully; lift the front slightly to release it from the glides if needed.
• Check the oven frame on the left and right sides just behind the drawer opening.
• Look for a paper or metal rating label with MODEL and SERIAL.
• If you do not see it, check the lower front frame rail behind the drawer.
• Write the model number exactly as shown (letters and numbers), then use it to match parts.

What the label looks like

Most Whirlpool range rating labels include:

• Model number (example: WFES3030RW0)
• Serial number
• Electrical ratings (volts/amps)
• Manufacturing code information

Why it matters

The model number is how we match the correct Whirlpool range parts, diagrams, and fitment details. Even one character difference can change which bake element, radiant surface element, or control switch your range uses.

Common “next step” once you have the model number

If you are troubleshooting a heating issue, the parts list for WFES3030RW0 commonly includes items like:

Symptom	Common part to check	Example part on this model page
Oven not baking	Bake element	Bake element W11182108
Top burner not heating	Radiant surface element	Range dual radiant surface element W11517959
Burner stays on or won’t adjust	Surface element control switch	Range surface element control switch W10911303

Last updated: February 2026

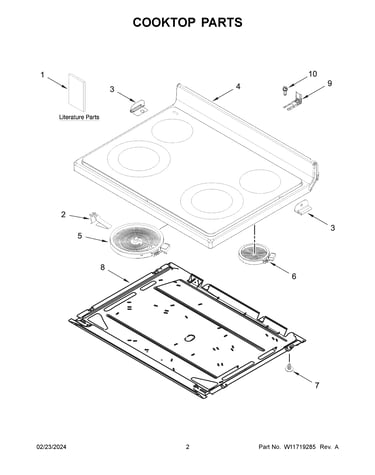

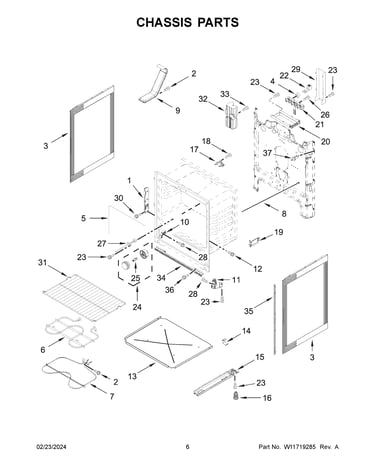

A Whirlpool WFES3030RW0 free standing electric range is made up of the cooktop heating system, oven heating system, and the door and cabinet components that keep heat contained and the unit stable. On this model, common serviceable parts include surface elements, control switches, bake and broil elements, and the oven door seal.

Main parts you will see on an electric range

• Cooktop surface elements (radiant elements under the glass cooktop)

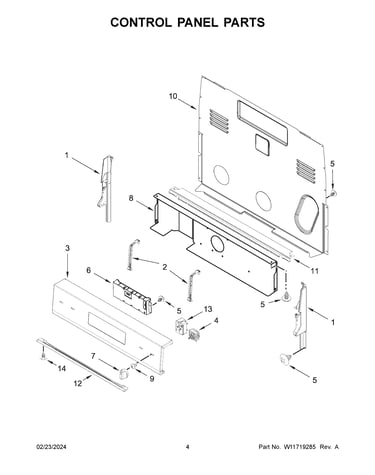

• Surface element control switches (the burner knobs and the switches behind them)
• Bake element (bottom oven heating element)
• Broil element (top oven heating element)

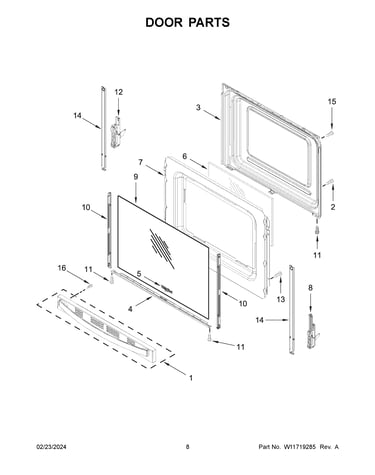

• Oven door and seal (helps the oven hold temperature)
• Oven racks (support cookware and allow airflow)
• Leveling legs (keep the range stable and level)

Model-specific examples of parts for WFES3030RW0

Here are a few parts we commonly see replaced on this Whirlpool range:

Range area	What it does	Example part on this model
Cooktop	Heats pans on the glass top	Range dual radiant surface element W11517959
Cooktop controls	Regulates heat level to a surface element	Range surface element control switch W10911303
Oven (bake)	Provides most of the oven heat	Bake element W11182108
Oven (broil)	Provides top-down high heat for broiling	Range broil element W10856603
Oven door	Seals heat inside the oven cavity	Range oven door seal W11542153

Why it matters

Knowing which section a symptom belongs to (cooktop vs. oven vs. door) helps you choose the right troubleshooting path and the right replacement part. For example, a burner that will not heat usually points to a surface element or control switch, while uneven baking often points to the bake element or a door seal issue.

Last updated: February 2026
