JVC RX-5020VBK receiver Parts

Here are the diagrams and repair parts for JVC RX-5020VBK receiver, as well as links to manuals and error code tables, if available.

JVC RX-5020VBK receiver
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forRX-5020VBK Audio Equipment

  • Home Theater System Fm Antenna for JVC RX-5020VBK - Part QAL0204-001

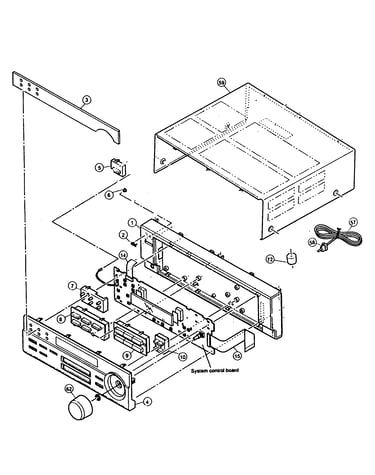

    Cabinet parts diagram

    Home Theater System Fm Antenna

    Part #QAL0204-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Res 22k Nf for JVC RX-5020VBK - Part QRJ146J-223X

    Cabinet parts diagram

    Res 22k Nf

    Part #QRJ146J-223X

    The manufacturer no longer makes this part, and there's no substitute part

  • Relay for JVC RX-5020VBK - Part QSK0142-001

    Cabinet parts diagram

    Relay

    Part #QSK0142-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Power Button for JVC RX-5020VBK - Part LV32431-004A

    Cabinet parts diagram

    Power Button

    Part #LV32431-004A

    The manufacturer no longer makes this part, and there's no substitute part

  • Relief for JVC RX-5020VBK - Part QZW0033-001

    Cabinet parts diagram

    Relief

    Part #QZW0033-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Button for JVC RX-5020VBK - Part LV20951-002A

    Cabinet parts diagram

    Button

    Part #LV20951-002A

    The manufacturer no longer makes this part, and there's no substitute part

  • Integrated Circuit for JVC RX-5020VBK - Part GP1UM281XK

    Cabinet parts diagram

    Integrated Circuit

    Part #GP1UM281XK

    The manufacturer no longer makes this part, and there's no substitute part

  • Button for JVC RX-5020VBK - Part LV32430-003A

    Cabinet parts diagram

    Button

    Part #LV32430-003A

    The manufacturer no longer makes this part, and there's no substitute part

  • Diode for JVC RX-5020VBK - Part 11ES2-T4

    Cabinet parts diagram

    Diode

    Part #11ES2-T4

    The manufacturer no longer makes this part, and there's no substitute part

  • Integrated Circuit for JVC RX-5020VBK - Part UPD784215AGC167

    Cabinet parts diagram

    Integrated Circuit

    Part #UPD784215AGC167

    The manufacturer no longer makes this part, and there's no substitute part
