Model # CR-W9115/9005 Official Fisher tape deck

Here are the diagrams and repair parts for Official Fisher CR-W9115-9005 tape deck, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 168 parts  |
Service Stat 6200615662

#NI

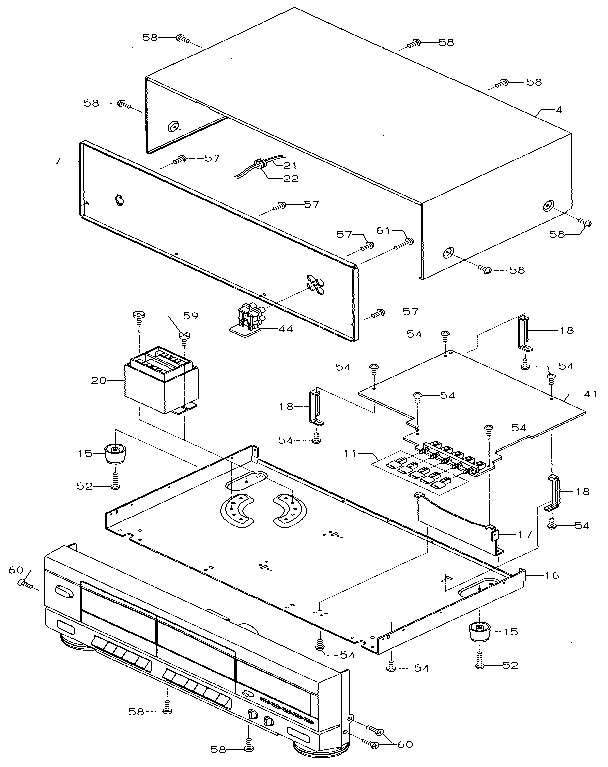

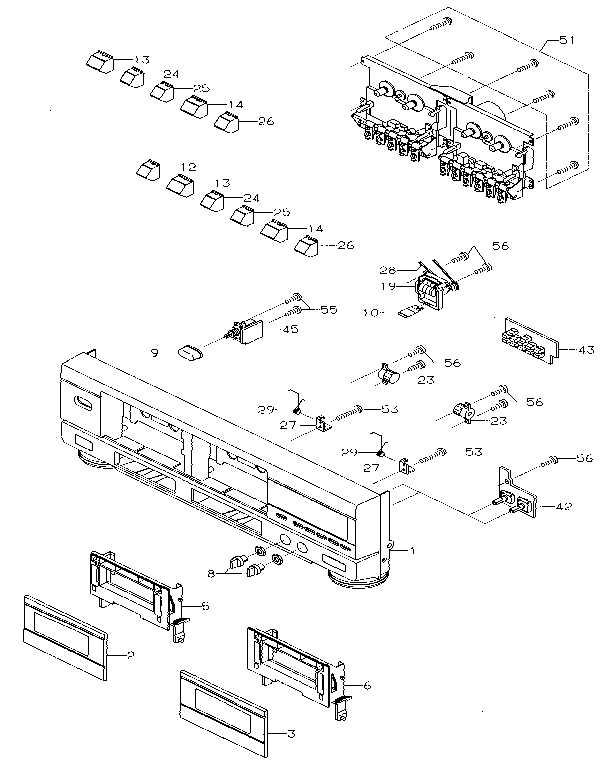

All parts diagram

Service stat

Part #6200615662

The manufacturer no longer makes this part, and there's no substitute part

Label, (ul C 6200549950
Label, (ul c

Part #6200549950

The manufacturer no longer makes this part, and there's no substitute part

N Screw 4110215903
N screw

Part #4110215903

The manufacturer no longer makes this part, and there's no substitute part

Special Screw 6201858938
#50

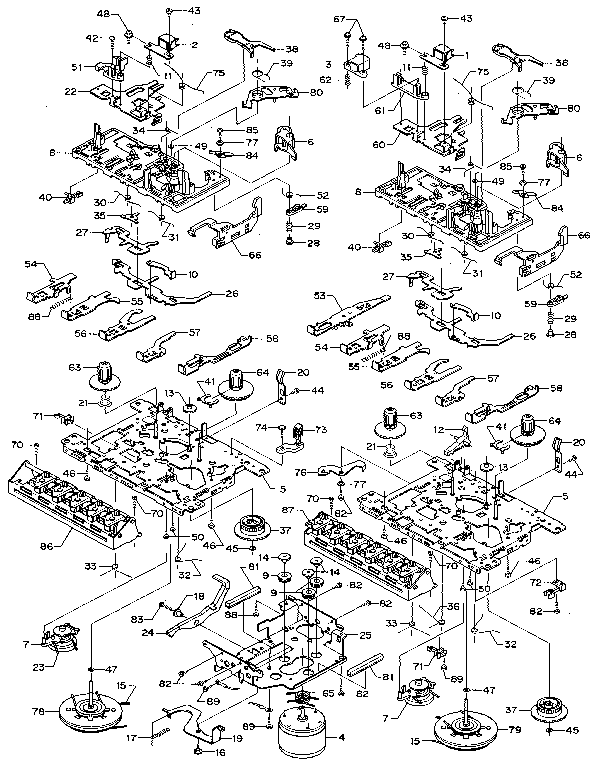

Mechanism exploded view diagram

Special screw

Part #6201858938

The manufacturer no longer makes this part, and there's no substitute part

Motor Bracket 6201858181
#25

Mechanism exploded view diagram

Motor bracket

Part #6201858181

The manufacturer no longer makes this part, and there's no substitute part

Counter 6201956122
Counter

Part #6201956122

The manufacturer no longer makes this part, and there's no substitute part

Connector Assembly 6202053981

#NI

All parts diagram

Connector assembly

Part #6202053981

The manufacturer no longer makes this part, and there's no substitute part

Cushion 6201950939
#81

Mechanism exploded view diagram

Cushion

Part #6201950939

The manufacturer no longer makes this part, and there's no substitute part

Connector Assembly 6202053974

#NI

All parts diagram

Connector assembly

Part #6202053974

The manufacturer no longer makes this part, and there's no substitute part

Special Screw 6201950854
#74

Mechanism exploded view diagram

Special screw

Part #6201950854

The manufacturer no longer makes this part, and there's no substitute part
