Amana SCFH42AUMA/P9918510C a-coil - scfh model Parts

Name: Amana SCFH42AUMA/P9918510C Parts | Diagrams | Sears PartsDirect
Brand: Amana
SKU: SCFH42AUMA/P9918510C
Availability: InStock

Here are the diagrams and repair parts for Amana SCFH42AUMA/P9918510C a-coil - scfh model, as well as links to manuals and error code tables, if available.

By Schematic

By Part

SELECT DIAGRAM

Browse Parts for SCFH42AUMA/P9918510C A-Coil - SCFH Model

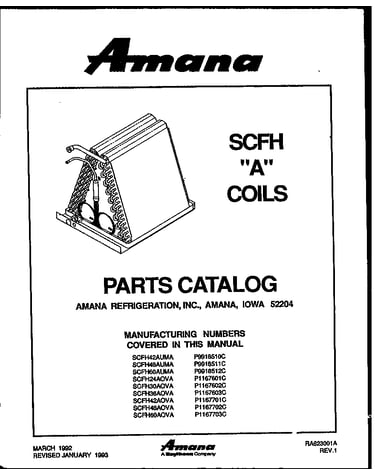

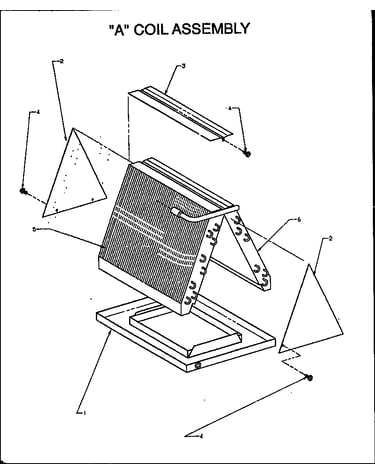

"a" coil assembly (scfh24aova/p1167601c) (scfh30aova/p1167602c) (scfh36aova/p1167603c) (scfh42auma/p9918510c) (scfh42aova/p1167701c) (scfh48auma/p9918511c) (scfh48aova/p1167702c) (scfh60auma/p9918512c) diagram
End Plate
Part #D6781201
The manufacturer no longer makes this part, and there's no substitute part

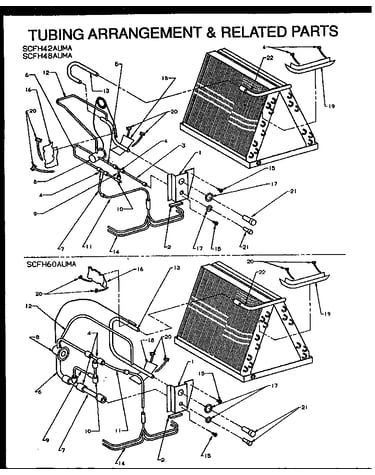

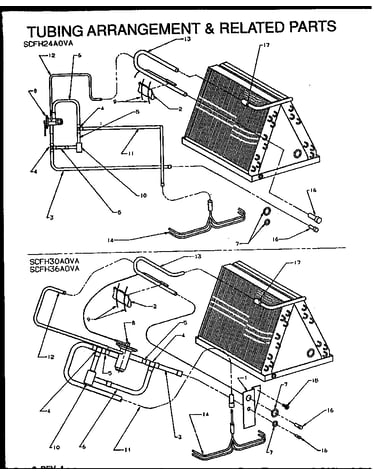

Tubing arrangement & related parts (scfh42auma/p9918510c) (scfh48auma/p9918511c) (scfh60auma/p9918512c) diagram
Tube, Elbow
Part #A3424003
The manufacturer no longer makes this part, and there's no substitute part
Tubing arrangement & related parts (scfh42auma/p9918510c) (scfh48auma/p9918511c) (scfh60auma/p9918512c) diagram
Insulation
Part #A3358608
The manufacturer no longer makes this part, and there's no substitute part

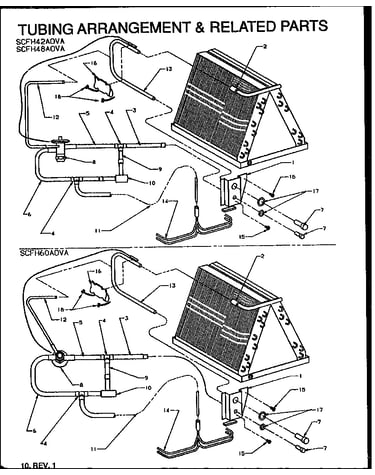

Tubing arrangement & related parts (scfh42aova/p1167701c) (scfh48aova/p1167702c) (scfh60aova/p1167703c) diagram
Tube-equalizer
Part #10104103
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Manual-instruction
Part #A3485415
The manufacturer no longer makes this part, and there's no substitute part
"a" coil assembly (scfh24aova/p1167601c) (scfh30aova/p1167602c) (scfh36aova/p1167603c) (scfh42auma/p9918510c) (scfh42aova/p1167701c) (scfh48auma/p9918511c) (scfh48aova/p1167702c) (scfh60auma/p9918512c) diagram
Evaporator Assembly, R.h.
Part #D6796002
The manufacturer no longer makes this part, and there's no substitute part
"a" coil assembly (scfh24aova/p1167601c) (scfh30aova/p1167602c) (scfh36aova/p1167603c) (scfh42auma/p9918510c) (scfh42aova/p1167701c) (scfh48auma/p9918511c) (scfh48aova/p1167702c) (scfh60auma/p9918512c) diagram
End Plate, Back
Part #C6128101
The manufacturer no longer makes this part, and there's no substitute part
"a" coil assembly (scfh24aova/p1167601c) (scfh30aova/p1167602c) (scfh36aova/p1167603c) (scfh42auma/p9918510c) (scfh42aova/p1167701c) (scfh48auma/p9918511c) (scfh48aova/p1167702c) (scfh60auma/p9918512c) diagram
Cover, Evaporator Top
Part #C6127101
The manufacturer no longer makes this part, and there's no substitute part
Tubing arrangement & related parts (scfh42aova/p1167701c) (scfh48aova/p1167702c) (scfh60aova/p1167703c) diagram
Tube-process
Part #D9966504
The manufacturer no longer makes this part, and there's no substitute part
"a" coil assembly (scfh24aova/p1167601c) (scfh30aova/p1167602c) (scfh36aova/p1167603c) (scfh42auma/p9918510c) (scfh42aova/p1167701c) (scfh48auma/p9918511c) (scfh48aova/p1167702c) (scfh60auma/p9918512c) diagram
Evaporator Assy, Right
Part #D6767801
The manufacturer no longer makes this part, and there's no substitute part
