Model # KDL-26ML130 Official Sony lcd television

Here are the diagrams and repair parts for Official Sony KDL-26ML130 lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

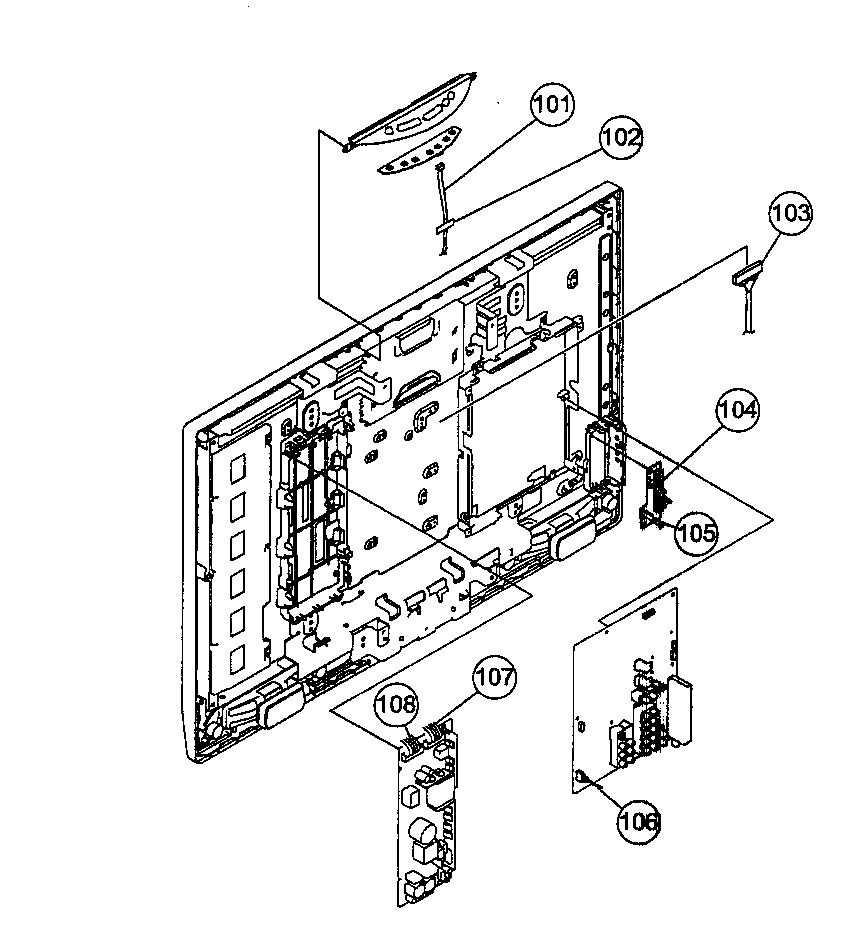

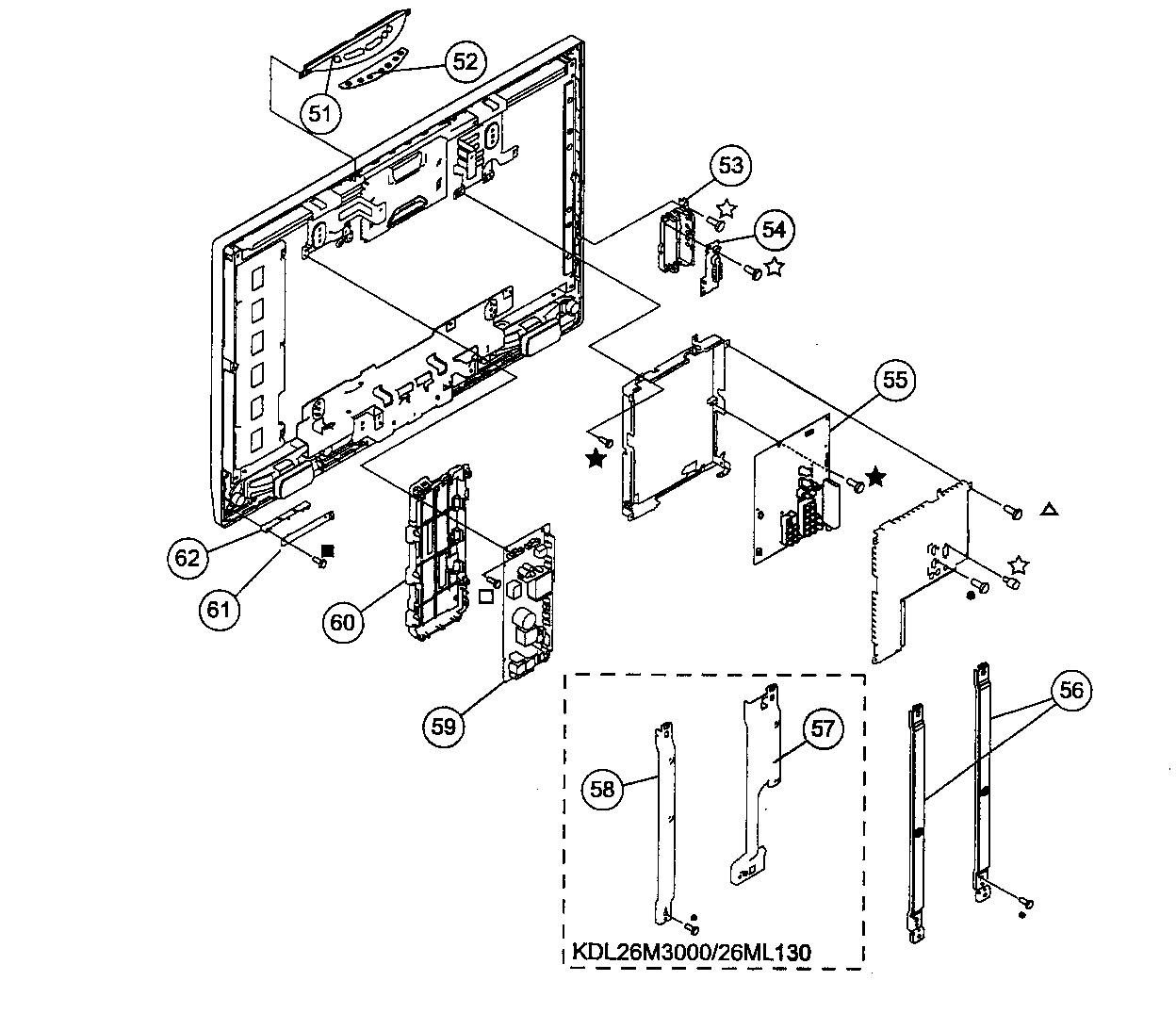

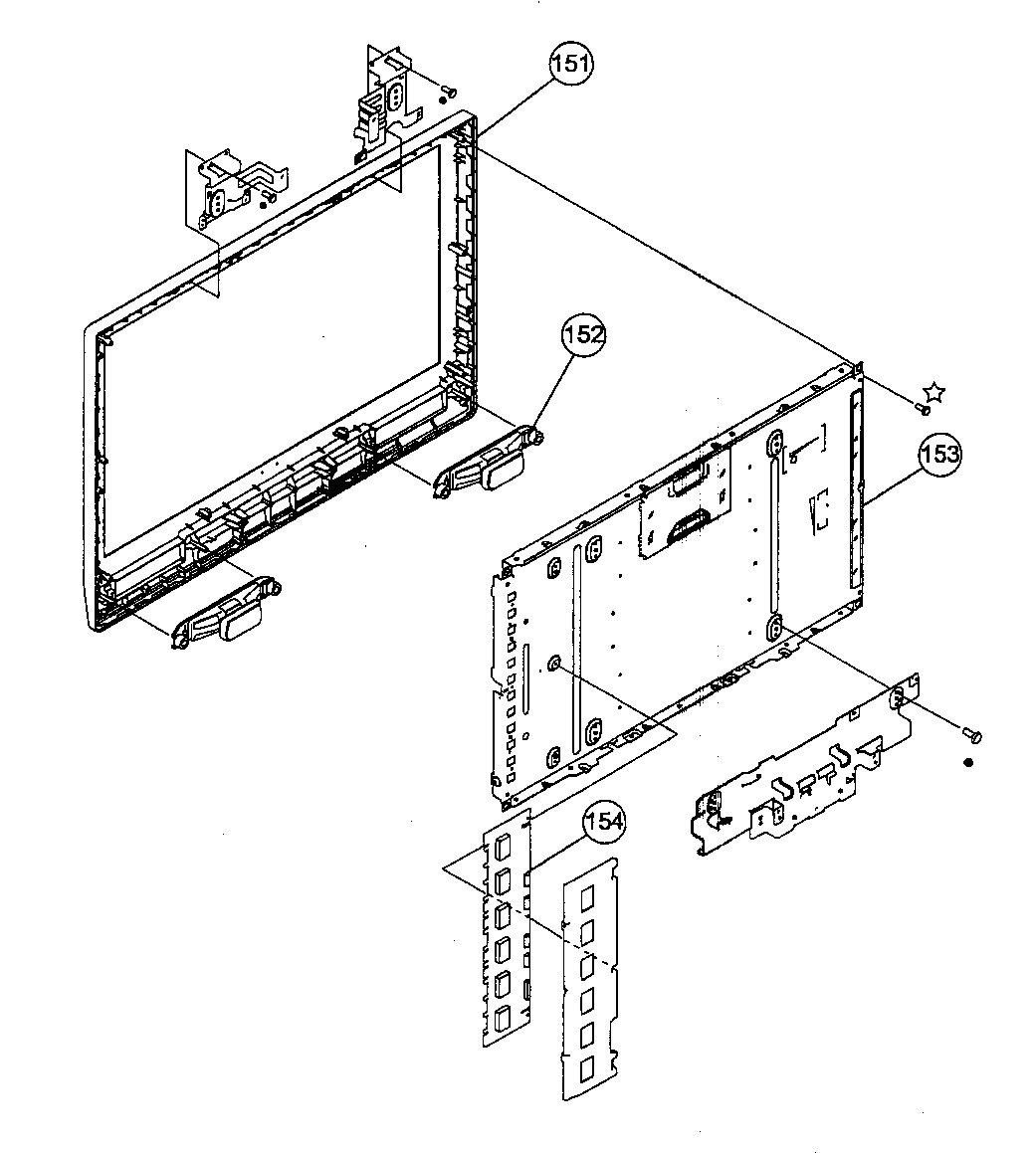

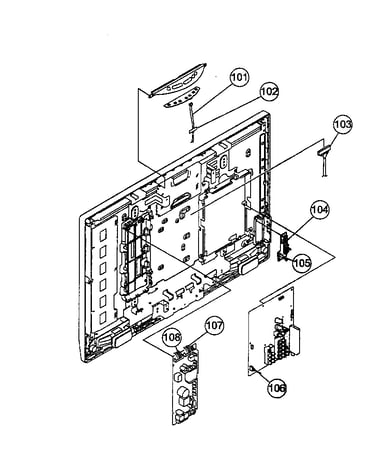

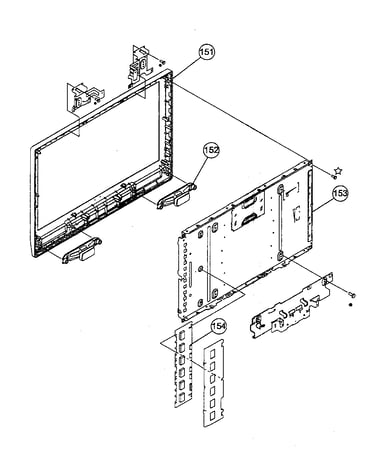

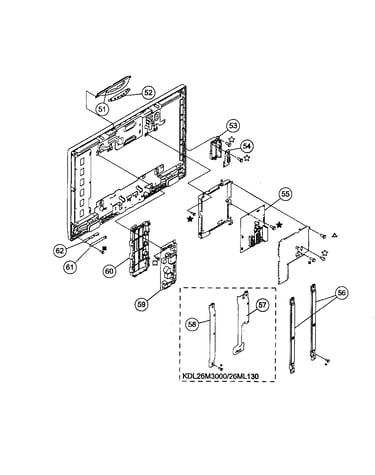

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |
Integrated Circuit 670460001
#NI

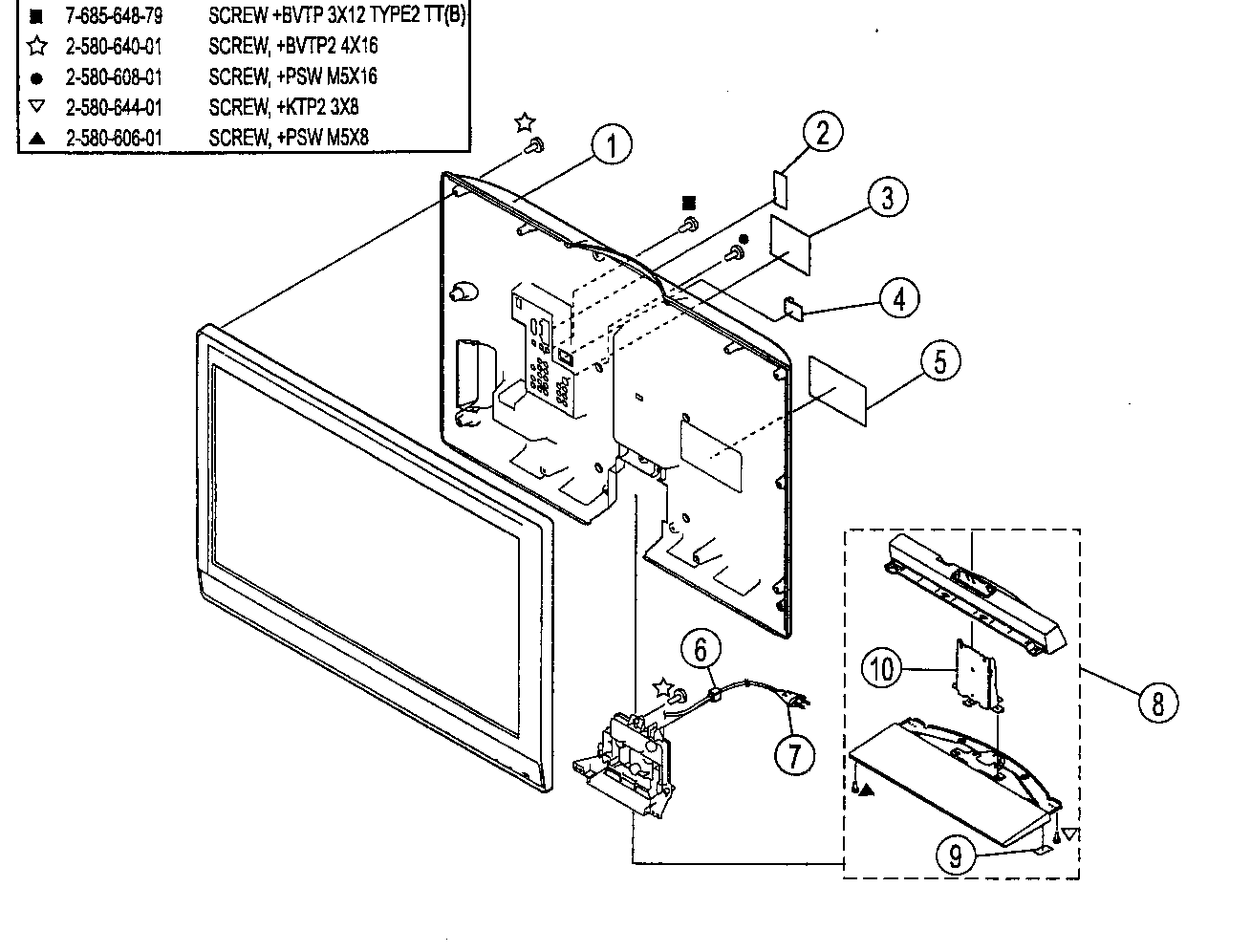

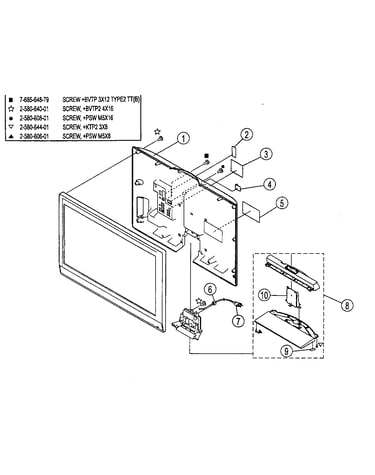

Rear cover/stand assy diagram

Integrated circuit

Part #670460001

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 670214201
#NI

Rear cover/stand assy diagram

Integrated circuit

Part #670214201

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 875927858
#NI

Rear cover/stand assy diagram

Integrated circuit

Part #875927858

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 670481901
#NI

Rear cover/stand assy diagram

Integrated circuit

Part #670481901

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 670875801
#NI

Rear cover/stand assy diagram

Integrated circuit

Part #670875801

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 875967548
#NI

Rear cover/stand assy diagram

Integrated circuit

Part #875967548

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 670907501
#NI

Rear cover/stand assy diagram

Integrated circuit

Part #670907501

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 670718101
#NI

Rear cover/stand assy diagram

Integrated circuit

Part #670718101

The manufacturer no longer makes this part, and there's no substitute part

Fuse 157660321
#NI

Rear cover/stand assy diagram

Fuse

Part #157660321

The manufacturer no longer makes this part, and there's no substitute part

Transistor 655130301
#NI

Rear cover/stand assy diagram

Transistor

Part #655130301

The manufacturer no longer makes this part, and there's no substitute part
