Whirlpool
Wall Oven/Microwave Combo

Model # WOC97EC0HZ00 Official Whirlpool built-in oven with microwave

Here are the diagrams and repair parts for Official Whirlpool WOC97EC0HZ00 built-in oven with microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

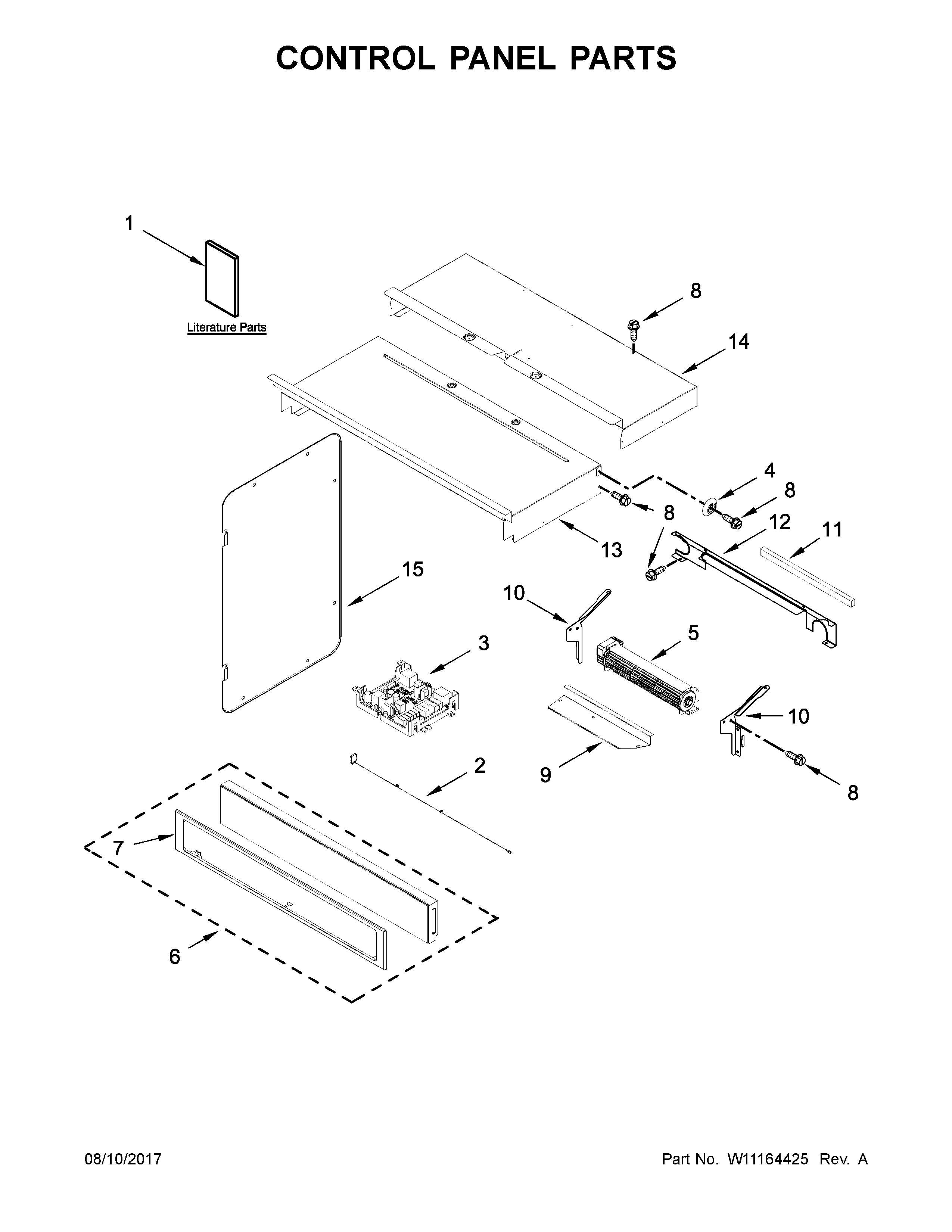

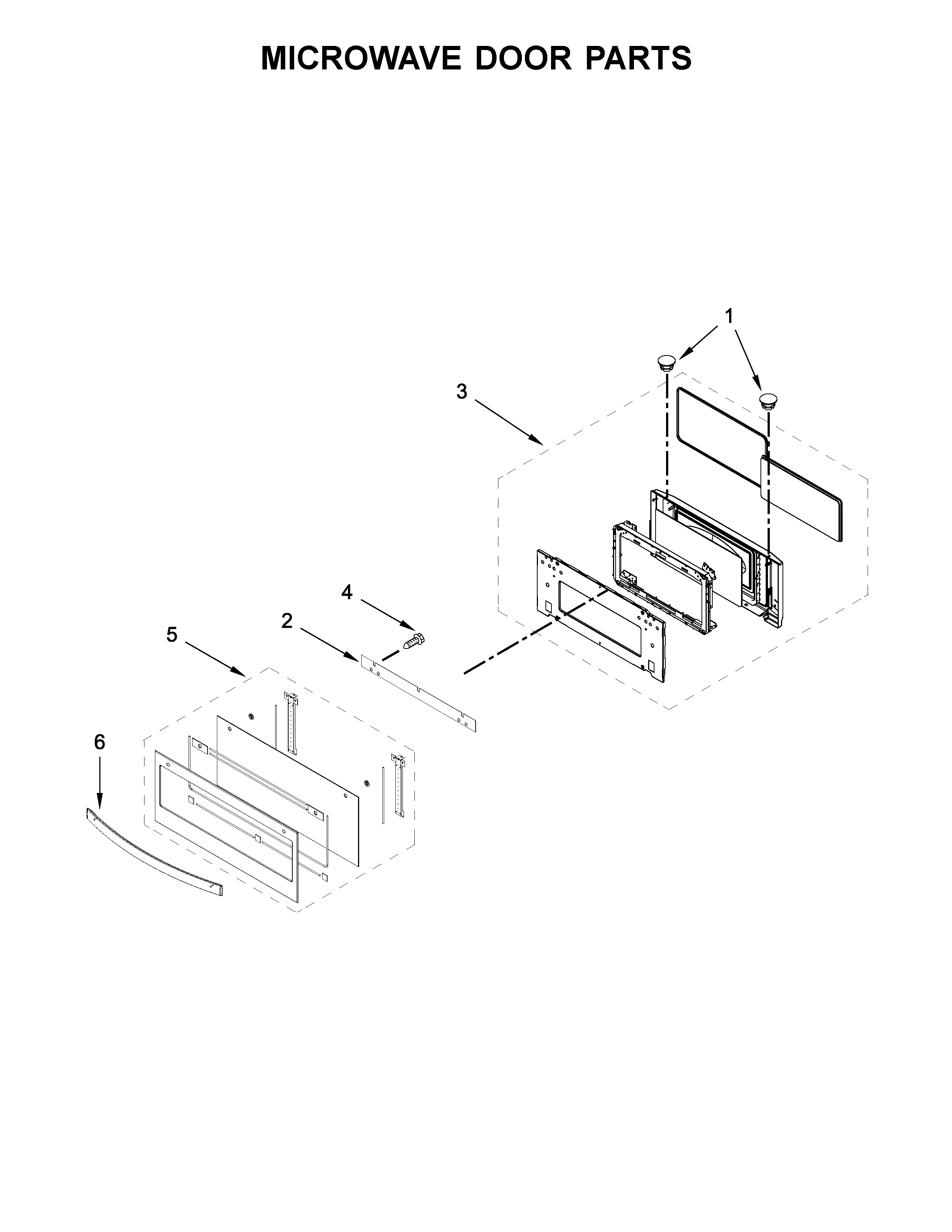

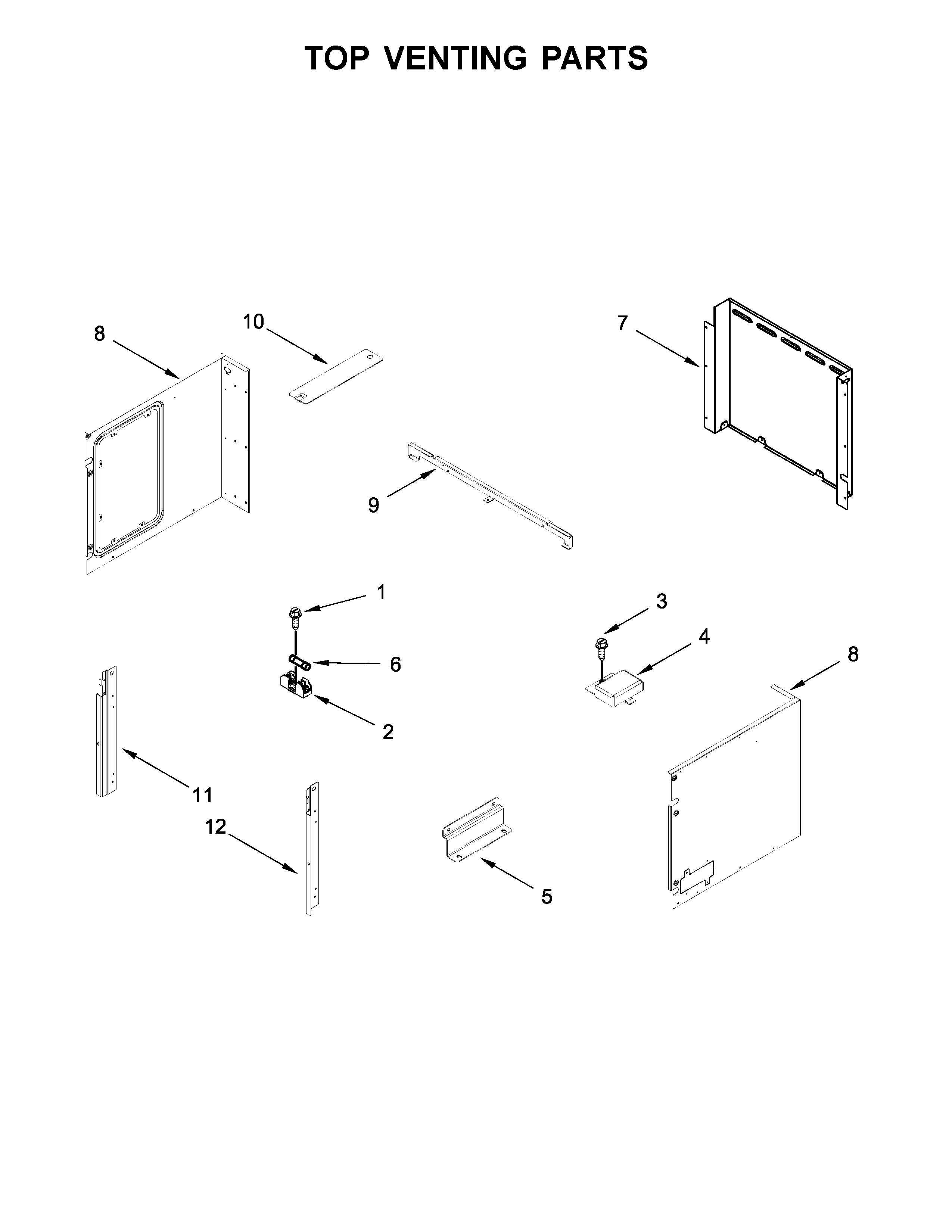

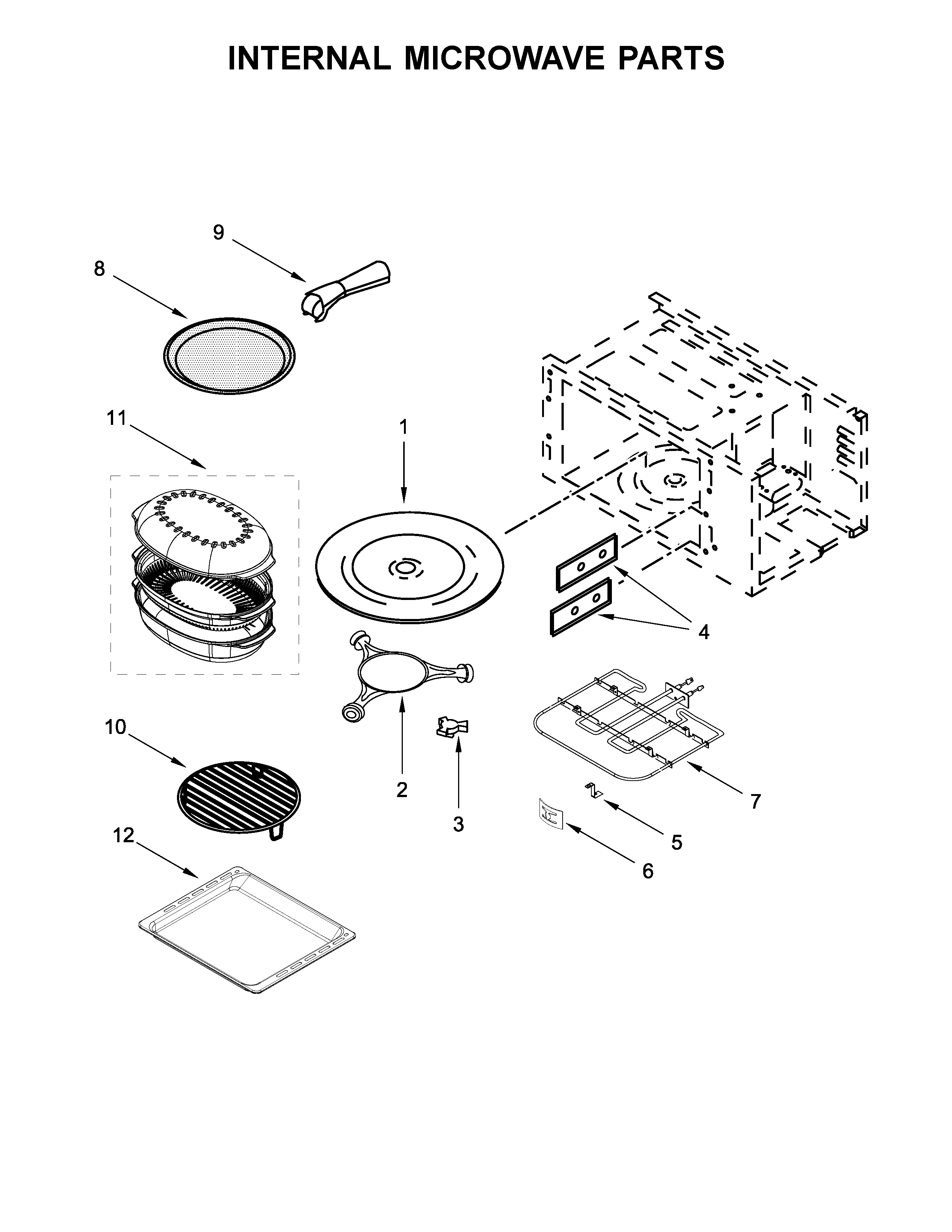

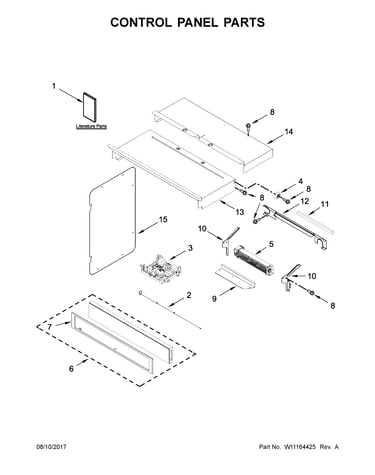

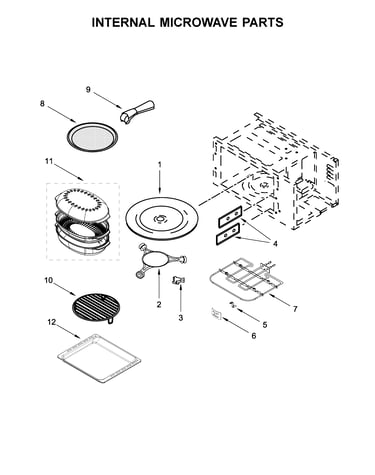

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 186 parts  |
Microwave Door Switch W10330566
#15

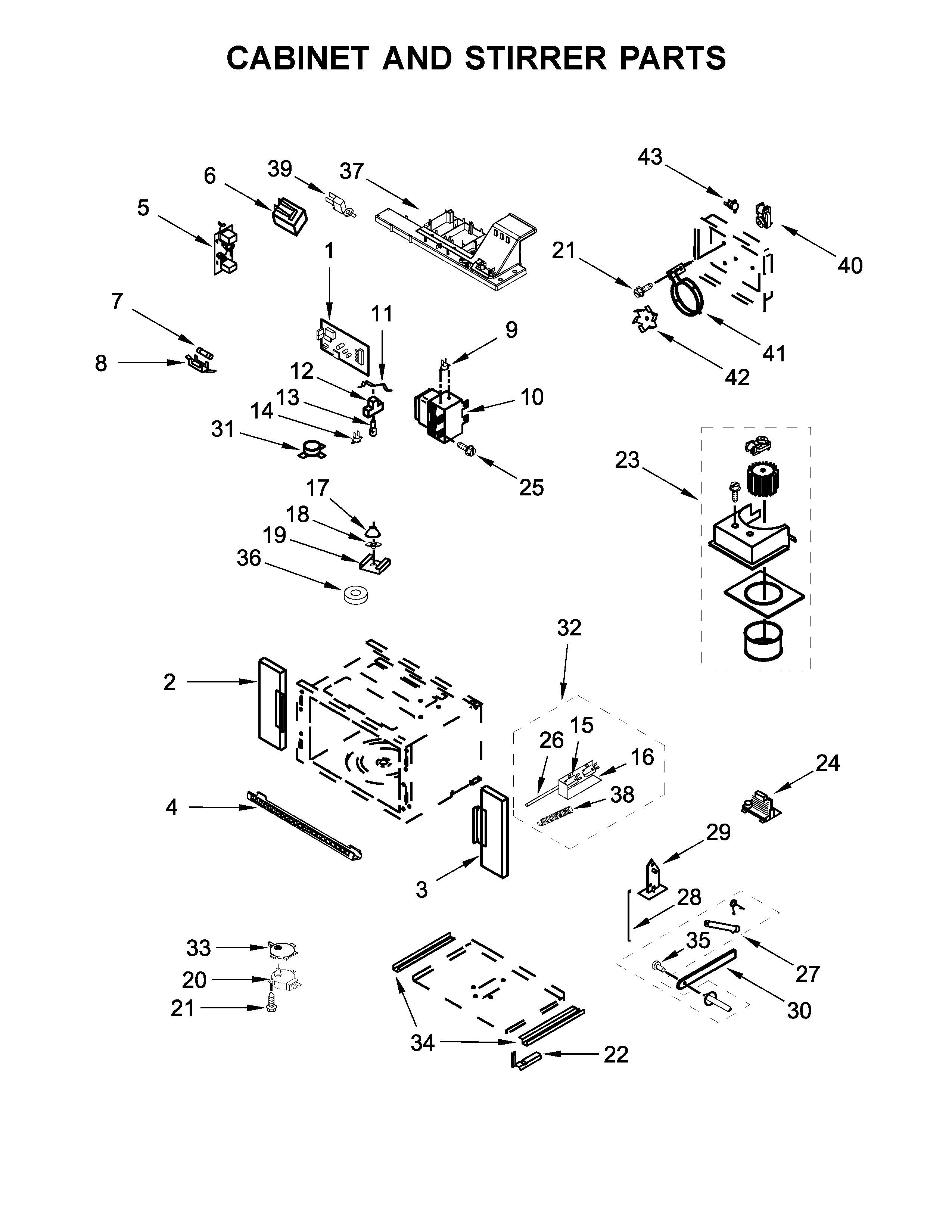

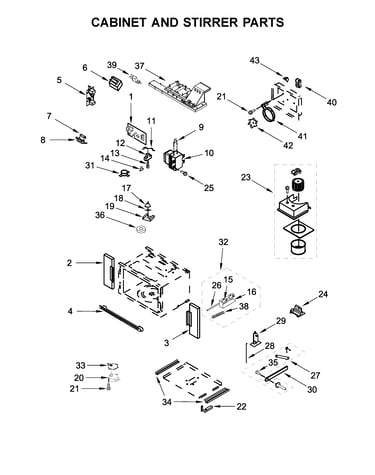

Cabinet and stirrer parts diagram

Microwave door switch

Part #W10330566

Replaced by #W10211972

?
Manufacturer substitution
This part replaces W10330566. Substitute parts can look different from the original.
BEST SELLER
$25.98 |
53% OFF MSRP : $55.00
In Stock
Inverter W10468206
#24

Cabinet and stirrer parts diagram

Inverter

Part #W10468206

Replaced by #W10217711

?
Manufacturer substitution
This part replaces W10468206. Substitute parts can look different from the original.
BEST SELLER
$202.82 |
19% OFF MSRP : $250.00
In Stock
Appliance Touch-up Paint 72017
#NI

Optional parts (not included) diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Interlock W10358241
#32

Cabinet and stirrer parts diagram

Interlock

Part #W10358241

Replaced by #W11033422

?
Manufacturer substitution
This part replaces W10358241. Substitute parts can look different from the original.
BEST SELLER
$96.87 |
25% OFF MSRP : $130.00
In Stock
Touch-up Paint (black) 72032
#NI

Optional parts (not included) diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.02 |
25% OFF MSRP : $12.00
In Stock
Wako Minerva W10622170
#16

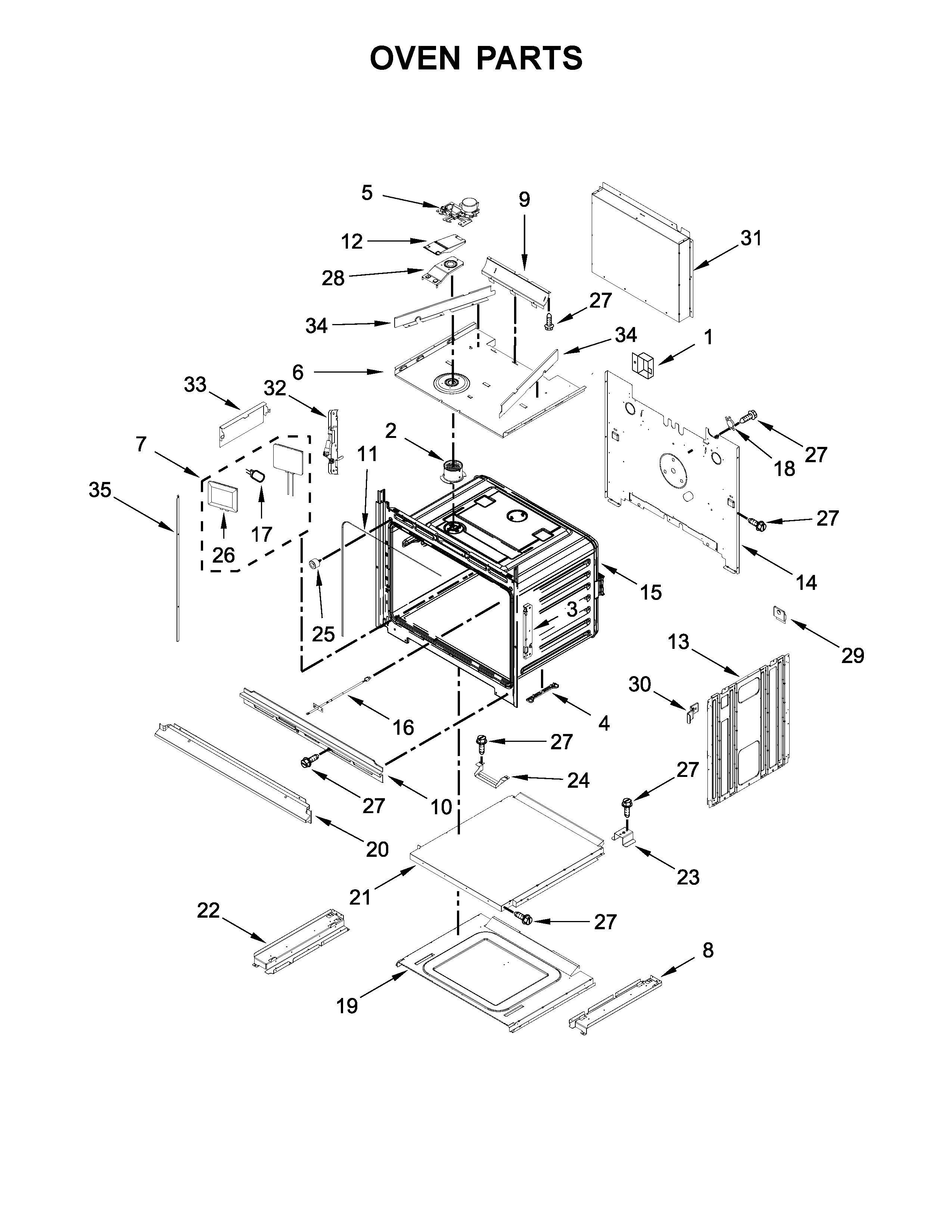

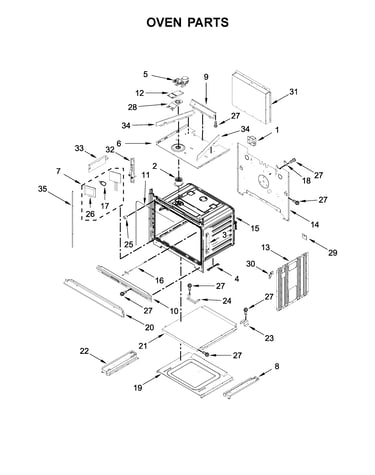

Oven parts diagram

Wako minerva

Part #W10622170

Replaced by #W10859573

?
Manufacturer substitution
This part replaces W10622170. Substitute parts can look different from the original.
BEST SELLER
$100.74 |
16% OFF MSRP : $120.00
In Stock
Range Bake Element W10546517
#7

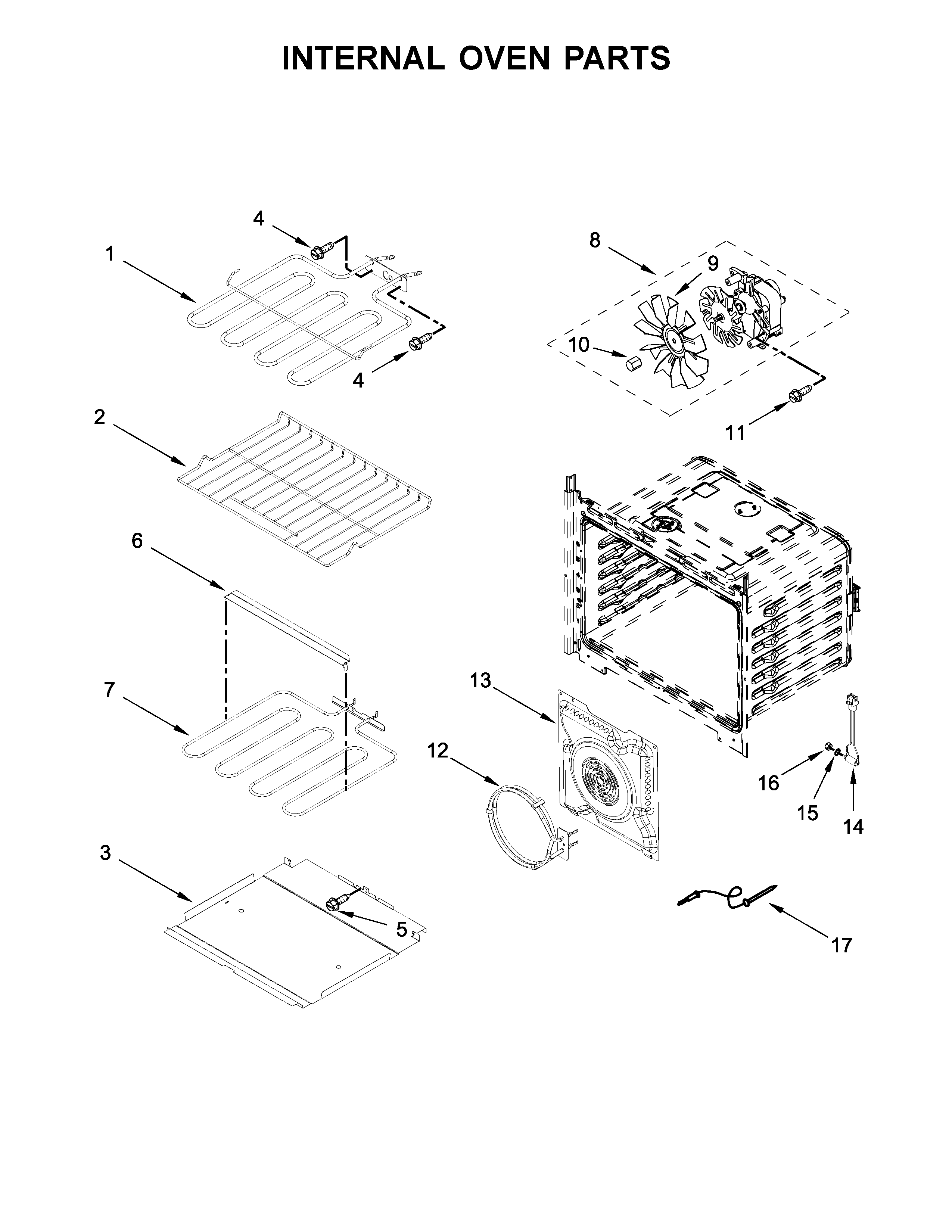

Internal oven parts diagram

Range bake element

Part #W10546517

Replaced by #W11545804

?
Manufacturer substitution
This part replaces W10546517. Substitute parts can look different from the original.
BEST SELLER
$60.68 |
8% OFF Phone Price : $65.68
In Stock
Lamp G4 Halo W10795595
#13

Cabinet and stirrer parts diagram

Lamp g4 halo

Part #W10795595

Replaced by #W10886919

?
Manufacturer substitution
This part replaces W10795595. Substitute parts can look different from the original.
This item is not returnable
$22.89 |
18% OFF Phone Price : $27.89
In Stock
Microwave Turntable Motor 461967848971
#20

Cabinet and stirrer parts diagram

Microwave turntable motor

Part #461967848971

Replaced by #W10911403

?
Manufacturer substitution
This part replaces 461967848971. Substitute parts can look different from the original.
$75.47 |
20% OFF MSRP : $94.00
In Stock
Wall Oven Door Inner Glass W10618107
#9

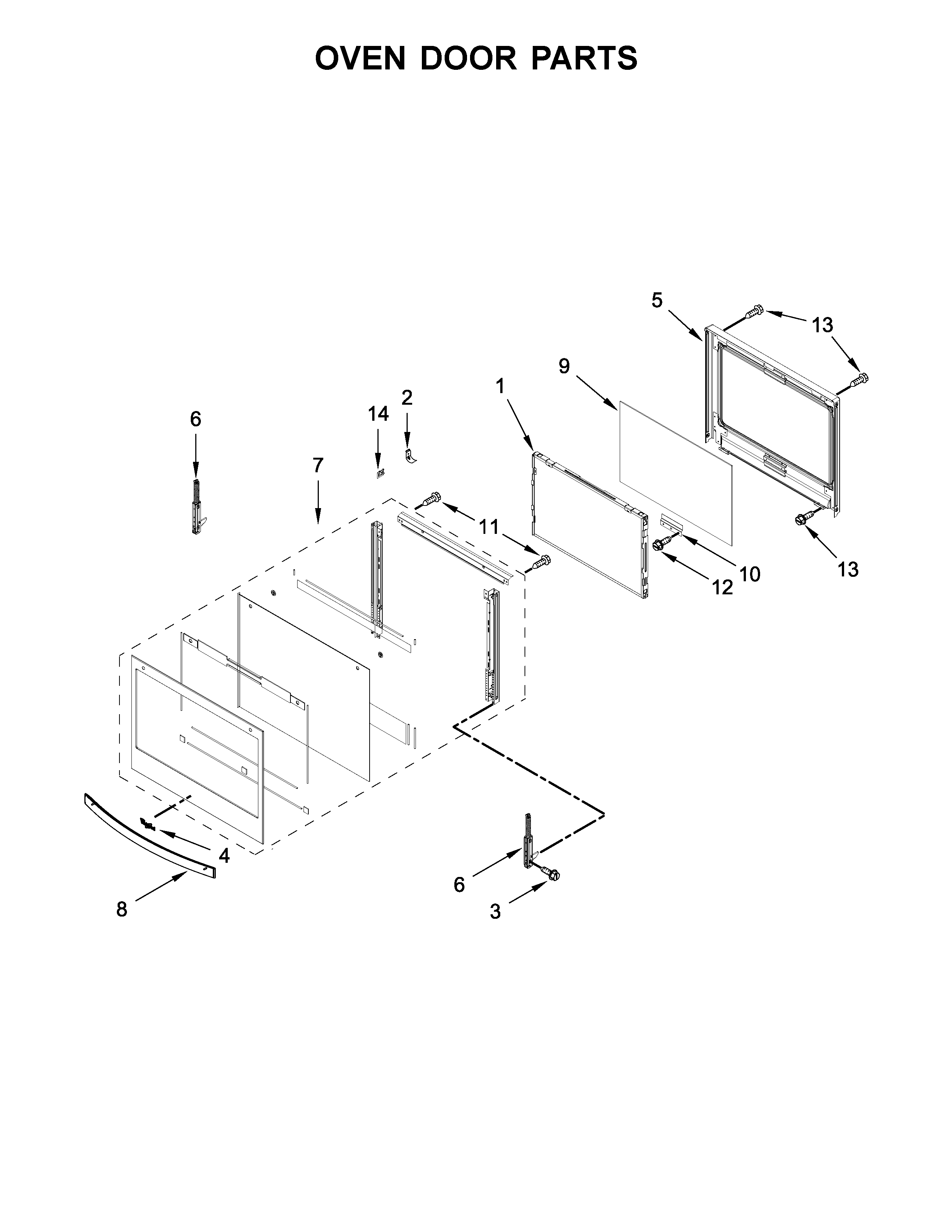

Oven door parts diagram

Wall oven door inner glass

Part #W10618107

Replaced by #WPW10618107

?
Manufacturer substitution
This part replaces W10618107. Substitute parts can look different from the original.
$93.79 |
33% OFF MSRP : $140.00
In Stock
