Model #DSC-HX10V/W Sony digital camera

Here are the diagrams and repair parts for Sony DSC-HX10V-W digital camera, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 71 parts

Pcb,sw587

#11

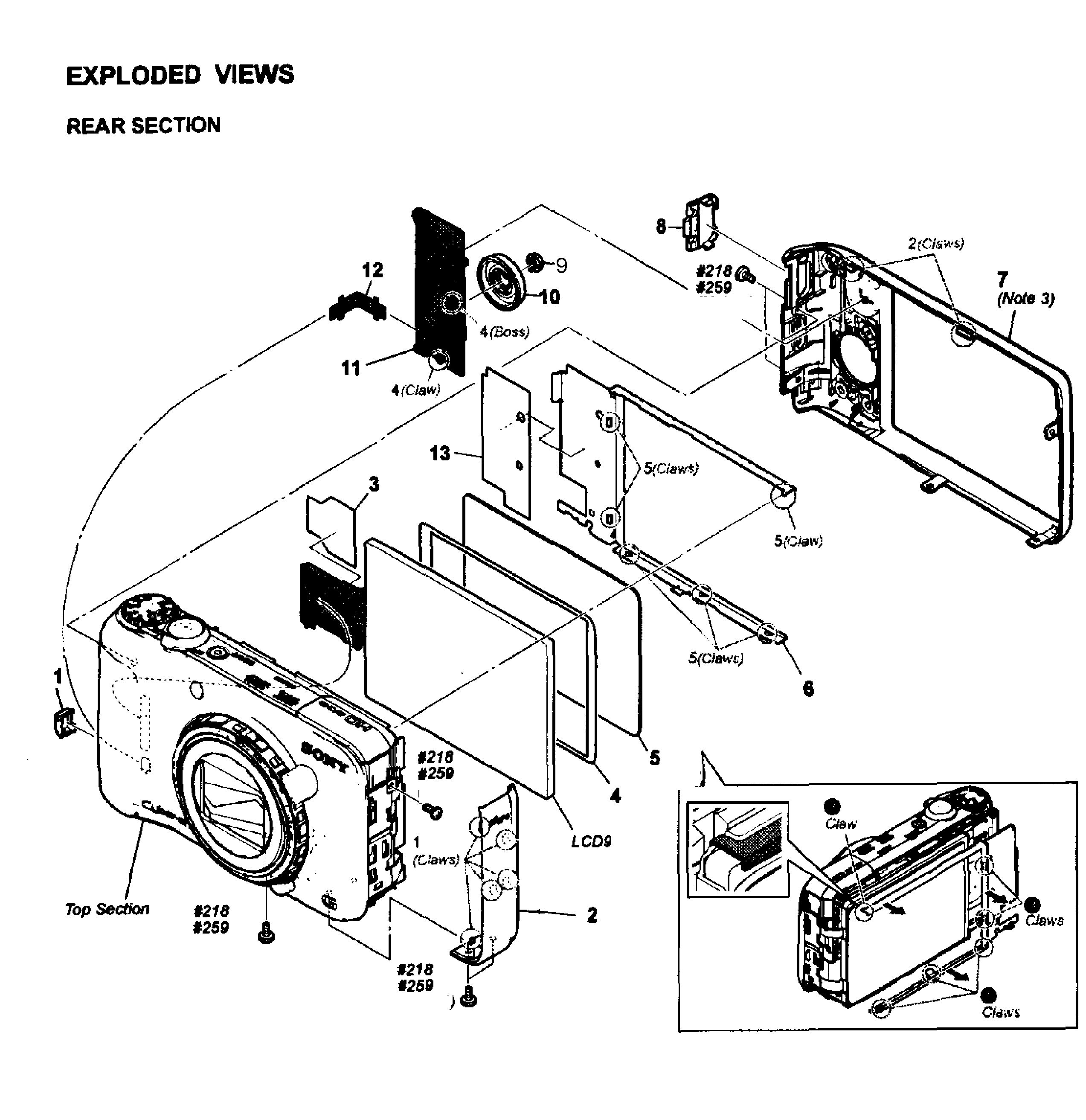

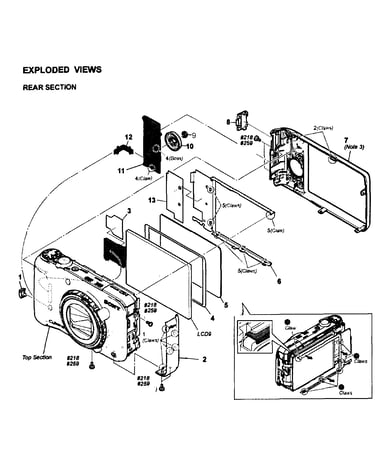

Rear section Diagram

Pcb,sw587

Part #A1861490A
$39.31

In Stock

Gear Case

#159

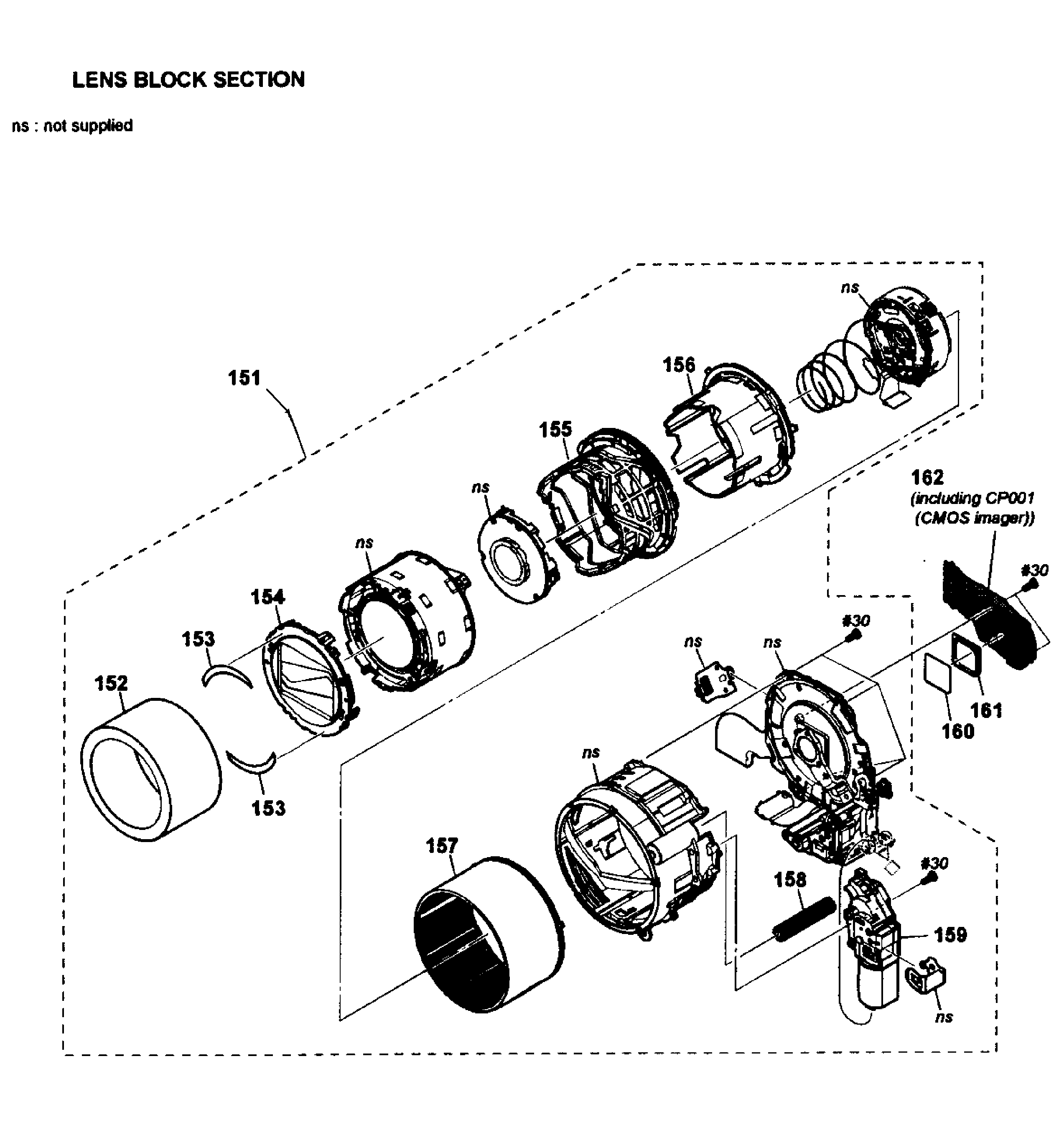

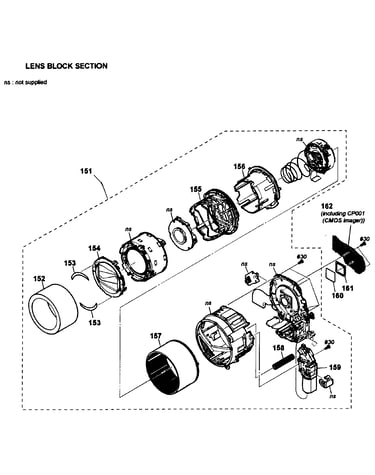

Lens block Diagram

Gear case

Part #A1802348A
$22.31

In Stock

Microphone

#MIC9

Top section Diagram

Microphone

Part #154286241
$21.83

In Stock

Screw

#192

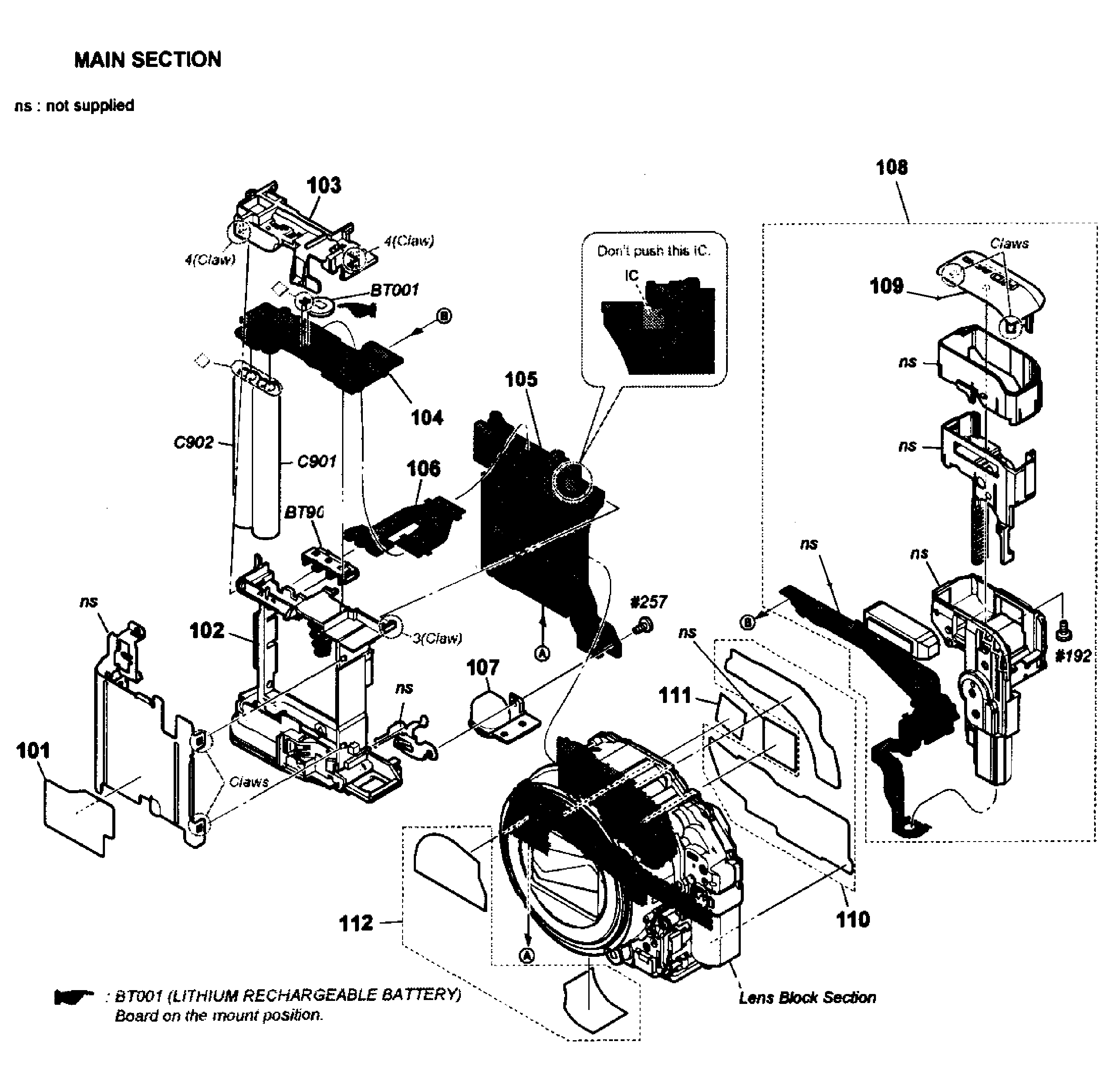

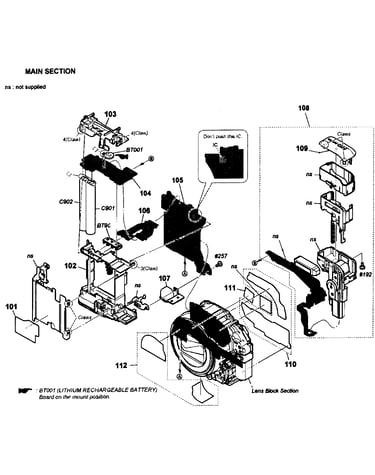

Main section Diagram

Screw

Part #418873601
This item is not returnable
$2.80

In Stock

Cushion Up

#55

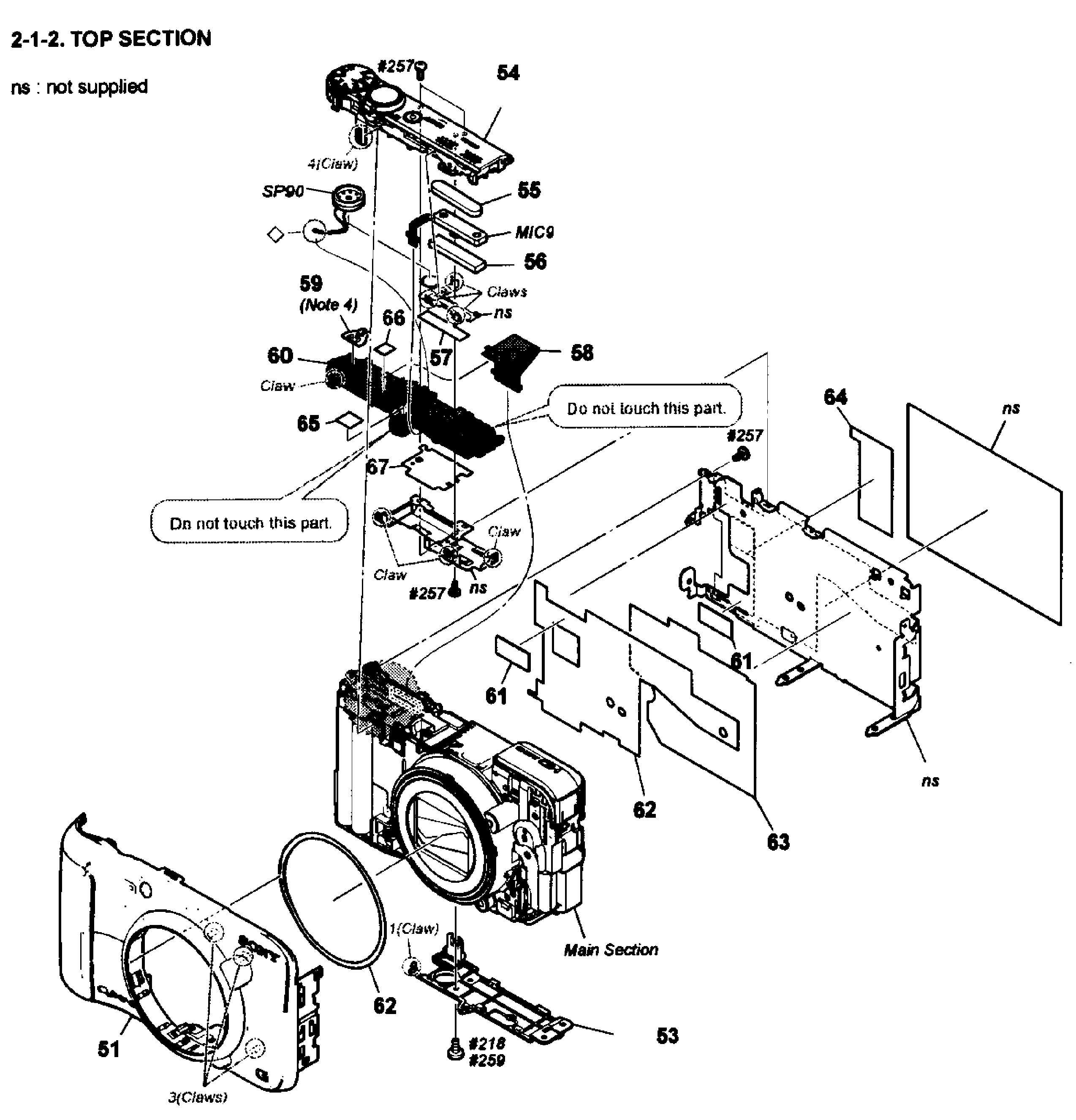

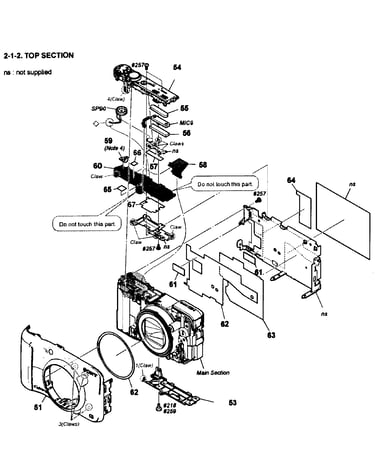

Top section Diagram

Cushion up

Part #427706101
This item is not returnable
$2.55

In Stock

Cabinet Up

#54

Top section Diagram

Cabinet up

Part #X25836311
$54.39

In Stock

Rear Cabinet

#7

Rear section Diagram

Rear cabinet

Part #X25836371
$38.40

In Stock

OWNERS MANUAL (ENGLISH)

#NI

Rear section Diagram

Owners manual (english)

Part #441222511
This item is not returnable
$6.78

In Stock

Cabinet,si

#2

Rear section Diagram

Cabinet,si

Part #441662411
$19.46

In Stock

Window Lcd

#5

Rear section Diagram

Window lcd

Part #441662601
$21.83

In Stock
