Model #96145000700 Husqvarna gas walk-behind mower

Here are the diagrams and repair parts for Husqvarna 96145000700 gas walk-behind mower, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 266 parts

Lawn Mower Lock Nut, 3/8-in

#57

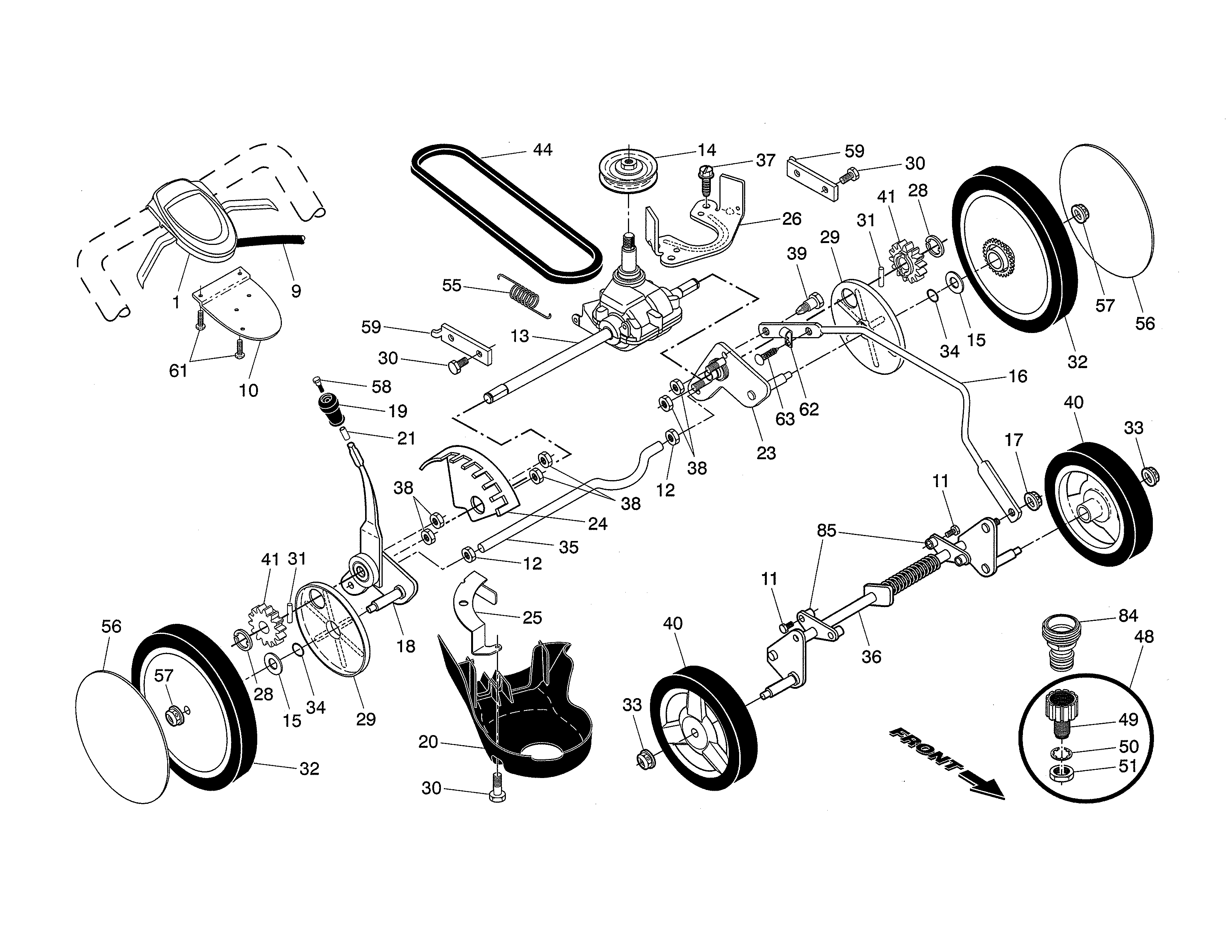

Gear case/drive control/wheels Diagram

Lawn mower lock nut, 3/8-in

Part #532409149
This item is not returnable
$3.33

In Stock

Lawn Mower Bolt

#59

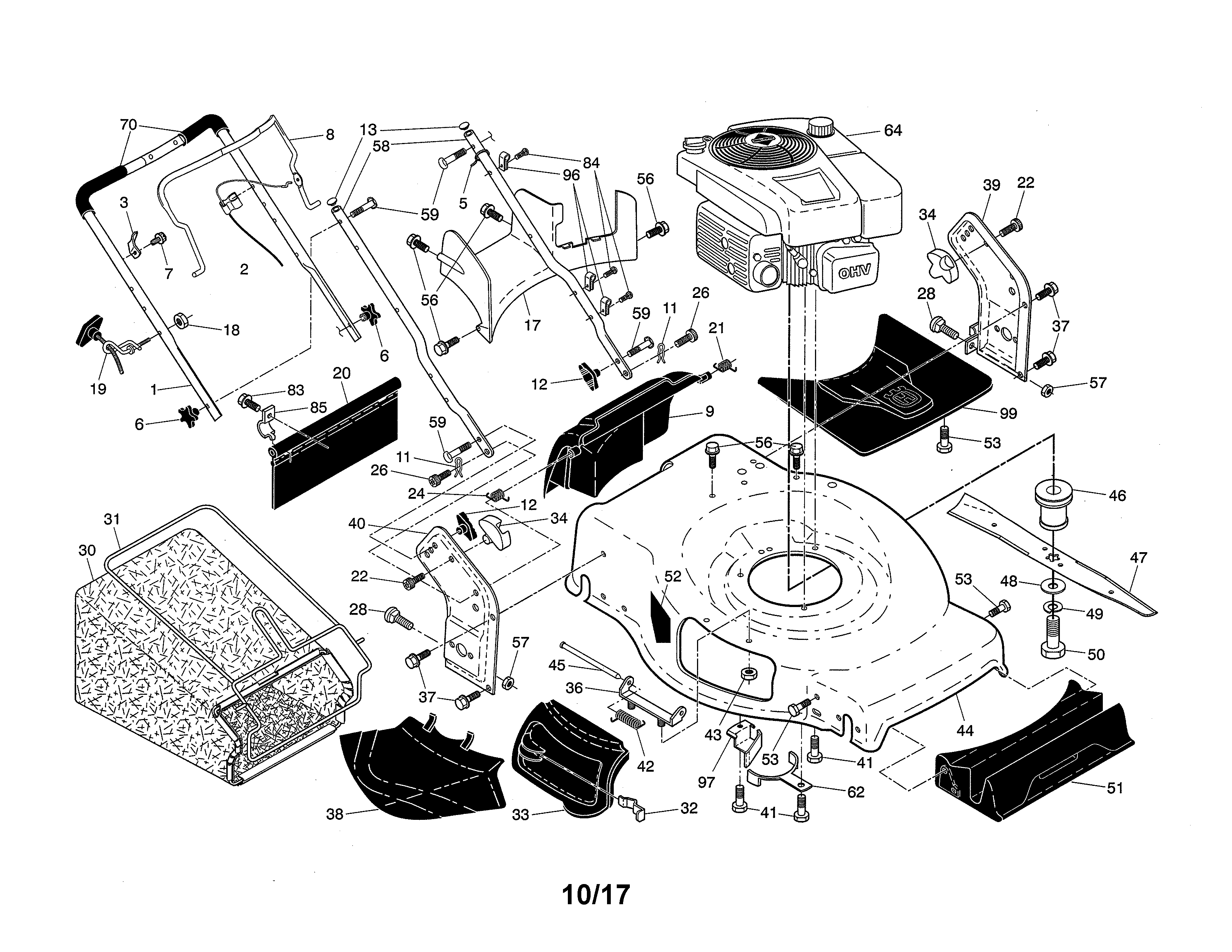

Engine/housing/handle Diagram

Lawn mower bolt

Part #532191574
This item is not returnable
$3.40

In Stock

Carriage Bolt

#28

Engine/housing/handle Diagram

Carriage bolt

Part #STD533106

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower Transmission Axle Pin

#31

Gear case/drive control/wheels Diagram

Lawn mower transmission axle pin

Part #532404845
This item is not returnable
$3.76

In Stock

Lawn Mower Transmission Spring

#55

Gear case/drive control/wheels Diagram

Lawn mower transmission spring

Part #532406558
This item is not returnable
$3.63 |
53% OFF MSRP:$7.70

In Stock

Lawn Mower Handle Knob

#6

Engine/housing/handle Diagram

Lawn mower handle knob

Part #532182398
This item is not returnable
$4.88

In Stock

Lawn & Garden Equipment Bolt

#37

Engine/housing/handle Diagram

Lawn & garden equipment bolt

Part #817000510
This item is not returnable
$5.31

In Stock

Lawn Mower Discharge Chute Hinge Rod

#45

Engine/housing/handle Diagram

Lawn mower discharge chute hinge rod

Part #532175650
This item is not returnable
$4.64

In Stock

Lawn & Garden Equipment Screw

#7

Engine/housing/handle Diagram

Lawn & garden equipment screw

Part #532178848
This item is not returnable
$4.20

In Stock

Chute Deflector

#38

Engine/housing/handle Diagram

Chute deflector

Part #532426129
This item is not returnable
$7.18 |
10% OFF MSRP:$8.00

In Stock

Symptoms for gas walk-behind mowers

Choose a symptom to see related walk-behind mower repairs.

Main causes: drive control cable failure, worn or broken drive belt, bad transmission, broken drive wheel
Main causes: uneven wheel height settings, damaged wheel, dull or damaged cutting blade
Main causes: dirty carburetor, bad spark plug, clogged air filter, engine choke problems, clogged gas cap vent
Main causes: damaged cutting blade, loose cutting blade, damaged flywheel key, engine needs tune up
Main causes: engine needs tune up, dirty or clogged carburetor, damaged flywheel key
Main causes: stale gas, engine needs tune up, bad spark plug, dead battery, bad recoil starter, faulty safety switch, bad ignition coil
