Model # 830T Official Horizon treadmill

Here are the diagrams and repair parts for Official Horizon 830T treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

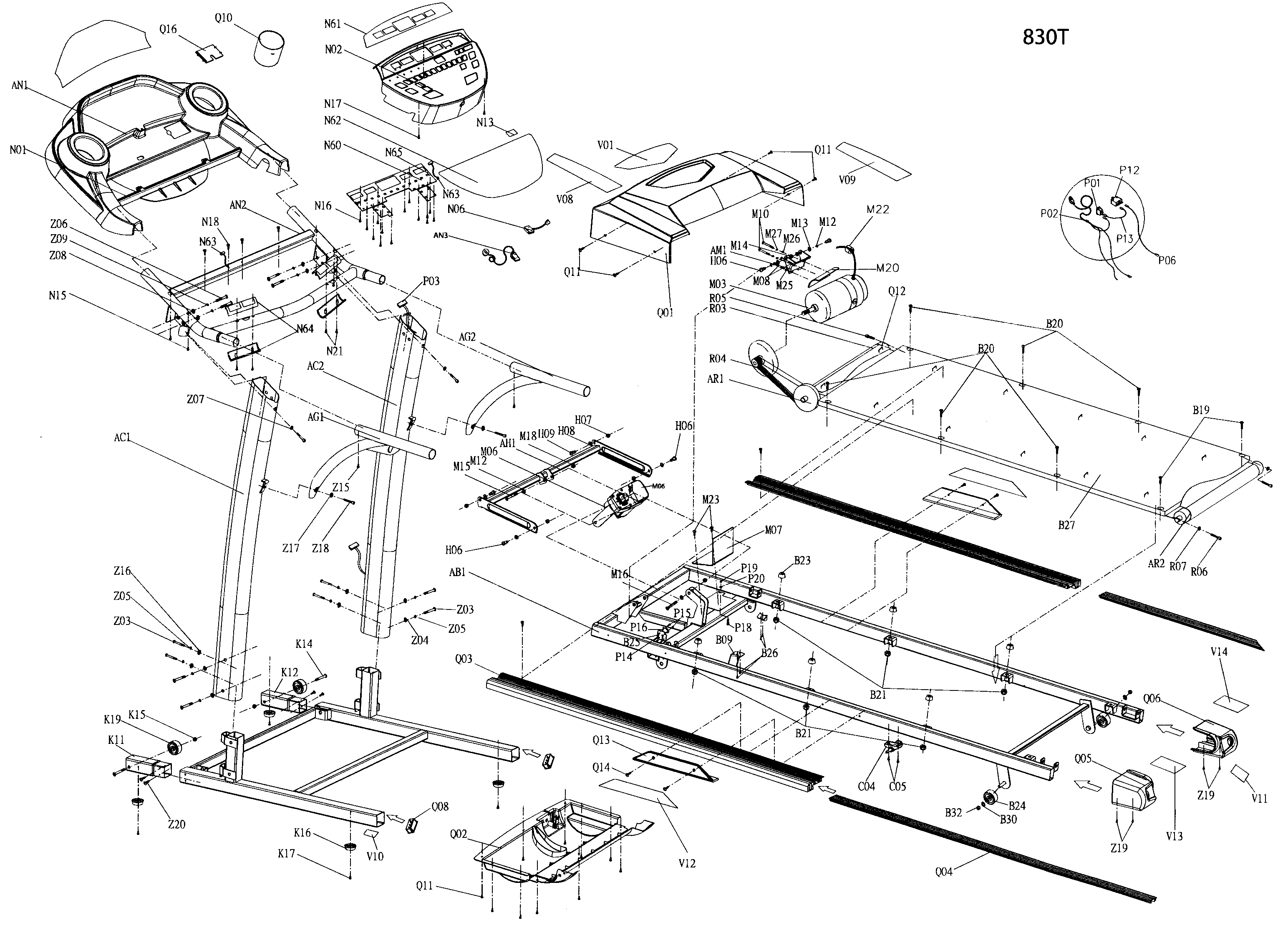

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Treadmill Walking Belt Lubricant (replaces 016591-z, Dc200-1000cs, Mb1102001a) 1000092805
#NI

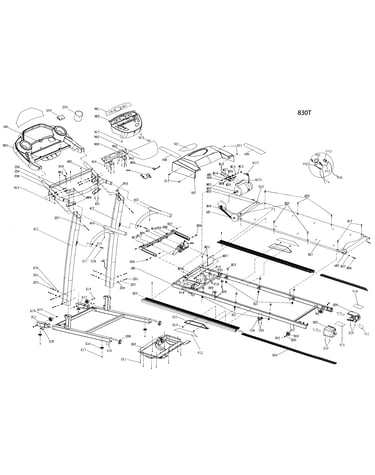

Treadmill diagram

Treadmill walking belt lubricant (replaces 016591-z, dc200-1000cs, mb1102001a)

Part #1000092805

This item is not returnable
$16.01 |
11% OFF Phone Price : $18.01
In Stock
Treadmill Nut 004926-00
Treadmill nut

Part #004926-00

This item is not returnable
$2.16
In Stock
Hex Wrench, 6-mm 005393-00
#NI

Treadmill diagram

Hex wrench, 6-mm

Part #005393-00

$8.50
In Stock
Treadmill Circuit Breaker (replaces Mc0702011) 003346-00
#P12

Treadmill diagram

Treadmill circuit breaker (replaces mc0702011)

Part #003346-00

$14.80
In Stock
Treadmill On/off Switch 040695-A
#P01

Treadmill diagram

Treadmill on/off switch

Part #040695-A

$26.59 |
16% OFF Phone Price : $31.59
In Stock
Treadmill Washer 005005-00
Treadmill washer

Part #005005-00

This item is not returnable
$2.16
In Stock
Exercise Equipment Screw 059929-B
#H09

Treadmill diagram

Exercise equipment screw

Part #059929-B

This item is not returnable
$2.16
In Stock
Core 003386-A
#M22

Treadmill diagram

Core

Part #003386-A

$12.13
In Stock
Exercise Equipment Screw 004620-00
Exercise equipment screw

Part #004620-00

This item is not returnable
$2.16
In Stock
Endcap-rgh 056397-AB
#Q06

Treadmill diagram

Endcap-rgh

Part #056397-AB

This item is not returnable
$5.66
In Stock
