Model # YKBMC140HS03 Official KitchenAid built-in microwave

Here are the diagrams and repair parts for Official KitchenAid YKBMC140HS03 built-in microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

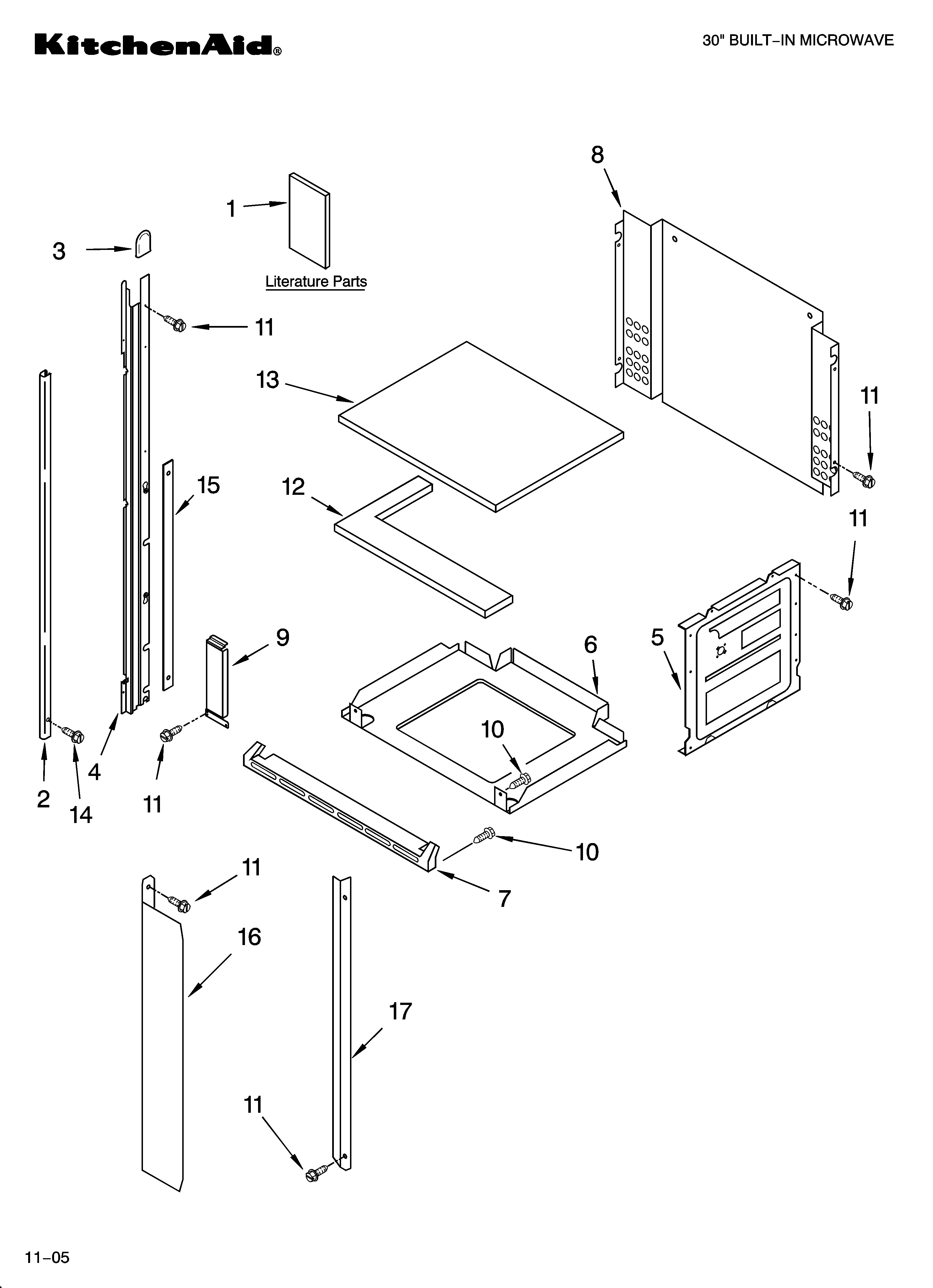

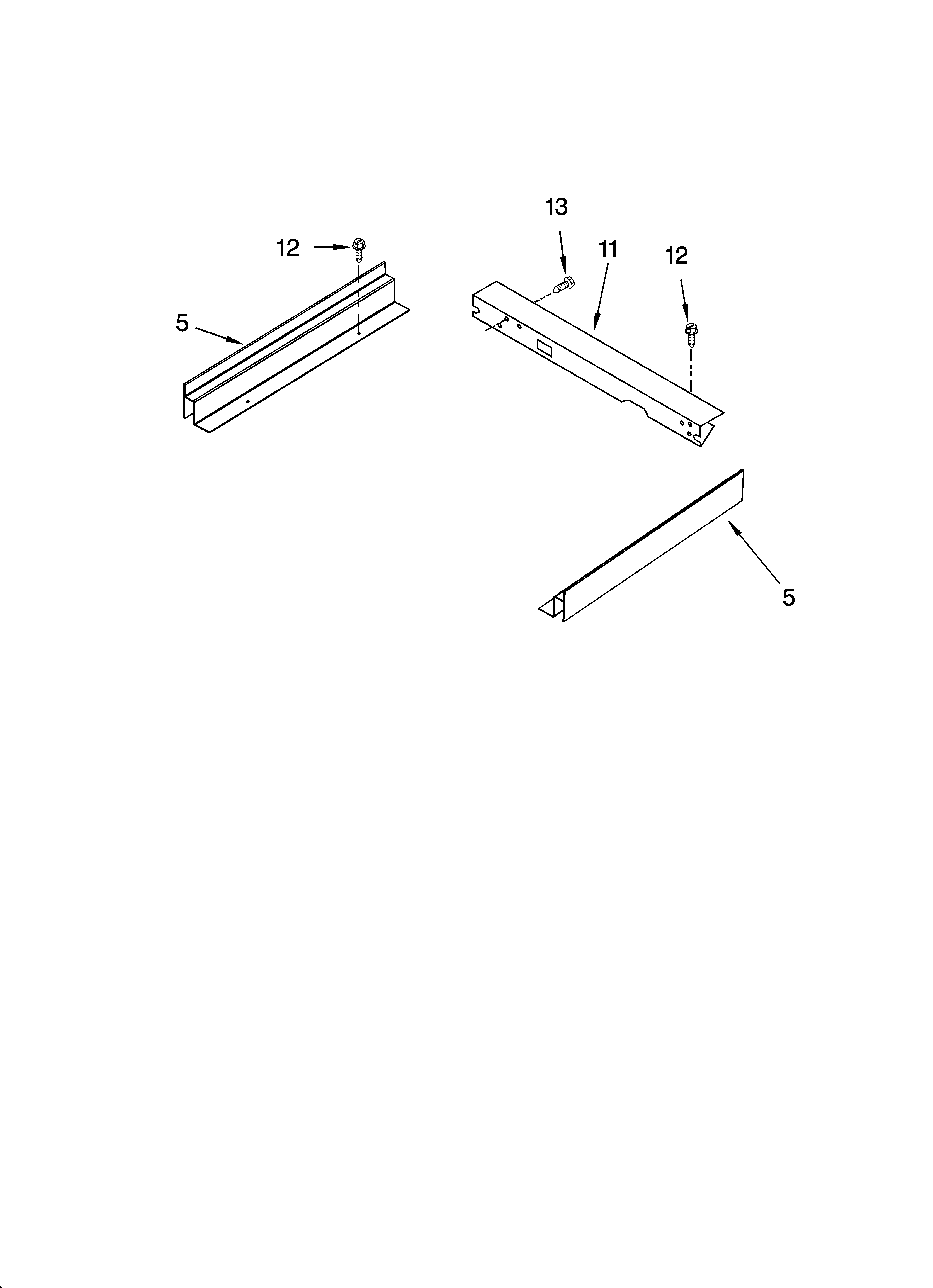

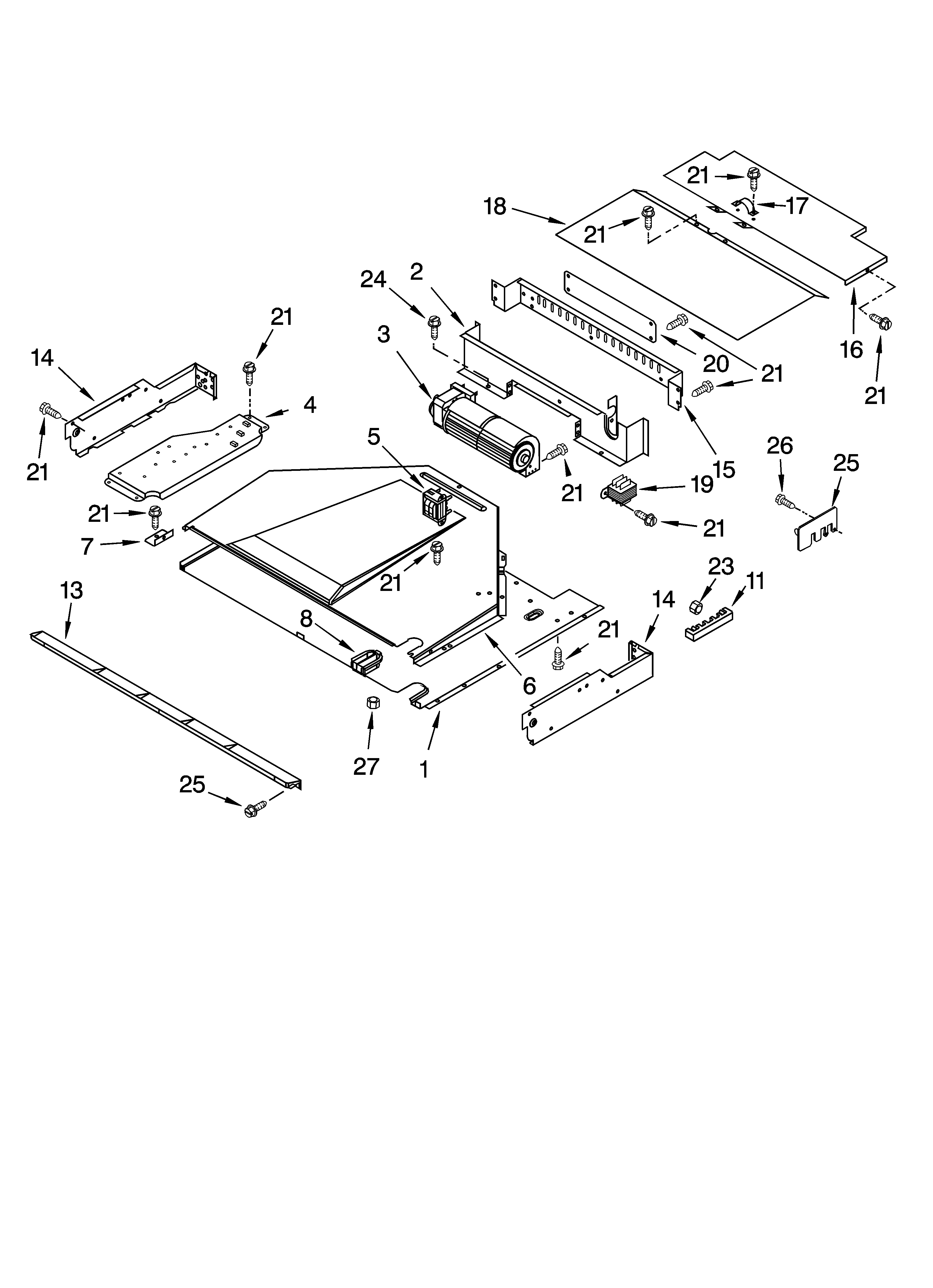

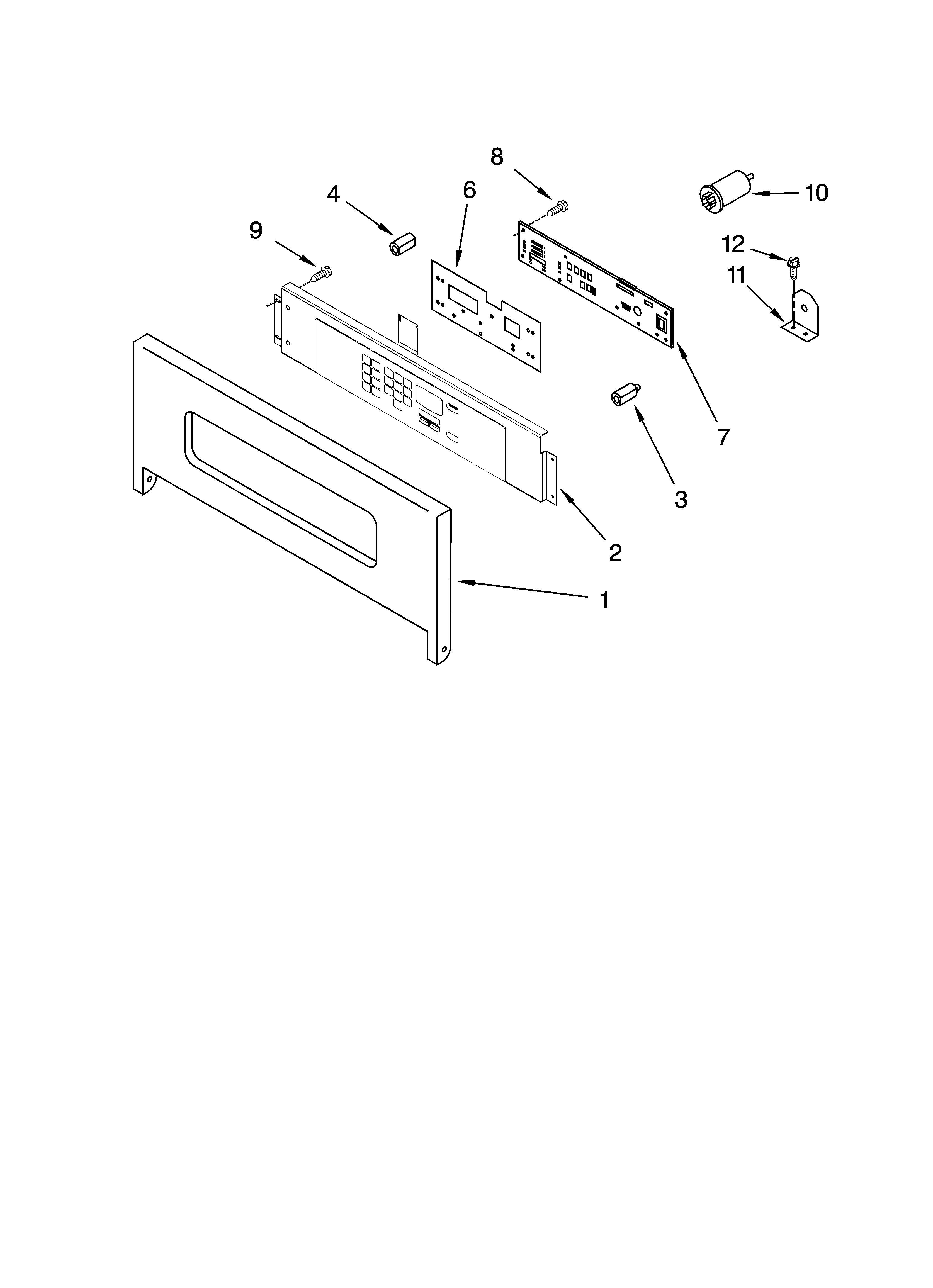

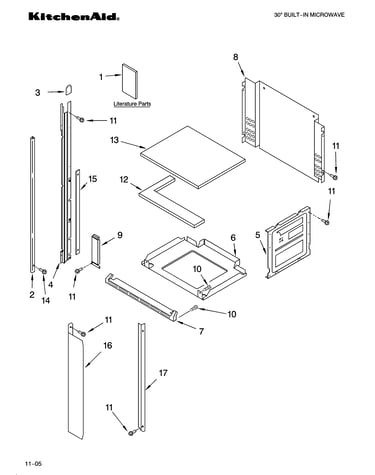

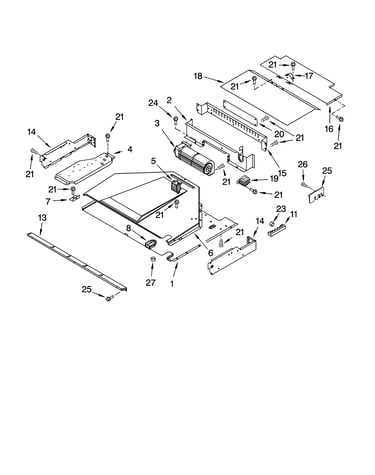

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 167 parts  |
Microwave Door Interlock Switch 4375346
#73

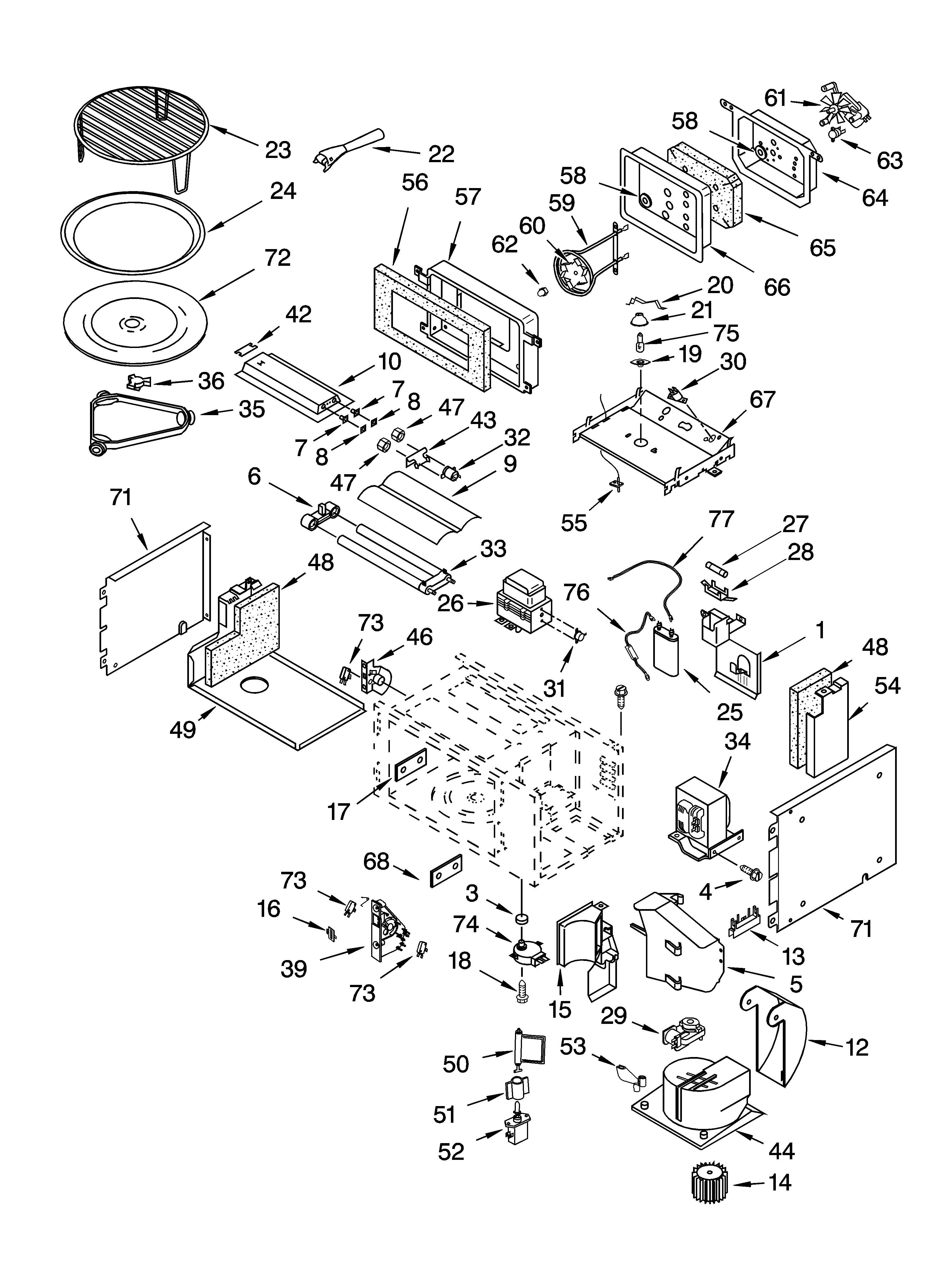

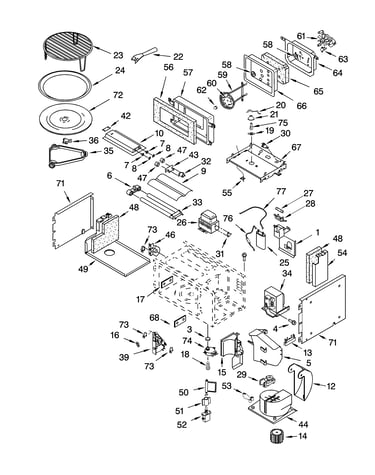

Cabinet and stirrer parts diagram

Microwave door interlock switch

Part #4375346

Replaced by #W10211972

?
Manufacturer substitution
This part replaces 4375346. Substitute parts can look different from the original.
BEST SELLER
$25.98 |
53% OFF MSRP : $55.00
In Stock
Appliance Touch-up Paint 72017
#NI

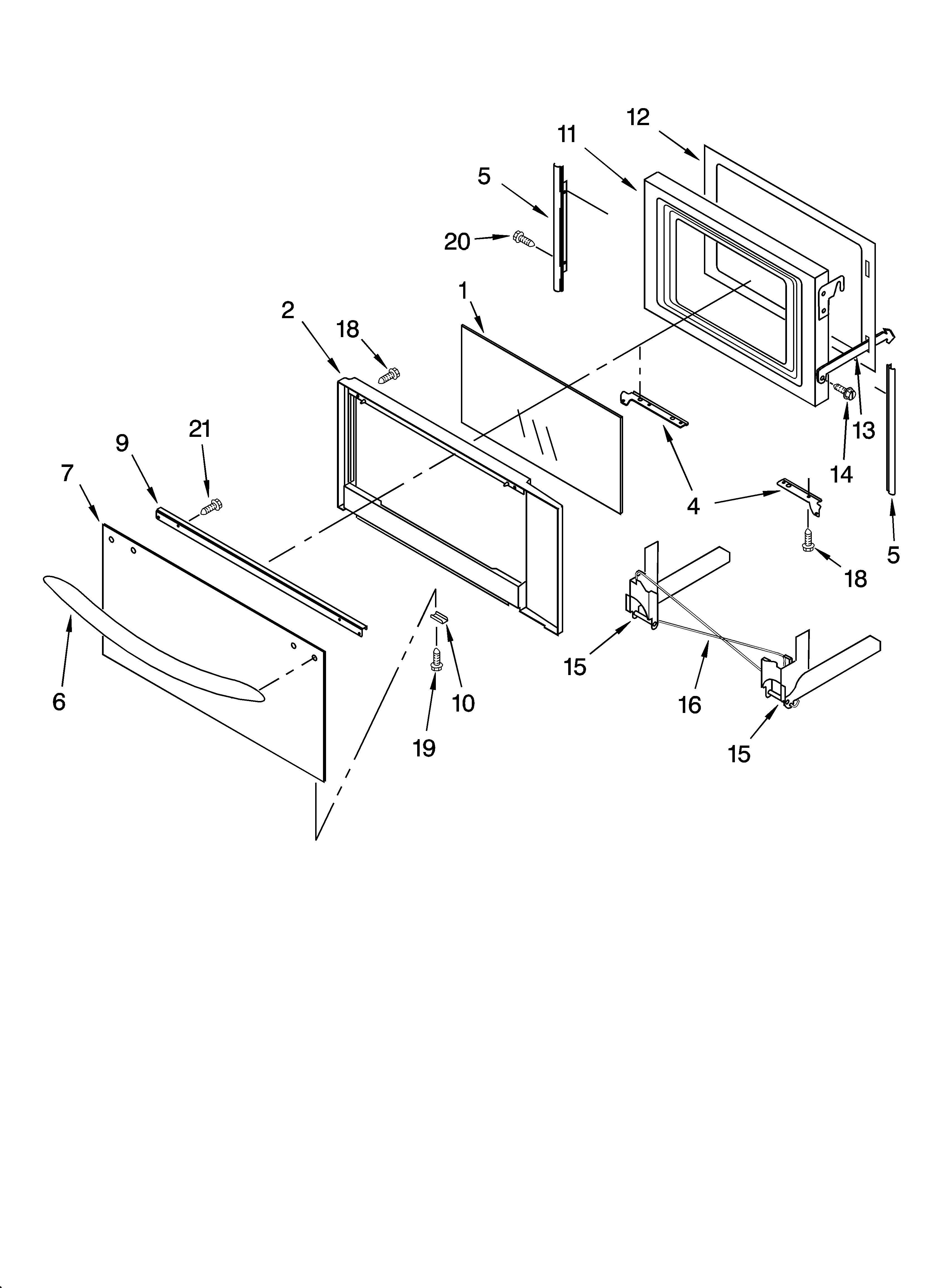

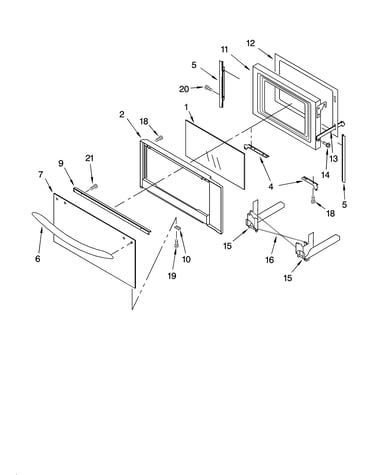

Microwave door parts, optional parts diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Touch-up Paint (black) 72032
#NI

Microwave door parts, optional parts diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.02 |
25% OFF MSRP : $12.00
In Stock
Capacitor 4375436
#25

Cabinet and stirrer parts diagram

Capacitor

Part #4375436

Replaced by #WP4375020

?
Manufacturer substitution
This part replaces 4375436. Substitute parts can look different from the original.
BEST SELLER
$108.39 |
10% OFF MSRP : $120.00
In Stock
Microwave Magnetron 4375424
#26

Cabinet and stirrer parts diagram

Microwave magnetron

Part #4375424

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 4375423
#31

Cabinet and stirrer parts diagram

Thermostat

Part #4375423

Replaced by #WP4375079

?
Manufacturer substitution
This part replaces 4375423. Substitute parts can look different from the original.
$35.31 |
12% OFF MSRP : $40.00
In Stock
Wall Oven Microwave Convection Cooking Rack 4452220
#23

Cabinet and stirrer parts diagram

Wall oven microwave convection cooking rack

Part #4452220

$55.82 |
31% OFF MSRP : $81.00
In Stock
Range Screw 4449154
#13

Microwave compartment parts diagram

Range screw

Part #4449154

Replaced by #WP4449154

?
Manufacturer substitution
This part replaces 4449154. Substitute parts can look different from the original.
This item is not returnable
$3.95 |
20% OFF Phone Price : $4.95
In Stock
Fuse Block 4375231
#28

Cabinet and stirrer parts diagram

Fuse block

Part #4375231

Replaced by #W10245194

?
Manufacturer substitution
This part replaces 4375231. Substitute parts can look different from the original.
$33.96
In Stock
Microwave Door Torsion Spring 4452398
#16

Microwave door parts, optional parts diagram

Microwave door torsion spring

Part #4452398

Replaced by #WP4452398

?
Manufacturer substitution
This part replaces 4452398. Substitute parts can look different from the original.
$54.63 |
8% OFF Phone Price : $59.63
In Stock
