Whirlpool WRMF7736PZ00 bottom-mount refrigerator Parts

Here are the diagrams and repair parts for Whirlpool WRMF7736PZ00 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

Whirlpool WRMF7736PZ00 bottom-mount refrigerator
By Schematic
By Part

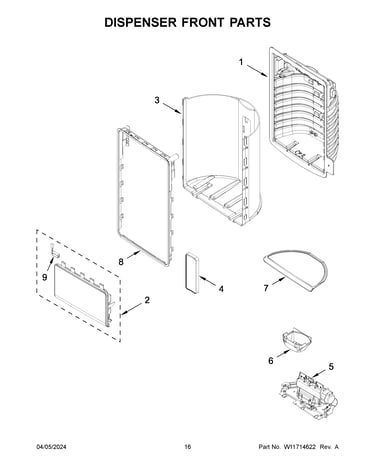

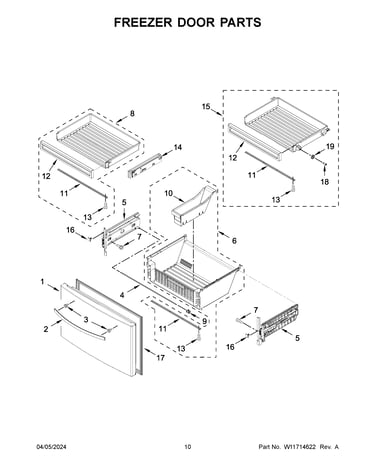

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for WRMF7736PZ00 Refrigerators

  • Refrigerator Condenser Fan Motor for Whirlpool WRMF7736PZ00 - Part W11127829

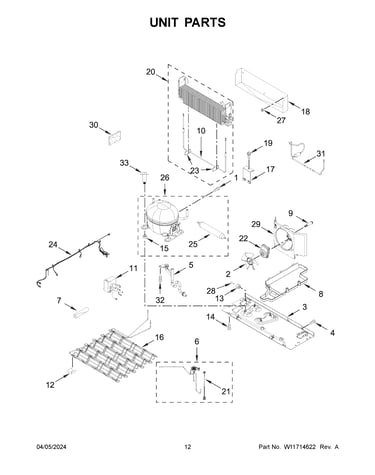

    Unit parts diagram

    Motor, Condenser Fan

    Part #W11505535

    Replaced by #W11127829

    Info Icon
    Manufacturer substitution
    This part replaces W11505535. Substitute parts can look different from the original.
    In Stock
    $115.65
    9% OFF Phone Price : $127.65Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Auger Motor Drive Shaft for Whirlpool WRMF7736PZ00 - Part W11509548

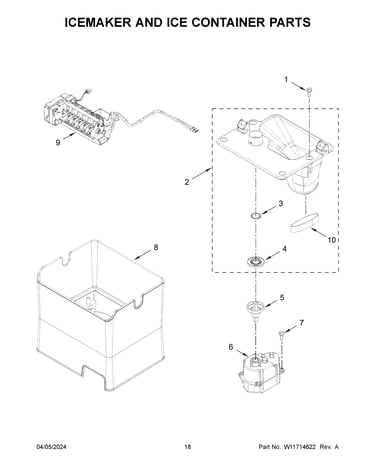

    Icemaker and ice container parts diagram

    Shaft Assy -

    Part #W11363576

    Replaced by #W11509548

    Info Icon
    Manufacturer substitution
    This part replaces W11363576. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $21.21
    22% OFF Phone Price : $27.21Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Mastic Sealer for Whirlpool WRMF7736PZ00 - Part WP505587

    Optional parts diagram

    Refrigerator Mastic Sealer

    Part #505587

    Replaced by #WP505587

    Info Icon
    Manufacturer substitution
    This part replaces 505587. Substitute parts can look different from the original.
    In Stock
    $123.98
    Minus Item
    Qty
    Plus Item
  • Kit-service, for Whirlpool WRMF7736PZ00 - Part W11518696

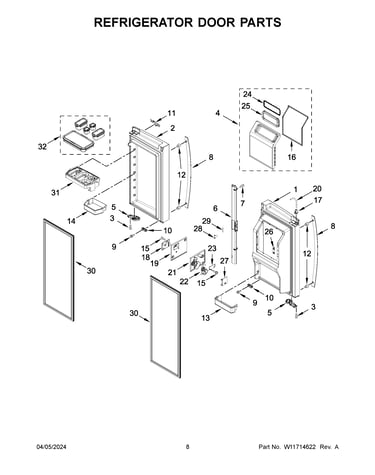

    Refrigerator door parts diagram

    Door, Refrigerator Left Hand (includes Door Gasket) (stainless)

    Part #W11405229

    Replaced by #W11518696

    Info Icon
    Manufacturer substitution
    This part replaces W11405229. Substitute parts can look different from the original.
    In Stock
    $682.61
    Minus Item
    Qty
    Plus Item
  • Refrigerator Cover for Whirlpool WRMF7736PZ00 - Part W10336736

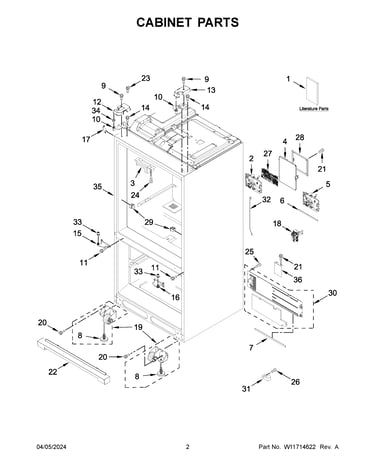

    Cabinet parts diagram

    Cover-roller

    Part #W11578005

    Replaced by #W10336736

    Info Icon
    Manufacturer substitution
    This part replaces W11578005. Substitute parts can look different from the original.
    In Stock
    $35.10
    Minus Item
    Qty
    Plus Item
  • Divider-cladded Pantry Pan for Whirlpool WRMF7736PZ00 - Part W11763409

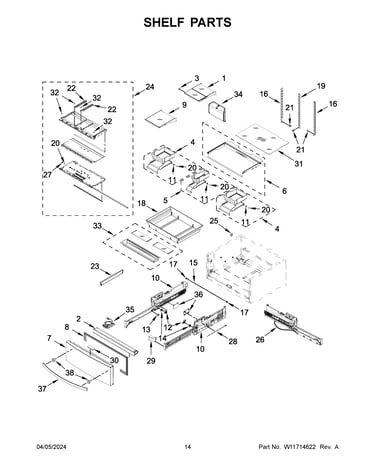

    Shelf parts diagram

    Jenn-air Refrigerator Divider

    Part #W10772797

    Replaced by #W11763409

    Info Icon
    Manufacturer substitution
    This part replaces W10772797. Substitute parts can look different from the original.
    In Stock
    $105.18
    Minus Item
    Qty
    Plus Item
  • Refrigerator Cover for Whirlpool WRMF7736PZ00 - Part W11190820

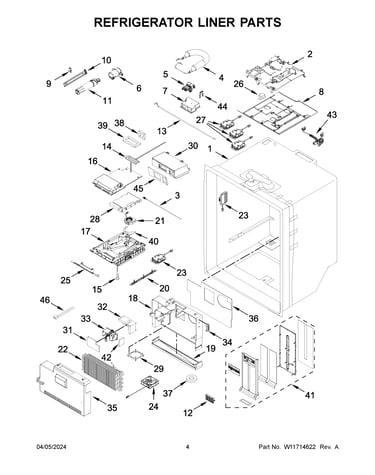

    Refrigerator liner parts diagram

    Cover-29 Wat

    Part #W10669663

    Replaced by #W11190820

    Info Icon
    Manufacturer substitution
    This part replaces W10669663. Substitute parts can look different from the original.
    In Stock
    $58.17
    9% OFF Phone Price : $64.17Info Icon
    Minus Item
    Qty
    Plus Item
  • Cover for Whirlpool WRMF7736PZ00 - Part W11661208

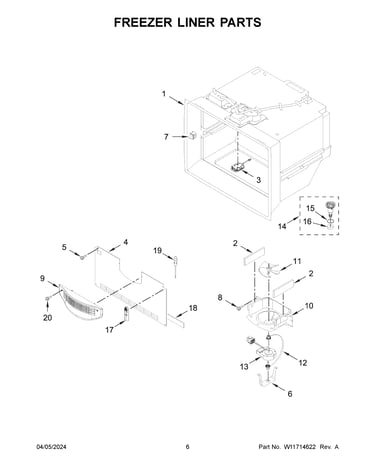

    Freezer liner parts diagram

    Refrigerator Cover

    Part #W10405166

    Replaced by #W11661208

    Info Icon
    Manufacturer substitution
    This part replaces W10405166. Substitute parts can look different from the original.
    In Stock
    $45.54
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Filter Cover Clip for Whirlpool WRMF7736PZ00 - Part WP2223877

    Refrigerator liner parts diagram

    Latch

    Part #2223877

    Replaced by #WP2223877

    Info Icon
    Manufacturer substitution
    This part replaces 2223877. Substitute parts can look different from the original.
    Get free shipping with Automatic Reorder
    In Stock
    $66.54
    8% OFF Phone Price : $72.54Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Leveling Leg for Whirlpool WRMF7736PZ00 - Part WPW10141622

    Cabinet parts diagram

    Brake Lower Foot

    Part #W10141622

    Replaced by #WPW10141622

    Info Icon
    Manufacturer substitution
    This part replaces W10141622. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.94
    11% OFF Phone Price : $8.94Info Icon
    Minus Item
    Qty
    Plus Item

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Refrigerator Emitter Cover W10258502

Refrigerator Emitter Cover

Part #W10258502
In Stock
$99.72
Minus Item
Qty
Plus Item
Refrigerator Cover W10284709

Refrigerator Cover

Part #W10284709
In Stock
$66.29
Minus Item
Qty
Plus Item
Refrigerator Cover W10277839

Refrigerator Cover

Part #W10277839
In Stock
$97.35
Minus Item
Qty
Plus Item
Refrigerator Cover W10518378

Refrigerator Cover

Part #W10518378
In Stock
$38.49
Minus Item
Qty
Plus Item
Refrigerator Cover Adapter, Side W10518036

Refrigerator Cover Adapter, Side

Part #W10518036
In Stock
$30.41
Minus Item
Qty
Plus Item
Sears Refrigerator Permagum Sealer 212643

Sears Refrigerator Permagum Sealer

Part #212643
This item is not returnable
In Stock
$28.03
36% OFF Was : $43.86Info Icon
Minus Item
Qty
Plus Item
