Kenmore 6289287460 30" electric range with glass cooktop Parts
Here are the diagrams and repair parts for Kenmore 6289287460 30" electric range with glass cooktop, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

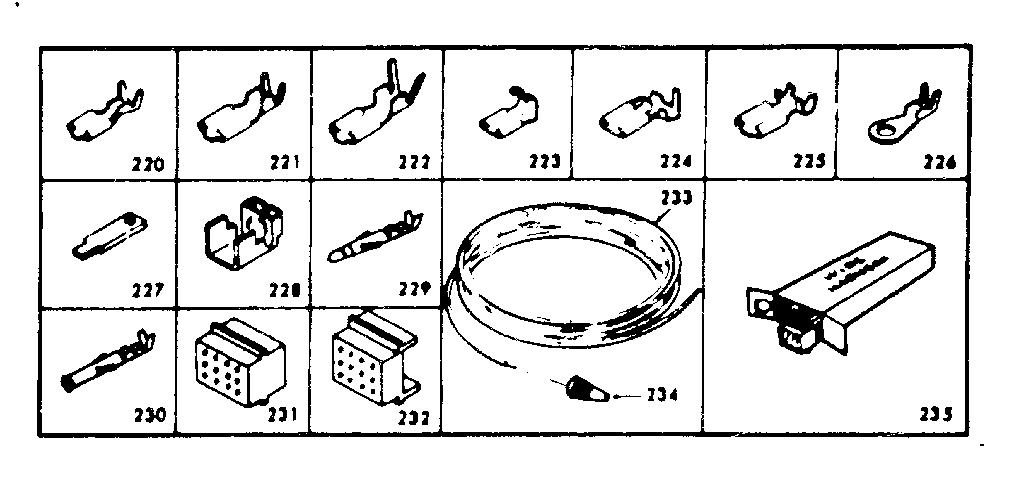

SELECT DIAGRAM
Browse Parts for 6289287460 Ranges

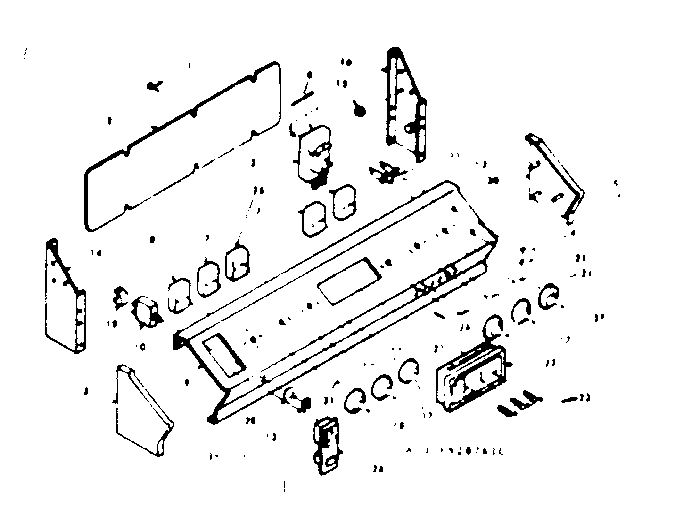

Backguard asm diagram
Motor-50 C
Part #1167264
The manufacturer no longer makes this part, and there's no substitute part

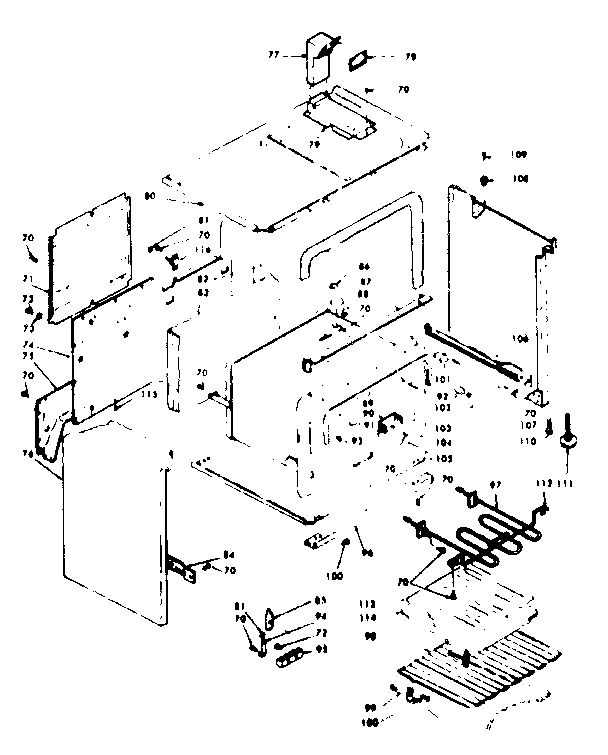

Body assembly diagram
End Panel
Part #1167280
The manufacturer no longer makes this part, and there's no substitute part

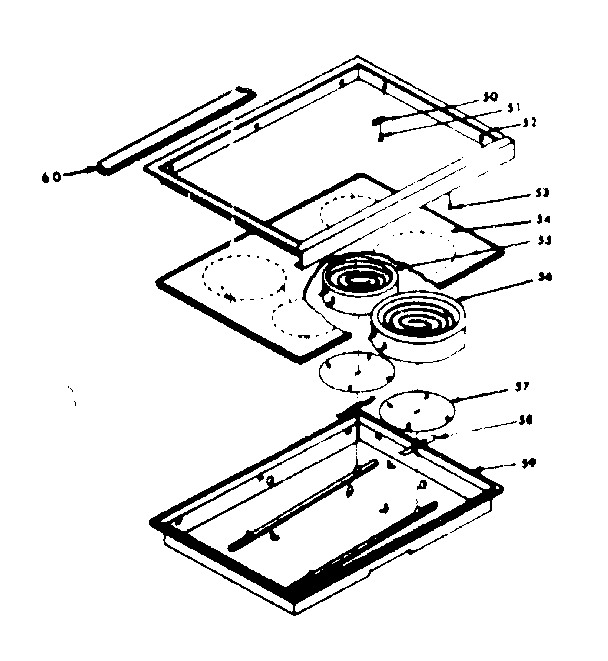

Top cook surface & main top cook surface diagram
Lg Element
Part #1310525
The manufacturer no longer makes this part, and there's no substitute part
Backguard asm diagram
Knob
Part #1309159
The manufacturer no longer makes this part, and there's no substitute part
Body assembly diagram
Support
Part #1310543
The manufacturer no longer makes this part, and there's no substitute part
Body assembly diagram
Bake Unit
Part #1307476
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Range Guide
Part #1310641
The manufacturer no longer makes this part, and there's no substitute part

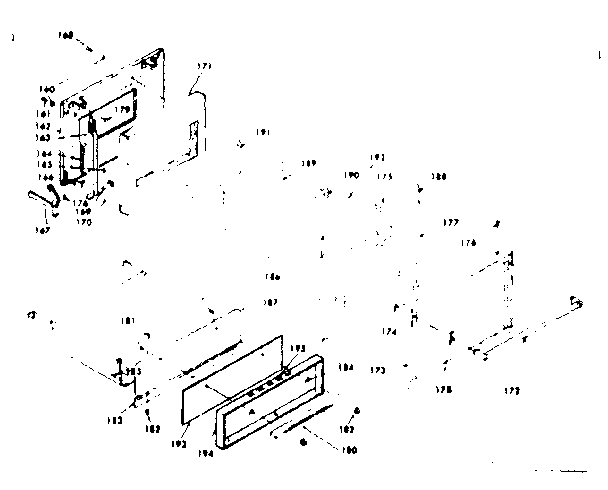

Door and bottom panel diagram
Panel
Part #1310684
The manufacturer no longer makes this part, and there's no substitute part
Top cook surface & main top cook surface diagram
Cooktop Seal
Part #1311893
The manufacturer no longer makes this part, and there's no substitute part
(not Replaceable) Order Complete Door Assembly (item 65) (cglmv169gbb, Cglmv169gsb)
Part #N/P
The manufacturer no longer makes this part, and there's no substitute part
