Built-In Microwave

Model # ZWL1126SJ5SS Official GE built-in microwave

Here are the diagrams and repair parts for Official GE ZWL1126SJ5SS built-in microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

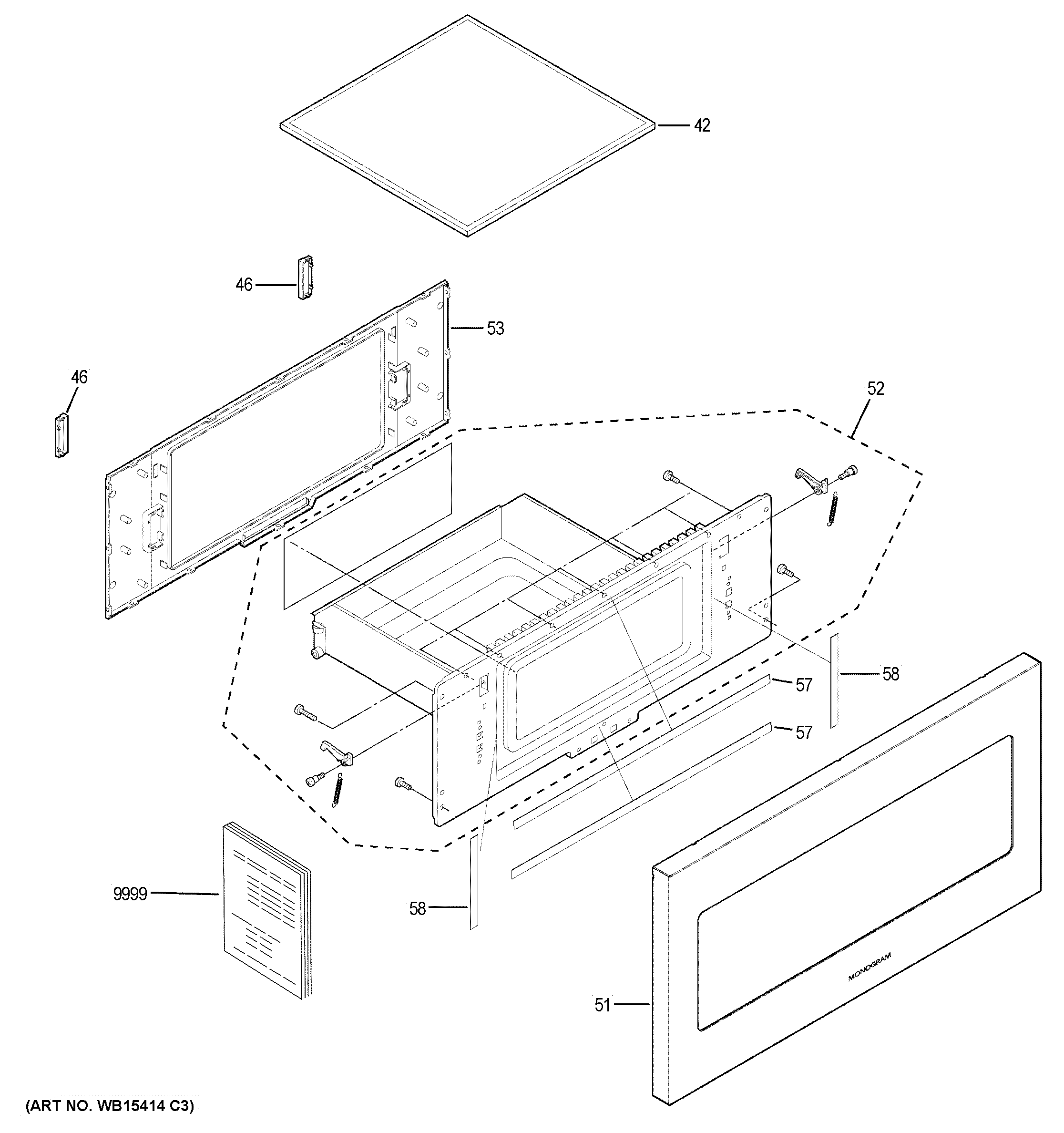

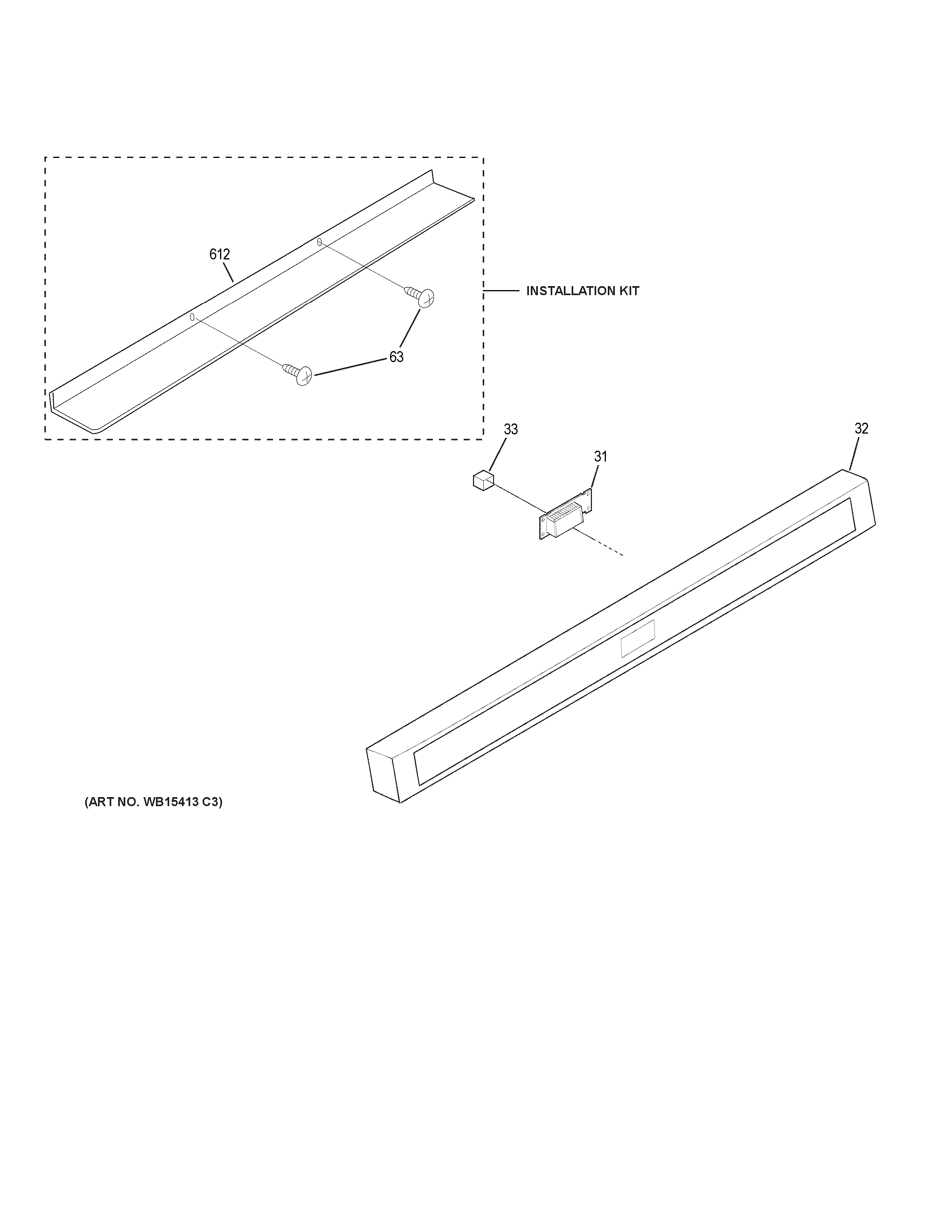

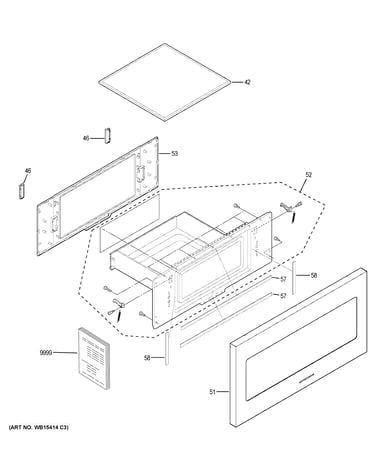

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Microwave High-voltage Capacitor WB27X25193
#11

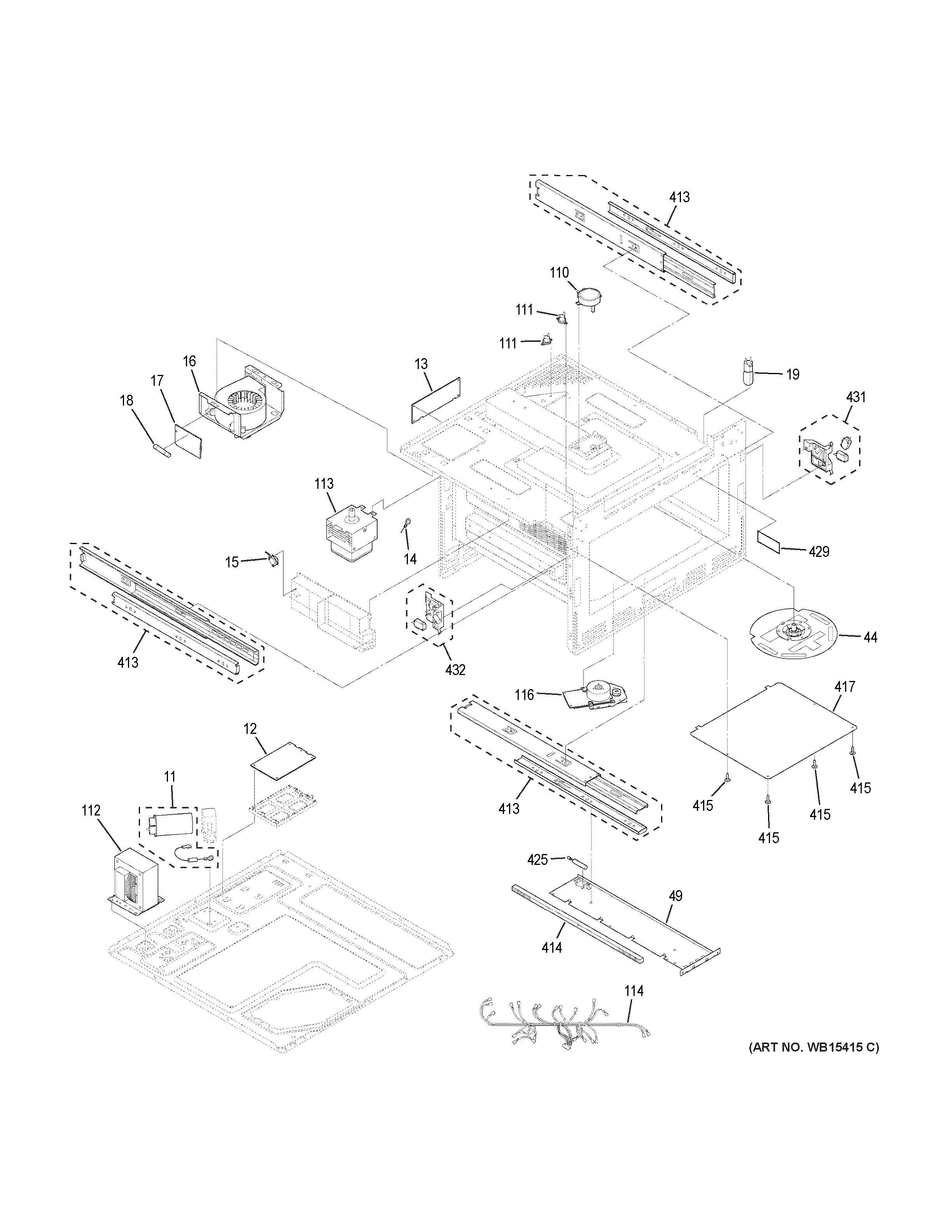

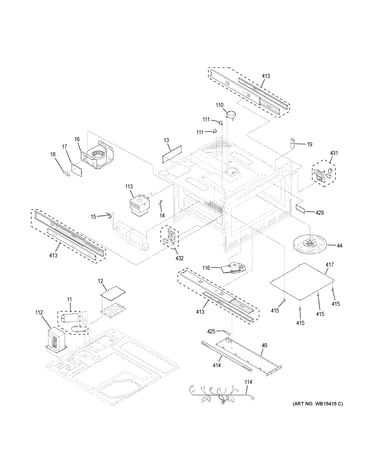

Oven cavity parts diagram

Microwave high-voltage capacitor

Part #WB27X25193

$54.01 |
8% OFF Phone Price : $59.01
In Stock
Thermal Oven WB24X25189
#111

Oven cavity parts diagram

Thermal oven

Part #WB24X25189

$22.80
In Stock
Power Supply Board WB27X27465
#13

Oven cavity parts diagram

Power supply board

Part #WB27X27465

$217.25
In Stock
Noise Filter Unit WB02X27467
#17

Oven cavity parts diagram

Noise filter unit

Part #WB02X27467

$46.67
In Stock
Transformer WB26X24652
#112

Oven cavity parts diagram

Transformer

Part #WB26X24652

$166.12
In Stock
Stirrer Assembly WB02X24655
#44

Oven cavity parts diagram

Stirrer assembly

Part #WB02X24655

$75.13
In Stock
Latch Hook WB10X25192
#431

Oven cavity parts diagram

Latch hook

Part #WB10X25192

$73.38 |
6% OFF Phone Price : $78.38
In Stock
Monitor Switch WB24X24682
#18

Oven cavity parts diagram

Monitor switch

Part #WB24X24682

$22.87
In Stock
Oil Damper WB02X24680
#425

Oven cavity parts diagram

Oil damper

Part #WB02X24680

$32.56
In Stock
Microwave Lamp WB25X24661
#19

Oven cavity parts diagram

Microwave lamp

Part #WB25X24661

$12.29 |
14% OFF Phone Price : $14.29
In Stock
