Kenmore
Gas Cooktop

Model #79033079400 Kenmore gas cooktop

Here are the repair parts and diagrams for your Kenmore 79033079400 gas cooktop.

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Showing 10 of 51 parts

Range Screw

#37

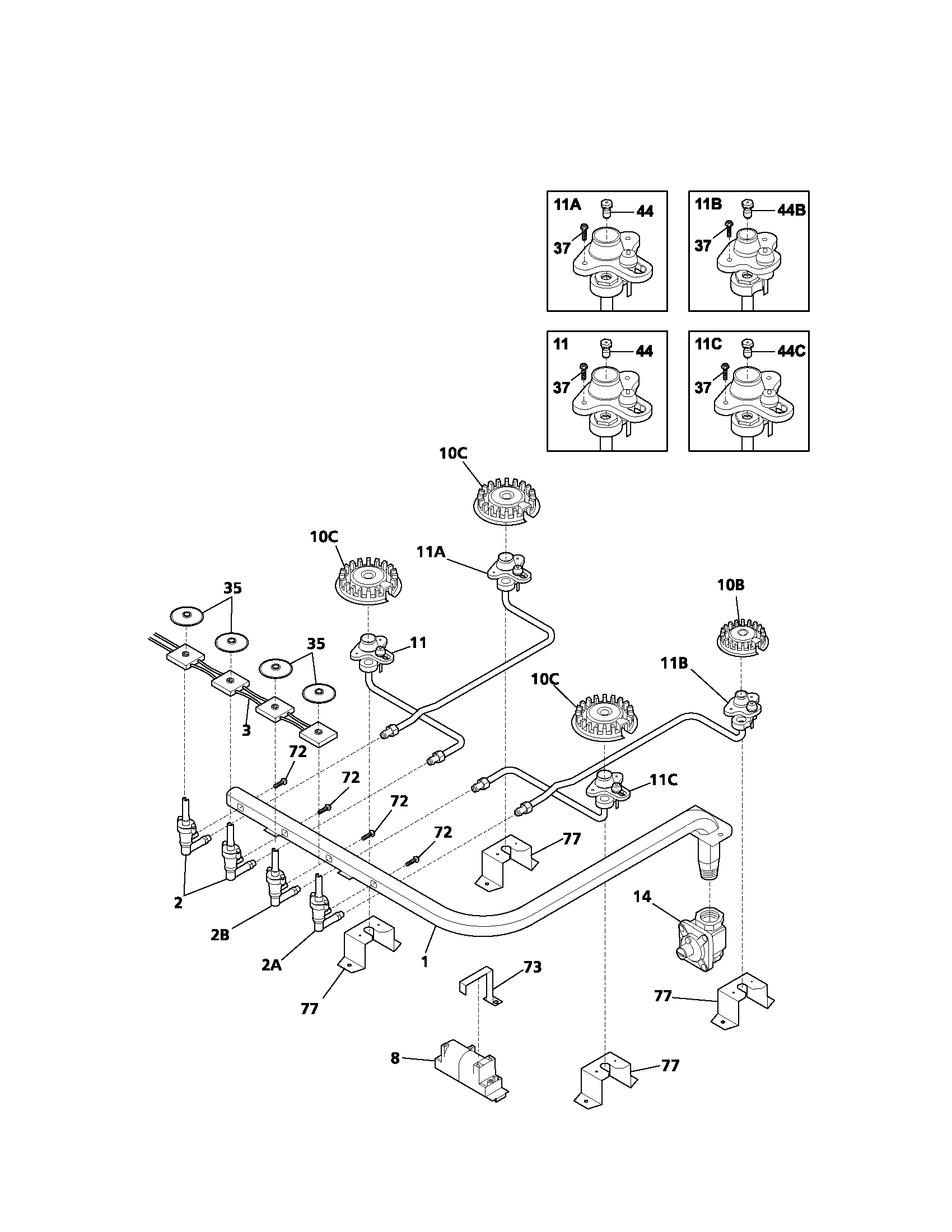

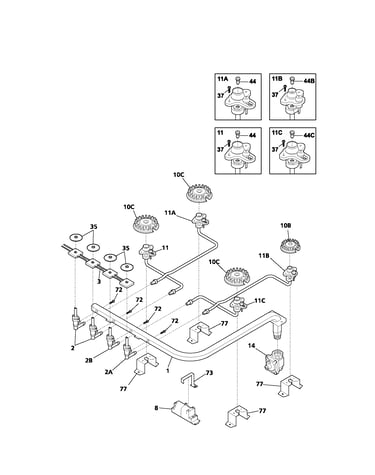

Burner Diagram

Range screw

Part #316240600

$8.62

In Stock

Range Surface Burner Seal

#31B

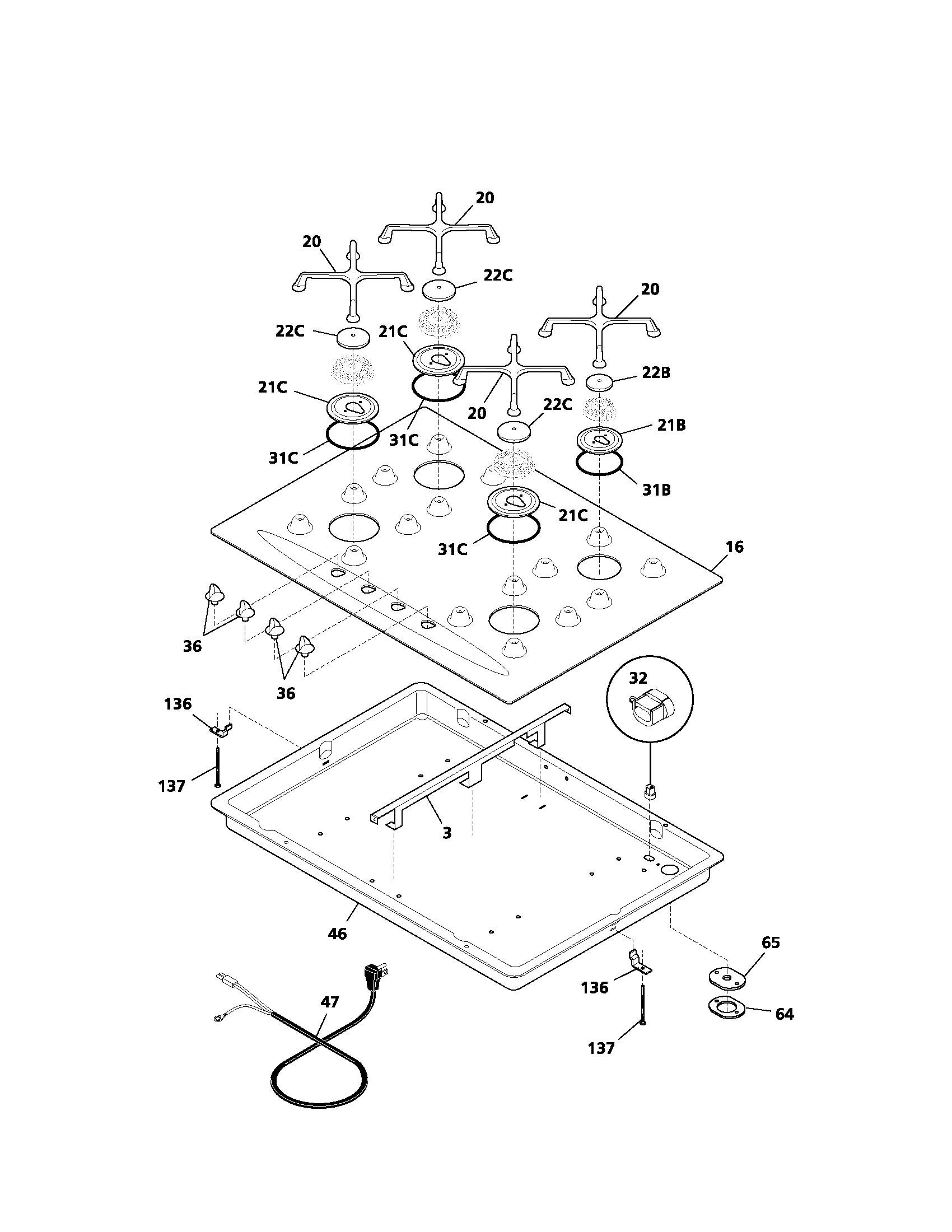

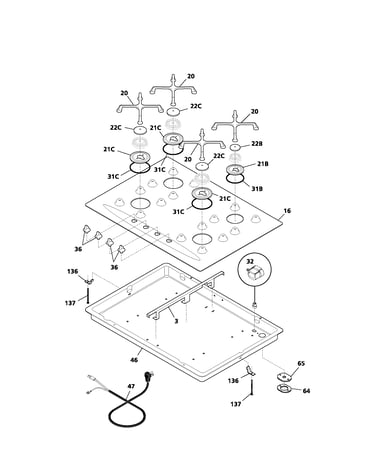

Maintop Diagram

$32.42

In Stock

Range Surface Burner Skirt

#21C

Maintop Diagram

$61.00

In Stock

Cooktop Burner Skirt

#21B

Maintop Diagram

Cooktop burner skirt

Part #316241904

$44.78

In Stock

Range Surface Burner Grate Pad

#NI

Maintop Diagram

Range surface burner grate pad

Part #316246800
This item is not returnable

$6.20

In Stock

Range Pressure Regulator

#14

Burner Diagram

Range pressure regulator

Part #5308007974

$188.68

In Stock

Parts List

#NI

Maintop Diagram

Parts list

Part #5995391207
This item is not returnable

$2.88

In Stock

Range Surface Burner Orifice

#44

Burner Diagram

$25.69

In Stock

Range Screw

#NI

Maintop Diagram

Range screw

Part #5303323140

$9.12

In Stock

Range Screw

#137

Maintop Diagram

Range screw

Part #5303285443

$8.29

In Stock

Symptoms common to all cooktops

Choose a symptom to see related cooktop repairs.

Main causes: lack of electrical power, gas supply failure, bad pressure regulator, control system failure
