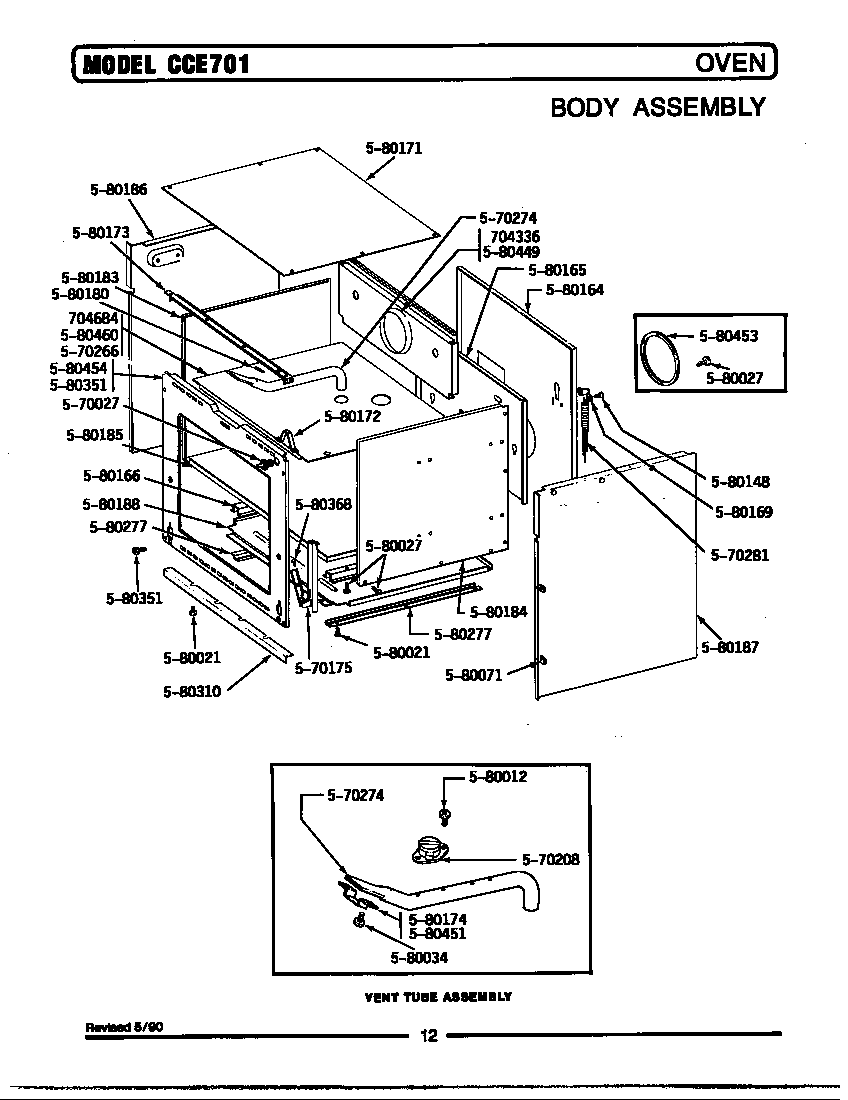

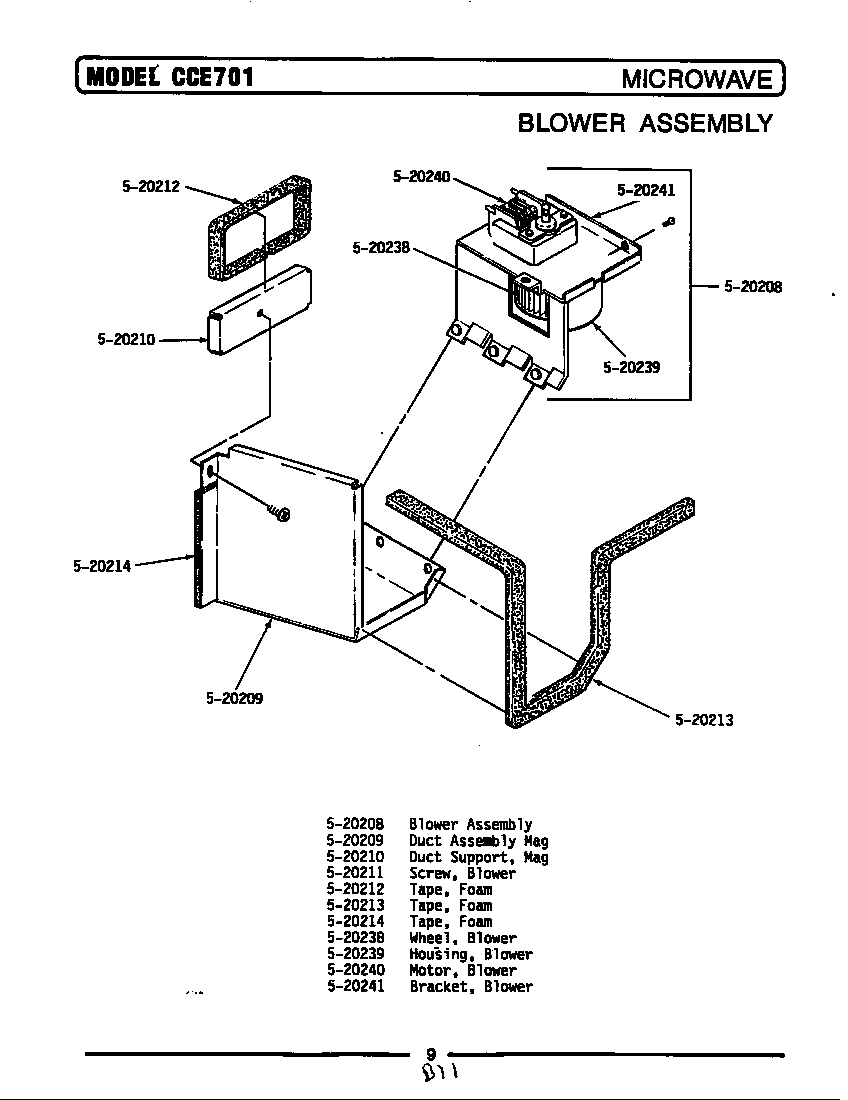

Maytag LCCE701 electric range Parts
Here are the diagrams and repair parts for Maytag LCCE701 electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for LCCE701 Ranges

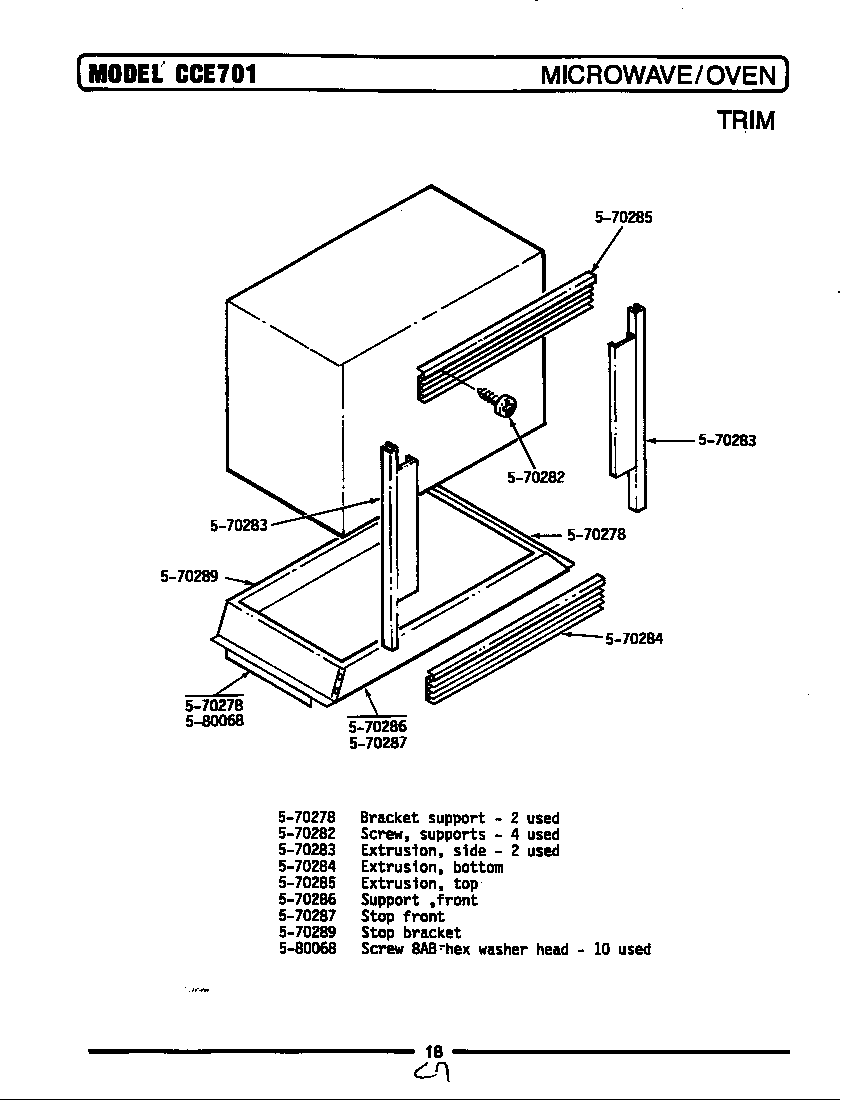

Trim-microwave/oven diagram
Screw
Part #580068Replaced by #WP90767
Manufacturer substitutionThis part replaces 580068. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88
Qty

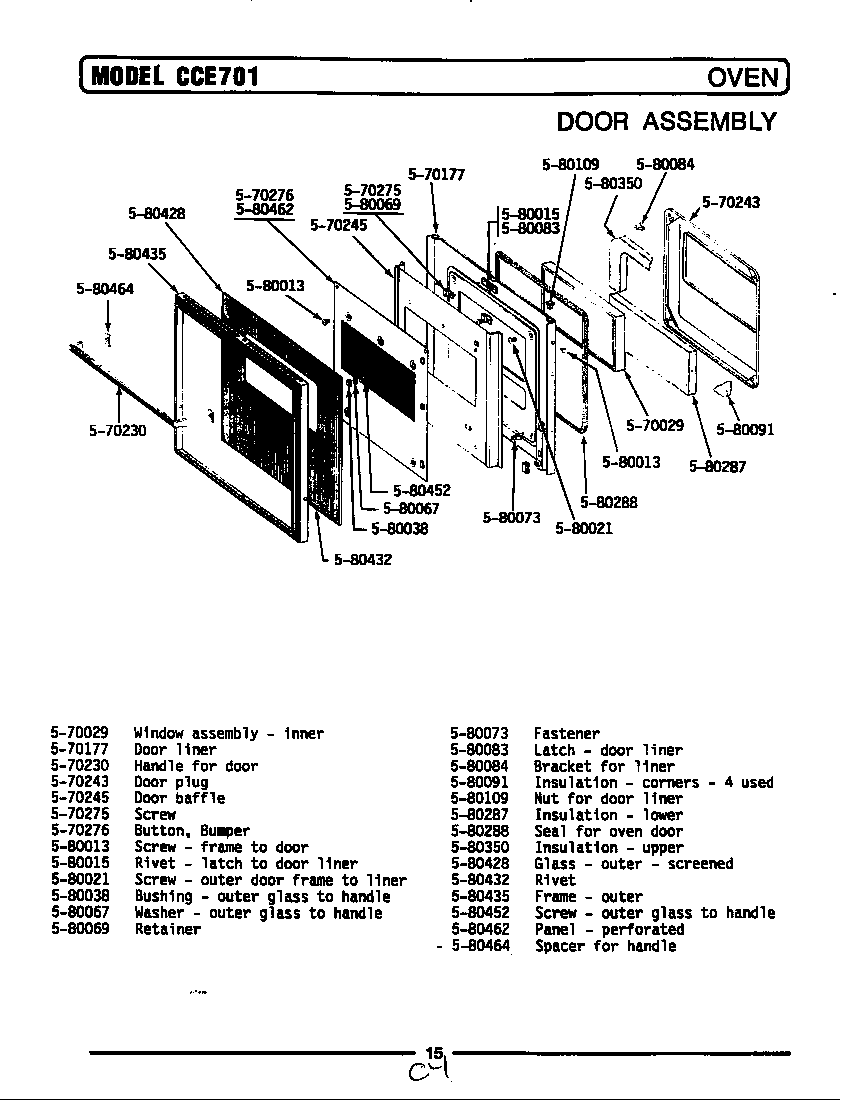

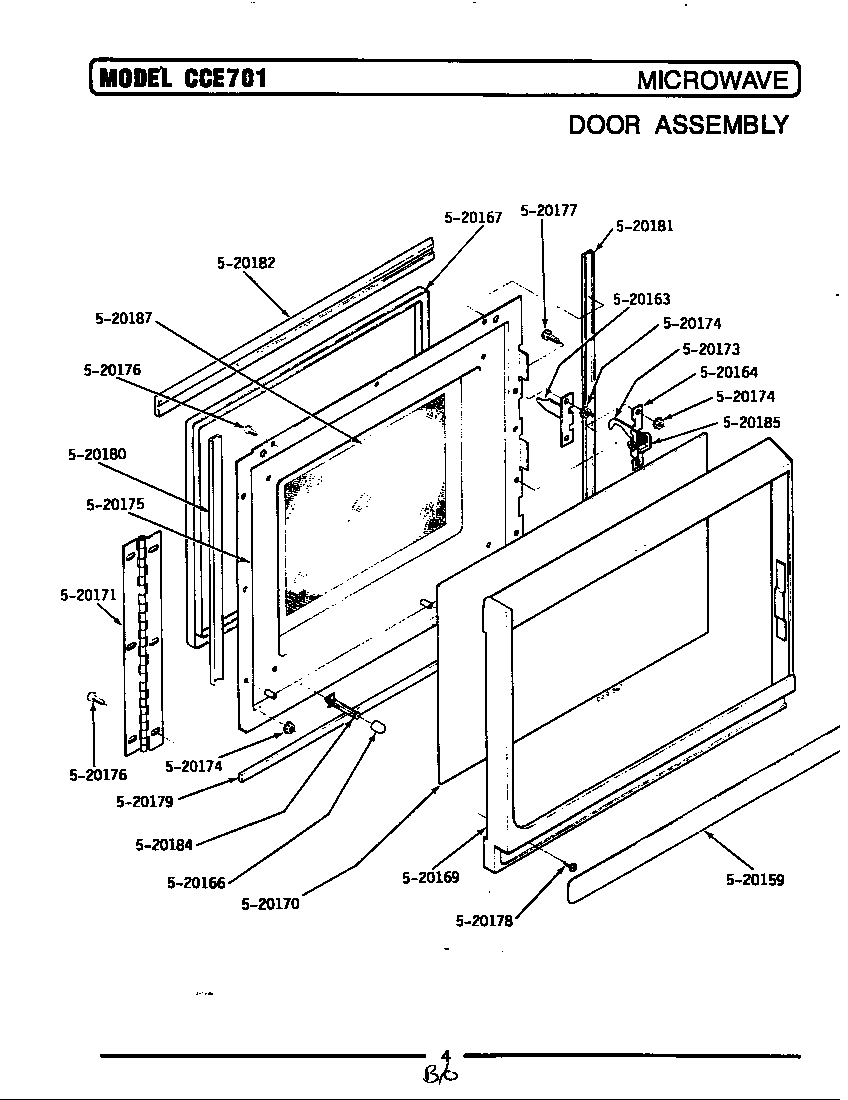

Door assembly diagram
Fastener
Part #580073Replaced by #WP74008014
Manufacturer substitutionThis part replaces 580073. Substitute parts can look different from the original.In Stock$99.2027% OFF Was : $135.63QtyDoor assembly diagram
Screw
Part #580013Replaced by #W11233072
Manufacturer substitutionThis part replaces 580013. Substitute parts can look different from the original.In Stock$17.63QtyTransformer & components-microwave diagram
Screw
Part #520206Replaced by #W11233072
Manufacturer substitutionThis part replaces 520206. Substitute parts can look different from the original.In Stock$17.63QtyScrew
Part #580021Replaced by #W11233072

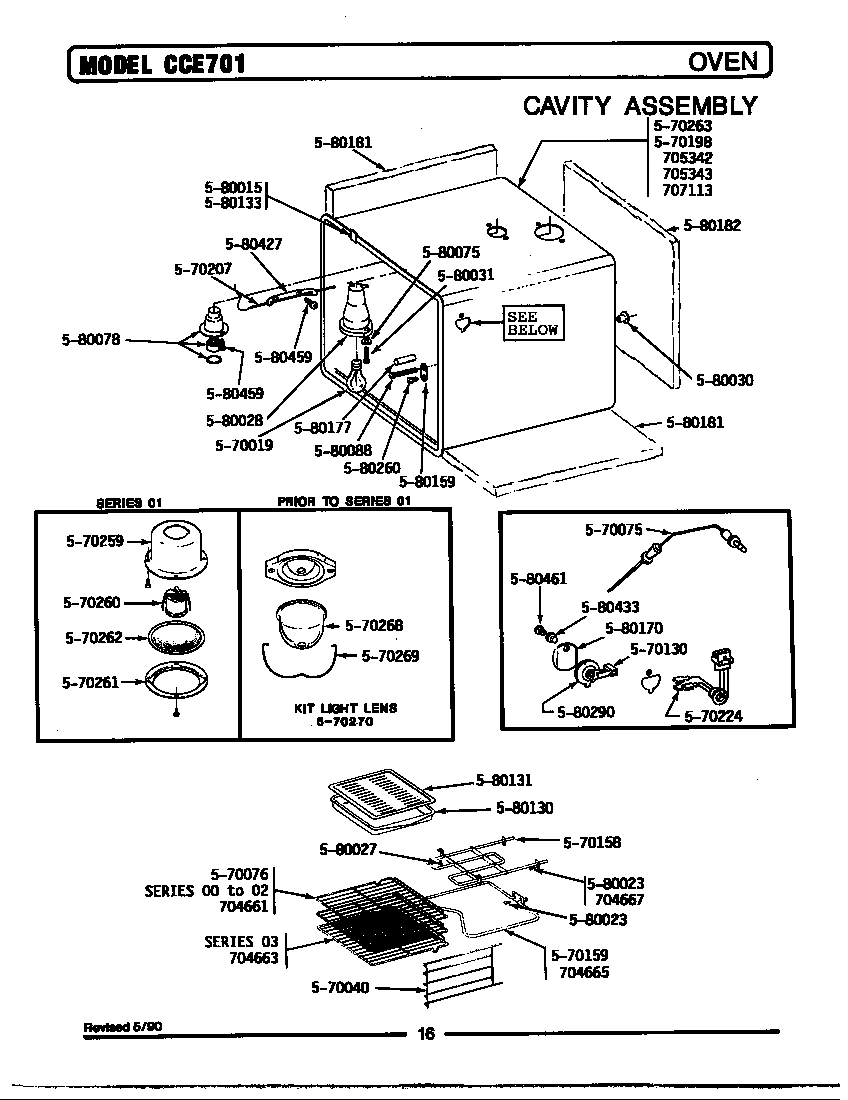

Manufacturer substitutionThis part replaces 580021. Substitute parts can look different from the original.In Stock$17.63QtyCavity assembly diagram
Bake Element
Part #570159Replaced by #WPY04100020

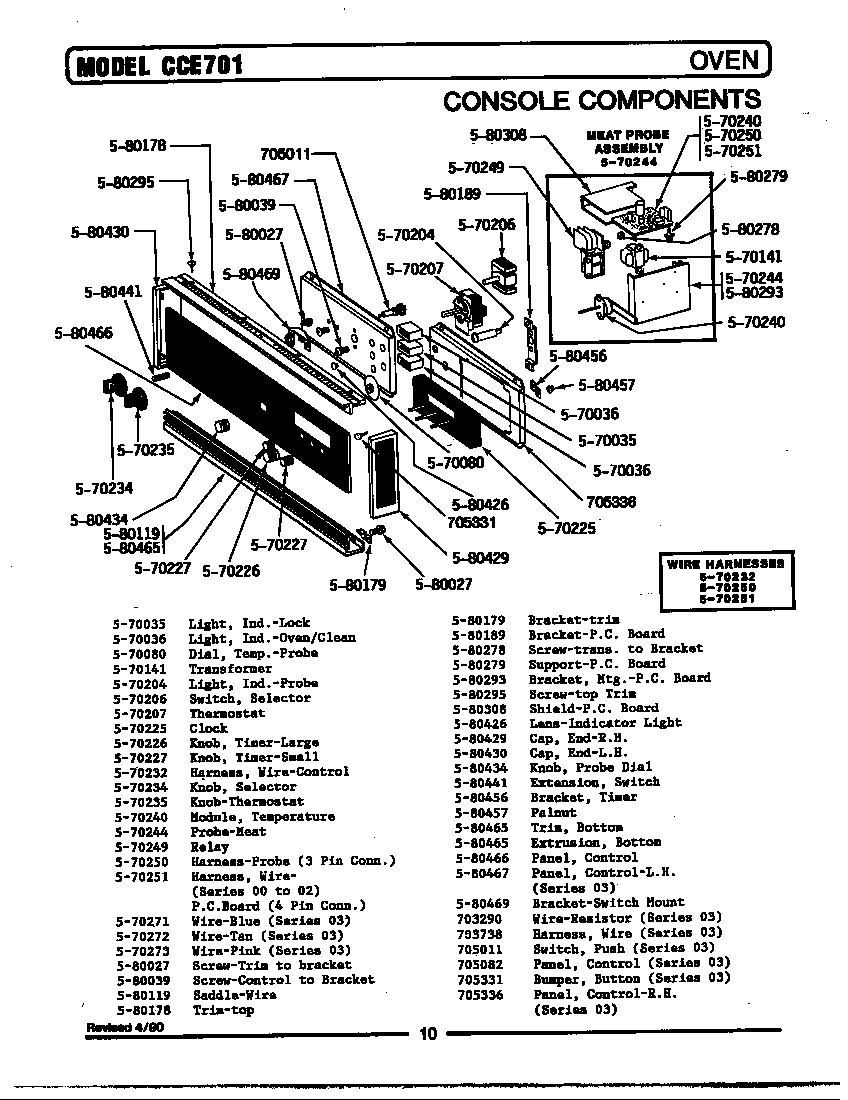

Manufacturer substitutionThis part replaces 570159. Substitute parts can look different from the original.In Stock$103.7510% OFF Phone Price : $115.75QtyControl panel diagram
Timer Knob
Part #570226Replaced by #WP7711P492-60

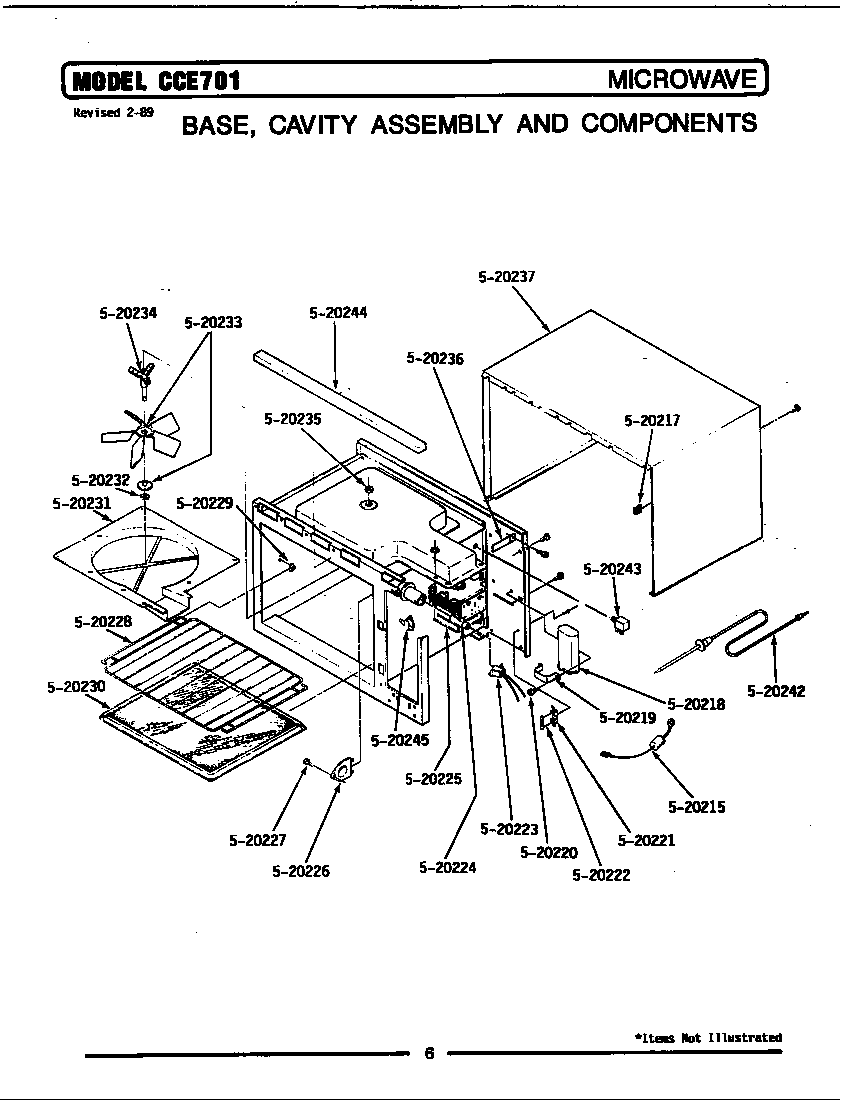

Manufacturer substitutionThis part replaces 570226. Substitute parts can look different from the original.This item is not returnableIn Stock$15.3812% OFF Phone Price : $17.38QtyBase & cavity assembly - microwave diagram
Screw
Part #520216Replaced by #WP8281227
Manufacturer substitutionThis part replaces 520216. Substitute parts can look different from the original.This item is not returnableIn Stock$9.4810% OFF Phone Price : $10.48QtyDoor assembly diagram
Seal For Ove
Part #580288Replaced by #WP701650

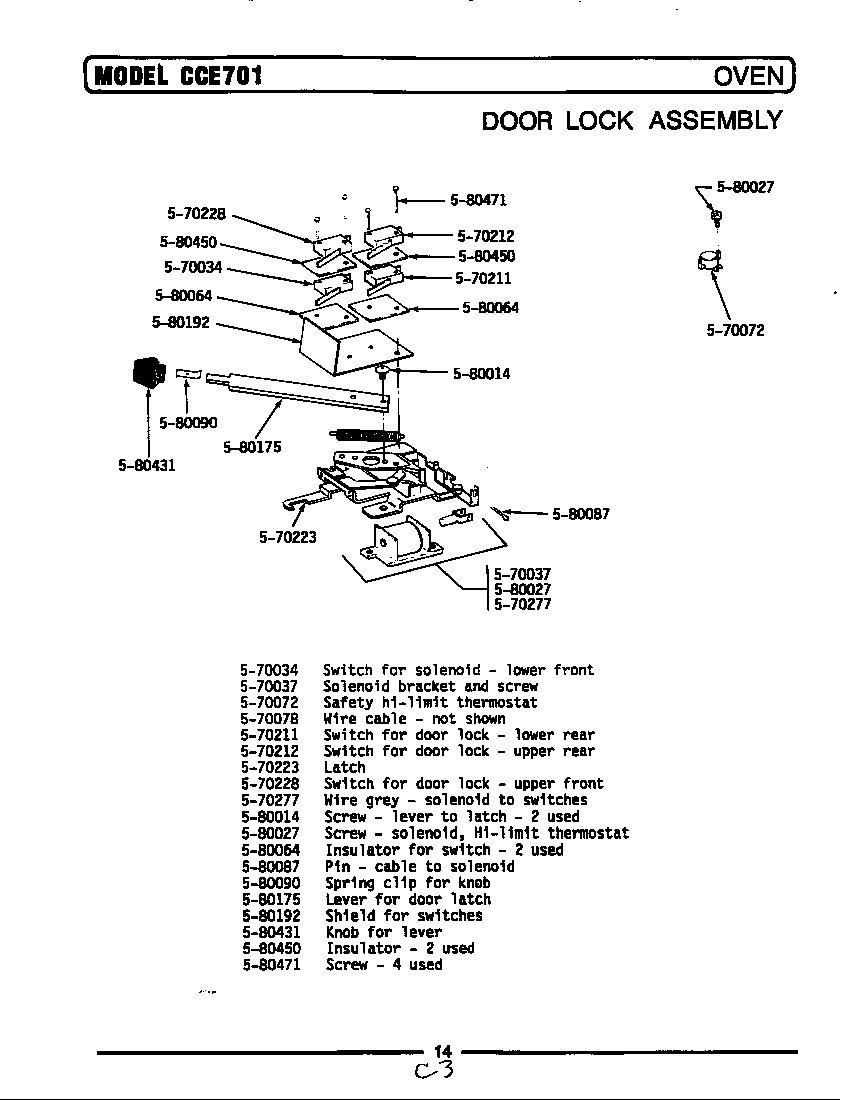

Manufacturer substitutionThis part replaces 580288. Substitute parts can look different from the original.In Stock$130.978% OFF Phone Price : $142.97QtyDoor lock assembly diagram
Thermostat
Part #570072Replaced by #WP71001844
Manufacturer substitutionThis part replaces 570072. Substitute parts can look different from the original.In Stock$117.769% OFF Phone Price : $129.76Qty
