Power Sander

Model # 315277012 Official Craftsman sander

Here are the diagrams and repair parts for Official Craftsman 315277012 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

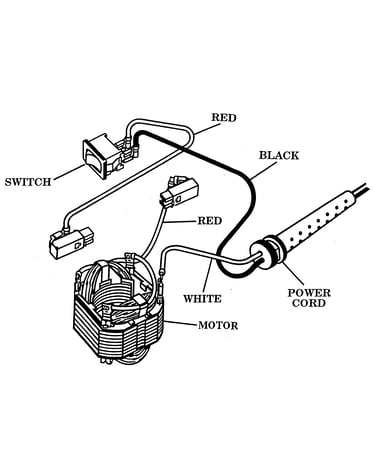

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Sander Flanged Washer 662314-001
#13

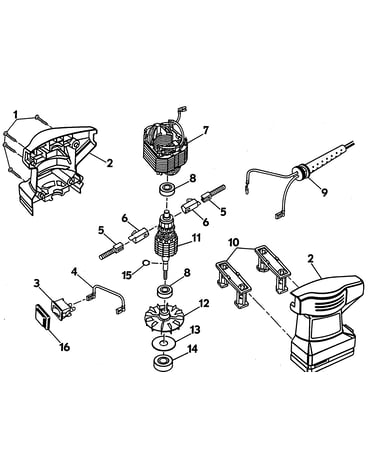

Housing assy diagram

Sander flanged washer

Part #662314-001

The manufacturer no longer makes this part, and there's no substitute part

Brush Assembly 610784-042
#5

Housing assy diagram

Brush assembly

Part #610784-042

The manufacturer no longer makes this part, and there's no substitute part

Fan W/brg 662637-001
#12

Housing assy diagram

Fan w/brg

Part #662637-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 968700-004
#2

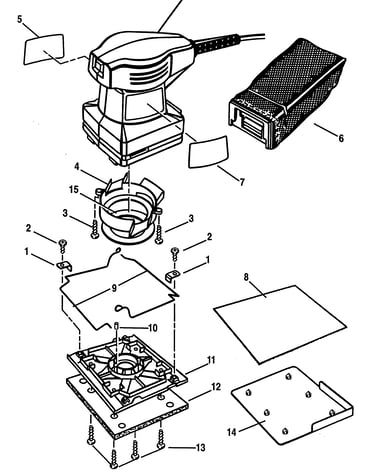

Sander plate diagram

Screw

Part #968700-004

The manufacturer no longer makes this part, and there's no substitute part

Shield 662870-001
#15

Sander plate diagram

Shield

Part #662870-001

The manufacturer no longer makes this part, and there's no substitute part

Ball Brg 989377-004
#14

Housing assy diagram

Ball brg

Part #989377-004

The manufacturer no longer makes this part, and there's no substitute part

Screw 968700-007
#3

Sander plate diagram

Screw

Part #968700-007

The manufacturer no longer makes this part, and there's no substitute part

Brush Tube 612255-002
#6

Housing assy diagram

Brush tube

Part #612255-002

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate 979853-001
#7

Sander plate diagram

Logo plate

Part #979853-001

The manufacturer no longer makes this part, and there's no substitute part

Sander Base Plate Clamp 031500-300
#1

Sander plate diagram

Sander base plate clamp

Part #031500-300

The manufacturer no longer makes this part, and there's no substitute part
