Model # 229965540 Official Kenmore 4-section natural gas fixed boiler

Here are the diagrams and repair parts for Official Kenmore 229965540 4-section natural gas fixed boiler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Boiler Burner Roll-out Limit Switch (replaces 146-29-002-60) 146-29-002

#NI06

All parts diagram

Boiler burner roll-out limit switch (replaces 146-29-002-60)

Part #146-29-002

This item is not returnable
$14.89 |
12% OFF Phone Price : $16.89
In Stock
Boiler Pressure Switch (replaces 146-55-002-60, 14655006) 146-55-006
#11

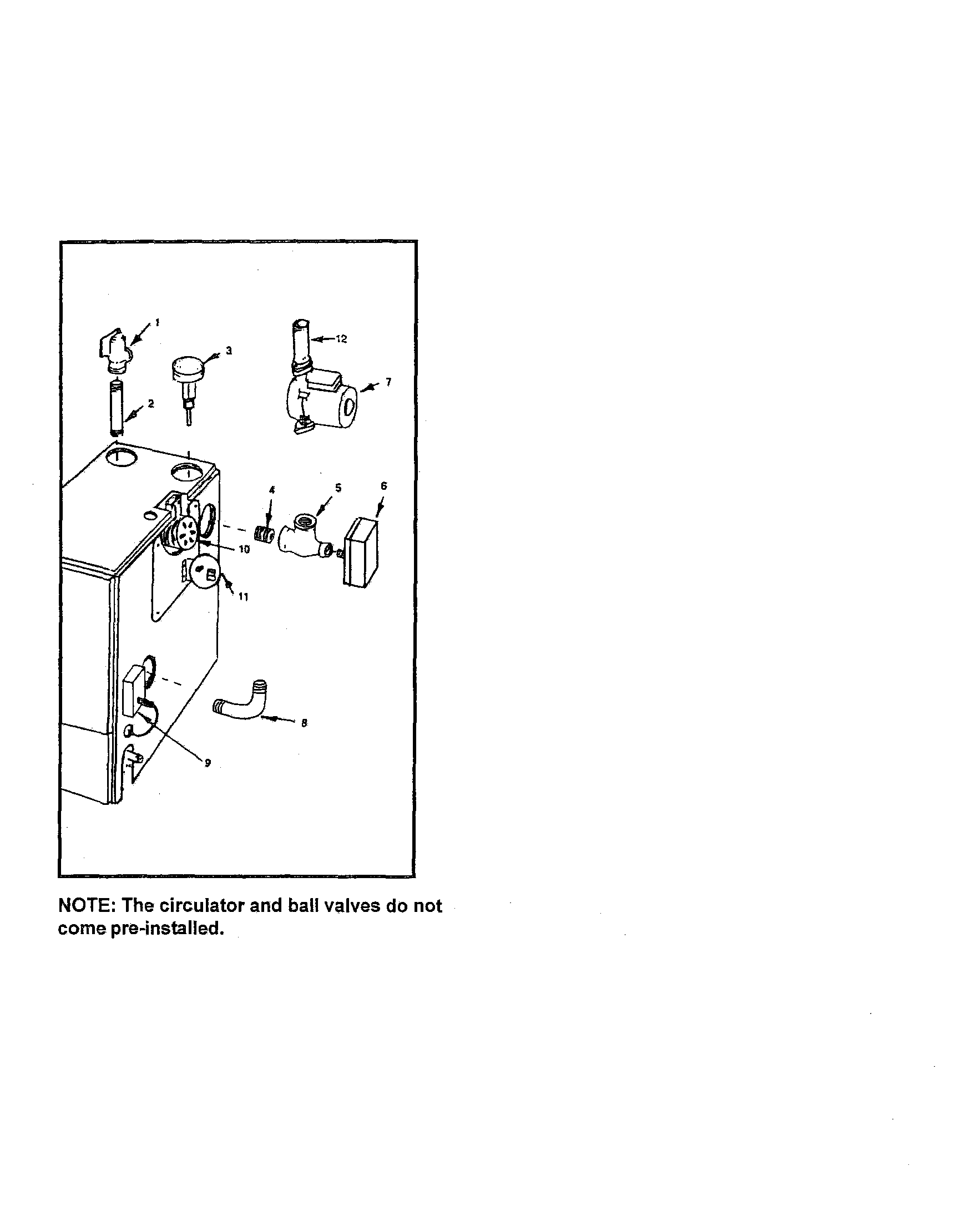

Boilers control and piping diagram

Boiler pressure switch (replaces 146-55-002-60, 14655006)

Part #146-55-006

$66.19 |
7% OFF Phone Price : $71.19
In Stock
Draft Blower 433-00-511
#10

Boilers control and piping diagram

Draft blower

Part #433-00-511

Replaced by #2272156

?
Manufacturer substitution
This part replaces 433-00-511. Substitute parts can look different from the original.
$432.43 |
$10.00 OFF Phone Price : $442.43
In Stock
Relief Valve 146-22-011
#1

Boilers control and piping diagram

Relief valve

Part #146-22-011

Replaced by #10-408-05

?
Manufacturer substitution
This part replaces 146-22-011. Substitute parts can look different from the original.
$44.77 |
10% OFF Phone Price : $49.77
In Stock
Gas Valve 146-62-052
#1

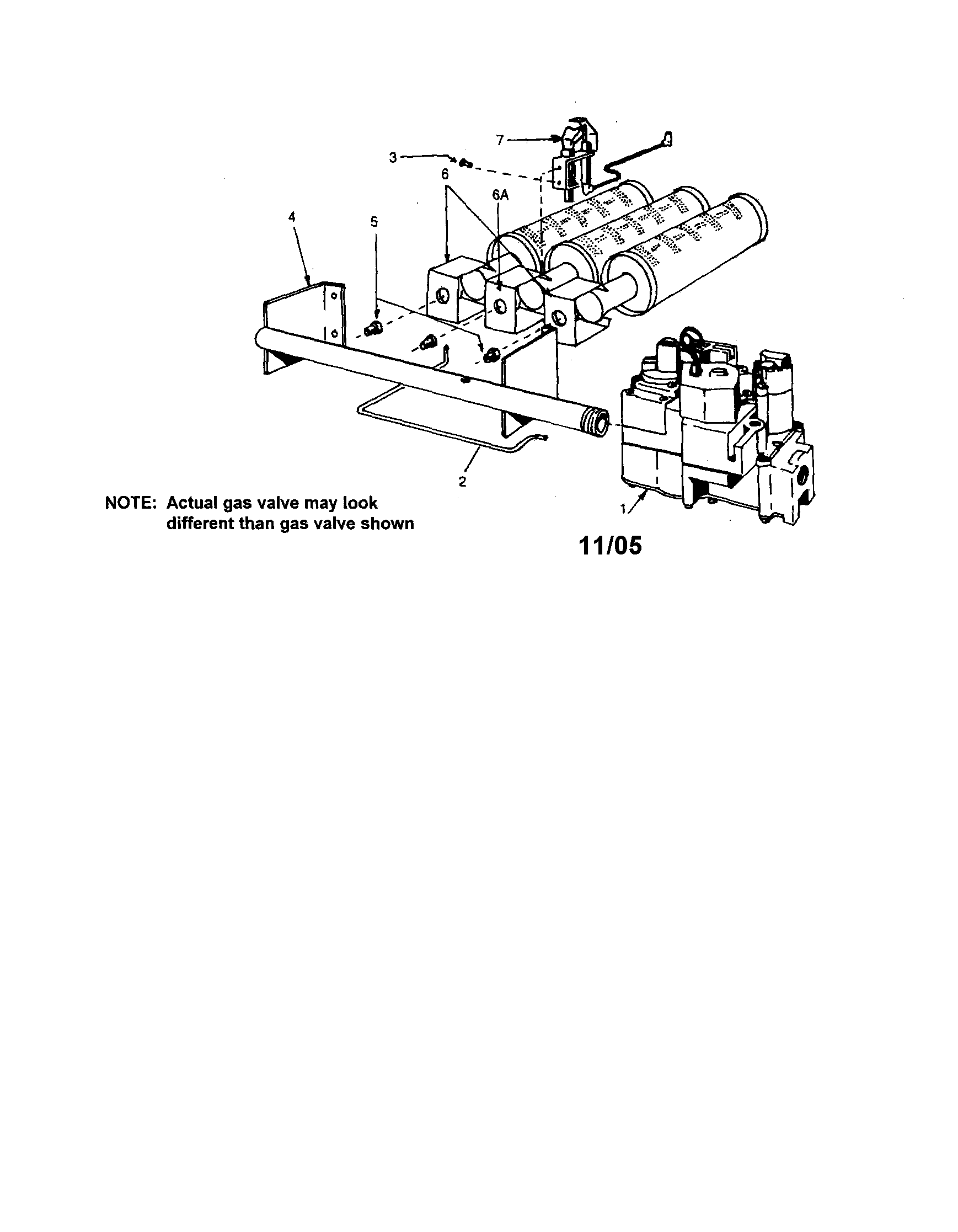

Natural gas buner and manifold diagram

Gas valve

Part #146-62-052

The manufacturer no longer makes this part, and there's no substitute part

Transformer 146-62-080

#NI08

All parts diagram

Transformer

Part #146-62-080

The manufacturer no longer makes this part, and there's no substitute part

Switch 146-23-007
#3

Boilers control and piping diagram

Switch

Part #146-23-007

Replaced by #240005245

?
Manufacturer substitution
This part replaces 146-23-007. Substitute parts can look different from the original.
$73.51
In Stock
Burner 146-62-092
#7

Natural gas buner and manifold diagram

Burner

Part #146-62-092

Replaced by #240011102

?
Manufacturer substitution
This part replaces 146-62-092. Substitute parts can look different from the original.
$62.99 |
7% OFF Phone Price : $67.99
In Stock
Circulator 146-26-043
#12

Boilers control and piping diagram

Circulator

Part #146-26-043

Replaced by #103251

?
Manufacturer substitution
This part replaces 146-26-043. Substitute parts can look different from the original.
$224.79 |
$10.00 OFF Phone Price : $234.79
In Stock
Metal Screw 146-95-074
#19

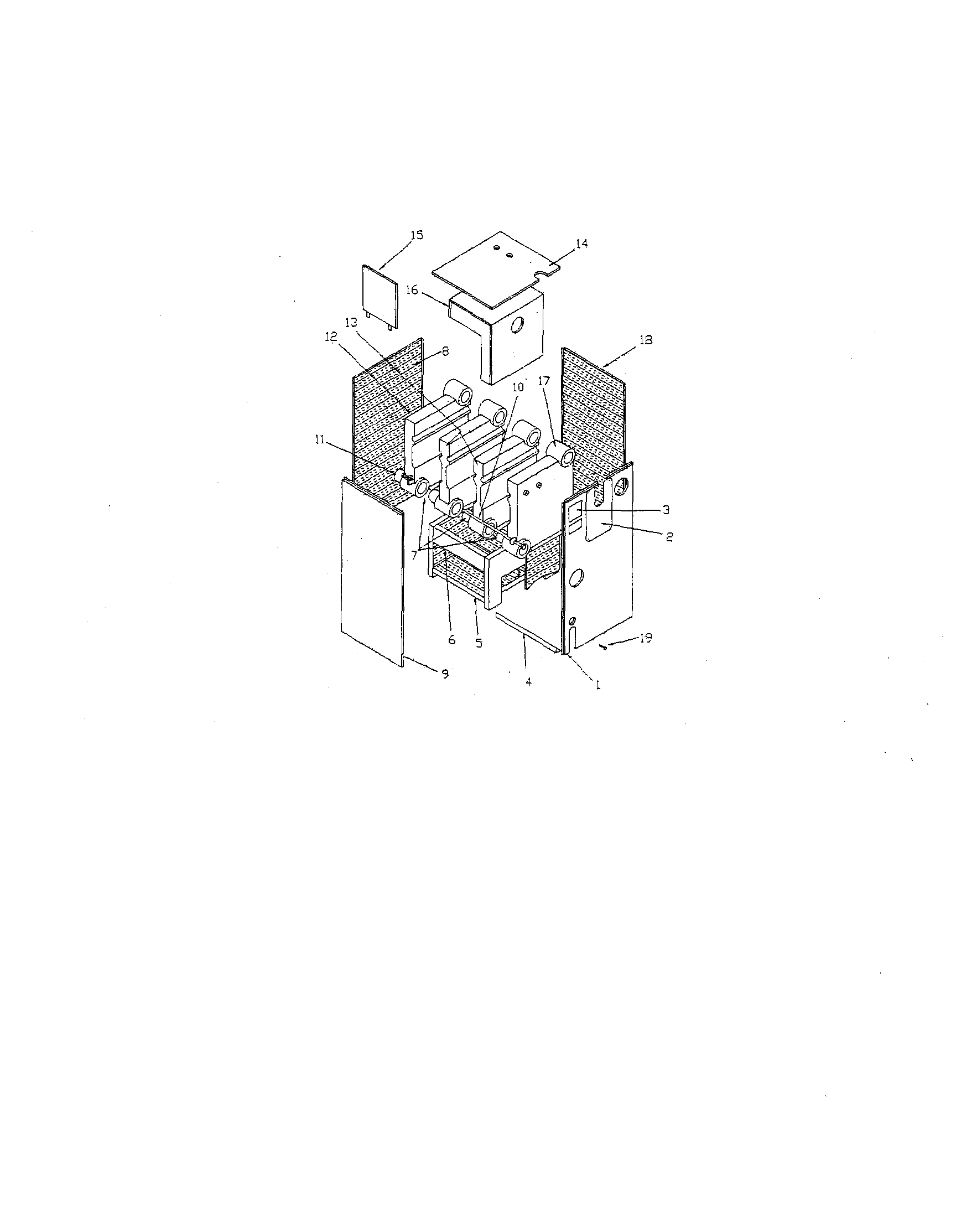

Induced draft boilers diagram

Metal screw

Part #146-95-074

The manufacturer no longer makes this part, and there's no substitute part
