Craftsman
Grass Catcher Attachment

Model #917249670 Craftsman grass catcher

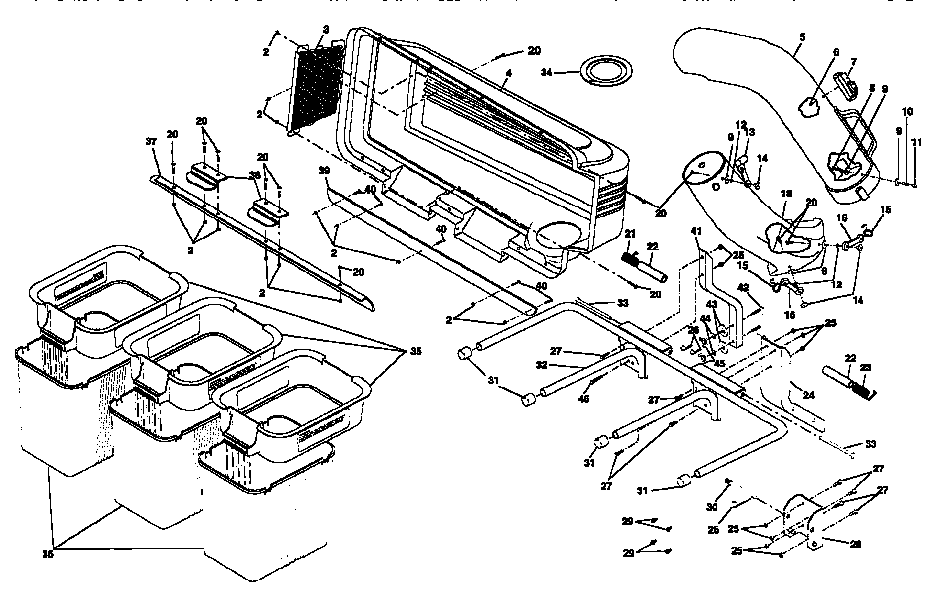

Here are the diagrams and repair parts for Craftsman 917249670 grass catcher, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 45 parts

    Lawn & Garden Equipment Spacer

    #10

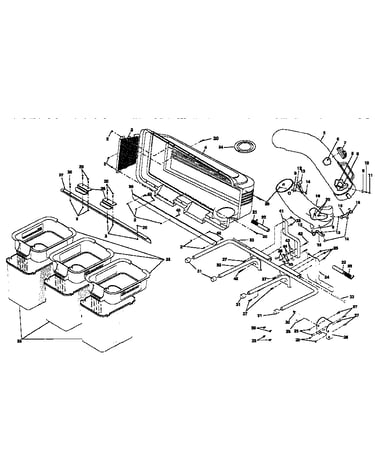

    Replacement parts Diagram

    Lawn & garden equipment spacer

    Part #7206J
    This item is not returnable
    $6.88

    In Stock

    Lawn & Garden Equipment Washer

    #43

    Replacement parts Diagram

    Lawn & garden equipment washer

    Part #19112410
    This item is not returnable
    $3.25 |
    23% OFF MSRP:$4.20

    In Stock

    Lawn & Garden Equipment Nut

    #11

    Replacement parts Diagram

    $15.65

    Back Order

    Lawn & Garden Equipment Screw

    #29

    Replacement parts Diagram

    Lawn & garden equipment screw

    Part #17490508
    This item is not returnable
    $3.07 |
    23% OFF MSRP:$3.99

    Back Order

    Lawn Tractor Bagger Attachment Chute Latch

    #13

    Replacement parts Diagram

    Lawn tractor bagger attachment chute latch

    Part #532109808
    ?
    Manufacturer substitution
    This part replaces 109808X. Substitute parts can look different from the original.
    This part replaces 109808X
    This item is not returnable
    $3.78

    In Stock

    Lawn & Garden Equipment Weld Nut

    #14

    Replacement parts Diagram

    Lawn & garden equipment weld nut

    Part #596987401
    ?
    Manufacturer substitution
    This part replaces 2029J. Substitute parts can look different from the original.
    This part replaces 2029J
    This item is not returnable
    $2.16

    Back Order

    Lawn & Garden Equipment Washer

    #9

    Replacement parts Diagram

    Lawn & garden equipment washer

    Part #819061216
    ?
    Manufacturer substitution
    This part replaces 19061216. Substitute parts can look different from the original.
    This part replaces 19061216
    This item is not returnable
    $3.67

    In Stock

    Lawn Tractor Bagger Attachment Upper Chute

    #5

    Replacement parts Diagram

    Lawn tractor bagger attachment upper chute

    Part #532126840
    ?
    Manufacturer substitution
    This part replaces 126840. Substitute parts can look different from the original.
    This part replaces 126840
    $69.23 |
    12% OFF MSRP:$79.00

    In Stock

    Lock Nut

    #2

    Replacement parts Diagram

    Lock nut

    Part #69180

    The manufacturer no longer makes this part, and there's no substitute part

    Lawn Tractor Bagger Attachment Full Container Indicator

    #7

    Replacement parts Diagram

    Lawn tractor bagger attachment full container indicator

    Part #532130933
    ?
    Manufacturer substitution
    This part replaces 130933. Substitute parts can look different from the original.
    This part replaces 130933
    This item is not returnable
    $4.97

    Back Order
