Amana RCC36A3B/P1172422C remote condensing unit technical information Parts
Here are the diagrams and repair parts for Amana RCC36A3B/P1172422C remote condensing unit technical information, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for RCC36A3B/P1172422C Remote Condensing Unit Technical Information

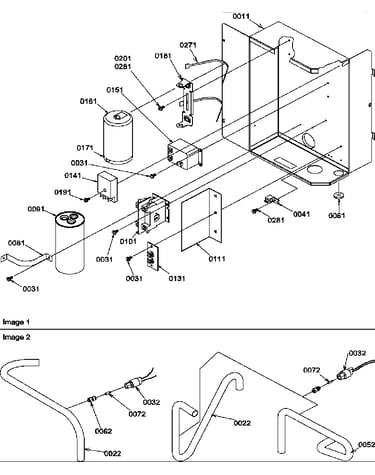

Control box diagram
Screw
Part #M0216529Replaced by #WP90767
Manufacturer substitutionThis part replaces M0216529. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88
Qty

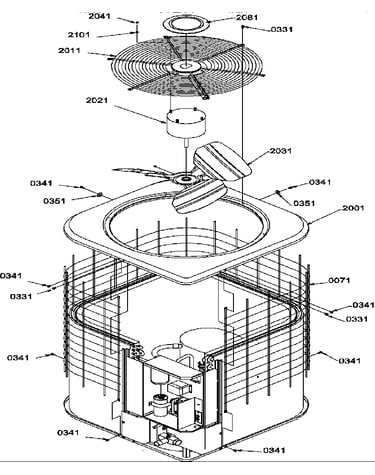

Condenser motor diagram
Keps Nut
Part #M0280801Replaced by #WP488130
Manufacturer substitutionThis part replaces M0280801. Substitute parts can look different from the original.In Stock$28.95QtyControl box diagram
Backet Cap Mounting(used On A2a Models)
Part #C6450401
The manufacturer no longer makes this part, and there's no substitute part
Control box diagram
Grommet
Part #A4603801
The manufacturer no longer makes this part, and there's no substitute part

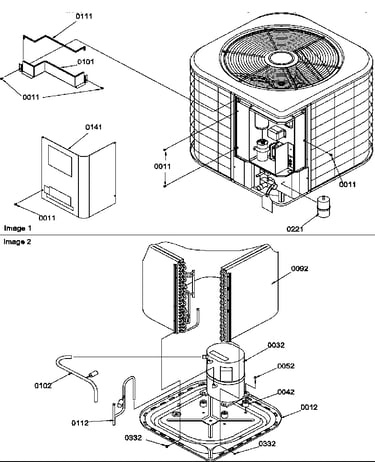

Outer cabinet/compressor diagram
Tube-disch
Part #20002501
The manufacturer no longer makes this part, and there's no substitute part

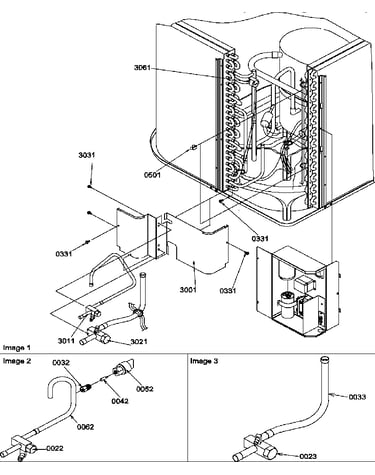

Valves and wiring harness diagram
Disc-thermostat
Part #11046706
The manufacturer no longer makes this part, and there's no substitute part
Outer cabinet/compressor diagram
Grommet
Part #B1315401
The manufacturer no longer makes this part, and there's no substitute part
Valves and wiring harness diagram
Swt Vlv Brkt
Part #10576206
The manufacturer no longer makes this part, and there's no substitute part
Control box diagram
Screw-sm
Part #M0216521
The manufacturer no longer makes this part, and there's no substitute part
Core, Dill Valve
Part #A4692801
The manufacturer no longer makes this part, and there's no substitute part
