Amana EAQ48X/P54919-9C counterflow & upflow air conditioner a-coil & housing assembly Parts

Name: Amana EAQ48X/P54919-9C Parts | Diagrams | Sears PartsDirect
Brand: Amana
SKU: EAQ48X/P54919-9C
Availability: InStock

Here are the diagrams and repair parts for Amana EAQ48X/P54919-9C counterflow & upflow air conditioner a-coil & housing assembly, as well as links to manuals and error code tables, if available.

By Schematic

By Part

SELECT DIAGRAM

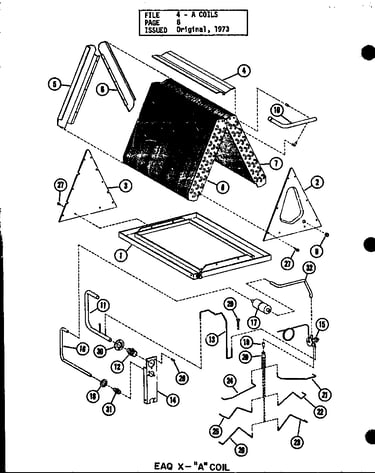

Browse Parts forEAQ48X/P54919-9C Counterflow & Upflow Air Conditioner A-Coil & Housing Assembly

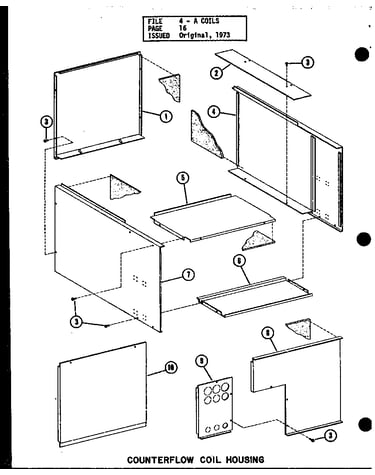

Counterflow coil housing (d54927-16/p54927-16c) (d54927-20/p54927-20c) (d54927-21/p54927-21c) (d54927-24/p54927-24c) diagram
Bottom Panel
Part #C5925301
The manufacturer no longer makes this part, and there's no substitute part

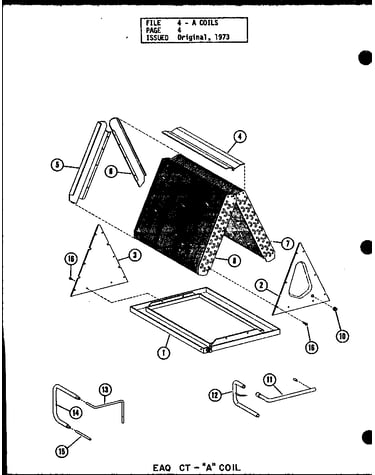

Eaq ct - "a" coil (eaq18ct/p54919-1c) (eaq24ct/p54919-2c) (eaq30ct/p54919-3c) (eaq36ct/p54919-5c) diagram
Liquid Tube
Part #B1153601
The manufacturer no longer makes this part, and there's no substitute part
Capillary Tube
Part #B1146002
The manufacturer no longer makes this part, and there's no substitute part
Eaq ct - "a" coil (eaq18ct/p54919-1c) (eaq24ct/p54919-2c) (eaq30ct/p54919-3c) (eaq36ct/p54919-5c) diagram
Coupling
Part #C5201601
The manufacturer no longer makes this part, and there's no substitute part

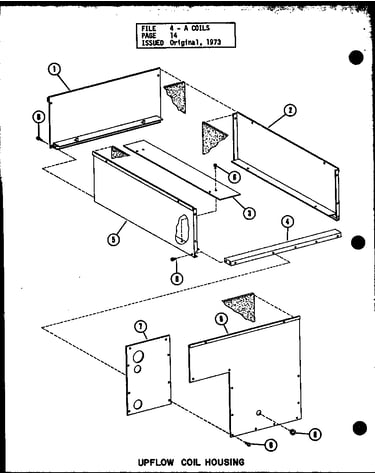

Uplow coil housing (d54921-16/p54921-16c) (d54921-20/p54921-20c) (d54921-21/p54921-21c) (d54921-24/p54921-24c) (d54921-28/p54921-28c) diagram
Spacer, Front
Part #B1140601
The manufacturer no longer makes this part, and there's no substitute part
Assembly, Evaporator Coil, Right Hand
Part #D5494901
The manufacturer no longer makes this part, and there's no substitute part
Suction Tube
Part #C5927901
The manufacturer no longer makes this part, and there's no substitute part
Bracket, Q.c.
Part #C5918102
The manufacturer no longer makes this part, and there's no substitute part

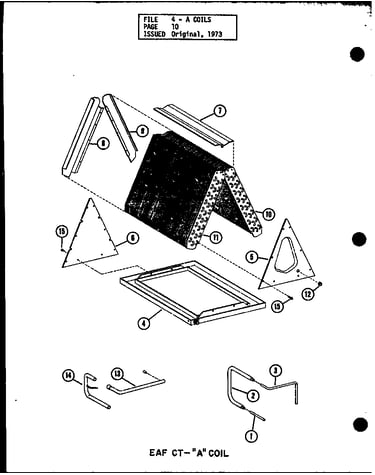

Eaf ct-"a" coil (eaf18ct/p54920-1c) (eaf24ct/p54920-2c) (eaf30ct/p54920-3c) (eaf36ct/p54920-4c) diagram
"o" Ring (liquid Valve)
Part #B1135901
The manufacturer no longer makes this part, and there's no substitute part

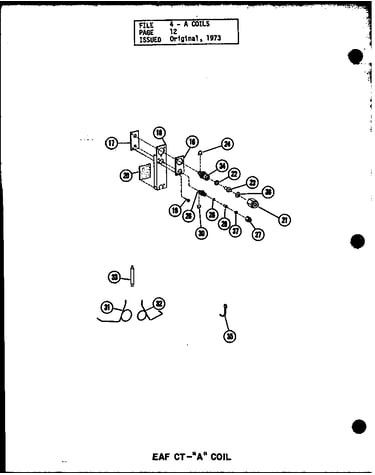

Eaf ct-"a" coil (eaf18ct/p54920-1c) (eaf24ct/p54920-2c) (eaf30ct/p54920-3c) (eaf36ct/p54920-4c) diagram
"o" Ring (suction Valve)
Part #B1135905
The manufacturer no longer makes this part, and there's no substitute part
