Model # 143576002 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143576002 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

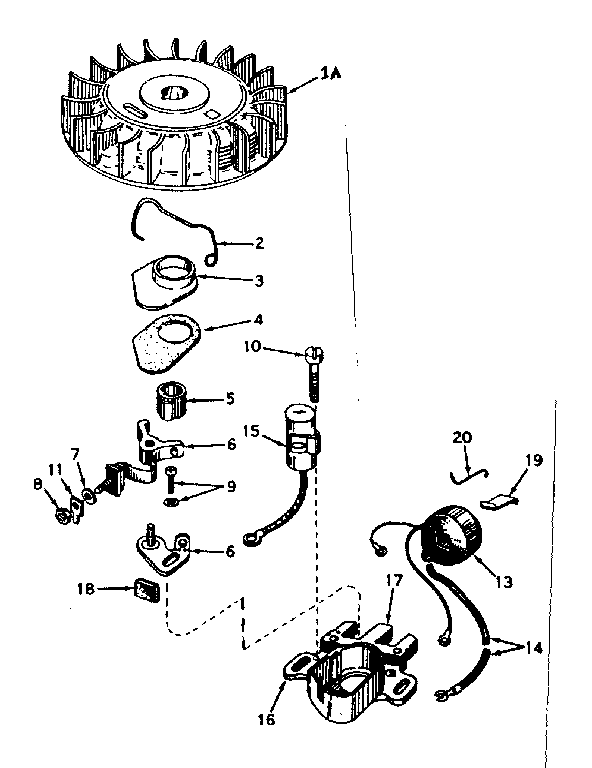

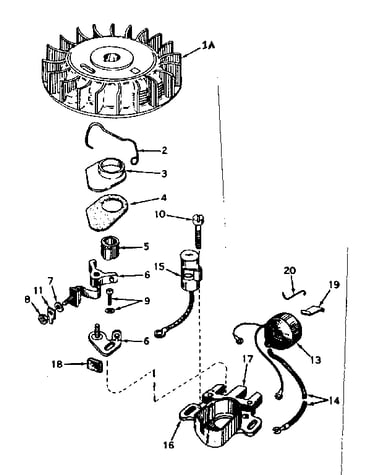

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 199 parts  |

Gasket 27110
#21

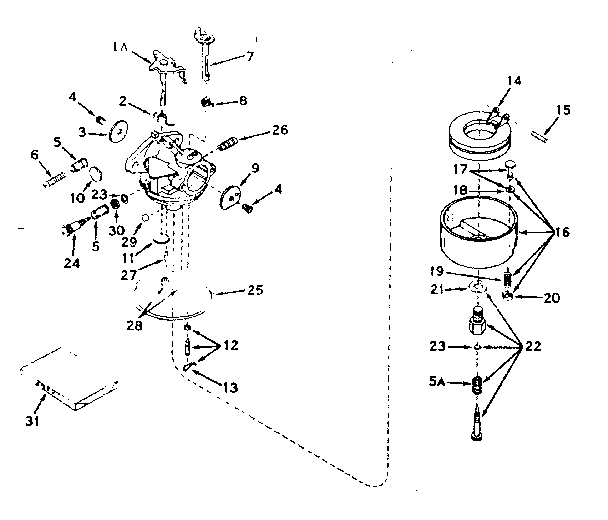

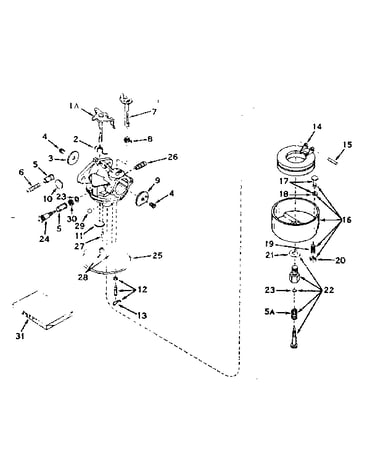

Carburetor diagram

Gasket

Part #27110

The manufacturer no longer makes this part, and there's no substitute part

/carb Float 631023
#14

Carburetor diagram

/carb float

Part #631023

The manufacturer no longer makes this part, and there's no substitute part

Breather Element Air Filter 28424
#40

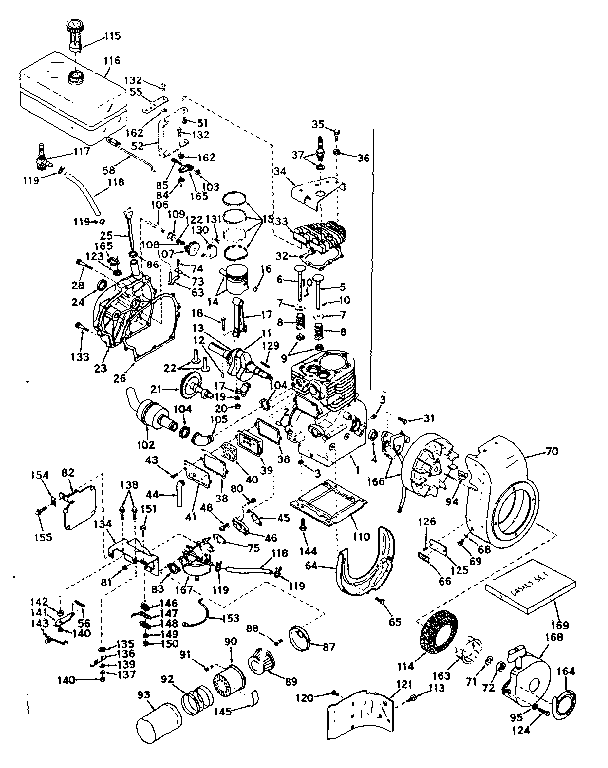

Basic engine diagram

Breather element air filter

Part #28424

The manufacturer no longer makes this part, and there's no substitute part

Spring Retainer 630731
#2

Carburetor diagram

Spring retainer

Part #630731

The manufacturer no longer makes this part, and there's no substitute part

Clip 631022
#13

Carburetor diagram

Clip

Part #631022

The manufacturer no longer makes this part, and there's no substitute part

Chmp J8 Plug 21943
#37

Basic engine diagram

Chmp j8 plug

Part #21943

The manufacturer no longer makes this part, and there's no substitute part

Spool 30588A
#109

Basic engine diagram

Spool

Part #30588A

The manufacturer no longer makes this part, and there's no substitute part

Washer 30590A
#122

Basic engine diagram

Washer

Part #30590A

The manufacturer no longer makes this part, and there's no substitute part

/carb Kit 31840
#31

Carburetor diagram

/carb kit

Part #31840

The manufacturer no longer makes this part, and there's no substitute part

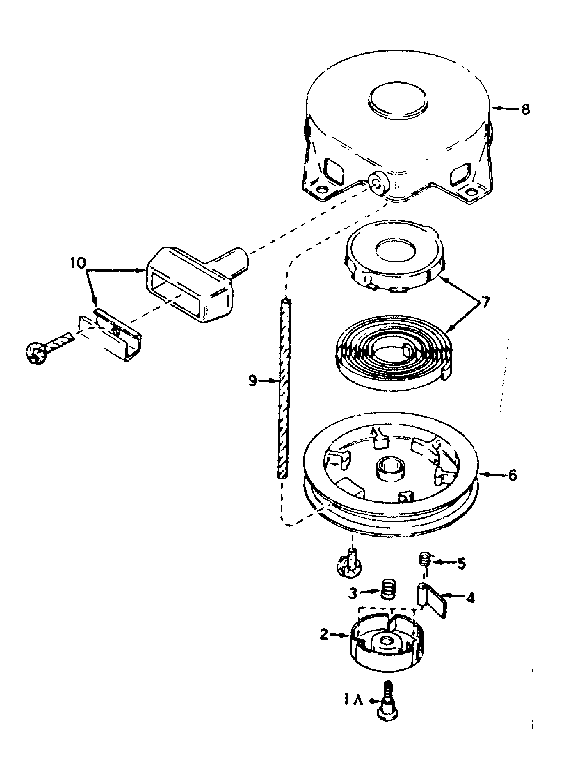

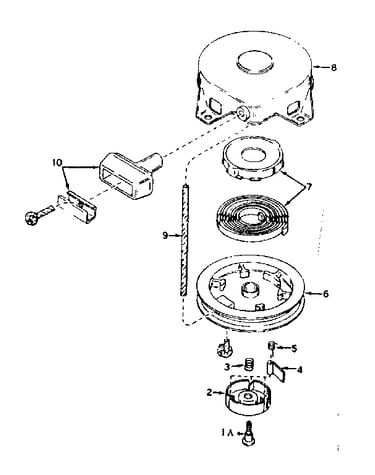

Starter 590449
Starter

Part #590449

The manufacturer no longer makes this part, and there's no substitute part
