GE JBS55DM1WW electric range Parts

Here are the diagrams and repair parts for GE JBS55DM1WW electric range, as well as links to manuals and error code tables, if available.

GE JBS55DM1WW electric range
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JBS55DM1WW Ranges

  • G.e. Wall Oven Control Board for GE JBS55DM1WW - Part WB27X45466

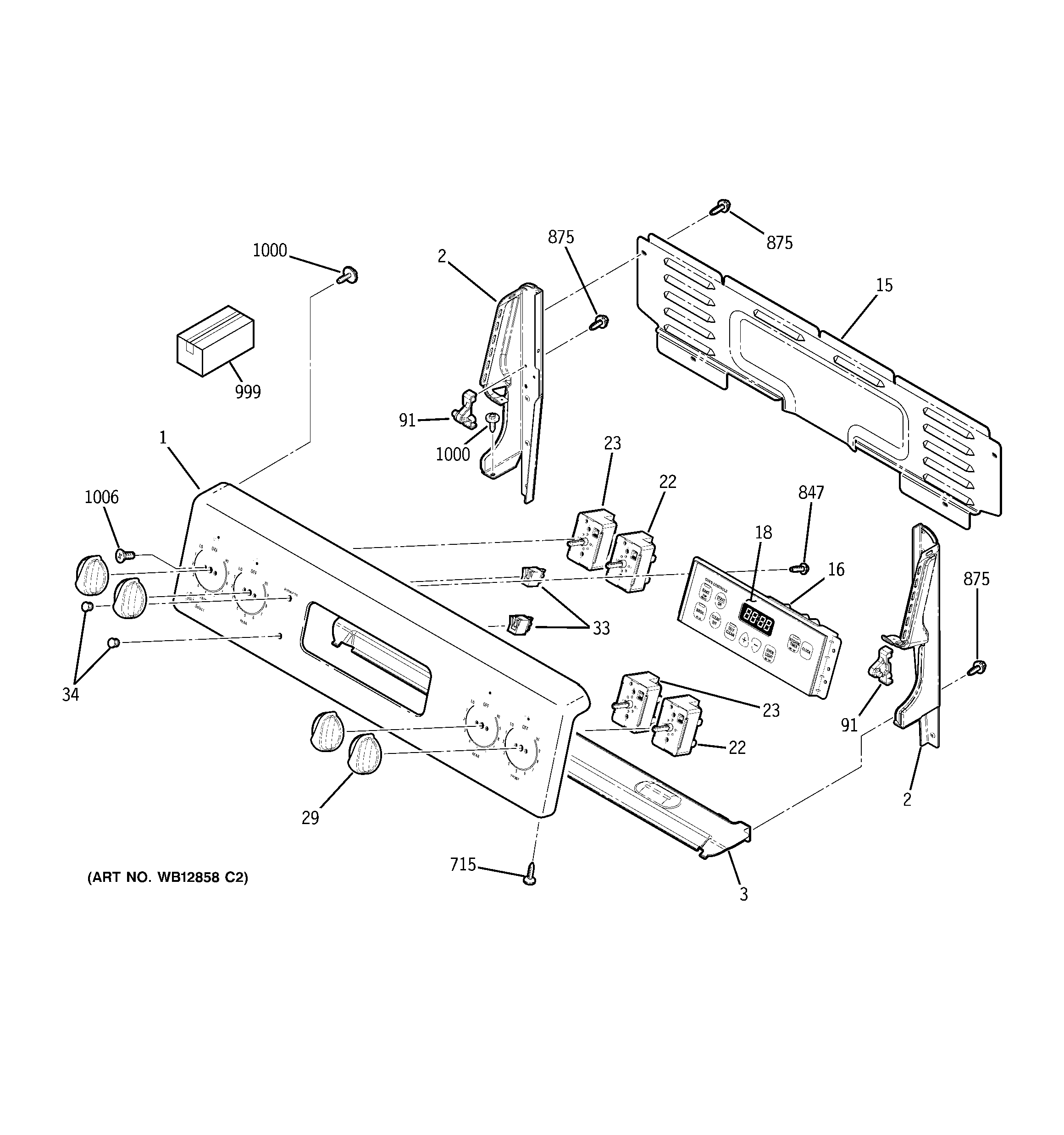

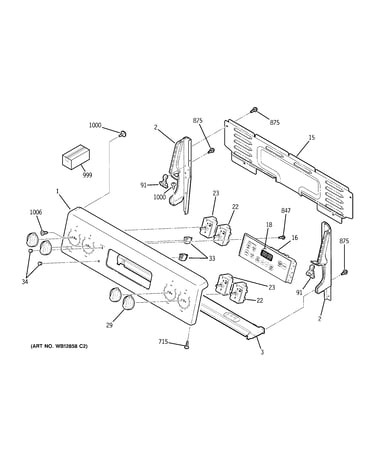

    Control panel diagram

    Oven Control

    Part #WB27T10818

    Replaced by #WB27X45466

    Info Icon
    Manufacturer substitution
    This part replaces WB27T10818. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $138.50
    8% OFF Phone Price : $150.50Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Element Control Switch for GE JBS55DM1WW - Part WB24T10146

    Control panel diagram

    Range Surface Element Control Switch

    Part #WB24T10146
    In Stock
    $43.16
    12% OFF Phone Price : $49.16Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Element Control Switch for GE JBS55DM1WW - Part WB24T10145

    Control panel diagram

    Range Surface Element Control Switch

    Part #WB24T10145
    This item is not returnable
    In Stock
    $56.91
    13% OFF Was : $65.57Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Light Socket for GE JBS55DM1WW - Part WB08T10026

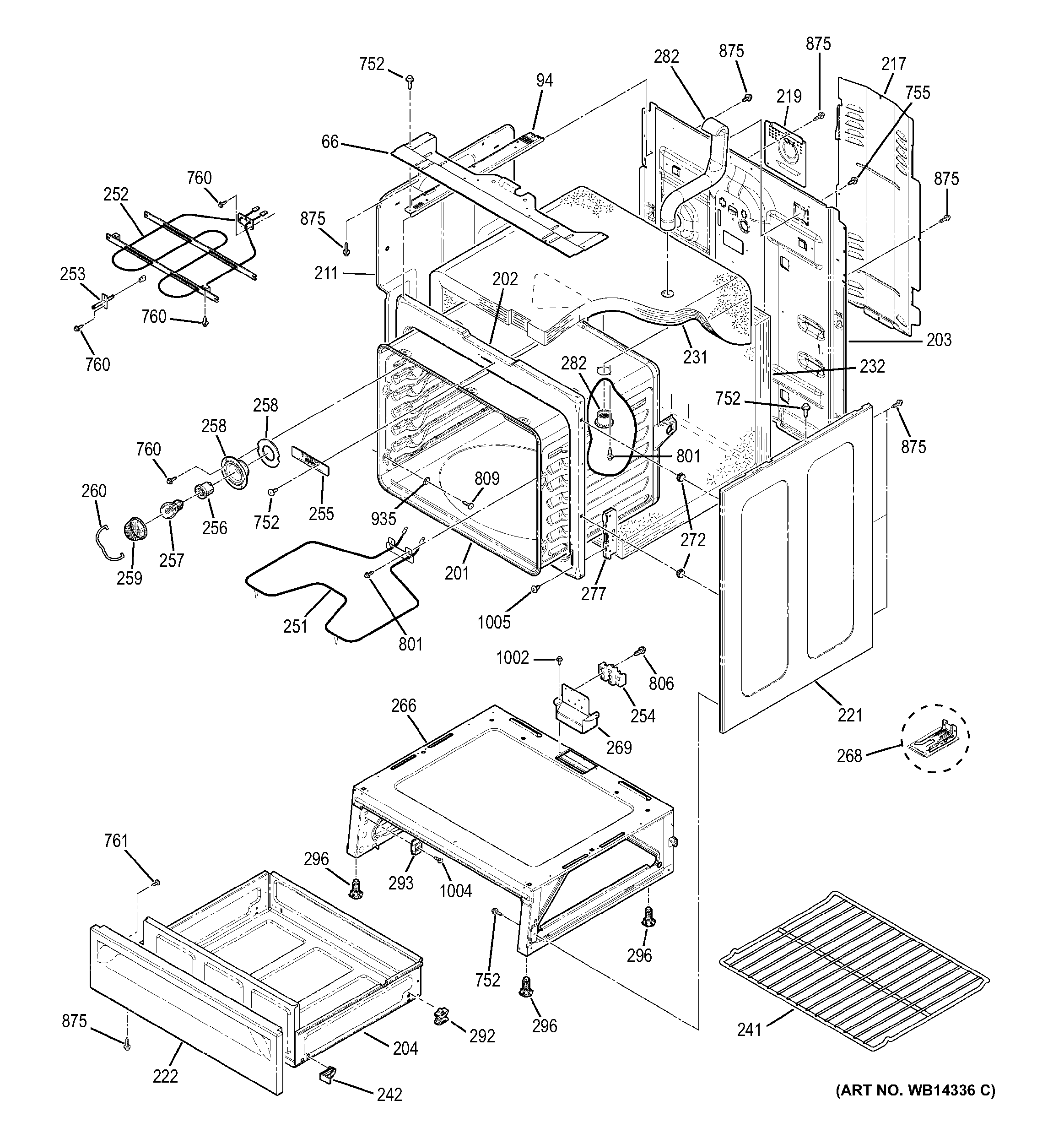

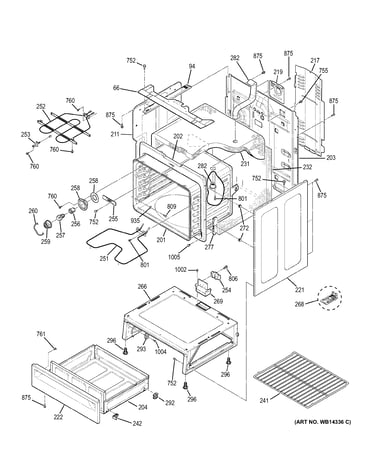

    Body parts diagram

    Range Light Socket

    Part #WB08T10026
    This item is not returnable
    In Stock
    $10.15
    16% OFF Phone Price : $12.15Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Door Gasket for GE JBS55DM1WW - Part WB04T10086

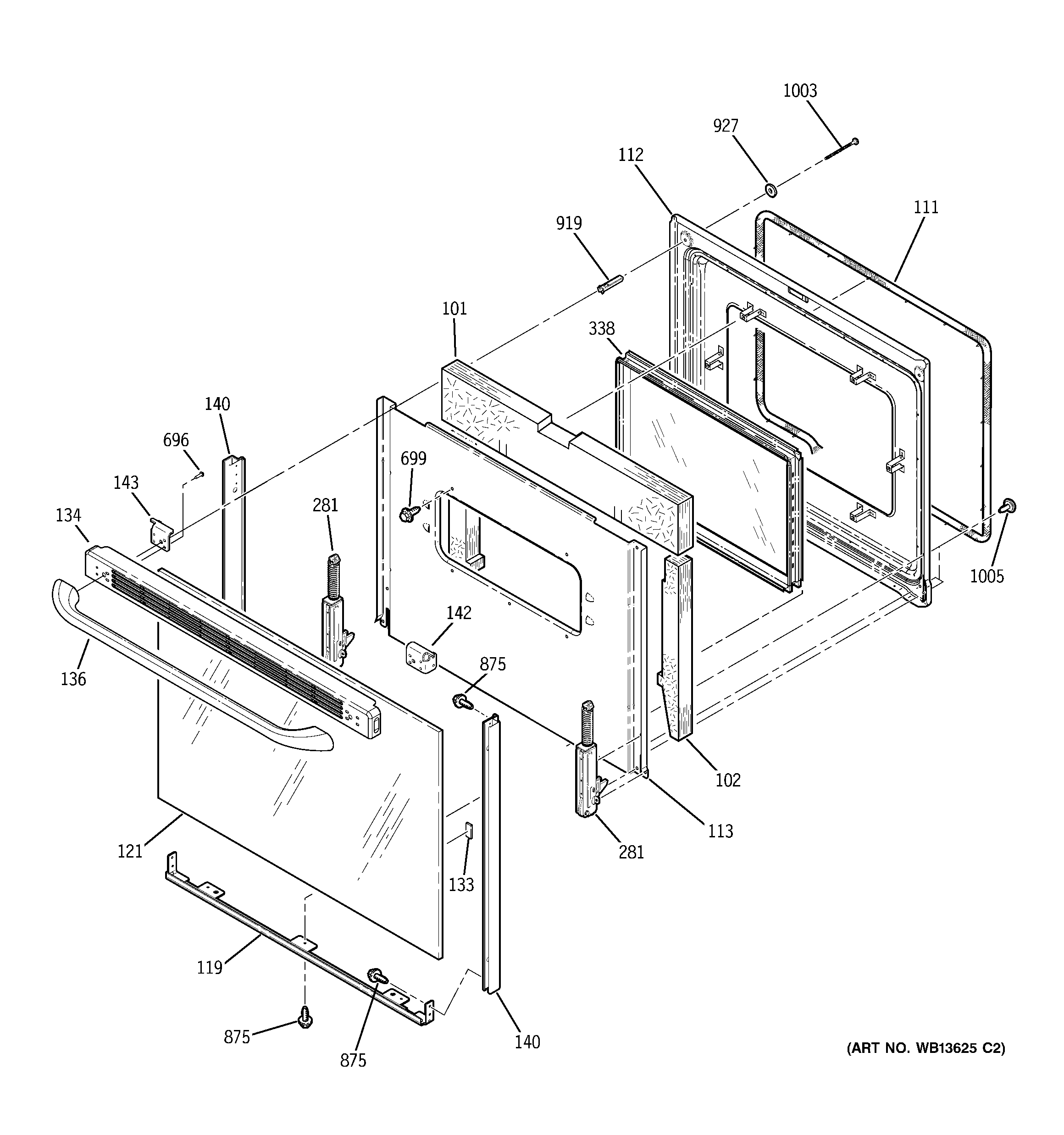

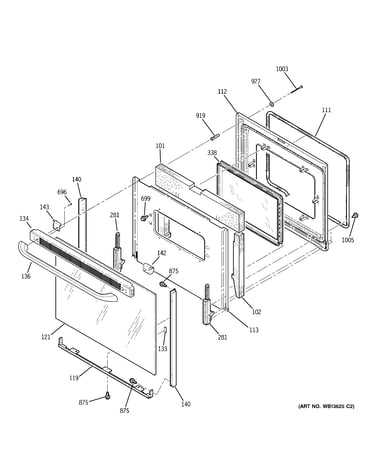

    Door diagram

    Range Oven Door Gasket

    Part #WB04T10001

    Replaced by #WB04T10086

    Info Icon
    Manufacturer substitution
    This part replaces WB04T10001. Substitute parts can look different from the original.
    In Stock
    $43.18
    19% OFF Was : $53.20Info Icon
    Minus Item
    Qty
    Plus Item
  • Hotpoint Range Indicator Light Lens (red) for GE JBS55DM1WW - Part WB25T10041

    Control panel diagram

    Hotpoint Range Indicator Light Lens (red)

    Part #WB25T10041
    This item is not returnable
    In Stock
    $9.86
    9% OFF Phone Price : $10.86Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for GE JBS55DM1WW - Part WB1M1

    Door diagram

    Screw

    Part #WB01K5150

    Replaced by #WB1M1

    Info Icon
    Manufacturer substitution
    This part replaces WB01K5150. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $8.13
    11% OFF Phone Price : $9.13Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for GE JBS55DM1WW - Part WB1M1

    Body parts diagram

    Screw

    Part #WB01M0001

    Replaced by #WB1M1

    Info Icon
    Manufacturer substitution
    This part replaces WB01M0001. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $8.13
    11% OFF Phone Price : $9.13Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Light Lens for GE JBS55DM1WW - Part WB36X192

    Body parts diagram

    Wall Oven Light Lens

    Part #WB36X0389

    Replaced by #WB36X192

    Info Icon
    Manufacturer substitution
    This part replaces WB36X0389. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $15.39
    12% OFF Phone Price : $17.39Info Icon
    Minus Item
    Qty
    Plus Item
  • Kenmore Elite Range Halogen Surface Element for GE JBS55DM1WW - Part WB30X44826

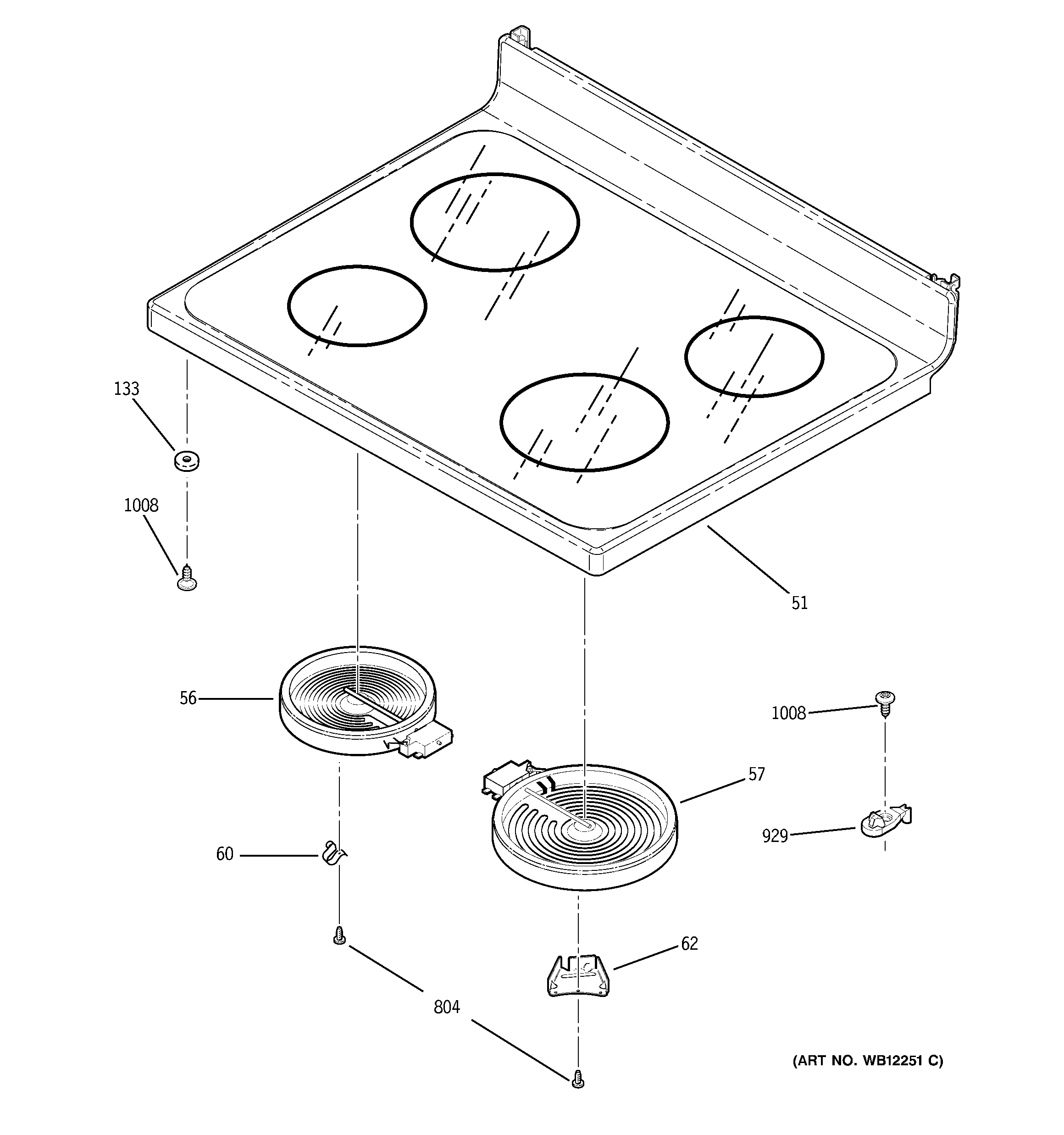

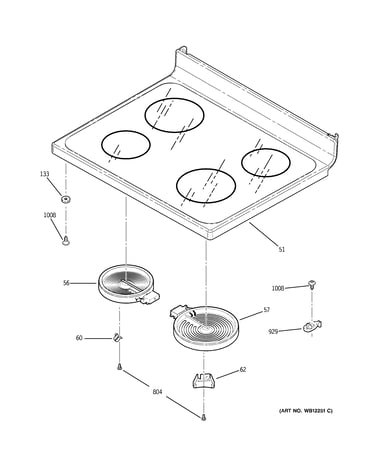

    Cooktop diagram

    Kenmore Elite Range Halogen Surface Element

    Part #WB30T10047

    Replaced by #WB30X44826

    Info Icon
    Manufacturer substitution
    This part replaces WB30T10047. Substitute parts can look different from the original.
    In Stock
    $196.47
    Minus Item
    Qty
    Plus Item
