GE JB500G*D1 electric range Parts
Here are the diagrams and repair parts for GE JB500G*D1 electric range, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for JB500G*D1 Ranges

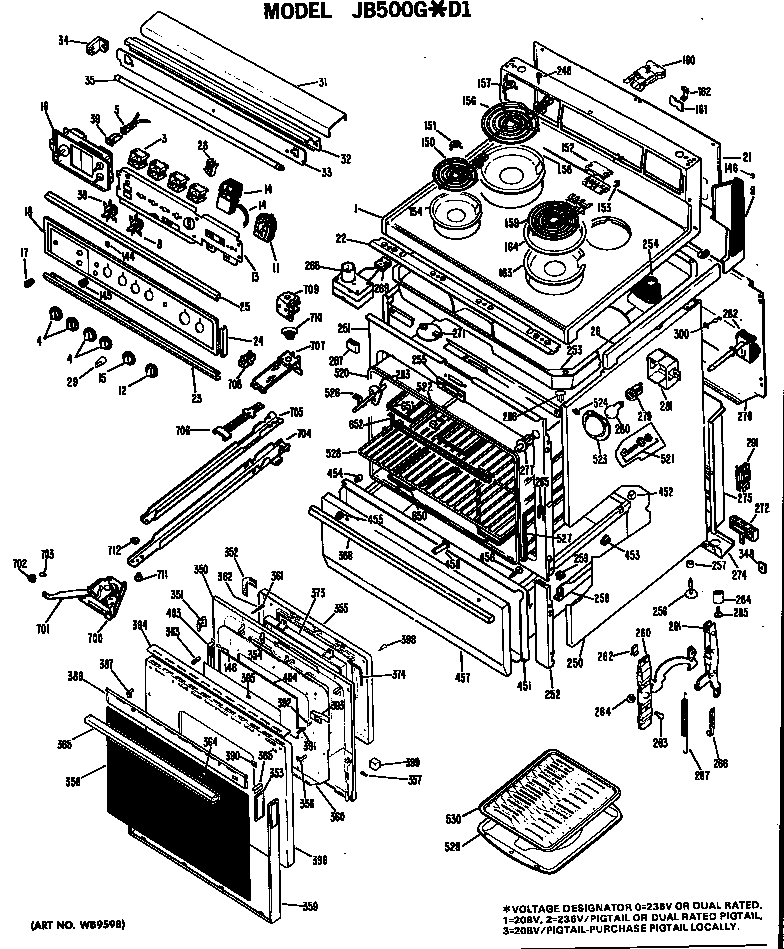

Electric range diagram
Screw
Part #WB1X558Replaced by #WB1X558D
Manufacturer substitutionThis part replaces WB1X558. Substitute parts can look different from the original.In Stock$24.5220% OFF Phone Price : $30.52
Qty
Electric range diagram
Washer
Part #WB1X119Replaced by #WB1X119D
Manufacturer substitutionThis part replaces WB1X119. Substitute parts can look different from the original.This item is not returnableIn Stock$24.6020% OFF Phone Price : $30.60QtyElectric range diagram
Broil Unit
Part #WB44X185Replaced by #WB44X173
Manufacturer substitutionThis part replaces WB44X185. Substitute parts can look different from the original.In Stock$36.1914% OFF Phone Price : $42.19QtyElectric range diagram
Door Liner
Part #WB55X5241
The manufacturer no longer makes this part, and there's no substitute part
Electric range diagram
Spacer
Part #WB2X3387
The manufacturer no longer makes this part, and there's no substitute part
Electric range diagram
Cooktop Cf
Part #WB62X1480
The manufacturer no longer makes this part, and there's no substitute part
Electric range diagram
Temperature Limit Switch
Part #WB24X5138
The manufacturer no longer makes this part, and there's no substitute part
Electric range diagram
Trim Cap
Part #WB7X5631
The manufacturer no longer makes this part, and there's no substitute part
Electric range diagram
Shim Clip
Part #WB2X3193
The manufacturer no longer makes this part, and there's no substitute part
Electric range diagram
Barrier-f
Part #WB2X3147
The manufacturer no longer makes this part, and there's no substitute part
