Lauson
Lawn & Garden Engine

Model # H22L-2038P Official Lauson 4-cycle engine

Here are the diagrams and repair parts for Official Lauson H22L-2038P 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

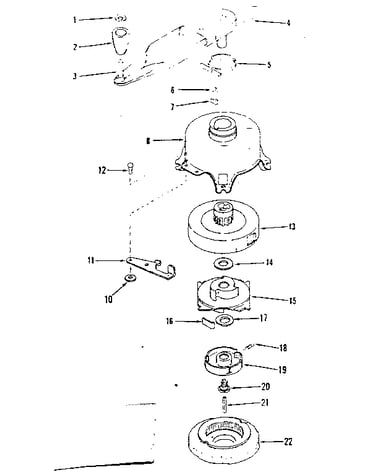

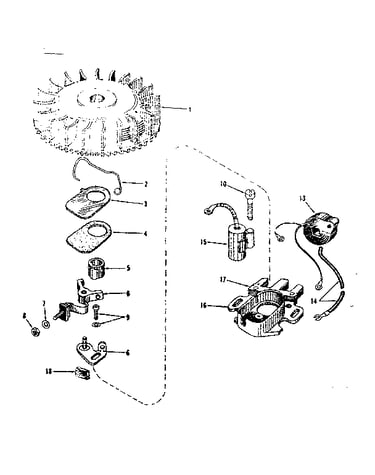

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 187 parts  |

Fuel Line 29774
#118

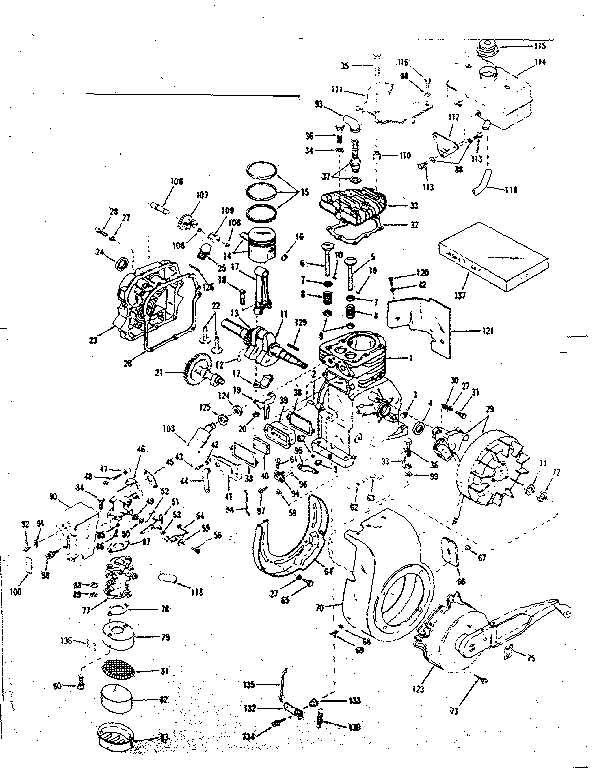

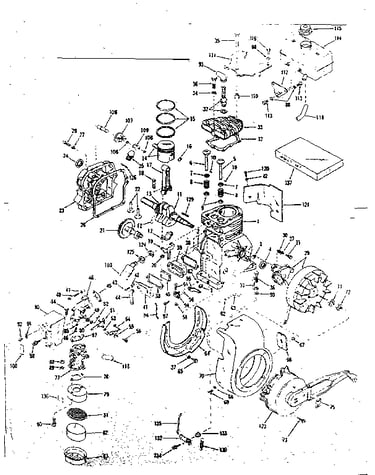

Basic engine diagram

Fuel line

Part #29774

The manufacturer no longer makes this part, and there's no substitute part

Screw 28820
#80

Basic engine diagram

Screw

Part #28820

The manufacturer no longer makes this part, and there's no substitute part

Gear Assembly 30117
#107

Basic engine diagram

Gear assembly

Part #30117

The manufacturer no longer makes this part, and there's no substitute part

Tube 27627
#44

Basic engine diagram

Tube

Part #27627

The manufacturer no longer makes this part, and there's no substitute part

Spring 630738
#11

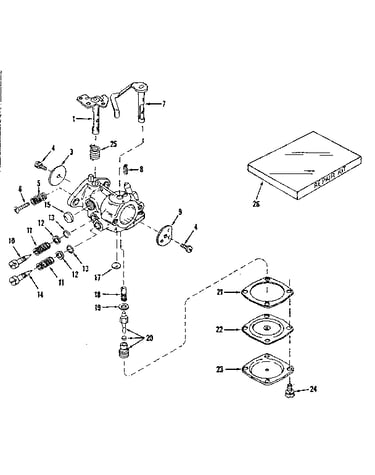

Carburetor no. 30146 (power products no. 0234-16) diagram

Spring

Part #630738

The manufacturer no longer makes this part, and there's no substitute part

Shaft 29194
#106

Basic engine diagram

Shaft

Part #29194

The manufacturer no longer makes this part, and there's no substitute part

/gov Clamp 29916
#94

Basic engine diagram

/gov clamp

Part #29916

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Cap Screw, 1/4-28 X 7/8-in 6201
#84

Basic engine diagram

Hex head cap screw, 1/4-28 x 7/8-in

Part #6201

The manufacturer no longer makes this part, and there's no substitute part

Washer 630739
#12

Carburetor no. 30146 (power products no. 0234-16) diagram

Washer

Part #630739

The manufacturer no longer makes this part, and there's no substitute part

Spring 630735
#8

Carburetor no. 30146 (power products no. 0234-16) diagram

Spring

Part #630735

The manufacturer no longer makes this part, and there's no substitute part
