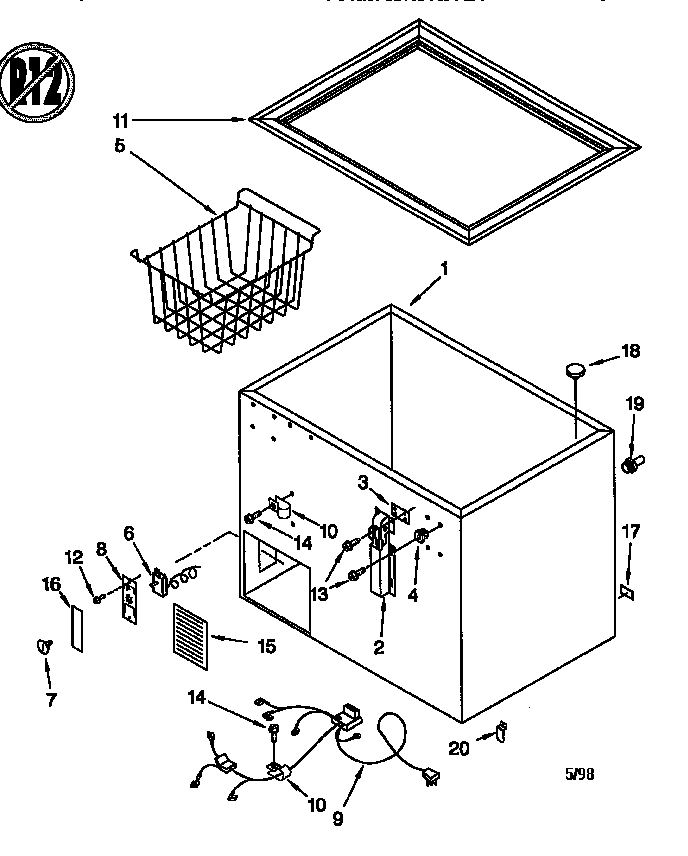

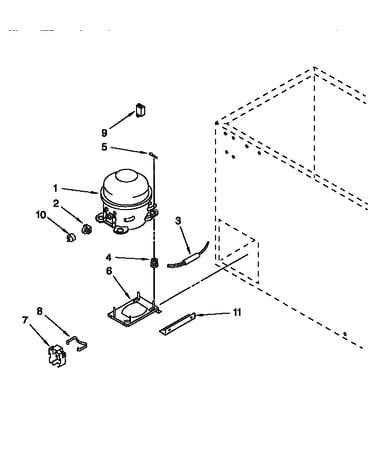

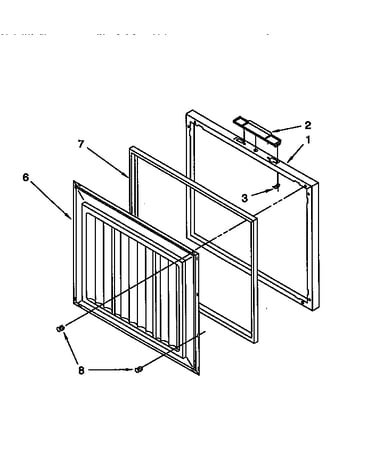

Here are the diagrams and repair parts for Whirlpool EH050FXEN02 chest freezer, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Showing 10 of 43 parts
All parts Diagram
Choose a symptom to see related freezer repairs.
The compressor start relay starts the compressor. If the compressor won’t start, follow these steps to replace a defective compressor start relay.
The cold control thermostat regulates the freezer temperature. A defective cold control thermostat can prevent the compressor from cycling on or off. Follow these steps to replace a defective cold control thermostat.
The lid gasket prevents air and moisture from entering the freezer when the lid is closed. Follow these steps to replace a torn or damaged lid gasket.
