Sharp
Countertop Microwave

Model # R-326FS Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-326FS microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

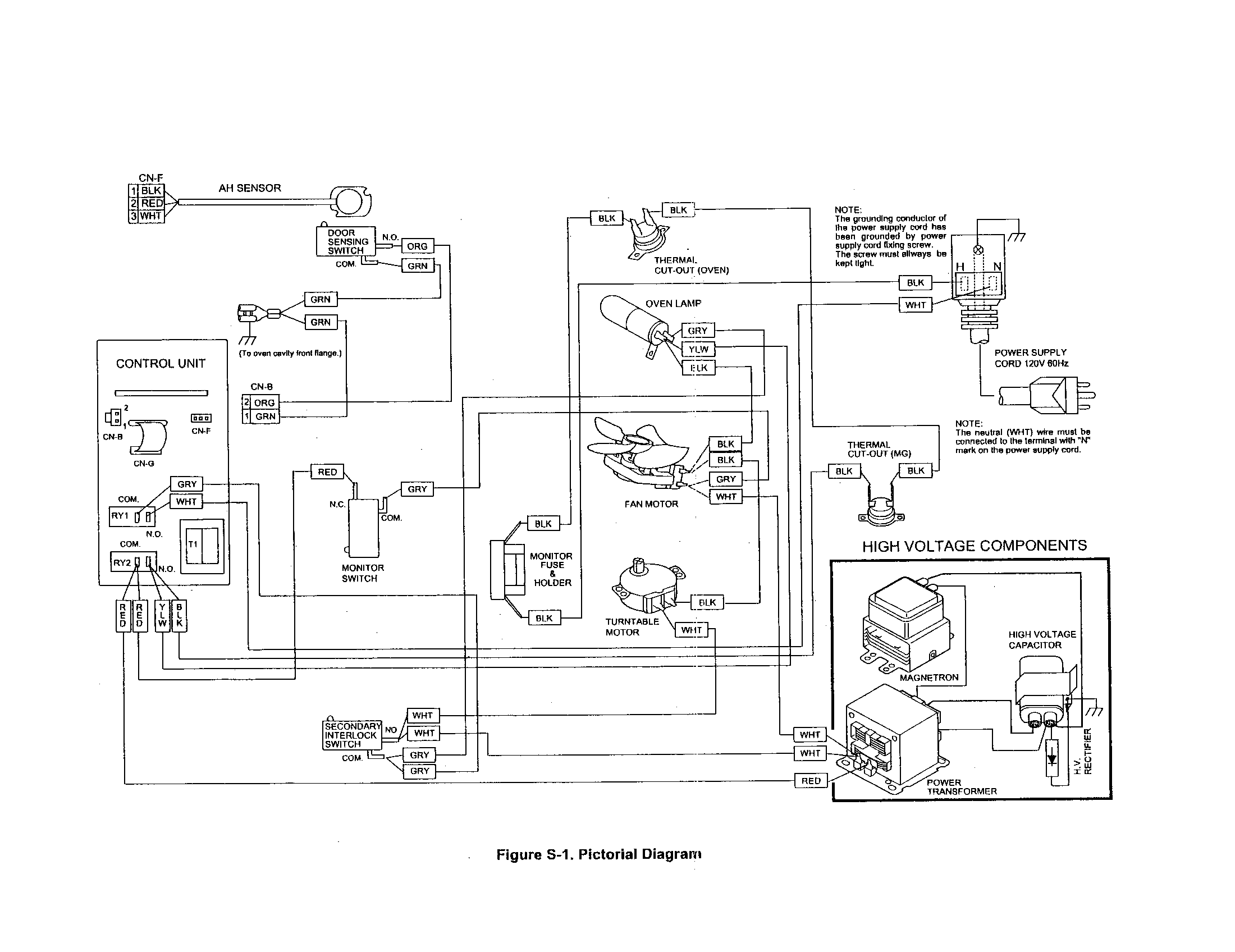

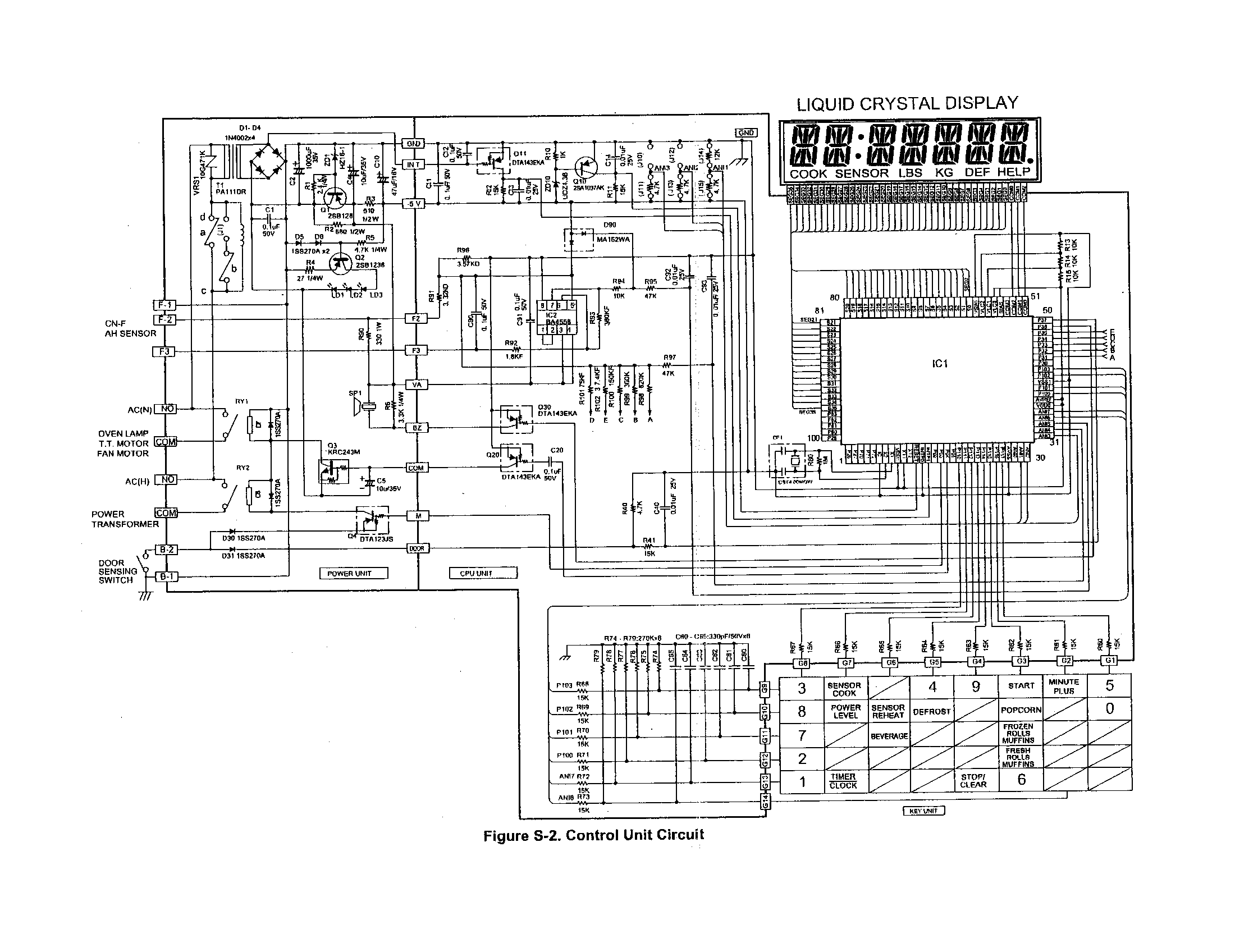

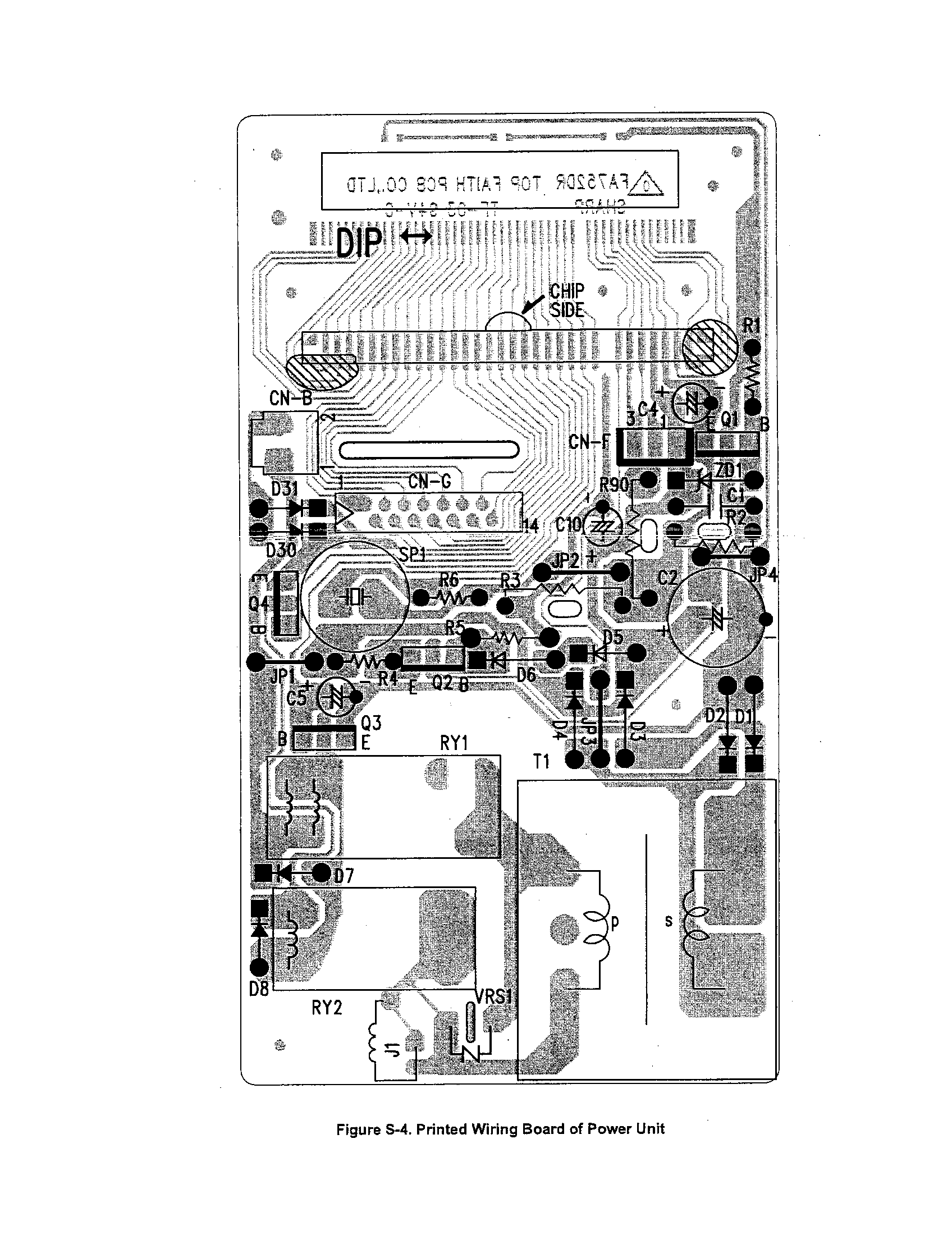

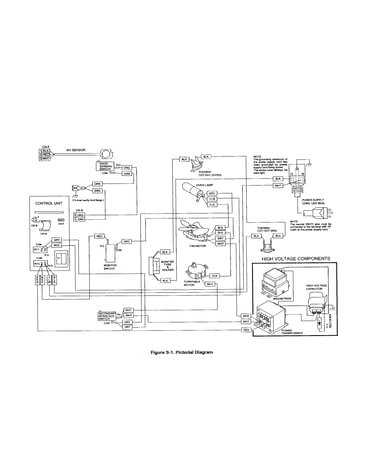

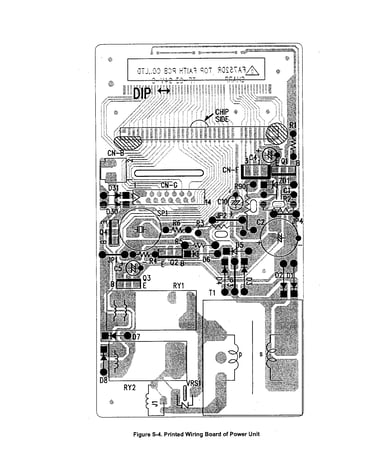

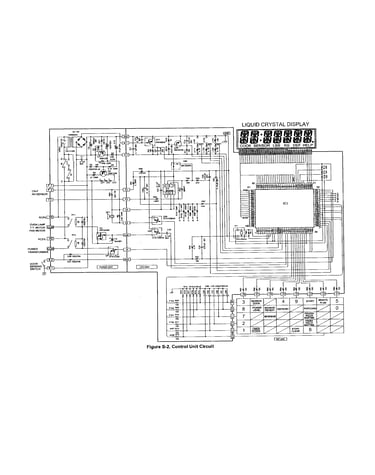

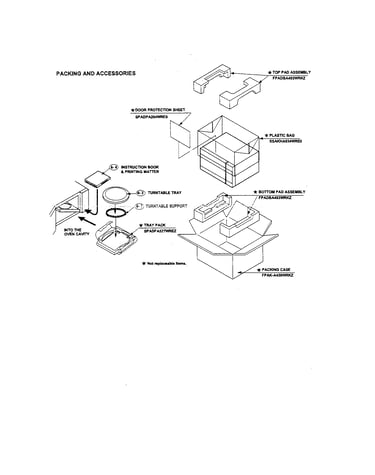

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
High-voltage Capacitor RC-QZA286WRZZ

#1-07A

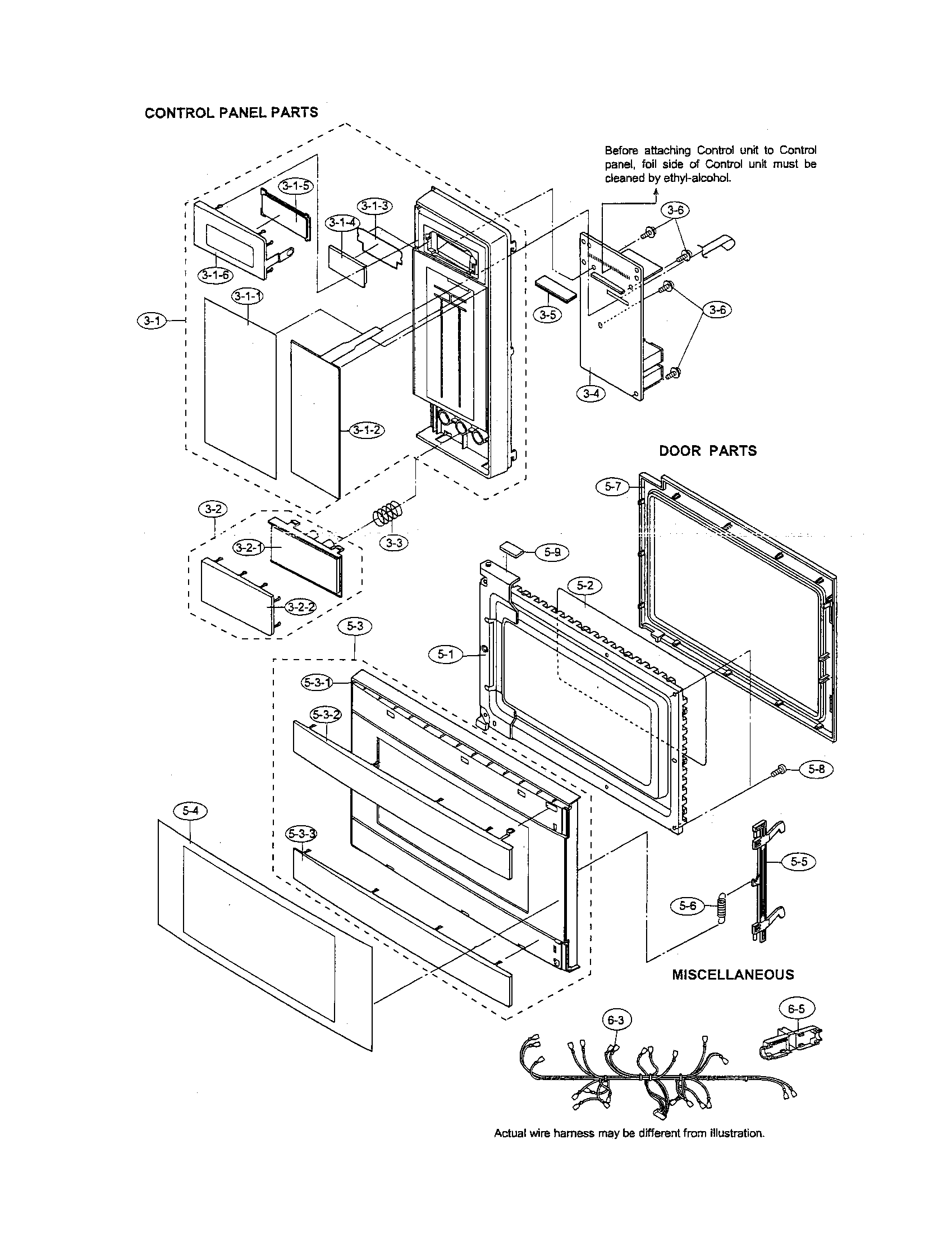

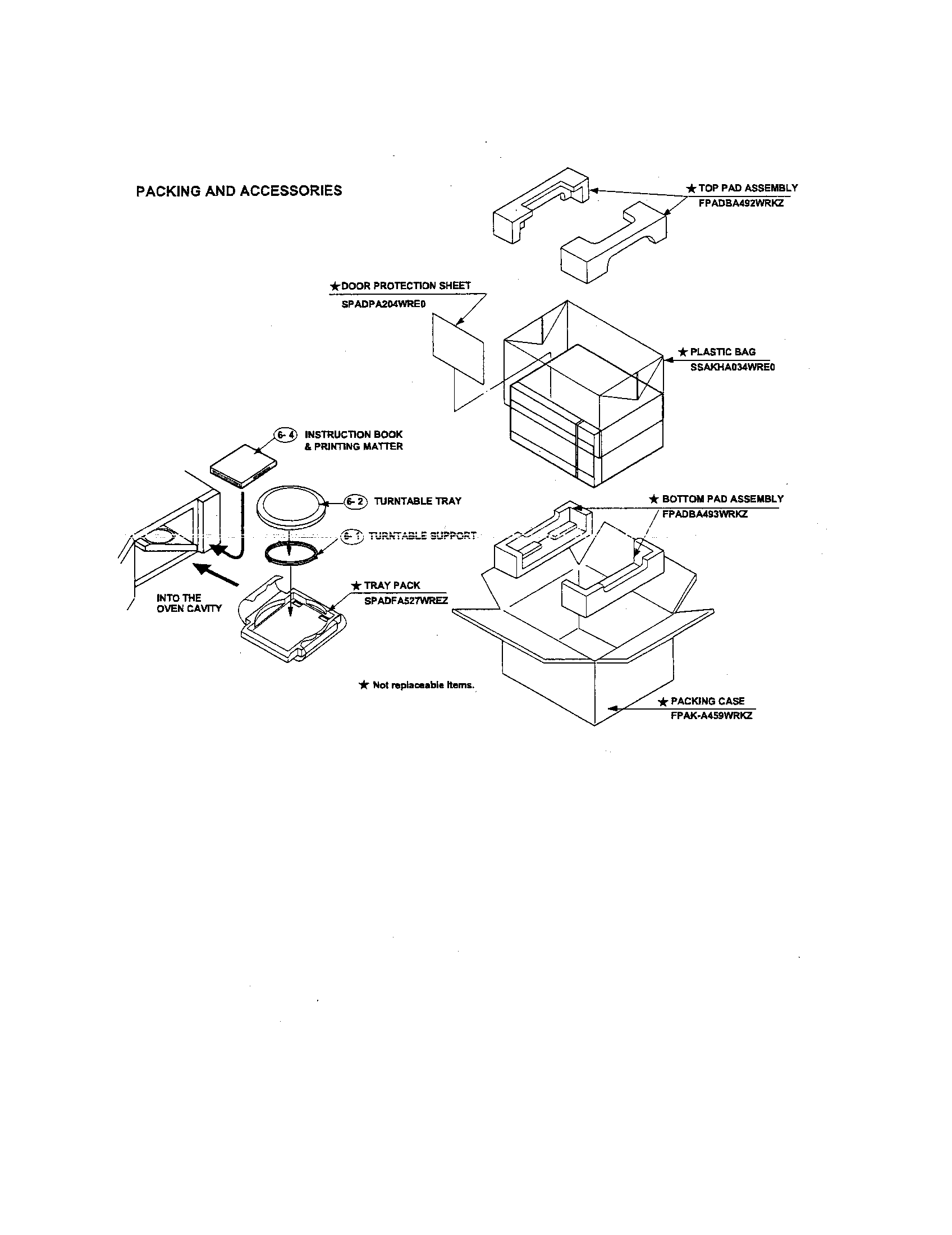

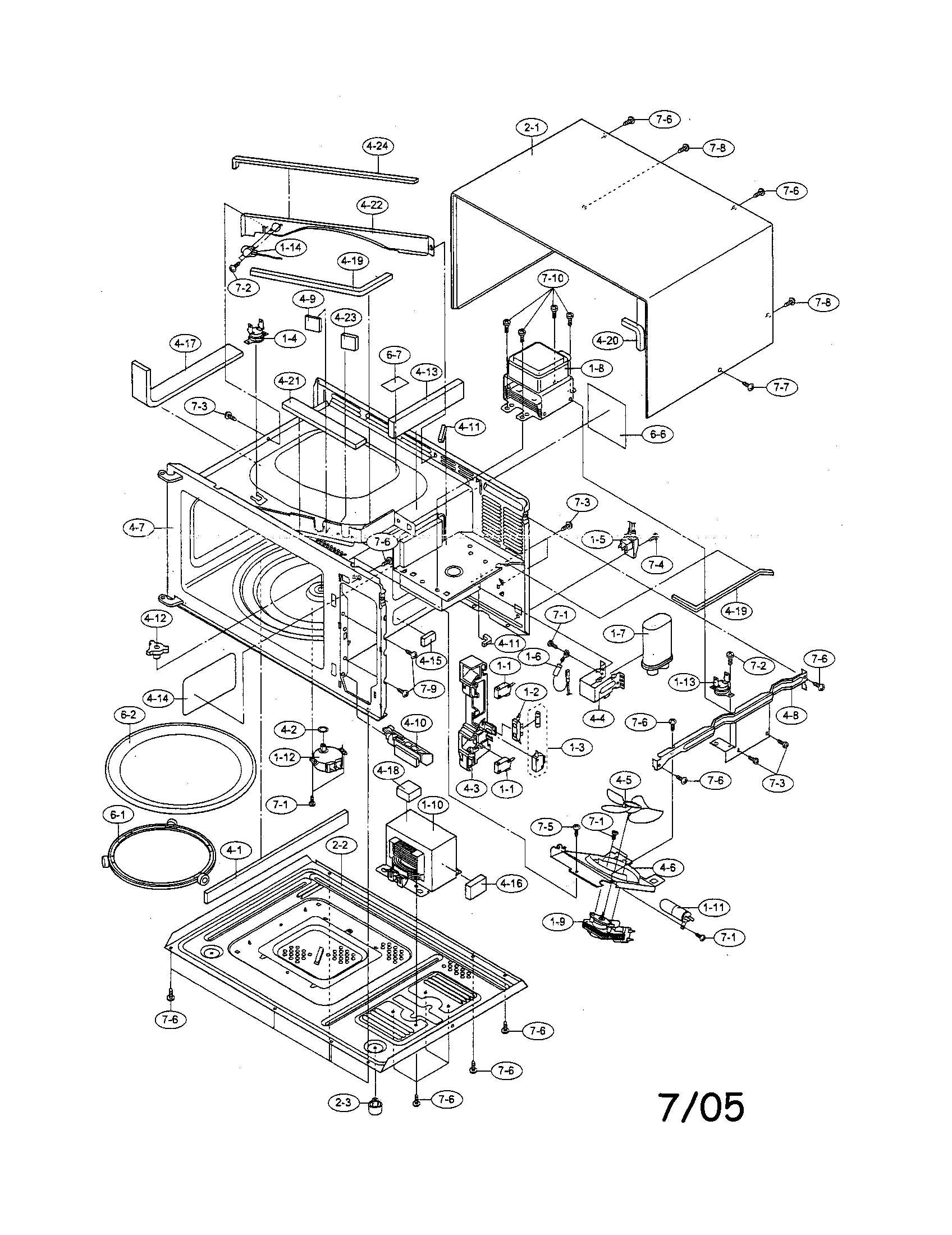

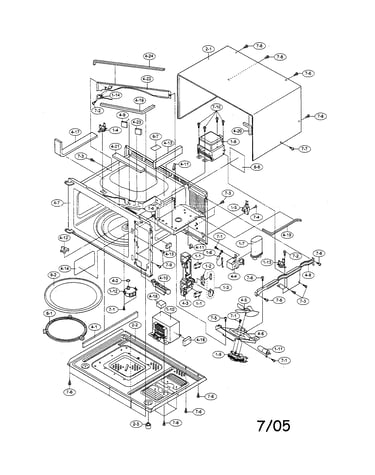

All parts diagram

High-voltage capacitor

Part #RC-QZA286WRZZ

The manufacturer no longer makes this part, and there's no substitute part

Magnetron RV-MZA288WRE0

#1-08

All parts diagram

Magnetron

Part #RV-MZA288WRE0

The manufacturer no longer makes this part, and there's no substitute part

Capacitor RC-QZA211WRE0

#1-07

All parts diagram

Capacitor

Part #RC-QZA211WRE0

The manufacturer no longer makes this part, and there's no substitute part

Magnetron RV-MZA308WRZZ

#1-08A

All parts diagram

Magnetron

Part #RV-MZA308WRZZ

The manufacturer no longer makes this part, and there's no substitute part

Rubber Connector QCNC-A017WRZZ

#3-05

All parts diagram

Rubber connector

Part #QCNC-A017WRZZ

The manufacturer no longer makes this part, and there's no substitute part

Screen HPNL-A783WRRZ

#5-04

All parts diagram

Screen

Part #HPNL-A783WRRZ

The manufacturer no longer makes this part, and there's no substitute part

Power Supply FACCDA086WREZ

#1-05B

All parts diagram

Power supply

Part #FACCDA086WREZ

The manufacturer no longer makes this part, and there's no substitute part

Button FBTN-A145WRKZ

#3-02

All parts diagram

Button

Part #FBTN-A145WRKZ

The manufacturer no longer makes this part, and there's no substitute part

Door Frame GWAKPA869WRFZ

#5-03-1

All parts diagram

Door frame

Part #GWAKPA869WRFZ

The manufacturer no longer makes this part, and there's no substitute part

Microwave Lamp RLMPTA082WRZZ

#1-11

All parts diagram

Microwave lamp

Part #RLMPTA082WRZZ

The manufacturer no longer makes this part, and there's no substitute part
